How the vacuum indicator works
Before use, repeatedly press the vacuum pump until the red warning line disappears.
Wait several seconds and inspect the indicator again to confirm that the suction cup is maintaining its seal.
If the red warning line becomes visible, stop using the mount and inspect the installation.
This visual monitoring feature is particularly useful for camera operators who want an additional way to check mounting condition.
However, the warning indicator is not a substitute for properly securing the complete assembly and checking the other two suction cups.
Adjustable 17.7–46.8-Inch Aluminum Extension Pole
The included telescoping extension pole allows users to position their camera farther away from the mounting surface.
Constructed from aluminum alloy, the pole extends from approximately 17.7 inches (45 cm) to 46.8 inches (119 cm).
Its twist-to-lock design allows the operator to adjust the length and secure the selected position.
This makes the mount useful for several types of automotive filming:
- Stationary third-person vehicle perspectives.
- Elevated camera angles during vehicle walkarounds.
- Low-angle automotive photography.
- Wide 360-degree compositions.
- Interior and exterior project-car demonstrations.
For compatible Insta360 cameras, positioning the pole within the camera’s stitching blind spot may produce the familiar invisible selfie stick effect.
Actual results depend on the camera model, recording mode, stitching software, and pole alignment.
Why extension length matters
A longer camera pole can create more dramatic compositions, but it also increases leverage on the suction cup assembly.
Wind resistance, vibration, and camera weight can place additional stress on the mounting hardware.
For this reason, use the shortest practical extension and confirm that the complete assembly is suitable for the intended application.
The supplied description does not establish a verified maximum payload for the fully extended configuration.
Dual 360-Degree Ball Head Magic Arms
The kit includes two adjustable magic arms featuring dual-ball positioning mechanisms.
These arms provide 360-degree rotational adjustment, making it easier to position cameras without removing the entire mounting assembly.
A separate single-cup clamp also offers approximately 180 degrees of adjustment.
This combination gives creators greater control over framing and camera orientation.
For example, a stationary camera can be positioned to emphasize a vehicle’s front fascia, wheels, interior, or body lines.
Once the desired angle is selected, all locking mechanisms should be tightened and checked before recording.

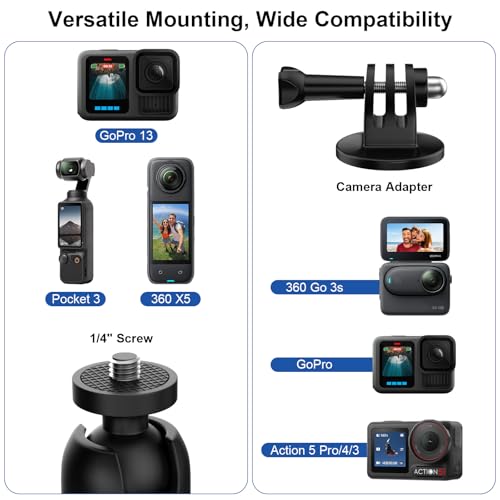

Compatible With Insta360, GoPro, DJI Osmo, and AKASO Cameras
The Triple Suction Cup Car Mount Kit includes an action-camera adapter and uses standard 1/4-inch threaded mounting connections.
This provides compatibility with a broad range of compact recording equipment.
Advertised camera compatibility
| Camera brand | Compatible models listed by seller |
|---|---|
| Insta360 | X2, X3, X4, Ace Pro, GO 3 |
| GoPro | HERO7 through HERO13 Black, MAX |
| DJI | Osmo Action 2, 3, 4, 5 |
| AKASO | Brave 4, 7, 8 |
| Other cameras | Compatible lightweight cameras using 1/4-inch mounting connections |
| Smartphones | Compatible phone holders with appropriate mounting threads |
The product title also advertises Insta360 X5 compatibility, although that model is not included in the detailed compatibility list.
Confirm the exact camera interface, adapter requirements, and total equipment weight before purchasing.
Cinematic Third-Person Automotive Footage Without a Drone
One reason 360-degree cameras have become popular among automotive content creators is their ability to capture unusual perspectives.
When mounted on a properly positioned extension pole, a compatible Insta360 camera can record footage that appears to originate from a floating camera beside or above the vehicle.
This effect can be particularly effective for vehicle introductions, promotional videos, and automotive event coverage.
Unlike a conventional forward-facing dashboard camera, a 360-degree recording can capture both the vehicle and its surroundings.
The footage can then be reframed during editing to create different perspectives from the same recording.
For automotive enthusiasts interested in documenting modifications, restoration projects, or vehicle showcases, this flexibility can make content more engaging.
Explore more automotive technical articles, DIY tutorials, and enthusiast features at My Pro Street Online.
How to Install the Triple Suction Cup Camera Mount
Proper installation is essential for protecting the camera, vehicle, and surrounding people.
Step 1: Select the mounting surface
Choose a clean, smooth, nonporous surface that provides sufficient space for all three suction cups.
Avoid textured dashboards, damaged paint, heavily curved panels, and surfaces that cannot maintain a complete suction seal.
Step 2: Clean the attachment area
Remove dirt, grease, wax residue, moisture, and other contaminants.
Allow the surface to dry completely before installation.
Step 3: Install the vacuum suction cup
Position the primary vacuum cup and operate the pump until the red warning indicator disappears.
Wait several seconds and verify that the indicator remains in the secured position.
Step 4: Attach the auxiliary suction cups
Install the two additional suction cups to complete the triangular mounting arrangement.
Check that all cups maintain full contact with the selected surfaces.
Step 5: Connect the magic arms
Attach the adjustable magic arms and clamps.
Tighten the connecting hardware while maintaining the intended mounting geometry.
Step 6: Install the extension pole
Connect the telescoping pole and select the shortest practical length.
Secure the twist-lock mechanism.
Step 7: Attach the camera
Use the included action-camera adapter or a compatible 1/4-inch mounting connection.
Verify that all accessories are securely attached.
Step 8: Perform a stationary inspection
Check the vacuum indicator, auxiliary suction cups, clamps, pole locks, and camera connection.
Use an appropriately rated independent safety tether for exterior camera equipment.
The manufacturer specifies operation below 80 km/h (approximately 50 mph), but this is an advertised limit rather than an independently verified safe operating speed. Exterior moving-vehicle filming should be limited to appropriate controlled environments with verified equipment ratings.
Triple Suction Cup Camera Mount Specifications
| Specification | Details |
|---|---|
| Product type | Triple suction cup automotive camera mount |
| Main mounting system | One vacuum cup and two auxiliary suction cups |
| Suction cup arrangement | Three-point triangular configuration |
| Vacuum indicator | Red warning line |
| Extension pole material | Aluminum alloy |
| Minimum pole length | 17.7 inches / 45 cm |
| Maximum pole length | 46.8 inches / 119 cm |
| Extension locking mechanism | Twist-to-lock |
| Magic arms | Two |
| Ball head adjustment | 360 degrees |
| Single-cup clamp adjustment | Approximately 180 degrees |
| Camera mounting connection | 1/4-inch thread and action-camera adapter |
| Advertised speed limit | Below 80 km/h / approximately 50 mph |
| Verified maximum payload | Not provided |
| Compatible camera brands | Insta360, GoPro, DJI, AKASO |
What’s Included in the Package?
The manufacturer lists the following components:
| Component | Quantity |
|---|---|
| Vacuum suction cup | 1 |
| Auxiliary suction cup mounts | 2 |
| Clamp A for suction cup | 1 |
| Clamp B for magic arm | 1 |
| Magic arms | 2 |
| Telescoping extension pole | 1 |
| Action-camera adapter | 1 |
This configuration gives users the major components needed to assemble the advertised camera mounting system.
Check whether additional safety tethers, camera-specific adapters, or mounting hardware are required for your intended setup.
Triple Suction Cup Mount vs. Standard Single-Cup Camera Mount
A single-cup camera mount is generally easier to transport and install, making it convenient for simple stationary interior recordings.
The triple suction cup design offers additional attachment points and greater camera positioning flexibility.
Its telescoping pole also allows the camera to be positioned farther from the vehicle than most compact windshield mounts.
However, the larger assembly requires more installation time, more surface area, and additional inspection.
For creators who primarily record dashboard footage, a compact mount may be sufficient.
For those interested in more elaborate stationary vehicle perspectives, the triple-cup system offers more configuration options.
Is This Triple Suction Cup Camera Mount Worth Buying?
The Triple Suction Cup Car Mount Kit offers a useful combination of mounting flexibility, vacuum monitoring, and adjustable camera positioning.
Its most distinctive feature is the combination of one pump-operated vacuum cup, two auxiliary suction cups, and a 46.8-inch extension pole.
This configuration provides more options than a basic windshield camera holder without requiring permanent modifications to the vehicle.
The dual magic arms and standard mounting connections also make the kit attractive to creators using multiple action-camera systems.
However, buyers should verify camera compatibility, maximum equipment weight, and operating limitations before using the mount.
Final verdict: This triple suction cup camera mount is worth considering for Insta360 and GoPro users who want flexible stationary automotive filming setups, immersive third-person camera angles, and a visible vacuum monitoring feature.
For automotive upgrades, maintenance parts, and performance accessories, visit Pro Street Online.
Product specifications are based on the supplied seller description. No independent hands-on testing or high-speed retention testing has been performed.
