Critical Fitment Requirements

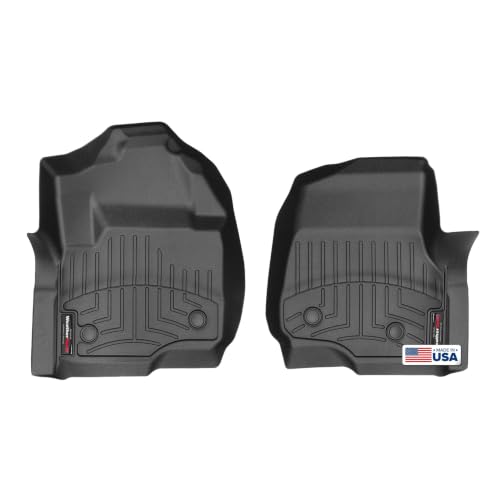

WeatherTech 4410511V is designed for:
- SuperCab or Crew Cab trucks
- Factory vinyl flooring
- First-row coverage
- Compatible 2017–2026 Super Duty models
- Original floor and retention configuration
It is not intended for:
- Carpeted floors
- Regular Cab trucks unless separately confirmed
- Ford F-150
- Older 2016-and-earlier Super Duty models
- Modified transmission tunnels
- Vehicles with aftermarket carpet installed over the vinyl floor
- Second-row protection
Front-seat style should still be checked through the application guide. Floor-mounted shifters, consoles and specialty commercial interiors may affect fitment.
For more help matching configuration-specific parts, see our OEM replacement parts buying guide.
Product Specifications
| Specification | Details |
|---|---|
| Brand | WeatherTech |
| Part number | 4410511V |
| Product type | Vinyl-floor FloorLiner |
| Position | First row |
| Color | Black |
| Cab compatibility | SuperCab and Crew Cab |
| Floor requirement | Factory vinyl |
| Material | High-density thermoplastic blend |
| Fit type | Laser-measured, vehicle-specific |
| Installation | No cutting or drilling |
| Manufacturing | Made in USA |
| Warranty | Limited lifetime warranty |
The product is also sold under the description “Front FloorLiner for Vinyl Floors,” with 4410511V shown as the model number. View the cross-reference information.
Why Vinyl Flooring Requires a Different Liner
Carpeted and vinyl-floor Super Duty interiors do not provide identical mounting surfaces. Carpet adds thickness, texture and friction, while a factory vinyl floor is smoother and sits closer to the underlying floor pan.
A carpet-specific liner placed on vinyl may:
- Sit too loosely
- Rock around the floor contours
- Shift more easily
- Fit poorly around retention points
- Interfere with pedal clearance
WeatherTech 4410511V is formed around the vinyl-floor profile instead of treating it as carpet without the fuzz.
Laser-Measured First-Row Coverage
The liner is digitally measured to follow the Super Duty’s front floor contours. Depending on the confirmed configuration, coverage extends across the:
- Driver footwell
- Passenger footwell
- Areas surrounding the pedals
- Transmission-tunnel section
- Door-side floor edges
- Front and rear footwell walls
Raised edges help contain water and debris rather than allowing it to run across the factory vinyl floor.
Yes, the truck already has vinyl flooring. The liner still makes sense because removing and rinsing a liner is easier than kneeling inside a work truck and scrubbing mud from every molded groove Ford provided.
High-Density Thermoplastic Construction
WeatherTech uses a rigid high-density thermoplastic material designed to maintain its molded shape under regular automotive use.
The material provides:
- Structural rigidity
- Temperature resistance
- Raised-wall support
- A textured upper surface
- Resistance to common moisture and debris
- Easy removal for cleaning
The product listing describes the material as recyclable, latex-free and PVC-free.
Channels and Lower Reservoirs
Molded surface channels direct moisture and debris toward lower collection areas. This helps limit movement during braking and cornering while keeping contaminants away from the driver’s shoes.
The liner is designed to handle:
- Worksite mud
- Rainwater
- Melted snow
- Road salt
- Gravel and sand
- Farm debris
- Food and drink spills
- Wet or oily work boots
Chemical spills, fuel, solvents and harsh cleaners should be removed promptly. Automotive floor liners are durable, but they are not hazardous-material containment systems.
Vinyl-Specific Liner Versus Carpet FloorLiner
| Feature | 4410511V vinyl-floor liner | Standard carpet-floor liner |
|---|---|---|
| Designed for factory vinyl | Yes | No |
| Designed for carpet | No | Yes |
| Laser-measured | Yes | Yes |
| Raised edges | Yes | Yes |
| First-row coverage | Yes | Application-dependent |
| Correct vinyl-floor contour | Yes | Not guaranteed |
| Safe fit without carpet friction | Application-specific | Not guaranteed |
Choose the liner according to the truck’s original floor material, not merely its year and cab style.
What Is Included?
The package contains the WeatherTech first-row vinyl-floor liner assembly for the compatible Super Duty application.
It does not include:
- Second-row liner
- Rear under-seat storage liner
- Carpet replacement
- Cargo or bed liner
- Additional trim pieces
Rear liners must be selected separately according to cab length, seat design and under-seat storage configuration.
Installation
Installation requires no cutting or drilling:
- Remove any loose aftermarket mats.
- Clean and dry the factory vinyl floor.
- Inspect the original retention points.
- Position the WeatherTech liner in the cab.
- Align the molded sections with the transmission tunnel and footwells.
- Connect all applicable retention devices.
- Press the edges into their intended positions.
- Verify unrestricted accelerator and brake-pedal movement.
Do not stack the liner over another mat. Floor-mat stacking creates extra height and makes movement more likely.
Cleaning and Maintenance
Remove the liner from the truck before washing it. Shake out loose debris, rinse with water and use a mild automotive-safe cleaner when necessary.
Avoid applying:
- Tire shine
- Silicone dressing
- Oil-based protectants
- Slippery interior products
- Petroleum solvents
Dry the liner before reinstalling it and confirm that all retention points remain secure.
For additional cabin maintenance, see our dashboard and interior trim repair guide.
Frequently Asked Questions
What is the part number?
The black first-row Super Duty FloorLiner for factory vinyl flooring is 4410511V.
What years does it fit?
It is listed for select 2017–2026 Ford Super Duty models. Exact coverage depends on the model, cab and interior configuration.
Does it fit carpeted trucks?
No. This version is molded specifically for factory vinyl flooring.
Does it fit both SuperCab and Crew Cab trucks?
Yes, the first-row application is listed for compatible SuperCab and Crew Cab models. Confirm the exact model and interior through the fitment selector.
Does it include a rear liner?
No. This is a first-row product only.
Does it fit the F-150?
No. It is designed for the larger Ford Super Duty cab platform.
Is this an over-the-hump liner?
The vinyl-floor application is shaped around the relevant first-row floor and transmission tunnel. Confirm the product images against the truck’s console, seat and shifter arrangement before ordering.
Why not use a standard liner on vinyl?
A carpet-specific liner may not seat or grip correctly on the smoother vinyl surface. The vinyl-floor model is shaped and engineered for that application.
Final Verdict
WeatherTech 4410511V is a practical upgrade for commercial and privately owned Super Duty trucks with factory vinyl floors. Its molded coverage makes routine cleaning easier while providing another barrier against mud, salt, spills and jobsite debris.
Confirm three things before ordering: model year, cab type and factory vinyl flooring. “It’s a Super Duty” is a useful start, but Ford’s option catalog demands additional paperwork before allowing anyone clean shoes.
