Richeer Wheel Spacer Kit GM 5×120 Camaro CT5 CTS-V

Key Features

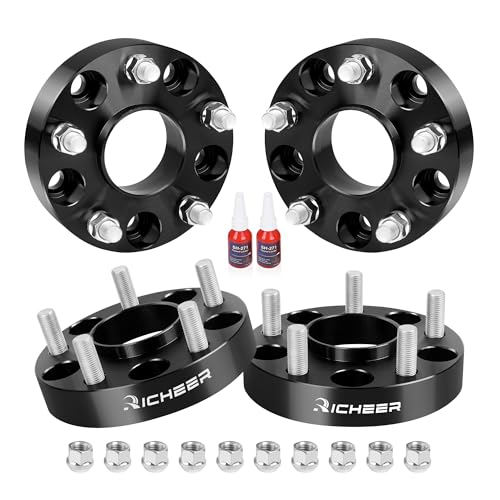

• Includes:
  • 4 wheel spacers
• Thickness:
  • 1 inch / 25mm per spacer
• Bolt Pattern:
  • 5×120
• Center Bore:
  • 66.9mm hubcentric
• Thread Pitch:
  • M14x1.5
• Hubcentric bolt-on spacer design
• Precision CNC-machined construction
• High-strength Grade 12.9 studs included

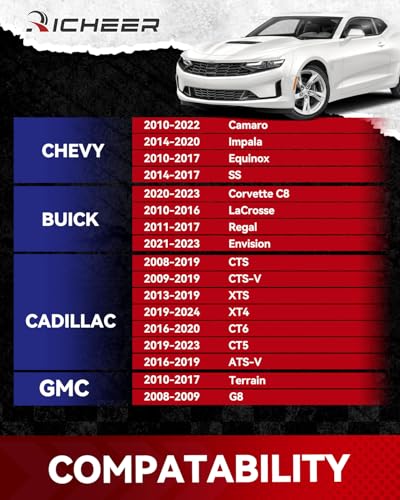

Vehicle Compatibility

Chevrolet

Compatible with:

• Chevrolet Camaro → 2010–2022
• Chevrolet Impala → 2014–2020
• Chevrolet Equinox → 2010–2017
• Chevrolet SS → 2014–2017
• Chevrolet Corvette → 2020–2023

Buick

Compatible with:

• Buick LaCrosse → 2010–2016
• Buick Regal → 2011–2017
• Buick Envision → 2021–2023

Cadillac

Compatible with:

• Cadillac CTS → 2008–2019
• Cadillac CTS-V → 2009–2019
• Cadillac XTS → 2013–2019
• Cadillac XT4 → 2019–2024
• Cadillac CT6 → 2016–2020
• Cadillac CT5 → 2019–2023
• Cadillac ATS-V → 2016–2019

GMC

Compatible with:

• GMC Terrain → 2010–2017

Pontiac

Compatible with:

• Pontiac G8 → 2008–2009

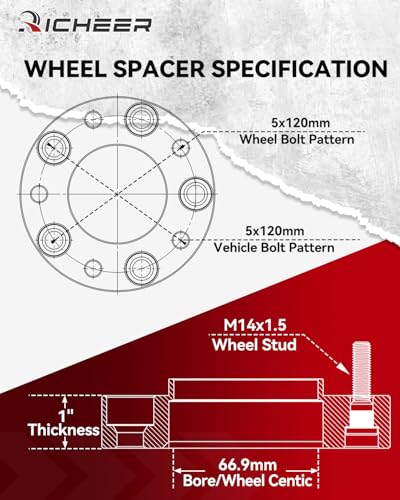

Specification: 4 pcs 1″ Thickness; 5×120 mm Vehicle Bolt Pattern; 5×120 mm Wheel Bolt Pattern; 66.9 mm Hub Centric Center Bore; M14x1.5 Threaded Studs/Nuts

Why Hubcentric Matters

Hubcentric spacers:

• Properly center the wheel on the hub
• Reduce steering vibration
• Improve wheel balance accuracy
• Provide smoother highway driving

Because cheap universal spacers that wobble at freeway speeds are not “performance parts.”

High Tensile Strength: The Grade 12.9 stud can succeed in a tensile strength of 1000MPa, which has upper tensile strength and yield strength than the 10.9 stud, providing better structural toughen and safety

Performance Benefits

Wheel spacers can help:

• Widen track width
• Improve cornering stability
• Enhance steering response
• Improve flush wheel fitment
• Create a more aggressive stance

Your Camaro or CTS-V instantly looks more planted and muscular.

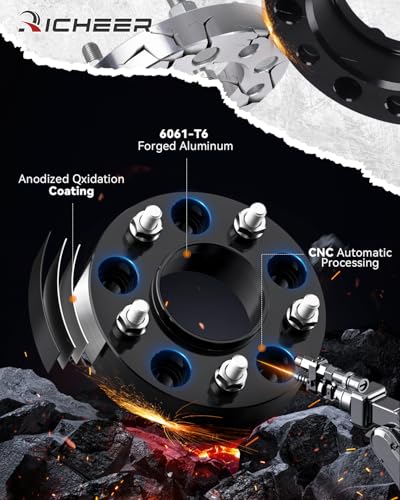

Superior Performance: The wheels are fabricated from fine quality forged 6061-T6 billet aluminum alloy and CNC precision machining, and the outside anodized coating too can give protection to the metal surface from environmental erosion under extreme conditions

Grade 12.9 Stud Strength

Included hardware features:

• High-strength Grade 12.9 studs
• Tensile strength up to 1000MPa
• Improved durability and structural support

Which matters when you’re attaching wheels to a 455-horsepower Camaro SS.

Receive advantages: The wheel spacers provide extra width for the wheel track to bring an aggressive appearance, and with the advance of traction, the vehicle’s anti-roll performance and handling comfort have been greatly improved

Precision Construction

These spacers are:

• CNC-machined for exact tolerances
• Built with durable aluminum construction
• Designed for long-term stability and reliability

Because wheel spacers should not feel like mystery metal from the internet.

Richeer 5×120 Wheel Spacers Camaro CTS-V Corvette C8 CT5 1 Inch

Installation Notes

• Bolt-on installation
• Proper torque procedure required
• Re-torque after initial driving period
• Verify fender and suspension clearance before installation

Because wheel fitment mistakes escalate quickly.

Final Take

No horsepower gains.

But wider stance, cleaner fitment, and improved handling feel dramatically change the appearance of these GM platforms—and honestly, that’s the whole point.
