Common applications include:
- Turbocharged LS builds
- Supercharged LS engines
- Modified GM trucks
- E85 conversions
- Flex-fuel builds
- Engine swaps
- Larger injector upgrades
- High-horsepower street vehicles
- Street/strip trucks
- Custom EFI projects
A 450LPH rating doesn’t establish a universal horsepower limit. Actual capacity changes with fuel pressure, voltage, fuel type and engine configuration.
085 Configuration for GM Fuel Pump Buckets
The 085 configuration is one of the most important features of the QFS-450FT-085 package.
Rather than supplying only a bare universal pump, this kit combines the 450LPH pump with installation components intended to simplify adaptation into many GM fuel-pump modules.
The included flat-style strainer and modular electrical harness are particularly useful when installing the pump into compatible GM fuel buckets.
Applications listed for this configuration include various 2004–2009 General Motors vehicles, including certain:
- Chevrolet Silverado
- Chevrolet Tahoe
- Chevrolet Impala
- GMC Sierra
- GMC Yukon
- Cadillac Escalade
- Pontiac Grand Prix
Always verify the original fuel-pump module and vehicle-specific configuration before ordering.
Model name and year alone don’t guarantee fitment.
Excellent Upgrade for Turbocharged LS Builds
The GM LS platform responds extremely well to forced induction, which is fantastic right up until the stock fuel system receives the invoice.
Adding a turbocharger dramatically increases fuel demand as boost and airflow rise.
A 450LPH pump provides additional capacity for builds using larger injectors, increased boost and aftermarket engine management or ECU calibration.
The pump should still be selected according to actual fuel requirements at maximum operating pressure.
On boost-referenced systems, rail pressure increases as boost increases. That means the pump has to maintain adequate flow while operating against progressively higher pressure.
Maximum advertised LPH is only the beginning of the calculation.
E85-Compatible 450LPH Fuel Pump
The QFS-450FT-085 is compatible with E85 and high-ethanol fuel blends, making it particularly useful for boosted GM performance builds.
E85 is popular with turbocharged and supercharged engines, but it requires greater fuel volume than conventional gasoline.
That can quickly turn an adequate gasoline fuel system into an undersized E85 fuel system.
If you’re planning the conversion, read our How to Convert to E85 guide before choosing the remaining components.
Pump capacity, injector flow, fuel-line capacity and ECU calibration all need to work together.
Make Sure the Rest of the Fuel System Is E85 Ready
Installing an E85-compatible pump doesn’t automatically make an older GM fuel system ready for high ethanol content.
Fuel hoses, seals, filters, regulator components and other materials also need to be evaluated.
Our guide to upgrading fuel lines for E85 explains why plumbing and material compatibility become important when converting from gasoline.
High-flow pumps also expose restrictions that may not have mattered at factory power levels.
A 450LPH pump can only move as much useful fuel as the rest of the system allows.
Pair Your 450LPH Pump With Proper Injectors
A high-flow pump and undersized injectors don’t make a high-capacity fuel system.
Modified LS engines, boosted GM trucks and E85 conversions commonly require injector upgrades alongside the pump.
Our guide to fuel injector upgrade benefits explains how injector flow and duty cycle affect performance applications.
The complete fuel path should be considered together:
Fuel Tank → Pump → Filter → Feed Line → Fuel Rail → Injectors → Regulator
For return-style systems, the regulator and return plumbing also need enough capacity to manage excess pump flow.
Return or Returnless Fuel System?
Many GM platforms use fuel systems that differ considerably depending on year and application.
Some use conventional return arrangements, while others use returnless or electronically managed fuel-delivery systems.
Adding a 450LPH pump can change how these systems behave.
Our guide comparing returnless versus return fuel systems explains why regulator capacity and system architecture matter when significantly increasing pump flow.
This is particularly important when adapting a universal performance pump into a factory GM module.
Electrical Upgrades May Be Necessary
High-flow electric fuel pumps need adequate voltage and current.
Factory wiring designed around a lower-output pump may create voltage drop when a substantially larger performance pump is installed.
Inspect:
- Fuel-pump power wiring
- Ground wiring
- Relays
- Fuse protection
- Electrical connectors
- Fuel-pump control module
- Voltage at the pump

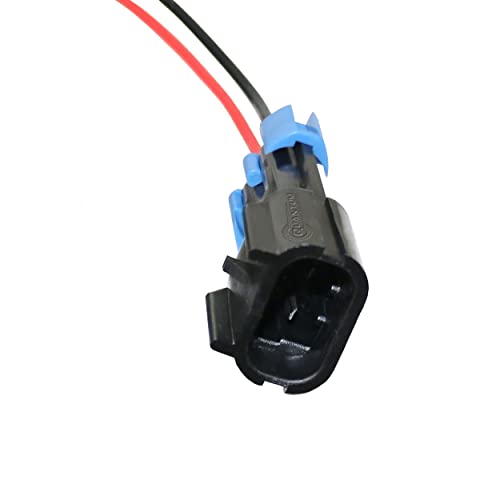

The QFS kit includes a heavy-duty wiring pigtail and butt connectors to assist with the installation.
Depending on the vehicle, additional electrical upgrades may still be necessary.
Remember: the pump doesn’t care what voltage your alternator makes at the engine bay. It cares what voltage actually arrives at the pump.
Complete QFS 085 Installation Kit
The QFS-450FT-085 package includes the essential components needed for many custom GM installations.

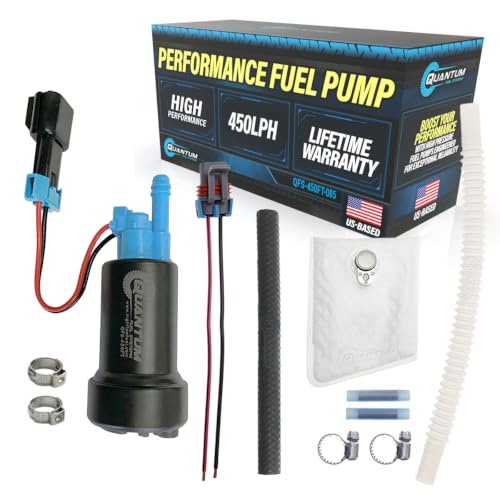

Kit Includes
- 1 × QFS 450LPH Electric Fuel Pump
- 1 × High-Flow Gradient-Density Fuel Strainer
- Submersible Fuel-Rated Rubber Hose
- Stainless-Steel Clamps
- Heavy-Duty Wiring Pigtail
- Electrical Butt Connectors
Additional vehicle-specific components or modifications may be required.
Is the QFS-450FT-085 Direct Fit?
The QFS-450FT-085 is best described as a universal performance pump with GM-oriented installation hardware rather than a guaranteed direct-fit replacement for every vehicle listed.
GM used different fuel modules and configurations across engines, platforms and production years.
Before ordering, compare:
- Original pump dimensions
- Fuel-pump bucket
- Strainer position
- Electrical connector
- Outlet arrangement
- Fuel hose
- Wiring
- Fuel-pressure control system
Minor modifications may be necessary, and professional installation is recommended.
Ideal GM Performance Applications
The QFS 450LPH Hellcat-style pump with 085 installation kit is particularly attractive for modified:
Chevrolet Silverado – Turbo, supercharged, LS performance and E85 truck builds.
Chevrolet Tahoe – Modified LS engines, forced induction and flex-fuel projects.
GMC Sierra – High-output truck builds requiring substantially increased fuel capacity.
GMC Yukon – Modified and forced-induction GM SUV applications.
Cadillac Escalade – High-horsepower LS-based performance builds.
Pontiac Grand Prix – Modified and forced-induction EFI applications where compatible with the original fuel module.
Chevrolet Impala – Performance applications requiring increased pump capacity where the 085 installation configuration is compatible.
Always verify vehicle-specific fitment before ordering.
Why Choose the QFS 450LPH 085 Fuel Pump Kit?
The biggest advantage of the QFS-450FT-085 is that it combines serious 450LPH fuel capacity with an installation package geared toward adapting the pump into popular GM fuel modules.
For builders working with modified Silverado, Sierra, Tahoe, Yukon, Escalade, Impala and Grand Prix platforms, that can eliminate some of the guesswork involved in adapting a bare universal performance pump.
Its E85 compatibility also makes it a logical option for modern turbocharged, supercharged and flex-fuel builds.
Match the pump to properly sized injectors, adequate electrical supply and sufficient fuel plumbing, and you have the foundation for a substantially upgraded GM fuel system.
Because once your LS has a giant turbo hanging off it, expecting the stock fuel pump to simply “try harder” probably isn’t the tuning strategy you want.
Product Specifications
Brand: QFS
SKU: QFS-450FT-085
Product Type: High-Flow In-Tank Electric Fuel Pump
Rated Flow: 450 LPH
Configuration: 085 GM-oriented installation configuration
Pump Design: Turbine-style
Fuel Compatibility: Gasoline, E85 and high-ethanol blends as specified
Installation Type: In-Tank
Fitment: Universal performance / adaptable GM applications
Fuel Strainer: High-flow gradient-density flat-style strainer
Fuel Hose: Submersible fuel-rated hose
Electrical Connection: Heavy-duty wiring pigtail with butt connectors
Clamps: Stainless steel
Warranty: Lifetime warranty as specified by QFS
Potential Applications: Select 2004–2009 Chevrolet Silverado, Tahoe and Impala; GMC Sierra and Yukon; Cadillac Escalade; Pontiac Grand Prix; and other compatible GM fuel-pump modules.
Fitment Note: Vehicle listings indicate potential compatibility rather than guaranteed direct fit. Verify SKU QFS-450FT-085 against the original pump/module and vehicle application before ordering. Minor modification or professional installation may be required.
