Moroso 25973 Universal Twist-Lock Oil Dipstick Kit

Flexible Zinc-Plated Construction

The Moroso 25973 uses a flexible zinc-plated dipstick assembly rather than a rigid straight tube.

That flexibility matters in performance engine bays.

Headers, steering shafts, engine mounts, accessory drives and custom exhaust systems frequently occupy the exact piece of real estate where you’d ideally route a dipstick tube.

The bendable outer tube allows the installer to route the assembly around those obstacles while the adjustable mounting clamp helps secure it in the desired location.

This can be especially useful during engine swaps where factory dipstick routing no longer works with the new chassis or exhaust configuration.

Anyone who has performed an engine swap knows the rule: the component that fit perfectly on the engine stand will somehow occupy the same physical space as three other components once the engine enters the car.

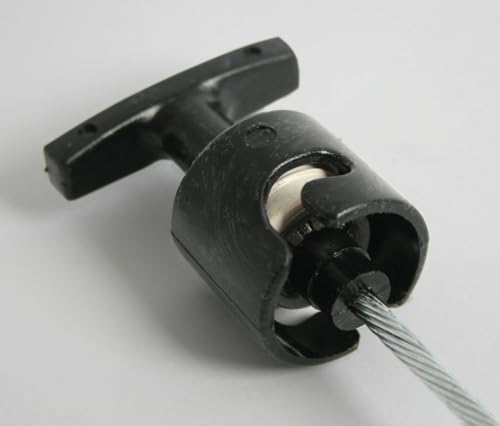

High-Temperature Black Nylon Handle

The Moroso 25973 uses a black high-temperature nylon handle designed to dissipate heat.

That’s a practical detail when checking the oil level after an engine has reached operating temperature.

The handle also incorporates the twist-lock mechanism that distinguishes the 25973 from Moroso’s conventional universal dipstick designs.

The result is a cleaner, more secure arrangement for performance applications where a basic friction-fit dipstick isn’t ideal.

24-Inch Overall Length

Moroso specifies the 25973 at approximately 24 inches overall, including the exposed portion of the dipstick.

Because this is a universal kit, the tube and mounting tab can be bent or modified to suit the engine compartment and installation location.

That makes it useful for:

• Street performance cars
• Drag cars
• Road-race builds
• Pro Street cars
• Hot rods
• Restomods
• Engine swaps
• Custom oil-pan installations
• Competition engines
• Vehicles with tight header clearance

The important distinction is that universal does not mean install it anywhere and assume the markings are correct.

Oil level still needs to be calibrated for the specific engine and oil pan.

Includes a 1/4-Inch NPT Weld-In Fitting

Moroso includes a 1/4-inch NPT steel weld-in fitting for oil pans that don’t already provide the necessary dipstick connection.

This expands the number of oil pans and custom applications where the 25973 can be used.

Many Moroso performance oil pans already provide a 1/4-inch NPT dipstick provision. Moroso also lists the 25973 as an available dipstick option for numerous Chevrolet, Ford and other performance oil-pan applications.

If the pan doesn’t have the appropriate provision, the supplied steel fitting can be installed by a qualified welder or fabricator.

Adjustable for the Correct Oil Level

One of the biggest advantages of a universal dipstick is also the reason it needs to be installed correctly.

The dipstick needs to represent the actual oil level in your particular oil pan, not simply an arbitrary mark on a stick.

Moroso allows the existing FULL and FILL marks to be retained when appropriate, or new markings can be added after determining the correct oil level for the engine and pan combination.

This is particularly important when installing an aftermarket high-capacity oil pan.

If you’re modifying the rest of the lubrication system, oil capacity should be treated as part of the complete engine combination. The same philosophy applies when planning a forced-induction engine using our Complete Turbo Build Guide: oil supply, oil pressure, crankcase ventilation and oil control need to work together rather than being treated as unrelated parts.

How to Calibrate a Universal Dipstick

The safest approach is to establish the correct oil level based on the oil pan manufacturer’s specified capacity.

Install the appropriate oil filter and add the specified quantity of oil for the complete system. The dipstick can then be adjusted until the correct oil level corresponds with the FULL mark.

Moroso’s installation guidance explains that the adjustable fitting allows the dipstick height to be set for a particular oil level.

Once correctly positioned, secure the assembly and verify that the dipstick has adequate clearance from the rotating assembly.

That final check matters.

A dipstick that accurately measures oil but gets introduced to the crankshaft at 6,500 rpm has technically accomplished only half of its job.

Check Rotating-Assembly Clearance

Custom oil pans, stroker crankshafts and non-stock engine combinations can change the amount of available clearance inside the oil pan.

Moroso specifically recommends checking dipstick-to-rotating-assembly clearance regardless of the engine combination.

This becomes especially important on stroker engines, racing oil pans and engine swaps where the factory relationship between the crankshaft, pan and dipstick no longer exists.

Rotate the engine manually through a complete cycle during installation and confirm that the dipstick and internal portion of the tube cannot contact the crankshaft, connecting rods or other rotating components.

Crankcase Pressure Matters

A dipstick that repeatedly pushes upward shouldn’t automatically be dismissed as a bad dipstick.

It can also be a symptom.

Excessive crankcase pressure may indicate problems involving:

• PCV system operation
• Crankcase ventilation
• Excessive blow-by
• Worn piston rings
• Improper breather configuration
• Boost entering the crankcase
• Restricted evacuation systems

That becomes especially important on turbocharged engines. As discussed throughout our turbo build and engine-health coverage, compression, leak-down results, oil pressure and PCV operation should be evaluated before adding more boost to an engine.

A locking dipstick can prevent the handle from being pushed out, but it shouldn’t be used to disguise a crankcase-pressure problem that needs diagnosis.

Useful for Custom Oil Pan Installations

The Moroso 25973 makes particular sense when an aftermarket oil pan changes the factory dipstick location.

Moroso lists the universal 25973 as an available option with numerous performance oil pans, including applications for Chevrolet big-block, Ford small-block, Ford FE and GM LS engines.

That doesn’t make the dipstick automatically vehicle-specific. Instead, it means the universal design can be adapted to compatible oil pans and engine combinations that provide—or can be modified to provide—the appropriate mounting provision.

For engine swaps and custom builds, that flexibility is often more valuable than trying to force a factory dipstick tube around headers or chassis components that were never designed to coexist.

Moroso 25973 Features

• Moroso part number 25973
• Universal twist-lock oil dipstick kit
• Positive twist-lock handle
• Helps prevent the dipstick from being pushed out
• Helps reduce oil leakage around the dipstick
• Helps minimize crankcase-gas leakage
• Black high-temperature nylon handle
• Flexible zinc-plated dipstick assembly
• Bendable outer tube
• Adjustable mounting clamp
• Universal mounting tab
• Approximately 24-inch overall length
• Supplied 1/4-inch NPT steel weld-in fitting
• Existing FULL and FILL markings can be retained when appropriate
• Can be remarked for custom oil levels
• Designed for performance and custom engine applications
• Made in the USA

Universal Fitment — Not Vehicle-Specific

Some marketplace listings describe the Moroso 25973 as having a vehicle-specific fit type.

That description is misleading.

Moroso identifies part number 25973 as a Universal Dipstick Kit, Twist Lock. Its adjustable tube, mounting tab and supplied weld-in fitting are specifically intended to accommodate different engine compartments and oil-pan configurations.

Before ordering, confirm:

• Oil pan dipstick provision
• Available mounting location
• Header and exhaust clearance
• Required dipstick length
• Oil-pan capacity
• Internal rotating-assembly clearance
• Ability to install the supplied fitting if required

This isn’t a year/make/model replacement dipstick where compatibility should be assumed from a vehicle lookup alone.

Who Should Use the Moroso 25973?

The Moroso 25973 is best suited to enthusiasts and engine builders who need more flexibility and retention than a conventional factory dipstick provides.

It’s especially useful for cars with custom oil pans, engine swaps, race engines, crowded engine compartments and applications where crankcase sealing is important.

For a completely stock daily driver with an intact factory dipstick system, replacing everything with a universal racing-style assembly probably isn’t necessary.

For a swapped, stroked, turbocharged or competition engine where the original dipstick location disappeared somewhere between the headers and chassis, the 25973 starts making considerably more sense.

Final Verdict

The Moroso 25973 Universal Twist-Lock Dipstick Kit is a small component designed to solve several very real problems found in modified engines.

Its flexible zinc-plated construction simplifies routing, the adjustable design allows it to accommodate custom oil levels and pan configurations, and the twist-lock handle provides positive retention while helping seal the crankcase.

The supplied 1/4-inch NPT fitting also makes it adaptable to custom oil pans that don’t already have the correct dipstick provision.

Most importantly, the Moroso 25973 should be treated as a universal, calibratable performance component, not a vehicle-specific replacement dipstick. Install it around the actual oil capacity and geometry of the engine, verify rotating clearance, and then establish the proper FULL and FILL marks.

Because when the dipstick says FULL, it’s generally preferable for that statement to be based on something more scientific than optimism.
