Mishimoto MMHOSE-4RUN34-96BK Silicone Radiator Hose Kit for 1996–2002 Toyota 4Runner 3.4L

Important 2.7L Fitment Warning

This hose kit does not fit the 2.7L 3RZ-FE four-cylinder engine.

Some third-party compatibility tables mix 2.7L and 3.4L 4Runners into the same listing. The product itself is specifically engineered for the 3.4L V6. Always verify the engine before purchasing; online fitment tables occasionally treat accuracy as an optional accessory.

Four-Ply Silicone Construction

Each hose is constructed from four layers of high-grade silicone reinforced with heat-resistant fibers. This construction provides better tolerance for engine-compartment heat, cooling-system pressure and long-term exposure than deteriorated factory rubber.

Key features include:

• Four-ply reinforced silicone
• Embedded heat-resistant fibers
• Maximum temperature rating of 330°F
• Increased heat and pressure tolerance
• Preformed factory-style bends
• Black OEM-inspired finish
• Direct replacement-style installation
• Mishimoto Lifetime Warranty

The black finish suits restored and understated engine bays while retaining the improved construction of a performance silicone hose.

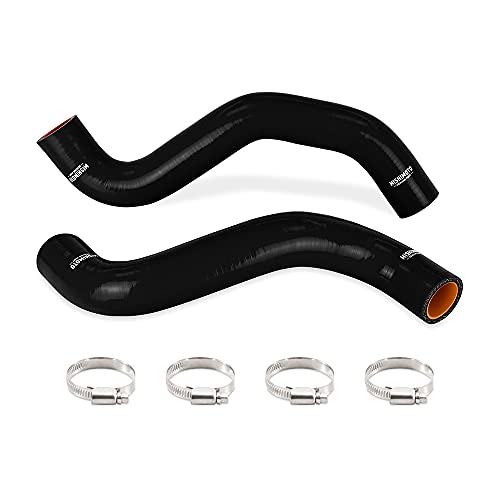

What’s Included?

The kit includes:

• One upper radiator hose
• One lower radiator hose
• Complete worm-gear clamp set

This package replaces the main radiator hoses. It does not include the heater hoses, bypass hoses, overflow hose or other smaller coolant lines.

Designed for Factory-Style Routing

The upper and lower hoses are preformed to match the original 5VZ-FE cooling-system layout. They connect the engine to a factory-location radiator without universal elbows, improvised splices or the plumbing-aisle experimentation that occasionally appears on older trail rigs.

Fitment should still be verified if the 4Runner has:

• An aftermarket radiator
• A body lift
• An engine conversion
• A supercharger installation with modified routing
• Relocated accessories
• Custom fan or shroud mounting
• Nonstandard thermostat or water-pump connections

When Should 4Runner Radiator Hoses Be Replaced?

Inspect or replace the hoses when you notice:

• Cracks around the hose ends
• Soft, swollen or oil-contaminated sections
• Coolant residue around a clamp
• A hose that collapses after shutdown
• Abrasion from the fan shroud or brackets
• Hardened rubber that no longer flexes
• A persistent coolant smell
• Falling coolant level
• Temperature fluctuations or overheating

If coolant is disappearing without leaving an obvious puddle, follow our guide on how to find a coolant leak. Small leaks often appear only when the system is hot and pressurized.

Installation Overview

Only work on the cooling system after the engine has cooled completely.

A typical installation involves:

1. Confirm that the engine is the 3.4L 5VZ-FE.
2. Photograph the original hose routing.
3. Drain the coolant into a suitable container.
4. Remove the original hose clamps.
5. Carefully separate the hoses from the radiator and engine fittings.
6. Clean and inspect each sealing surface.
7. Compare the new hoses with the original parts.
8. Install each hose without twisting or stretching it.
9. Position the clamps behind the raised connection beads.
10. Check fan, belt and shroud clearance.
11. Refill with Toyota-compatible coolant.
12. Bleed trapped air from the system.
13. Bring the engine to operating temperature.
14. Inspect every connection for leakage.
15. Recheck the coolant level after the engine cools.

Use our cooling-system flush guide if the existing coolant is contaminated, rusty or of unknown age.

Avoid overtightening the worm-gear clamps. Excessive clamping force can damage silicone hoses and distort aluminum or plastic radiator connections.

Inspect the Complete 5VZ-FE Cooling System

Replacing the hoses is a good opportunity to inspect:

• Radiator core and tanks
• Lower-hose anti-collapse support
• Thermostat and housing
• Water pump
• Fan clutch
• Fan blades and shroud
• Radiator cap
• Coolant reservoir
• Heater hoses
• Drive belts
• Timing-belt service history

Our complete cooling-system guide explains how these components work together.

If the 4Runner already runs hot, consult:

• Why a vehicle overheats while driving
• Seven signs of a failing radiator
• Bad thermostat versus bad water pump
• Car overheating while the heater blows cold
• Can radiator stop-leak cause damage?
• When should you stop driving?

Frequently Asked Questions

What vehicles does MMHOSE-4RUN34-96BK fit?

It fits the 1996–2002 Toyota 4Runner equipped with the 3.4L 5VZ-FE V6.

Does it fit a 2.7L Toyota 4Runner?

No. It is not designed for the 2.7L 3RZ-FE four-cylinder engine.

Does it fit both two-wheel-drive and four-wheel-drive models?

Yes, when equipped with the compatible factory-style 3.4L cooling system. Verify modified vehicles before ordering.

Does it fit Base, SR5 and Limited trims?

Yes, provided the vehicle has the 3.4L V6. Engine configuration matters more than trim level.

Are the upper and lower hoses included?

Yes. The kit includes both primary radiator hoses and a set of worm-gear clamps.

Will it fit an aftermarket aluminum radiator?

It should fit direct-replacement radiators using factory inlet and outlet locations. Measure the connections on custom or universal radiators.

Does the hose kit fit a Toyota Tacoma with the 3.4L engine?

Do not assume so. Tacoma radiator placement and hose routing may differ despite sharing the 5VZ-FE engine. Use a kit specifically cataloged for the Tacoma.

Will silicone hoses prevent overheating?

They can eliminate a leak or hose-collapse problem, but they cannot repair a clogged radiator, failed fan clutch, defective thermostat, worn water pump, trapped air or internal engine problem.

Product Specifications
