Application

For Mitsubishi 4G63 Eclipse Lancer 4 – 9(7-Bolt) GEN 2

Note:Will not fit 1G 4G63 6 Bolt Engines. We have related products.

For Talon TSi 1993-1998For Mitsubishi Eclipse GS 1993-1994For Mitsubishi Eclipse GST 1993-1999

For Mitsubishi Eclipse GSX 1993-1999For Mitsubishi Eclipse Spyder GST 1996-1999

For Mitsubishi Lancer Evolution 2003-2006For Plymouth Laser RS 1993-1994

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

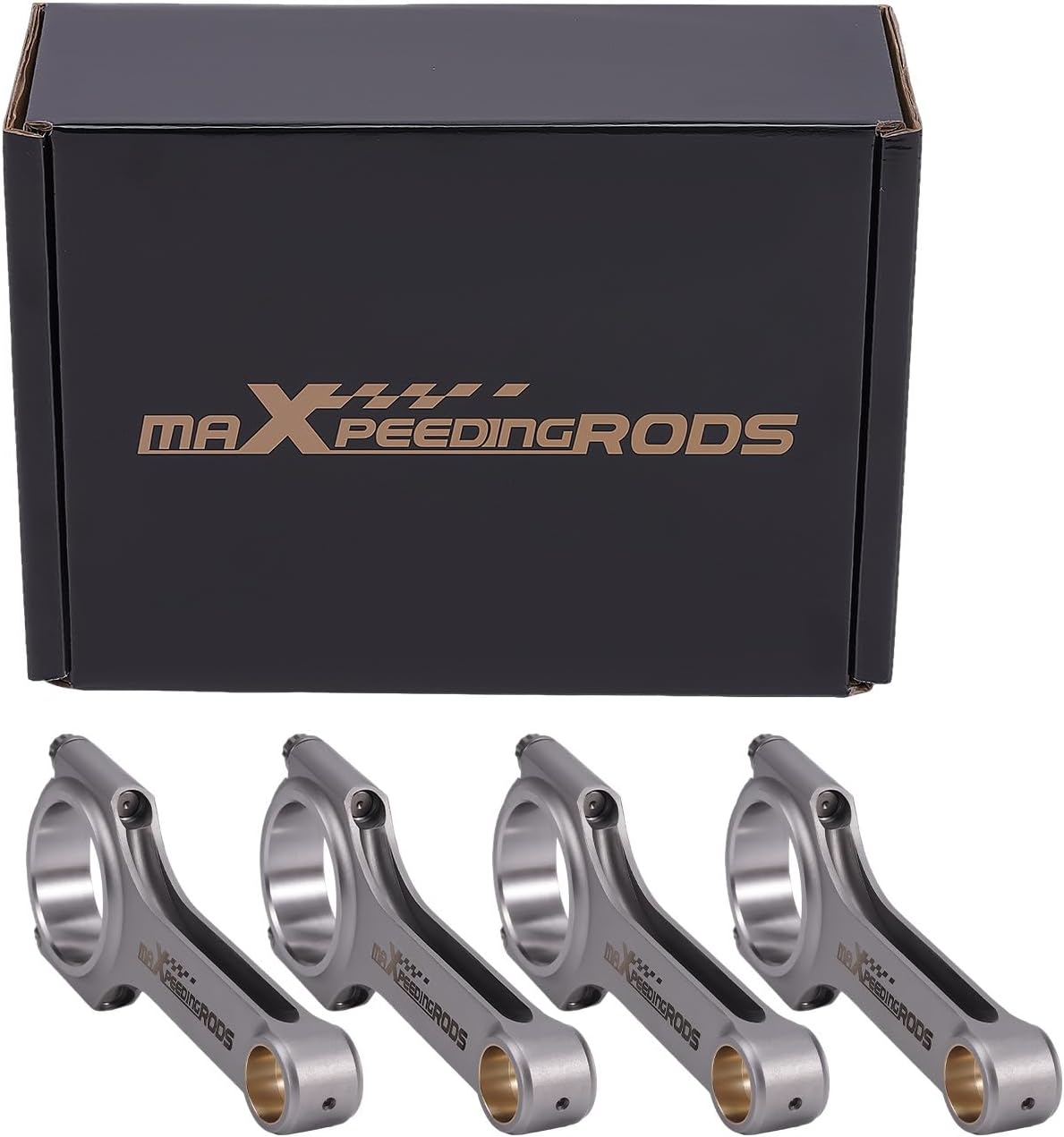

*H-beam Conrods Quantity: 4 Pieces as showing in picture

*Bolts: Including ARP 2000 3/8″ bolts (Note: Extra cost for upgrading to ARP L19 bolts)

*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

*Advertised Horsepower Rating: 200HP/piece

*Top acceleration: 9000rpm

*package size: 28CM*21CM*10CM

Dimension

Center to center length: 150mm/5.906″

Big end diameter: 48mm/1.89″

Small end diameter: 22mm/0.866″

Big end width: 26.4mm/1.039″

Small end width: 26.4mm/1.039″

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED;

2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing;

3. ARP 2000 bolts, Optional ARP L19 fasteners available as an upgrade;

4. H-Beam design reduces weight without compromising strength;

5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers;

6.High precision CNC machined,Precision rod cap alignment dowels;

7.Bores finished to +/- .01 mm;8.Balanced to within +/- 1 g per rod;

9. Each rod is magnetic particle tested to ensure free of flaws;
