Important Engine Requirement
This kit fits the AJ126 3.0L supercharged gasoline V6.
It does not fit:
- Naturally aspirated engines
- Turbocharged Ingenium engines
- Diesel engines
- 5.0L supercharged V8 engines
- Electric supercharger systems
- Applications using a different snout, pulley or bolt pattern
Confirm the engine, VIN and original part number before ordering. “It says supercharged on the tailgate” narrows the search, but it does not complete it.
Reference and Interchange Numbers
This kit may replace or interchange with:
- LR088538
- LR059341
- C2D40425
- C2D53104
Jaguar Land Rover’s classic-parts catalog identifies LR059341 and its replacement LR088538 as supercharger kits for the 3.0L supercharged V6. Jaguar Land Rover Classic Parts
C2D53104 supersedes the earlier C2D40425 reference in many Jaguar applications. Always verify the current replacement number for the VIN.
Product Specifications
| Specification | Details |
|---|---|
| Product type | Supercharger snout replacement kit |
| Engine | AJ126 3.0L supercharged V6 |
| Bolt-hole quantity | 7 |
| Pulley | Included |
| Mounting bolts | Included |

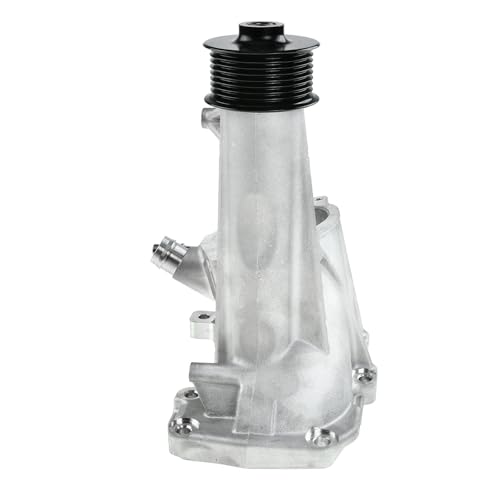

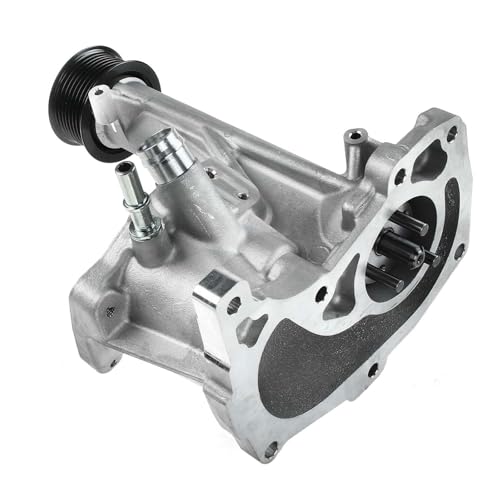

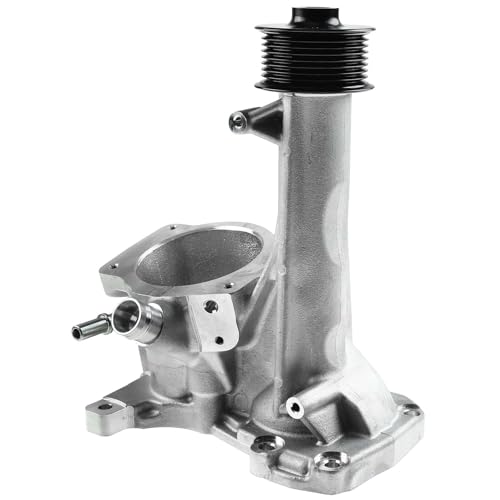

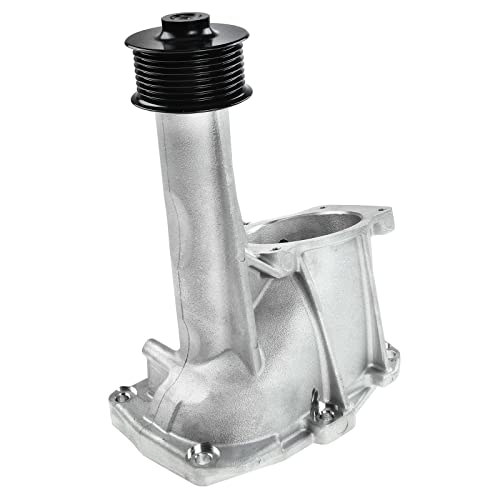

| Snout/core assembly | Included |
| Bottom cover | Included |
| Warranty | One year, unlimited mileage |

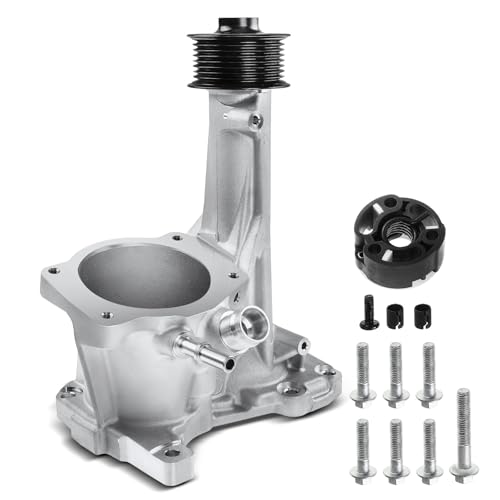

Package Contents
The package includes:
- One replacement supercharger snout/core assembly
- One installed or supplied pulley
- One bottom cover
- Mounting bolts
- Associated installation hardware
Inspect all components before removing the original snout. Supercharger gaskets, intake seals, belt and coolant-system seals may need to be purchased separately.
What Does the Supercharger Snout Do?
The snout transfers crankshaft power from the accessory belt and pulley into the supercharger’s internal drive system. It contains bearings and drive components that must operate smoothly at high speed.
A worn snout can create:
- Rattling from the front of the supercharger
- Grinding or growling noises
- Pulley wobble
- Bearing noise that changes with engine speed
- Drive-belt vibration
- Inconsistent supercharger operation
- Metallic knocking at idle
- Play in the pulley or input shaft
These symptoms must be isolated before ordering. Belt tensioners, idler pulleys, water pumps and other accessories can produce similar noises.
Snout Kit Versus Complete Supercharger
This kit repairs the front drive assembly. It does not replace:
- Supercharger rotors
- Rotor bearings
- Supercharger housing
- Intake manifold
- Internal intercooler cores
- Bypass actuator
- Damaged rotor coating
- Cracked or distorted supercharger components
If the rotors contact the housing, the internal bearings have failed or metallic debris is present, the complete supercharger may require professional rebuilding or replacement.
A new snout cannot rescue damaged rotors any more than a new doorknob can repair the room behind it.
Common Reasons for Snout Failure
Premature wear may be associated with:
- Bearing deterioration
- Coupler wear
- Pulley misalignment
- Incorrect belt tension
- Damaged tensioner or idler
- Contamination
- Excessive heat
- Improper previous installation
- Oversized aftermarket pulley
- Internal supercharger resistance
Inspect the complete belt-drive system before installing the replacement.
Installation Recommendations
Supercharger snout replacement requires careful disassembly and sealing. Professional installation is recommended.
General installation steps include:
- Verify the OE number and seven-bolt pattern.
- Allow the engine to cool completely.
- Relieve belt tension and remove the supercharger belt.
- Inspect the belt, tensioner and idlers.
- Disconnect components required for access.
- Remove the original snout evenly.
- Inspect the supercharger drive and mating surfaces.
- Remove all old gasket or sealant material.
- Install the replacement snout using the specified sealant.
- Tighten the bolts in sequence to JLR specifications.
- Rotate the assembly by hand before installing the belt.
- Start the engine and check for noise, wobble or leaks.
Follow the appropriate Jaguar Land Rover workshop procedure for the exact model and VIN.
Inspect the Belt Drive
Before reassembly, check:
- Supercharger belt condition
- Automatic tensioner operation
- Idler-pulley bearings
- Crankshaft pulley alignment
- Supercharger pulley alignment
- Belt tracking
- Signs of rubber dust
- Oil or coolant contamination
Installing a new snout while ignoring a seized idler or failing tensioner is an efficient way to schedule the same repair twice.
Does This Kit Add Horsepower?
No. This kit uses a factory-style pulley and is intended to restore normal supercharger operation.
It does not:
- Increase boost
- Change pulley ratio
- Recalibrate the ECU
- Increase fuel-system capacity
- Guarantee additional horsepower
A smaller performance pulley would require an appropriate tune and supporting modifications. This product is a repair component, not a stealth pulley upgrade.
Check Engine Condition
Before modifying boost or installing performance pulleys, review Pro Street’s guide to checking engine health before adding boost.
Although written for turbo projects, the same fundamentals apply to supercharged engines: compression, cooling, fuel delivery and ignition health still matter.
Warranty
A-Premium advertises a one-year unlimited-mileage warranty for qualifying manufacturing defects.
Review the warranty requirements before installation. Coverage may exclude damage caused by:
- Incorrect fitment
- Improper installation
- Misaligned pulleys
- Damaged belt-drive components
- Performance pulleys
- Internal supercharger failure
- Unauthorized modification
