Diamond-Array Woofer Cone Helps Reduce Distortion

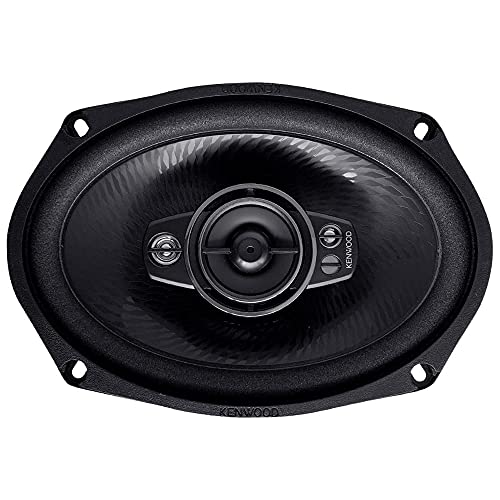

One of the defining features of the Kenwood KFC-6996PS is its diamond-array-pattern woofer cone.
The cone incorporates a geometric surface pattern designed to increase rigidity and control unwanted deformation during movement.
When a speaker cone flexes excessively, it can introduce unwanted coloration and distortion.
Kenwood’s diamond-array design is intended to reduce these effects and support more accurate sound reproduction.
The result is a woofer engineered to reproduce midbass and midrange content with improved control.
This construction helps distinguish the KFC-6996PS from basic factory replacement speakers.
5-Way Coaxial Design for Detailed Sound
The Kenwood KFC-6996PS uses a 5-way coaxial configuration, combining the main woofer with additional drivers for higher-frequency reproduction.
The multi-driver arrangement is designed to reproduce a wide range of musical frequencies from a single speaker assembly.
This can help bring greater detail to vocals, percussion, and instruments compared with aging factory speakers.
The integrated design also means there is no need to install separate tweeters in the dashboard or A-pillars.
For compatible factory 6×9-inch openings, this makes the KFC-6996PS a convenient upgrade.
While the number of drivers is an important product characteristic, overall sound quality also depends on cone materials, crossover design, amplifier power, installation quality, and speaker placement.
Kenwood Sound Field Enhancer Technology
The KFC-6996PS features Kenwood Sound Field Enhancer technology.
This specialized high-frequency design is intended to improve sound dispersion and reduce interference around the tweeter assembly.
In a vehicle, speaker placement is rarely ideal.
Door speakers often fire toward the listener’s legs, while rear-deck speakers may reflect sound from glass and interior trim.
Sound Field Enhancer is designed to help distribute high-frequency content more effectively across the listening area.
This can contribute to a wider perceived sound field and more consistent musical detail.
The technology is particularly useful for drivers seeking a more engaging listening experience without installing a separate component speaker system.
Designed for Everyday Listening and Factory Upgrades
The Kenwood KFC-6996PS is intended for compatible factory and aftermarket automotive audio installations.
Its 6×9-inch oval format makes it a potential replacement for factory speakers found in many sedans, coupes, trucks, and SUVs.
The integrated multi-driver design simplifies installation compared with separate component speakers.
However, nominal 6×9-inch size alone does not guarantee direct fitment.
Before purchasing, verify:
- Factory speaker opening dimensions
- Available mounting depth
- Mounting screw-hole pattern
- Speaker grille clearance
- Original speaker impedance
- Wiring connector compatibility
- Any required adapter brackets
Some vehicles require speaker adapters or replacement wiring harnesses.
Our best car speakers upgrade guide explains how to select compatible replacement speakers.
Match Your Speakers with the Right Amplifier
A speaker’s maximum input power should not be confused with its continuous RMS power rating.
When selecting an amplifier for the Kenwood KFC-6996PS, use the manufacturer’s RMS rating and nominal impedance to determine compatibility.
A suitable factory or aftermarket head unit may provide enough power for moderate listening.
For drivers who want additional volume and dynamic headroom, a properly matched amplifier can provide cleaner output.
Avoid using excessive amplifier gain or bass boost, which can increase distortion and potentially damage speakers.
For additional guidance, read our car amplifier setup guide.
Kenwood KFC-6996PS Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Kenwood |
| Series | Performance Series |
| Model | KFC-6996PS |
| Speaker size | 6 x 9 inches |
| Configuration | 5-way coaxial |
| Woofer design | Diamond-array-pattern cone |
| High-frequency technology | Sound Field Enhancer |
| Application | Compatible automotive 6×9-inch speaker locations |
| Package configuration | Pair |
Confirm power ratings, impedance, sensitivity, frequency response, mounting dimensions, and package contents against the manufacturer’s specifications before purchasing.
Frequently Asked Questions
Are Kenwood KFC-6996PS speakers 5-way?
Yes. The KFC-6996PS uses a 5-way coaxial design with a main woofer and additional high-frequency drivers.
What size are Kenwood KFC-6996PS speakers?
They are 6×9-inch oval car speakers.
What is Kenwood’s diamond-array woofer cone?
It is a patterned cone design intended to improve rigidity and reduce unwanted distortion during speaker movement.
What does Sound Field Enhancer do?
Kenwood Sound Field Enhancer is designed to improve high-frequency dispersion and reduce interference around the tweeter assembly.
Do these speakers require separate tweeters?
No. The high-frequency drivers are integrated into the coaxial speaker assembly.
Are these speakers good for bass?
Their 6×9-inch woofer can provide useful midbass, but a dedicated subwoofer is recommended for substantial deep-bass output.
Will the KFC-6996PS fit my vehicle?
Possibly. Compatibility depends on the vehicle’s factory speaker opening, mounting depth, screw-hole pattern, and wiring.
Can these speakers work with a factory stereo?
They may work with compatible factory audio systems, but impedance and amplifier output should be checked before installation.
Why Choose Kenwood KFC-6996PS Speakers?
The Kenwood KFC-6996PS 6×9-inch 5-way car speakers combine a diamond-array-pattern woofer cone, multi-driver coaxial construction, and Kenwood Sound Field Enhancer technology.
Designed for drivers seeking improved midbass, clearer vocals, and more detailed highs, they offer a practical upgrade for compatible factory speaker locations.
Upgrade your car audio with Kenwood KFC-6996PS Performance Series speakers and bring greater clarity, detail, and energy to every drive.
