Diamond-Array Polypropylene Woofer for Controlled Midbass
The Kenwood KFC-693 features a polypropylene woofer cone with a diamond-array surface pattern.
The patterned cone is designed to increase diaphragm rigidity and help reduce unwanted flex during speaker movement.
Speaker cone rigidity is important because excessive flex can affect the accuracy of sound reproduction.
The 6×9-inch oval woofer provides useful cone area for reproducing midbass and lower-midrange frequencies.
This can help give kick drums, bass guitars, and lower vocal frequencies greater presence than smaller speaker designs.
The woofer is paired with a rubber surround that supports controlled movement and everyday durability.
Actual bass output depends on installation quality, available amplifier power, crossover settings, and vehicle acoustics.
For substantial deep-bass output, a dedicated subwoofer remains the better solution.
Multiple Tweeters for Detailed High Frequencies

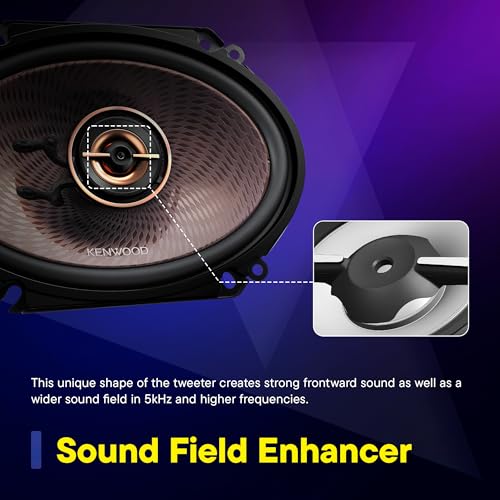

The KFC-693 incorporates a multi-driver high-frequency assembly that includes a 1-3/4-inch balanced-dome driver and additional super tweeters, according to the supplied product information.
These drivers are intended to reproduce upper-frequency musical information with greater detail.
High-frequency content contributes to the perceived clarity of:
- Cymbals and hi-hats
- Vocal harmonics
- Acoustic guitar strings
- Piano overtones
- Percussion
- Electronic instruments
The integrated configuration allows the KFC-693 to deliver broad frequency coverage without requiring separate tweeter installation.

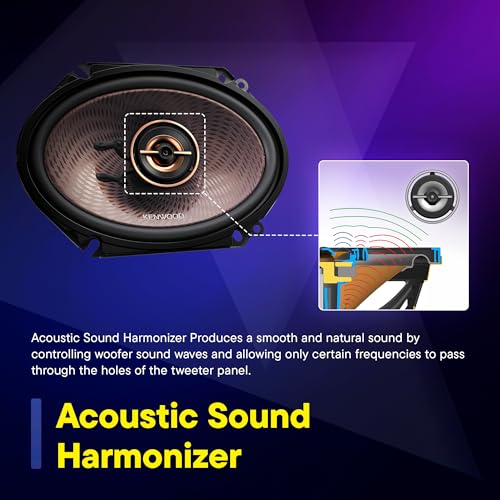

Kenwood Acoustic Sound Harmonizer Technology
One of the KFC-693’s distinguishing features is Kenwood Acoustic Sound Harmonizer.
This technology is designed to improve frequency response around the transition between the woofer and upper-frequency drivers.
The supplied product information highlights the 3,000–4,000Hz range, an important region for vocal presence and instrumental clarity.
By addressing response irregularities in this range, Acoustic Sound Harmonizer is intended to help produce smoother, more natural sound.
For drivers who enjoy rock, acoustic music, vocal-heavy recordings, and detailed instrumentals, this technology is a useful feature beyond basic factory speaker construction.
650W Peak and 150W RMS Power Handling
The Kenwood KFC-693 is advertised with 650 watts maximum input power and 150 watts RMS.
These specifications describe different operating conditions.
- 650W maximum power: Short-duration input power capability.
- 150W RMS: Continuous power-handling rating used for amplifier matching.
- 5-way configuration: Multiple integrated drivers for broad frequency coverage.
RMS power handling is the more useful figure when selecting an external amplifier.
A properly matched amplifier can provide clean power and additional dynamic headroom, particularly at higher listening levels.
A compatible aftermarket head unit may also operate these speakers at moderate listening levels, depending on the speaker’s electrical requirements and the stereo’s output.
Avoid excessive bass boost, amplifier clipping, and improperly adjusted gain settings.
For more information about choosing amplification, visit:
https://my.prostreetonline.com/2026/05/23/best-car-amplifier-setup/
Rubber Surrounds for Everyday Durability
The KFC-693 uses a rubber woofer surround designed to support consistent cone movement.
The surround connects the woofer cone to the speaker frame while allowing the diaphragm to move during audio reproduction.
Rubber surrounds are commonly used in aftermarket car speakers because they offer flexibility and resistance to environmental changes.
Combined with the polypropylene woofer cone, this construction is intended for reliable everyday automotive use.
Open Frame Design for Efficient Performance
The Kenwood KFC-693 features an updated frame design with an enlarged open area.
The design is intended to reduce unnecessary airflow restriction behind the woofer cone.
This can support efficient speaker movement and midbass performance when properly installed.

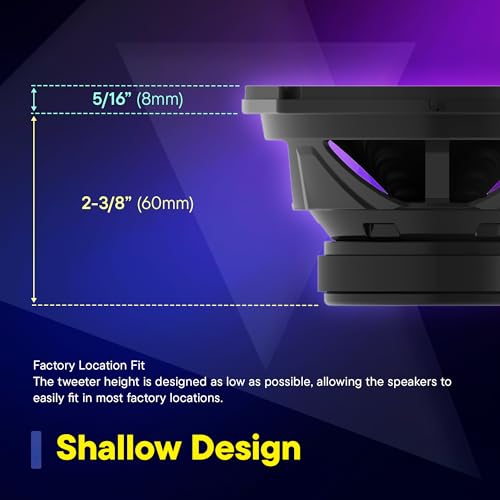

The frame is also designed to simplify mounting in certain compatible factory speaker locations.
However, nominal 6×9-inch speaker size does not guarantee universal fitment.
Before ordering, verify the factory speaker opening, mounting depth, screw-hole pattern, and grille clearance.
Ideal for Factory and Aftermarket Audio Upgrades
The KFC-693 can be used in compatible factory door or rear-deck speaker locations.
For a straightforward upgrade, replacing aging factory speakers can restore clarity and reduce unwanted buzzing caused by deteriorated speaker components.
For a more complete audio system, the KFC-693 can be paired with a suitable amplifier and dedicated subwoofer.
A subwoofer handles deep bass, allowing the 6×9-inch speakers to focus on midbass, vocals, and higher-frequency detail.
Proper crossover settings help distribute frequencies between the speakers and subwoofer.
For more installation guidance, visit:
https://my.prostreetonline.com/2026/05/30/best-car-speakers-upgrade/
Kenwood KFC-693 Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Kenwood |
| Series | Concert Series |
| Model | KFC-693 |
| Speaker size | 6 x 9 inches |
| Speaker configuration | 5-way |
| Maximum input power | 650 watts |
| RMS input power | 150 watts |
| Woofer cone | Diamond-array polypropylene |
| Woofer surround | Rubber |
| High-frequency drivers | 1-3/4-inch balanced-dome driver and additional super tweeters |
| Sound technology | Acoustic Sound Harmonizer |
| Frame design | Enlarged open area |
| Application | Compatible automotive door and rear-deck speaker locations |
Confirm the exact manufacturer specifications, including impedance, sensitivity, frequency response, mounting dimensions, and package contents, before installation.
Frequently Asked Questions
Are Kenwood KFC-693 speakers 5-way?
Yes. The supplied product information describes a 5-way speaker configuration with a large woofer and multiple integrated upper-frequency drivers.
How much power can the KFC-693 handle?
The supplied specifications list 650 watts maximum and 150 watts RMS. Verify these ratings against the exact model documentation when matching an amplifier.
What is Kenwood Acoustic Sound Harmonizer?
Acoustic Sound Harmonizer is designed to smooth frequency response around the transition between the woofer and upper-frequency drivers.
Are these speakers good for bass?
Their 6×9-inch woofers can provide useful midbass, but a dedicated subwoofer is recommended for substantial deep-bass output.
Do these speakers require an external amplifier?
Not necessarily. A compatible head unit may power them at moderate listening levels, while a properly matched amplifier can provide additional clean output.
Can these speakers replace factory rear-deck speakers?
Yes, in vehicles with compatible 6×9-inch speaker openings and suitable electrical requirements.
Will the Kenwood KFC-693 fit my vehicle?
Fitment depends on the factory speaker opening, mounting depth, screw-hole pattern, wiring, and available grille clearance.
Why Choose Kenwood KFC-693 Concert Series Speakers?
The Kenwood KFC-693 Concert Series 6×9-inch 5-way car speakers combine a diamond-array polypropylene woofer, durable rubber surround, multiple high-frequency drivers, and Acoustic Sound Harmonizer technology.
With an advertised 650W peak and 150W RMS power rating, these speakers offer an appealing upgrade for drivers seeking improved midbass, detailed highs, and a more engaging listening experience.
Upgrade your vehicle’s audio with Kenwood KFC-693 Concert Series speakers and enjoy more of the music you love on every drive.
