Kenwood Excelon Reference XR-1801P 7-Inch Hi-Res Component Speaker System – 330W Peak

7-Inch Glass Fiber Woofers Deliver Precise, Controlled Bass

The XR-1801P uses a 7-inch glass fiber woofer cone designed to balance rigidity, low mass, and responsive movement.

Woofer cone construction plays an important role in controlling distortion. A cone must be sufficiently rigid to resist unwanted flexing while remaining light enough to respond accurately to changing musical signals.

Kenwood’s glass fiber design addresses these requirements with a material engineered for strength and controlled movement.

The result is a woofer intended to deliver clean midrange reproduction and authoritative midbass without sacrificing musical detail.

Circle Rib Woofer Cap Improves Cone Stability

Kenwood incorporates a circle rib woofer cap designed to reinforce the cone structure and help control unwanted movement.

Improved structural stability can contribute to more consistent sound reproduction, particularly during demanding musical passages.

This is especially valuable when listening to music with rapid bass transitions, complex percussion, or dynamic instrumental arrangements.

Asymmetrical Surround Roll for Controlled Cone Movement

The woofer also features an asymmetrical surround roll shape.

This design helps manage cone movement throughout its operating range, supporting controlled excursion and more predictable acoustic behavior.

For enthusiasts seeking tighter midbass and natural lower-midrange reproduction, these engineering details distinguish the XR-1801P from entry-level replacement speakers.

Although its 7-inch woofer can provide substantial midbass in a properly installed system, dedicated subwoofers remain the preferred solution for deep, high-output bass.

Oversized 30mm Titanium Hard-Dome Tweeters for Crystal-Clear Highs

High-frequency reproduction is one of the defining characteristics of the Kenwood Excelon Reference XR-1801P.

Instead of relying on a conventional small-format tweeter, Kenwood equips this system with a 1-3/16-inch (30mm) titanium hard-dome tweeter.

The larger diaphragm and compound-curvature design are engineered to reproduce high-frequency content with precision while supporting the system’s extended 40kHz response.

Titanium provides a rigid, lightweight diaphragm material capable of responding quickly to musical transients.

For listeners, the design is intended to deliver:

• Detailed vocal harmonics
• Clear cymbal and percussion reproduction
• Accurate acoustic instrument textures
• Precise upper-frequency definition
• Greater flexibility for premium sound-quality installations

The separate tweeter design also gives installers more control over speaker positioning than conventional coaxial speakers.

Tweeters can be mounted in suitable dashboard, sail-panel, or A-pillar locations to help improve imaging and the perceived soundstage.

Proper positioning matters. Even premium tweeters can sound harsh or poorly balanced when aimed incorrectly or paired with unsuitable crossover settings.

Bi-Ampable Crossover Networks for Advanced Audio Tuning

One of the most valuable features of the Kenwood XR-1801P is its bi-ampable passive crossover network.

Traditional passive component speaker systems generally use a single amplifier channel per side, with the crossover dividing the incoming signal between the woofer and tweeter.

The XR-1801P offers additional flexibility by allowing separate amplifier channels to power the woofer and tweeter sections when connected according to Kenwood’s installation instructions.

This configuration can provide greater control over system design and available amplifier power.

Benefits of Bi-Amping

• Separate amplification for woofer and tweeter sections
• Greater flexibility when selecting amplifier channels
• Improved control over available power distribution
• More options for integrating premium aftermarket equipment
• Potential for improved system performance when properly configured

Bi-amping should not be confused with a fully active digital crossover system. The XR-1801P’s passive networks still perform frequency filtering, and the available adjustment options depend on the connected equipment.

Built-In Tweeter Protection

Kenwood also incorporates a protective polyswitch and resistor arrangement into the crossover network.

These components are designed to help protect the tweeter from excessive electrical stress.

While protective circuitry adds reliability, it does not eliminate the need for appropriate amplifier selection, correct gain settings, and responsible listening levels.

For help selecting suitable amplification, read our car amplifier setup guide, which covers RMS power matching, impedance, amplifier configuration, and proper installation practices.

120W RMS Power Handling and 3-Ohm Impedance

The Kenwood Excelon Reference XR-1801P is rated for 120 watts RMS and 330 watts peak power.

Its continuous power rating makes it suitable for serious aftermarket systems using appropriately matched amplification.

The system’s 3-ohm impedance is another important consideration.

Compared with a conventional 4-ohm speaker, a 3-ohm load can draw more current from an amplifier at the same output voltage.

This may allow greater power delivery from compatible amplifiers, but only when the amplifier is designed to operate safely with that impedance.

Before installing the XR-1801P, confirm that your amplifier supports the speaker load and intended wiring configuration.

For bi-amped installations, follow the manufacturer’s crossover wiring instructions and verify each amplifier channel’s operating requirements.

With an advertised sensitivity rating of 87 dB, the XR-1801P is better approached as a premium speaker system designed around clean amplification and careful installation rather than simply maximum volume.

Flexible Installation with Multi-Bracket Woofer Mounting

A premium component speaker system is only as good as its installation.

Kenwood includes a versatile woofer mounting arrangement designed to accommodate different factory speaker configurations, including certain locations originally designed for 6×9-inch speakers.

The system’s separate tweeters support flush and angled mounting options, allowing installers to select suitable positions for soundstage development.

Installation Specifications

• Nominal woofer diameter: 7 inches
• Woofer cutout diameter: 6 inches
• Woofer mounting depth: 2-7/16 inches
• Separate 30mm titanium dome tweeters
• Included passive crossover networks
• Multi-bracket mounting hardware
• Flush and angled tweeter installation options

Before ordering, measure the available mounting depth, confirm window and door-panel clearance, and inspect the factory speaker mounting arrangement.

Sound-deadening materials, rigid mounting adapters, and proper door sealing can also help improve midbass response and reduce unwanted vibration.

For additional advice on selecting the right speaker configuration, explore our best car speakers upgrade guide, which discusses speaker sizing, performance considerations, and choosing equipment for different automotive applications.

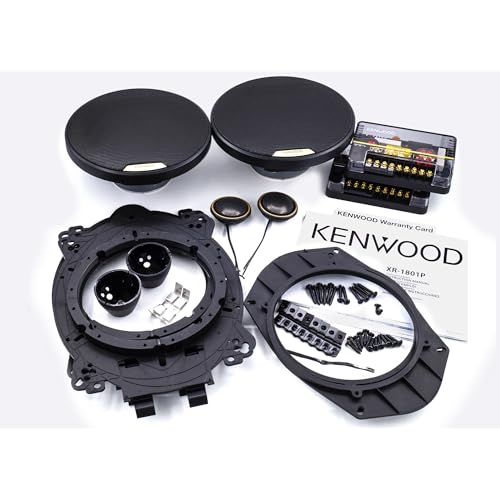

What’s Included with the Kenwood XR-1801P?

The complete component speaker system includes:

• Two 7-inch glass fiber woofers
• Two 30mm titanium hard-dome tweeters
• Two bi-ampable passive crossover networks
• Compatible woofer mounting hardware
• Tweeter mounting accessories

This package provides the primary components needed to create a premium two-channel front speaker system.

Additional wiring, sound-deadening materials, mounting adapters, or amplifier equipment may be necessary depending on your vehicle.

Kenwood Excelon Reference XR-1801P Specifications

Frequently Asked Questions

Are Kenwood Excelon Reference XR-1801P speakers worth upgrading to?

For enthusiasts seeking a premium component speaker system with separate tweeters, high-resolution audio capability, and advanced crossover flexibility, the XR-1801P offers significant advantages over basic factory speakers. The specifications in this listing match Kenwood’s official XR-1801P product page, including 330W peak, 120W RMS, 3-ohm impedance, and the 35Hz–40kHz frequency response measured at −10 dB

What makes the XR-1801P different from regular Kenwood speakers?

The Excelon Reference XR-1801P features glass fiber woofers, oversized titanium dome tweeters, Hi-Res Audio certification, and bi-ampable crossover networks designed for higher-end automotive audio systems.

Can I run the Kenwood XR-1801P without an amplifier?

Operation may be possible with certain compatible head units, but dedicated amplification is recommended to take advantage of the system’s 120W RMS rating and premium component design. Verify 3-ohm compatibility first.

Does the XR-1801P include separate tweeters and crossovers?

Yes. The component system includes separate woofers, tweeters, and passive crossover networks.

Can the XR-1801P fit factory 6×9-inch speaker openings?

Kenwood’s multi-bracket mounting arrangement supports certain 6×9-inch locations. However, actual fitment depends on vehicle-specific mounting dimensions and available clearance.

What does bi-ampable mean?

Bi-ampable means the crossover network supports separate amplifier connections for the woofer and tweeter sections. This offers greater system design flexibility when configured correctly.

Will these speakers reproduce deep bass without a subwoofer?

The 7-inch glass fiber woofers are designed for strong midbass and lower-midrange performance, but a dedicated subwoofer remains the better solution for powerful deep bass.

Do I need high-resolution music files to benefit from these speakers?

No. The XR-1801P can reproduce conventional music sources as well. High-quality recordings and capable playback equipment can help take advantage of its extended-frequency design.

Upgrade to Kenwood Excelon Reference Sound

The Kenwood Excelon Reference XR-1801P 7-inch component speaker system is built for enthusiasts who care about sound quality, installation flexibility, and precise musical reproduction.

Its glass fiber woofers, titanium hard-dome tweeters, and bi-ampable crossover networks provide a strong foundation for a carefully engineered aftermarket car audio system.

Whether you’re pursuing a more realistic soundstage, cleaner vocals, or stronger midbass, the XR-1801P offers the advanced features expected from Kenwood’s premium Excelon Reference lineup.

Upgrade your listening experience with Kenwood Excelon Reference XR-1801P speakers and discover what a properly designed high-fidelity car audio system can deliver.
