Yellow LED Nighttime Illumination

Yellow LED illumination lights the dial for improved nighttime visibility. The warm backlighting also complements vintage-style dashboards and classic instrument panels without looking excessively modern.

Connect the illumination circuit to the vehicle’s dashboard-light circuit when you want the gauge lighting to operate with the factory instruments.

Vintage Analog Appearance

The JDMSPEED gauge combines a traditional pointer display with a lightweight 52mm housing. It is designed to add useful temperature monitoring while preserving the appearance of a classic or period-inspired interior.

Potential applications include:

• Classic cars
• Restomod projects
• Older trucks
• Custom dashboards
• Engine-swapped vehicles
• Street rods
• Kit cars
• Vehicles with failed factory gauges

The result is actual engine information presented without another glowing tablet being bolted to the dashboard. Civilization can continue.

Compact 2-Inch 52mm Design

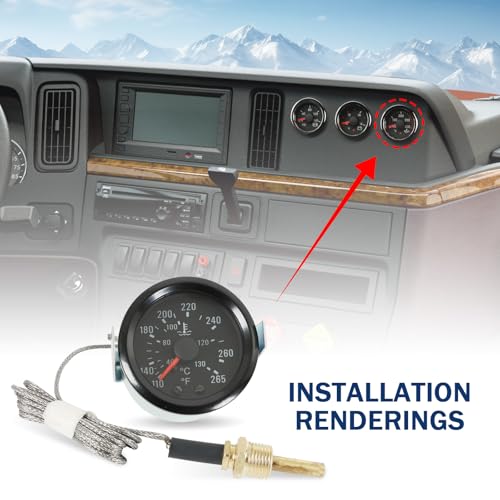

The gauge measures approximately 2 inches, or 52mm, making it compatible with many universal mounting panels, gauge pods and custom dashboard openings.

Measure the mounting opening and rear clearance before cutting the dashboard. Universal parts are generally universal right up until the hole is six millimeters too small.

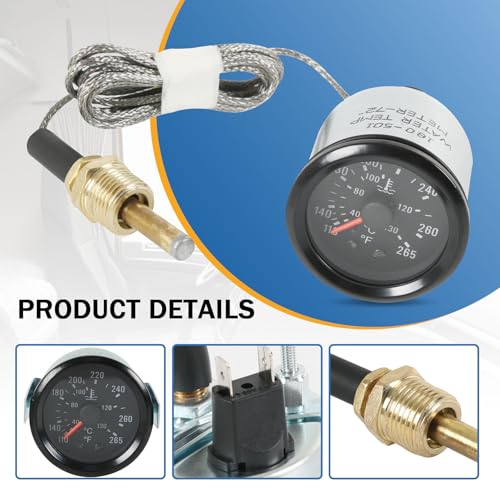

1/2-Inch NPT Temperature Sender

The included temperature sender uses a 1/2-inch NPT thread. This is substantially larger than the 1/8-inch NPT senders used by many other aftermarket gauges.

Before ordering, confirm that the engine, thermostat housing, coolant outlet or adapter has a compatible 1/2-inch NPT port. If it does not, an additional reducer or radiator-hose adapter may be required.

Do not force an NPT sender into a metric or straight-thread port. Similar-looking threads have destroyed enough housings already.

1.8-Meter Cable Length

The included cable measures approximately 1.8 meters, or 5.9 feet. This provides flexibility when routing the connection from the dashboard to the engine compartment.

Before permanently mounting the gauge, confirm that the cable reaches the sender location without:

• Touching exhaust components
• Passing near belts or pulleys
• Contacting cooling fans
• Being stretched tightly
• Creating sharp bends
• Interfering with steering or pedals

Low Current Draw

The gauge operates on 12V DC and draws up to approximately 0.3 amps.

The power circuit should be connected to switched 12V power so the gauge and illumination turn off with the ignition. Protect the circuit with an appropriate fuse.

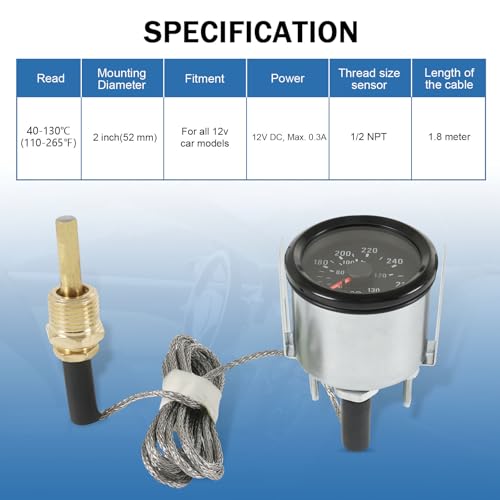

Product Specifications

• Brand: JDMSPEED
• Product type: Water-temperature gauge
• Display type: Analog pointer
• Gauge diameter: 2 inches / 52mm
• Fahrenheit range: 110–265°F
• Celsius range: 40–130°C
• Power supply: 12V DC
• Maximum current draw: Approximately 0.3A
• Illumination: Yellow LED
• Sender thread: 1/2-inch NPT
• Cable length: 1.8 meters / approximately 5.9 feet
• Installation type: Universal
• Application: Compatible 12V automotive cooling systems

These specifications match the current JDMSPEED product information.

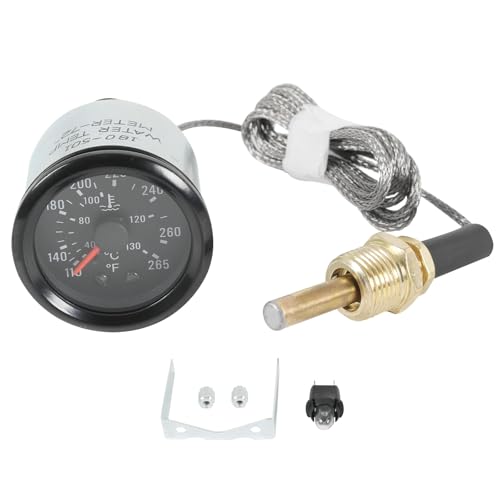

What’s Included

• JDMSPEED 52mm water-temperature gauge
• 1/2-inch NPT temperature sender
• 1.8-meter connecting cable
• Installation components

A gauge pod, threaded adapter, radiator-hose adapter, fuse holder or additional electrical connectors may be required.

Why Add an Aftermarket Water-Temperature Gauge?

Many factory temperature gauges provide only a general indication of coolant temperature. Some remain near the center of the display across a wide temperature range and move toward hot only after the engine is already overheating.

An aftermarket gauge can help you:

• Monitor coolant temperature more closely
• Detect abnormal temperature increases
• Replace an inaccurate factory gauge
• Add instrumentation to a custom dashboard
• Monitor an engine swap
• Confirm cooling-fan operation
• Evaluate cooling-system repairs
• Track temperatures during towing or extended driving

If rising temperature is accompanied by coolant loss, corrosion or visible leakage, review our guide to the seven signs of a failing radiator.

Installation Notes

Install the 1/2-inch NPT sender in a compatible coolant passage where it remains in contact with circulating coolant.

Possible installation locations include:

• Cylinder head
• Intake manifold
• Thermostat housing
• Engine block
• Coolant outlet
• Inline radiator-hose adapter

Before beginning installation:

• Allow the engine to cool completely.
• Disconnect the negative battery terminal.
• Confirm the sender port uses 1/2-inch NPT threads.
• Verify the 1.8-meter cable reaches the sender.
• Connect the gauge to switched 12V power.
• Install an appropriate fuse in the power circuit.
• Provide a clean electrical ground.
• Route the cable away from heat and moving components.
• Bleed trapped air from the cooling system.
• Inspect the sender and adapters for leaks.
• Test gauge operation before driving.

Use thread sealant intended for automotive cooling systems. Avoid excessive sealant that could interfere with sender grounding or contaminate the cooling system.

For more information, read our guide explaining how an engine coolant temperature sensor works.

Frequently Asked Questions

Does the gauge display Fahrenheit and Celsius?

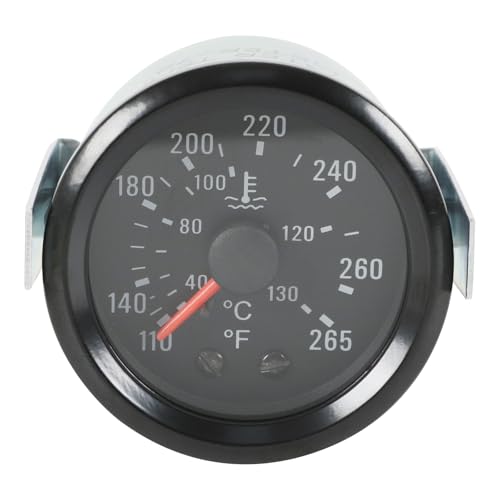

Yes. The dial displays temperatures from 110–265°F and 40–130°C.

What size is the gauge?

The gauge has a 2-inch, or approximately 52mm, diameter.

Is this compatible with every 12V vehicle?

The electrical requirements suit many 12V vehicles, but physical fitment depends on the mounting opening, cable length and sender-port thread.

What thread does the sender use?

The included sender uses a 1/2-inch NPT thread. Verify compatibility before ordering because many vehicles use smaller NPT or metric sensor ports.

Can I adapt the sender to a smaller port?

A compatible reducer may be used if adequate clearance and coolant flow are maintained. Make sure the adapter does not prevent the sender tip from contacting circulating coolant.

Is the 1.8-meter cable an extension wire?

Treat the supplied sender connection as a matched component. Do not cut, splice or extend it unless the included instructions specifically permit modification.

Can it be used on a 24V vehicle?

No. The supplied specifications list 12V DC operation. Do not connect the gauge directly to a 24V electrical system.

Does it have an overheating alarm?

No alarm is specified. The driver must monitor the analog needle and respond when temperatures rise beyond the vehicle’s normal operating range.

What should I do if the gauge reads hot?

Reduce engine load and watch whether the temperature stabilizes. If it continues rising, coolant escapes or steam appears, pull over safely and shut the engine off. Never remove the radiator cap while the engine is hot.

Our guide on how to deal with an overheating engine explains what to check next.

Classic Appearance With Useful Temperature Monitoring

The JDMSPEED 52mm water-temperature gauge combines a traditional analog design with dual-scale markings, yellow LED illumination and a 110–265°F measurement range.

For compatible 12V vehicles with a 1/2-inch NPT sender location, it provides a simple way to add coolant-temperature monitoring without sacrificing a classic dashboard appearance.
