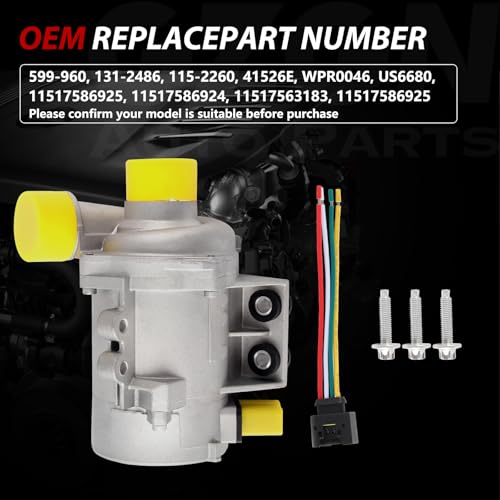

Water-Pump Reference Numbers
This pump may replace or cross-reference:
- 11517586925
- 11-51-7-586-925
- 11517546994
- 11517563183
- 11517586924
- 11517521584
BMW parts catalogs identify 11517586925 as an engine water pump used on select 2006–2013 applications with 2.5L and 3.0L engines.
BimmerWorld’s application guide also identifies 11517586925 for N51 and N52 applications including the E82 128i, E9x 3 Series and E60 5 Series.

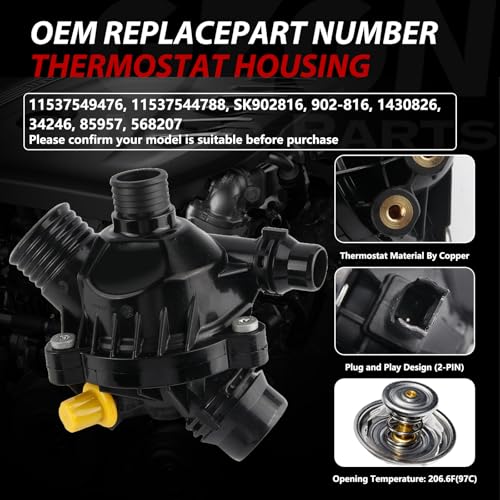

Thermostat Reference Numbers
The included thermostat may replace or cross-reference:
- 11537549476
- 11-53-7-549-476
- 11537536655
- 11537544788
Thermostat configurations can vary with engine, transmission, emissions package and hose layout. Compare the replacement thermostat directly with the removed component.

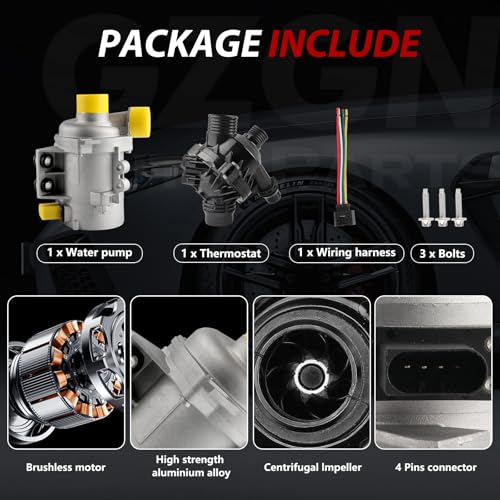

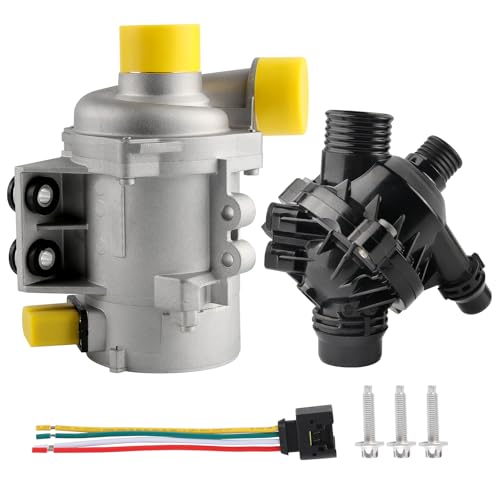

Package Contents
- One electric engine water pump
- One engine coolant thermostat
- One replacement wiring harness
- Three mounting bolts
- Required pump seals where pictured
The included mounting bolts matter because BMW uses aluminum fasteners in several N51/N52 cooling applications. These bolts may be torque-to-yield or designated for one-time use.
Use the correct BMW torque sequence. “Snug plus one more heroic pull” is not an approved engineering standard.
Product Specifications
- Brand: GZGN
- Pump type: Electric engine coolant pump
- Housing material: Aluminum
- Impeller material: Composite
- Drive type: Electric
- Back housing included: No
- Thermostat included: Yes
- Wiring harness included: Yes
- Mounting bolts included: Three
- Fitment type: Vehicle-specific replacement
- Warranty: One year
- Customer support: Manufacturer-provided support
How the BMW Electric Water Pump Works
The N51/N52 pump uses an electric motor rather than a belt-driven pulley. The engine-management system varies pump operation according to:
- Coolant temperature
- Engine load
- Requested cabin heat
- Vehicle speed
- Warm-up strategy
- Air-conditioning demand
- Cooling-system protection mode
- Post-shutdown heat management
Variable operation can reduce unnecessary mechanical drag and improve temperature control. However, internal electronics can fail with little mechanical warning.
For a complete explanation of coolant circulation, pressure, thermostat operation and radiator airflow, begin with the Complete Car Cooling System Guide.
Common N51/N52 Pump Failure Symptoms
A weak or failed electric pump may cause:
- Yellow or red temperature warning
- Engine overheating
- Cooling fan running at maximum speed
- Reduced-power or limp mode
- Pump-speed or communication faults
- Coolant leakage
- Whining or humming near the pump
- Unstable coolant temperature
- Weak cabin heat
- Pump that fails to operate during bleeding
- Rapid overheating under load
Specialist BMW catalogs describe the N51/N52 electric pump as a known failure item and note that high fan speed may appear shortly before an overheating warning. BimmerWorld discusses those common warning signs.
Start with our guide explaining why a car overheats before replacing the pump without testing.
Diagnose the Pump Before Replacement
Recommended checks include:
- Scan the vehicle with a BMW-capable diagnostic tool.
- Record stored and shadow fault codes.
- Compare requested and actual pump operation.
- Activate the pump with the scan tool when supported.
- Check pump power and ground under load.
- Inspect the electrical connector.
- Examine the wiring harness for heat or coolant damage.
- Check coolant level with the engine cold.
- Pressure-test the cooling system.
- Inspect the thermostat and radiator.
- Confirm cooling-fan operation.
- Check for trapped air.
- Verify battery and charging-system voltage.
Low voltage, a damaged connector or wiring resistance can prevent an otherwise functional pump from operating correctly.
If temperature rises mainly while driving, follow Why Does My Car Overheat While Driving? to check radiator capacity, circulation and airflow.
Why the Wiring Harness Is Included
A replacement harness may be needed when the original connector is:
- Melted
- Corroded
- Coolant contaminated
- Mechanically damaged
- Missing its locking tab
- Previously repaired incorrectly
- Incompatible with the replacement pump revision
Before modifying the vehicle harness, confirm that the supplied connector update applies to the exact vehicle.
Use:
- Correct terminal identification
- Sealed automotive connections
- Proper wire gauge
- Heat-resistant insulation
- Strain relief
- Factory-style routing
- Protection from road debris
Do not connect wires solely by color. Verify circuit position through the correct BMW wiring information.
Check for Coolant Leaks
Inspect the:
- Pump housing
- Thermostat housing
- Hose quick-connects
- Expansion tank
- Radiator seams
- Pressure cap
- Cylinder-head connections
- Heater hoses
- Lower engine shield
Coolant can travel along hoses and splash shields before reaching the ground. Follow our coolant-leak diagnostic procedure to locate wetness and dried residue.
Pressure-test the cooling system only when cold and never remove the expansion-tank cap while the system is hot.
Water Pump or Thermostat?
The two components can create similar symptoms.
| Symptom | More likely source |
|---|---|
| Pump communication or speed fault | Pump, wiring or electrical supply |
| No pump operation during active test | Pump or circuit failure |
| Engine consistently warms too slowly | Thermostat stuck open |
| P0128 with no overheating | Thermostat or temperature-sensor fault |
| Rapid overheating with poor circulation | Pump or thermostat stuck closed |
| Coolant around pump housing | Pump, seal or hose |
| Cooling fan runs constantly at high speed | Pump failure, bad temperature data or overheating |
Use our bad thermostat versus bad water pump guide before replacing components based only on temperature behavior.
A P0128 coolant-thermostat code generally indicates that the engine is taking too long to reach operating temperature. That does not automatically condemn the pump.
Check Coolant-Temperature Data
The engine computer depends on accurate temperature information when controlling pump and cooling-fan operation.
Inspect the sensor and circuit if scan data shows:
- An implausibly cold reading
- An implausibly hot reading
- Temperature that jumps suddenly
- A reading that disagrees with actual engine temperature
- Intermittent open or short-circuit faults
Our P0115 coolant-temperature sensor circuit guide explains how to test the circuit before replacing cooling-system components.
Use the P0116 coolant-temperature performance guide when the sensor reading is present but does not behave correctly during warm-up.
For an intermittent reading, follow the connector and harness checks in our P0119 diagnostic guide.
Installation Overview
Pump access is limited, so professional installation is recommended.
A general procedure includes:
- Let the engine cool completely.
- Disconnect battery power as specified.
- Raise and safely support the vehicle.
- Remove the lower splash shields.
- Drain the coolant into a suitable container.
- Disconnect the pump and thermostat wiring.
- Remove the coolant hoses.
- Remove the thermostat and pump.
- Compare the original and replacement components.
- Install new seals and one-time-use bolts.
- Install the replacement harness if required.
- Reconnect every hose and electrical connector.
- Refill with BMW-approved coolant.
- Run the electronic bleeding procedure.
- Clear applicable diagnostic codes.
- Confirm stable pump operation.
- Pressure-test for leaks.
- Recheck the coolant level after the engine cools.
Transmission configuration can affect hose routing and access. Confirm the correct procedure for the specific VIN.
Cooling-System Bleeding
The N51/N52 cooling system must be properly bled after the pump, thermostat or hoses are opened.
Trapped air may cause:
- Rapid temperature changes
- Weak cabin heat
- Pump cavitation
- Gurgling
- Low-coolant warnings
- Incorrect sensor readings
- Immediate overheating
Many applications use an electronic bleeding routine that operates the pump with the engine off. Maintain proper battery voltage and follow the applicable BMW instructions.
If coolant is old or contaminated, use our guide to flush the cooling system safely.
When the Engine Overheats but the Heater Blows Cold
Overheating combined with cold air from the vents can indicate:
- Low coolant
- Trapped air
- Failed pump operation
- Restricted heater core
- Incorrect hose routing
- Thermostat failure
Our guide to an engine that overheats while the heater blows cold explains how heater behavior can reveal circulation problems.
Check the Radiator Too
A replacement pump cannot correct:
- Internally restricted radiator tubes
- Damaged radiator fins
- Blocked airflow
- Failed cooling fan
- Weak expansion-tank cap
- Incorrect coolant mixture
- Combustion gases entering the cooling system
Review Seven Signs of a Failing Radiator before blaming every cooling problem on the pump.
When to Stop Driving
Stop the vehicle if:
- The red temperature warning appears
- Steam is visible
- Coolant is pouring out
- The engine enters limp mode
- The heater suddenly becomes cold
- Temperature continues climbing
- Severe mechanical noise develops
Continuing can damage the cylinder head, head gasket or complete engine. Our guide covering when you should stop driving explains which symptoms require immediate action.
Features and Benefits
- Designed for compatible N51/N52 applications
- Electrically controlled coolant circulation
- Aluminum pump housing
- Composite impeller
- Thermostat included
- Wiring harness included
- Three new mounting bolts included
- Tested for balance and leakage
- Direct-fit design for confirmed applications
- One-year GZGN warranty
- Manufacturer customer support
“Direct replacement” means the kit is intended to match confirmed applications. It does not eliminate differences involving engine code, transmission, emissions equipment or production date.
Frequently Asked Questions
What vehicles use this water pump?
It fits select 2006–2013 BMW models equipped with compatible N51 or N52 engines, including the 128i, 323i, 325i, 328i, 330i, 528i, 530i, X3, X5 and Z4.
Does it fit a BMW 335i?
No. The 335i normally uses a turbocharged N54 or N55 engine with different cooling components.
Does it fit every 2013 BMW 328i?
No. Compatible E9x N51/N52 applications may use it, while F30 N20-powered cars require a different pump.
Does it fit the BMW 323i?
It fits compatible 323i applications using the N52 engine. The 323i was primarily offered outside the United States, so market and VIN verification are important.
Is the thermostat included?
Yes. The package includes one replacement thermostat.
Are mounting bolts included?
Yes. Three replacement bolts are listed.
Is the wiring harness included?
Yes. Install it only when the supplied update matches the original connector and wiring configuration.
Does the pump fit both N51 and N52 engines?
The supplied listing claims both. However, thermostat, hose and transmission configurations may differ, so confirm the complete kit by VIN.
Must the cooling system be electronically bled?
Most applicable BMW models require an electronic pump-bleeding procedure after cooling-system service.
Is this a genuine BMW or Pierburg pump?
No manufacturer relationship is established by the supplied description. It is a GZGN aftermarket replacement that cross-references BMW numbers.
Final Verdict
The GZGN 11517586925 kit provides the pump, thermostat, harness and three mounting bolts needed for many BMW N51 and N52 cooling-system repairs. Its strongest applications include the E82/E88 128i, E9x 3 Series, E60 5 Series and compatible N52-powered X3, X5 and Z4 models.
Confirm the chassis, engine code, thermostat, connector and original numbers before ordering—especially on 2012–2013 328i models. After installation, use the correct BMW coolant and complete the electronic bleeding procedure. The pump may be intelligent, but it still cannot bleed itself through optimism.
