Ten Selectable LED Colors

Choose from ten solid display colors to match your factory dashboard or create a custom gauge layout:

• Blue
• Green
• Red
• Yellow
• White
• Teal
• Purple
• Pink
• Amber
• Orange

The selected color can complement many factory instrument panels without requiring the rest of the dashboard to surrender to whatever color the gauge manufacturer picked.

Two Automatic Color Modes

In addition to the ten solid-color settings, the gauge includes two automatic lighting modes:

• Ten-color cycle mode
• Ten-color fade mode

Cycle mode moves through the available colors, while fade mode creates a smoother transition between them.

For actual driving, a solid color will usually be the least distracting option. The cycle modes remain available for shows, display vehicles and anyone who believes ten colors are better when they refuse to sit still.

Ultra-Bright Digital Display

The digital LED screen provides a quick numerical reading without requiring the driver to estimate the position of an analog needle.

GlowShift lists the illuminated display area as approximately:

• 3/8 inch high
• 5/8 inch wide
• 9.5mm × 15.92mm

The black gauge face and tinted lens help the illuminated numbers stand out when the gauge is operating.

Automatic Startup Calibration

Each time the gauge powers on, it enters a self-calibration sequence. This startup check verifies operation before the gauge begins displaying coolant temperature.

Self-calibration helps confirm that the display and internal electronics are functioning. It does not test the entire cooling system, sender installation or coolant level—because apparently the gauge is unwilling to do absolutely everything.

Automatic Nighttime Dimming

Connect the orange wire to the vehicle’s headlight-switch circuit and the display will dim by approximately 50 percent whenever the headlights are switched on.

This reduces glare during nighttime driving while keeping the temperature reading visible.

Compact 2-1/16-Inch Housing

The gauge measures 2-1/16 inches, or 52mm, and has an ultra-thin housing approximately 1-1/16 inches deep.

Its compact dimensions make it compatible with many:

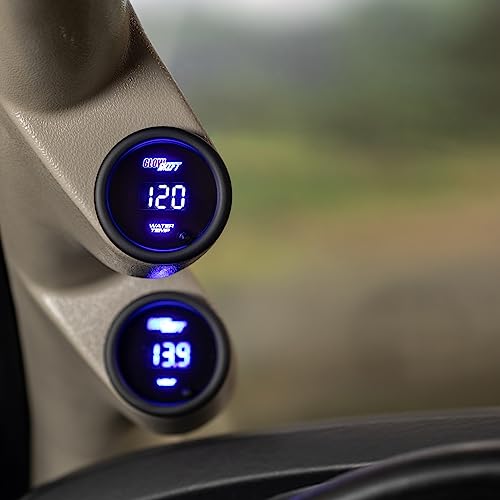

• A-pillar gauge pods
• Dashboard gauge pods
• Under-dash panels
• Custom instrument clusters
• Universal 52mm mounting panels

The included visor can help reduce reflections when the gauge is mounted on top of the dashboard or in another brightly lit location.

Electronic 1/8-27 NPT Sender

The kit includes a matched electronic temperature sender with a 1/8-27 NPT thread.

Common installation locations include:

• Factory coolant-sender port
• Cylinder-head coolant port
• Intake-manifold coolant passage
• Thermostat housing
• Coolant outlet
• Inline radiator-hose adapter

Not every vehicle uses a 1/8-27 NPT coolant port. A vehicle-specific thread adapter or radiator-hose adapter may be required.

Product Specifications

• Brand: GlowShift
• Product line: 10 Color Digital Series
• Manufacturer part number: GS-TCD06
• UPC: 842559100073
• Gauge type: Electronic water-temperature gauge
• Display type: Digital LED
• Temperature range: 68–302°F
• Gauge diameter: 2-1/16 inches / 52mm
• Gauge depth: Approximately 1-1/16 inches / 27mm
• Face color: Black
• Lens: Tinted
• Trim ring: Matte black
• Housing material: Aluminum
• Solid display colors: 10
• Automatic color modes: Two
• Nighttime dimming: Approximately 50%
• Sending unit: Electronic
• Sender thread: 1/8-27 NPT
• Harness length: Two feet
• Startup self-calibration: Yes
• Measurement unit: Fahrenheit

These details were verified against the current GlowShift product specifications.

What’s Included

• GlowShift 10 Color Digital water-temperature gauge
• 1/8-27 NPT electronic temperature sender
• Two-foot sensor and power harness
• Gauge visor
• Mounting bracket
• Mounting-bracket hardware
• Step-by-step installation instructions

Additional thread adapters, wiring or a radiator-hose temperature adapter may be required.

Why Install an Aftermarket Water-Temperature Gauge?

Many factory coolant gauges provide only a general indication of temperature. Some remain near the middle of the display across a broad operating range and move toward hot only after the cooling system has developed a serious problem.

A digital aftermarket gauge can help you:

• Monitor actual coolant-temperature numbers
• Detect abnormal temperature increases
• Verify electric cooling-fan operation
• Monitor a modified or swapped engine
• Evaluate radiator and cooling-system upgrades
• Diagnose intermittent overheating
• Track temperature under towing or performance loads
• Replace an inaccurate factory gauge

If rising temperatures appear alongside coolant loss, corrosion or visible leakage, review our guide to the seven signs of a failing radiator.

Installation Notes

Install the included sender where it can contact circulating engine coolant.

GlowShift supports several installation methods:

• Replace a compatible factory sender
• Use an available coolant-fluid port
• Install a threaded adapter
• Install an inline radiator-hose adapter

Whenever possible, retain the factory coolant-temperature sensor. The ECU may use that sensor to control fuel delivery, ignition timing, cooling fans, warning lights and other functions.

Before installation:

• Allow the engine to cool completely.
• Disconnect the negative battery terminal.
• Verify the available coolant-port thread.
• Install a thread or hose adapter if required.
• Route the sensor wire through a protected firewall grommet.
• Keep wiring away from exhaust components.
• Avoid belts, pulleys and cooling fans.
• Connect the orange dimmer wire to the headlight circuit if desired.
• Bleed trapped air from the cooling system.
• Inspect the sender and adapters for leaks.
• Confirm gauge operation before driving.

GlowShift recommends thread sealant on the sensor threads. Use it carefully and follow the supplied instructions so the connection seals without interfering with sender operation.

The official GlowShift installation guide provides additional installation information.

Frequently Asked Questions

What temperature range does the gauge display?

The gauge electronically measures coolant temperature from 68°F to 302°F.

How many display colors are available?

It includes ten solid colors: blue, green, red, yellow, white, teal, purple, pink, amber and orange.

What are the two color-cycle modes?

The gauge includes a ten-color cycle mode and a ten-color fade mode. Both automatically move through the available colors.

Does the gauge remember the selected color?

The gauge is designed to retain its selected display mode between startups.

Does the display dim at night?

Yes. Connecting the orange wire to the factory headlight-switch circuit dims the display approximately 50 percent when the headlights are on.

Does this gauge have a temperature warning alarm?

No programmable warning or alarm is specified for this particular 10 Color Digital model. The driver must monitor the numerical display.

Does it include a temperature sender?

Yes. The kit includes a matched electronic temperature sender with a 1/8-27 NPT thread.

Will the sender fit my vehicle?

Fitment depends on the vehicle’s coolant-port thread. A thread adapter or inline radiator-hose adapter may be required.

Can I use the factory temperature sender?

Use the included GlowShift sender unless the manufacturer confirms another sender has a compatible output curve. Factory senders frequently use different electrical characteristics.

What should I do if the display shows an unusually high temperature?

Reduce engine load and watch whether the reading stabilizes. If the temperature continues rising, coolant escapes or steam appears, pull over safely and shut the engine off. Never remove a hot radiator cap.

Our guide on how to deal with an overheating engine explains what to check next.

GlowShift Warranty and Support

GlowShift backs the gauge with:

• One-year limited warranty
• Free lifetime technical support
• 30-day no-hassle return policy

Warranty and return eligibility remain subject to GlowShift’s current terms, installation requirements and purchase conditions.

Digital Temperature Monitoring With Custom Lighting

The GlowShift 10 Color Digital Water Temperature Gauge combines accurate numerical monitoring with a compact aluminum housing, tinted lens, ten solid display colors and two automatic color modes.

With its 68–302°F range, included electronic sender, startup self-calibration and nighttime dimming, it offers a more complete monitoring package than a basic universal coolant gauge.
