Advertised 4,500 lb Gross Trailer Weight Rating
The manufacturer rates the hitch assembly for a maximum gross trailer weight of 4,500 pounds.
Gross trailer weight includes the trailer itself and its loaded contents.
This is a component rating describing the hitch’s advertised capacity.
It does not authorize towing a 4,500 lb trailer with a Mazda CX-5.
The maximum permissible trailer weight is determined by the lowest-rated component in the towing system, including the vehicle, hitch, ball mount, and hitch ball.
Advertised 675 lb Tongue Weight Rating
The GelaGelacie hitch is advertised with a 675 lb maximum tongue weight rating.
Tongue weight is the downward load applied at the receiver by a trailer coupler or hitch-mounted accessory.
This specification is particularly important when carrying bicycles or cargo behind the vehicle.
The Mazda CX-5’s permitted tongue weight may be substantially lower than the hitch’s advertised 675 lb rating.
For hitch-mounted accessories, the weight of the carrier itself and the leverage created by its distance behind the receiver must also be considered.

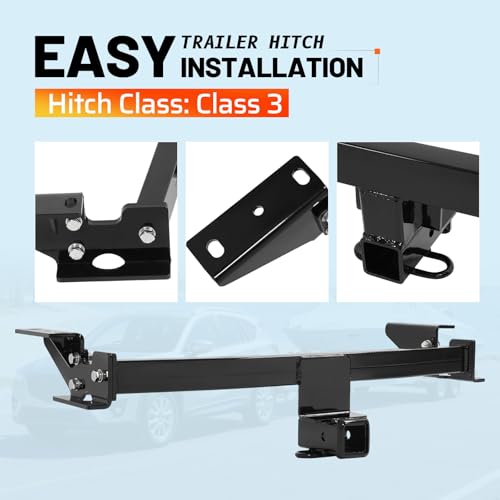

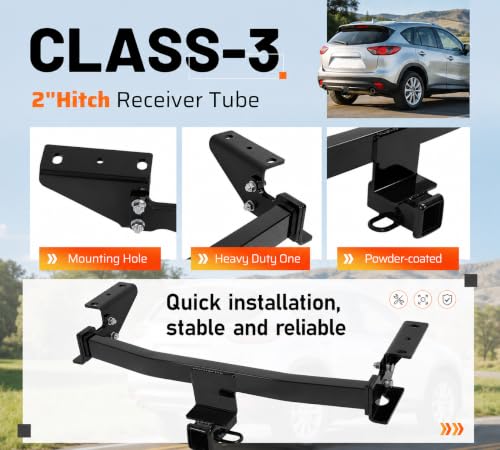

Durable Steel Construction
The GelaGelacie Class III receiver hitch is constructed from steel to provide a rigid mounting structure for compatible towing and hauling applications.
The steel assembly is designed to withstand loads within its verified ratings when correctly installed.
Key construction features include:
- Steel receiver assembly.
- Standard 2-inch square receiver.
- Vehicle-specific mounting design.
- Black powder-coated surface.
- Bolt-on installation.
- Included assembly instructions.
Proper installation and hardware torque are essential for safe operation.
Black Powder-Coated Finish
Trailer hitches are exposed to road debris, moisture, dirt, and changing weather conditions.
The GelaGelacie receiver features a black powder-coated finish intended to help protect the steel against corrosion and surface wear.
The coating also provides a clean appearance beneath the rear bumper.
Regular inspection is recommended, particularly around mounting bolts, welded areas, and surfaces where the finish may become scratched.
Bolt-On Installation Without Welding
The hitch is designed for installation using mechanical fasteners rather than welding.
The manufacturer supplies an installation manual and recommends professional installation.
One notable installation instruction concerns the exhaust hangers.
If the exhaust hangers are difficult to position, the manufacturer recommends installing the brackets on both sides first, followed by assembly of the main hitch body.
This sequence may help improve alignment during installation.
Do not assume that every installation can be completed without temporarily repositioning exhaust components or following other vehicle-specific procedures.

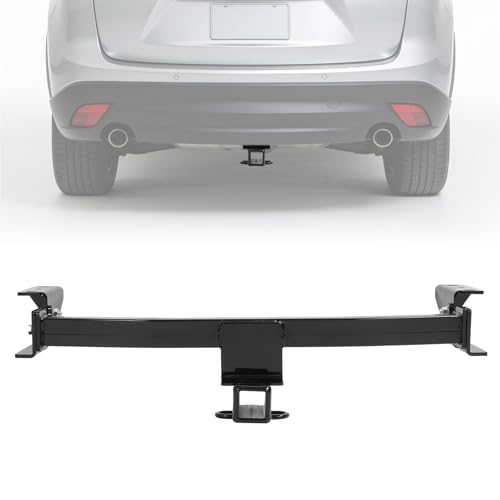

GelaGelacie Mazda CX-5 Trailer Hitch Specifications
| Specification | Details |
|---|---|
| Brand | GelaGelacie |
| Product type | Class III trailer hitch receiver |
| Vehicle application | Mazda CX-5 |
| Advertised model years | 2013–2025 |
| Compatible engine type | Gasoline |
| Excluded engine type | Diesel |
| Receiver opening | 2 inches |
| Material | Steel |
| Finish | Black powder coat |
| Advertised maximum GTW | 4,500 lbs |
| Advertised maximum tongue weight | 675 lbs |
| Mounting design | Bolt-on |
| Welding required | No, according to seller description |
| Installation manual | Included |
| Hitch assembly | Included |
| Mounting hardware | Not fully itemized |
| Trailer wiring harness | Not specified as included |
| Ball mount and hitch ball | Not specified as included |
| Weight-distribution rating | Not provided |
The 4,500 lb GTW and 675 lb tongue weight figures are manufacturer-advertised hitch ratings. They are not the towing or tongue weight limits of the Mazda CX-5.
Mazda CX-5 Fitment Guide
| Mazda CX-5 Model Year | Advertised Fitment |
|---|---|
| 2013 | Gasoline models |
| 2014 | Gasoline models |
| 2015 | Gasoline models |
| 2016 | Gasoline models |
| 2017–2021 | Gasoline models |
| 2022–2025 | Gasoline models |
| Diesel-powered CX-5 | Excluded |
| Mazda CX-30 | Not confirmed |
| Mazda CX-50 | Not confirmed |
| Mazda CX-9 | Not confirmed |
Vehicle-specific fitment should be verified against the manufacturer’s current application information before purchase.
What Can You Use the GelaGelacie 2-Inch Receiver For?
Hitch-Mounted Bicycle Racks
A 2-inch receiver makes it possible to use compatible hitch-mounted bicycle carriers.
This is a popular upgrade for Mazda CX-5 owners who want to transport bicycles without using a roof rack.
Before loading, verify the combined weight of the rack and bicycles against the vehicle’s allowable tongue load.
Cargo Carriers
A hitch-mounted cargo platform can provide additional storage space for camping supplies, luggage, and other properly secured equipment.
The carrier’s own weight counts toward the total load.
Because cargo platforms extend behind the vehicle, their leverage can affect permissible loading and vehicle handling.
Light-Duty Trailer Towing
A compatible ball mount, hitch ball, trailer wiring connection, and other required equipment can allow an appropriately equipped CX-5 to tow within Mazda’s published vehicle limits.
The hitch’s 4,500 lb component rating does not increase the SUV’s towing capacity.
Outdoor Recreation
The receiver can support compatible accessories for camping, cycling, and recreational travel.
Its standard 2-inch opening provides access to a broad selection of aftermarket equipment.
Everyday Utility
For owners who occasionally need additional carrying capacity, a receiver hitch provides a flexible accessory mounting location without permanently attaching a cargo platform or bicycle rack.
GelaGelacie Class III Hitch vs. Smaller Receiver Hitches
| Feature | GelaGelacie Class III Hitch | Typical 1.25-Inch Hitch |
|---|---|---|
| Receiver size | 2 inches | 1.25 inches |
| Advertised hitch GTW | 4,500 lbs | Varies |
| Advertised hitch tongue weight | 675 lbs | Varies |
| Steel construction | Yes | Model dependent |
| Powder-coated finish | Yes | Model dependent |
| Bolt-on installation | Yes | Model dependent |
| Bike rack compatibility | Broad selection | More limited selection |
| Cargo carrier compatibility | Broad selection | Model dependent |
| Vehicle towing limit | Determined by Mazda | Determined by Mazda |
A larger receiver can improve accessory selection, but it does not change the Mazda CX-5’s factory towing limits.
How to Install the GelaGelacie Mazda CX-5 Trailer Hitch
The GelaGelacie hitch is designed for a bolt-on installation using compatible vehicle mounting points.
The manufacturer recommends professional installation.
General Installation Overview
- Park the Mazda CX-5 on a level surface and engage the parking brake.
- Allow the exhaust system to cool completely.
- Review the included assembly instructions and identify all mounting components.
- Inspect the factory mounting locations for damage, corrosion, or debris.
- Support the hitch and align the mounting brackets with the specified vehicle attachment points.
- If exhaust hanger positioning is difficult, follow the manufacturer’s recommendation to install the side brackets first and then assemble the main hitch body.
- Install the required mounting hardware without cross-threading.
- Tighten all fasteners to the torque specifications supplied with the exact hitch assembly.
- Verify clearance around the exhaust, rear bumper, and other vehicle components.
- Inspect the finished installation before attaching accessories or towing equipment.
Installation note: The supplied description does not provide mounting bolt torque specifications. Do not reuse torque values from a different Mazda CX-5 hitch manufacturer.
Mazda CX-5 Towing Capacity vs. Hitch Capacity
One of the most important distinctions when selecting a trailer hitch is the difference between the receiver’s rating and the vehicle’s actual towing capacity.
The GelaGelacie hitch is advertised for 4,500 lbs GTW and 675 lbs tongue weight.
Those figures describe the hitch assembly.
They do not mean that a Mazda CX-5 is approved to tow a trailer weighing 4,500 pounds.
Before towing, consult the owner’s manual for your specific model year, engine, drivetrain, and market.
Also verify:
- The vehicle’s maximum loaded trailer weight.
- The maximum permitted tongue weight.
- Trailer brake requirements.
- Ball mount and hitch ball ratings.
- Trailer wiring requirements.
- Passenger and cargo loading.
- Tire pressure and vehicle condition.
- Applicable towing regulations.
Never exceed the lowest applicable rating.
Frequently Asked Questions
Does the GelaGelacie hitch fit a 2025 Mazda CX-5?
The manufacturer advertises compatibility with gasoline-powered Mazda CX-5 models through 2025. Confirm the exact vehicle configuration before ordering.
Will this hitch fit a 2016 Mazda CX-5?
Yes, gasoline-powered 2016 Mazda CX-5 models are included in the advertised fitment range, subject to manufacturer verification.
Does it fit diesel Mazda CX-5 models?
No. The manufacturer specifically excludes diesel-equipped CX-5 vehicles.
What size receiver does the GelaGelacie hitch use?
It features a standard 2-inch square receiver.
Can my Mazda CX-5 tow 4,500 pounds with this hitch?
Not based on the hitch rating alone. The advertised 4,500 lb figure applies to the receiver assembly. Mazda’s lower vehicle-specific towing limit must be followed.
What is the hitch’s tongue weight rating?
The manufacturer advertises a maximum hitch tongue weight rating of 675 pounds. The vehicle’s allowable tongue load may be lower.
Can I install a bike rack?
Yes, a compatible 2-inch receiver bike rack may be used within the vehicle, hitch, and accessory manufacturers’ load and clearance restrictions.
Does installation require welding?
No. The product is advertised as a bolt-on receiver hitch.
Does it include an installation manual?
Yes. The manufacturer states that an assembly manual is included.
What should I do if the exhaust hangers are difficult to install?
The manufacturer recommends installing the side brackets first, followed by the main hitch body. Follow the complete installation instructions for the exact product.
Does this hitch include trailer wiring?
The supplied package description does not identify a trailer wiring harness as included.
Is this hitch compatible with weight-distribution systems?
The supplied product information does not provide a weight-distribution rating or approval. Do not assume compatibility without written manufacturer confirmation.
Expand Your Mazda CX-5’s Hauling Versatility
The GelaGelacie Class 3 Trailer Hitch Receiver for 2013–2025 Mazda CX-5 offers a vehicle-specific solution for owners who want a standard 2-inch receiver for compatible towing and cargo accessories.
Featuring steel construction, a black powder-coated finish, bolt-on mounting, and advertised 4,500 lb GTW and 675 lb tongue weight hitch ratings, this receiver is designed for practical everyday utility.
Its included assembly instructions and manufacturer-recommended bracket installation sequence provide useful guidance for fitting the hitch beneath compatible CX-5 models.
Whether you’re carrying bicycles, transporting recreational equipment, or preparing for light-duty towing within Mazda’s approved limits, the GelaGelacie receiver adds flexibility to your SUV.
Upgrade your Mazda CX-5 with the GelaGelacie Class III 2-Inch Trailer Hitch and make more of your next adventure.
