Before automatically selecting the largest pump available, read our fuel pump upgrade guide and size the system around the engine’s actual fuel requirements.
Designed for E85 Performance Applications
E85 is where a high-capacity pump like this begins to make considerably more sense.
An ethanol-fueled engine requires greater fuel volume than the same engine operating on conventional gasoline. As horsepower and boost increase, that additional demand can quickly push smaller pumps toward their limits.
This F90000295 replacement is specified for E85 and ethanol applications, making it suitable for builders planning a high-output ethanol fuel system.
If you’re converting an existing gasoline vehicle, start with our complete How to Convert to E85 guide.
The pump is only one part of the conversion.
Upgrade the Complete E85 Fuel System
A 535LPH E85-compatible pump doesn’t automatically make every component between the tank and engine suitable for ethanol.
The complete fuel system should be evaluated for both flow capacity and material compatibility.
Pay particular attention to:
- Fuel hoses
- Feed lines
- Return lines
- Filters
- Seals
- O-rings
- Fuel rails
- Regulators
- Injectors
Our guide to upgrading fuel lines for E85 explains why the lines and supporting hardware deserve just as much attention as the pump during an ethanol conversion.
There’s little benefit in installing a 535LPH pump if the rest of the fuel system is still trying to breathe through hardware designed around stock horsepower.
Match Your Injectors to a 535LPH Pump
A high-flow fuel pump supplies the system with fuel, but the injectors ultimately determine how much of that fuel can enter the engine.
Large turbochargers, high boost and E85 can require significantly larger injectors than the original engine used.
Our guide covering fuel injector upgrade benefits explains why injector flow rate and duty cycle should be evaluated alongside fuel-pump capacity.
For a properly engineered high-horsepower fuel system, consider the entire chain:
Fuel Tank → Pump → Filter → Feed Line → Fuel Rail → Injectors → Regulator → Return Line
The maximum capability of the system is ultimately determined by its restrictions and operating conditions, not simply the flow number stamped on the pump.
Return-Style vs Returnless Fuel Systems
A 535LPH pump can move an enormous amount of fuel compared with many factory pumps.
That means fuel-pressure control becomes particularly important.
Traditional performance builds commonly use an adjustable regulator and return line, while many modern vehicles use electronically controlled returnless systems.
Before integrating a pump of this size into an existing vehicle, read our comparison of returnless versus return fuel systems.
A factory regulator or fuel-pump control system designed around a much smaller pump may require additional consideration when fuel capacity is increased this dramatically.
High-Pressure Performance Fuel Pump
High-flow capability is only useful if the pump can maintain sufficient delivery as fuel pressure increases.
Fuel pressure can become particularly demanding on forced-induction engines using boost-referenced regulators. As manifold boost rises, the regulator increases rail pressure relative to manifold pressure.
That forces the pump to operate against greater pressure.
For this reason, don’t calculate the horsepower capability of a 535LPH fuel pump using the advertised maximum flow number alone.
Actual pump delivery can vary with:
- Fuel pressure
- System voltage
- Fuel type
- Temperature
- Plumbing restriction
- Filter restriction
- Electrical supply
For extreme builds, use an appropriate pump flow curve and calculate required fuel delivery at the actual expected operating pressure.
Electrical Upgrades May Be Required
A high-capacity electric fuel pump places considerably more demand on the vehicle’s electrical system than many stock pumps.
Even the best fuel pump can’t deliver its intended performance when voltage at the pump collapses under load.
Inspect the complete electrical circuit, including:
- Power wiring
- Grounds
- Relay
- Fuse protection
- Connectors
- Fuel-pump controller
Measure voltage directly at the pump under operating conditions whenever possible.
Depending on the vehicle and installation, upgraded wiring and relay capacity may be required.
Trying to feed a 535LPH pump through tired factory wiring designed decades ago for a stock pump is an excellent way to own a very expensive 400-something-LPH pump.
Integrated Safety and Noise-Control Features
This F90000295 replacement incorporates an integrated safety-valve design intended to help maintain stable fuel-system operation and protect against excessive pressure conditions.
The pump is also described as incorporating noise-reduction technology for quieter operation compared with conventional high-output pumps.
This can be particularly valuable in street-driven performance cars where the fuel system needs significant capacity without turning the rear seat area into an industrial soundtrack.

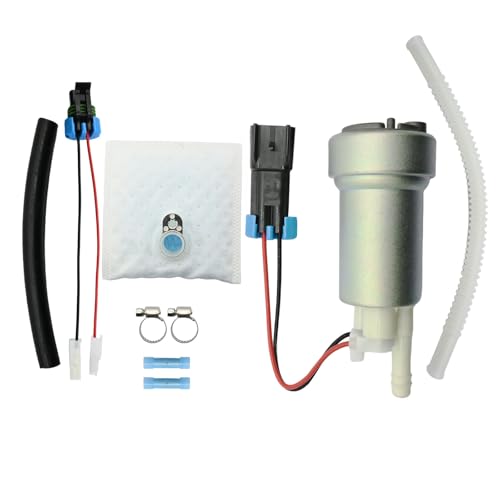

Complete Installation Kit
The pump is supplied as a replacement kit rather than only a bare electric pump.
Depending on the specific package configuration, included components are listed as:
- 1 × 535LPH Fuel Pump
- Fuel Strainer
- Replacement Seal
- Electrical Pigtail
- Installation Hardware
Always inspect the supplied components against the original fuel-pump module before installation.
F90000295 Replacement Fitment
This product is marketed as a replacement for Walbro/TI Automotive F90000295 applications.
Because it is an aftermarket replacement, verify the actual pump dimensions, inlet and outlet arrangement, electrical connector, fuel compatibility and hanger configuration before purchasing.
Do not assume that every vehicle using a modified F90000295 installation will accept another pump without checking the existing fuel-pump module.
Vehicle-specific modifications may still be necessary depending on the original or aftermarket fuel-pump hanger.
Ideal Applications
This F90000295 535LPH E85 fuel pump replacement is best suited for performance applications including:
- High-horsepower E85 builds
- Flex-fuel vehicles
- Large single-turbo setups
- Twin-turbo engines
- Supercharged applications
- Built engines
- Large injector combinations
- High-boost street cars
- Drag racing
- Track vehicles
- Engine swaps
- Custom performance fuel systems
Why Choose a 535LPH F90000295 Replacement?
For builds that have moved beyond the capabilities of traditional 255LPH or 340LPH pumps, a 535LPH high-flow pump provides significantly greater potential fuel-system capacity.
Its E85 compatibility makes it particularly useful for high-output ethanol applications where fuel-volume requirements can become substantial.
The important part is treating the pump as one component of the system rather than assuming 535LPH automatically equals a particular horsepower number.
Match the pump with properly sized injectors, adequate feed and return plumbing, an appropriate regulator, sufficient filtration and a strong electrical supply.
That’s how you build a fuel system around horsepower instead of building horsepower and then discovering the fuel system would prefer you didn’t.
Product Specifications
Replacement Part Number: F90000295
Product Type: High-Flow In-Tank Electric Fuel Pump
Rated Flow: 535 LPH
Fuel Compatibility: E85 / ethanol applications as specified
Installation Type: In-Tank
Application: High-performance EFI fuel systems
Configuration: F90000295-style replacement
Included Components: Pump, strainer, seal, electrical pigtail and installation components
Safety Features: Integrated safety-valve design
Noise Control: Noise-reduction design
Warranty: 1 year as specified by seller/manufacturer
Important Fitment Note: This product is an aftermarket replacement intended for F90000295-style applications and should not be represented as a genuine Walbro or TI Automotive pump unless manufacturer documentation confirms it. Verify dimensions, electrical requirements, fuel compatibility and installation configuration before ordering.
