Why Use a 10 Micron Fuel Filter?

A 10-micron fuel filter is commonly used after the fuel pump in EFI systems to trap extremely fine contaminants before fuel reaches injectors and sensitive fuel delivery components.

This helps:

• Protect injectors
• Improve fuel system reliability
• Prevent clogging
• Support stable fuel delivery
• Reduce contamination-related tuning issues

Translation: less injector drama and fewer mysterious lean conditions.

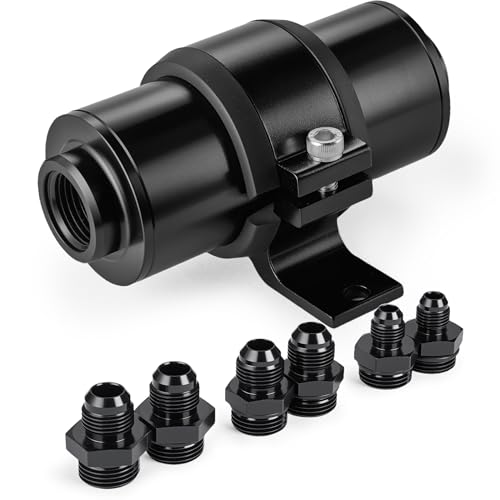

[Application] Universal fuel filter, includes an6, an8, an10 adapters for different size applications. With mounting bracket assists in keeping the engine bar stylish and clean.

Features

• 10-micron inline fuel filtration
• Includes 6AN, 8AN, and 10AN adapter fittings
• Compact 50MM universal filter housing
• Lightweight billet aluminum construction
• Reusable and serviceable filter element
• High-flow filtration design
• Black anodized corrosion-resistant finish
• Includes universal mounting bracket clamp
• Compatible with gasoline, E85, ethanol blends, and race fuel

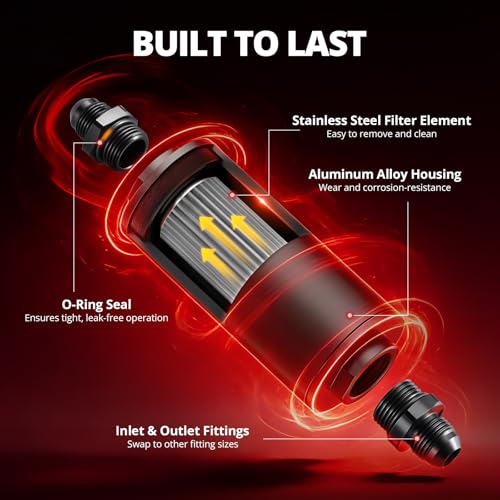

[Material] Aluminum alloy fuel filter can and chrome steel filter element.
[O-ring] The o-ring provides a tight seal for fittings and end caps.

Common Applications

• EFI fuel systems
• Return-style fuel setups
• Turbocharged fuel systems
• LS swap fuel systems
• Drift and drag race vehicles
• Fuel cell installations
• High-horsepower street builds
• E85 fuel systems
• Motorsport fuel plumbing projects

[Function] Can be utilized for filtering gasoline, diesel, and the like.(Not E85) Captures contaminant particles of 10 micron and above to give protection to the fuel system of the vehicle.

Designed for High-Performance EFI Systems

The fine 10-micron filtration element helps protect modern high-flow injectors from contamination without creating excessive restriction. This makes the filter ideal for boosted applications, standalone ECU systems, and aggressive tuning combinations.

Especially useful when your fuel injectors cost more than your first car.

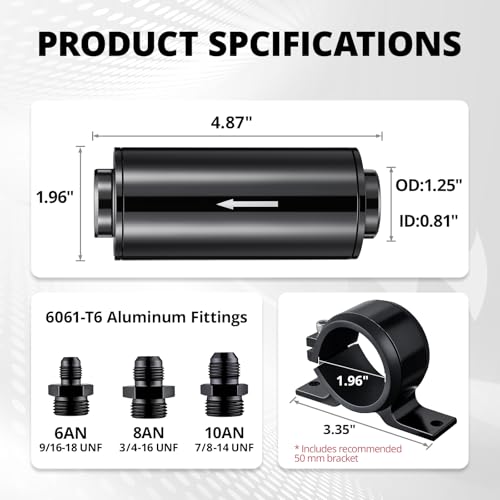

Universal AN Adapter Compatibility

Included 6AN, 8AN, and 10AN adapters allow flexible integration into a wide variety of aftermarket fuel systems and braided hose configurations. The included 50MM bracket clamp also simplifies mounting to frame rails, firewalls, trunk-mounted fuel systems, or custom fabricated brackets.

Because every project car eventually requires more brackets than actual horsepower upgrades.

[Feature] Removable design, easy to wash or replace filter element at regular time.

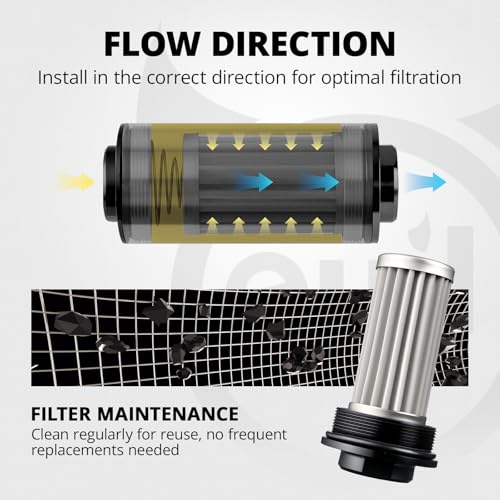

[Installation Tips] Now we have debugged the installation direction of the fuel filters before delivery. Please check and make sure the closed end of the filter element docks with the spring. Let the liquid drift following the arrow from the spring end to the opposite end, and the fuel filter will serve longer.

Reusable Serviceable Design

Unlike disposable inline filters, the billet aluminum housing can be disassembled for cleaning or filter element replacement. This improves long-term reliability while reducing maintenance costs for performance vehicles.

Translation: fewer emergency parts store runs and slightly less suffering.

Built for Modern Performance Fuels

Compatible with gasoline, E85, ethanol blends, methanol, and race fuel, this filter is designed to handle the aggressive chemical exposure found in modern motorsports fuel systems.

Because ethanol fuel absolutely loves exposing weak components.

Why Choose EVIL ENERGY?

EVIL ENERGY continues to provide enthusiasts with affordable and dependable fuel system hardware, AN fittings, and performance plumbing solutions. Their inline fuel filters deliver strong contaminant protection, reliable high-flow performance, and universal compatibility for both street-driven and race-focused applications.

Because clogged injectors are significantly less entertaining than turbo noises.
