EVIL ENERGY 8AN 90 Degree Swivel Hose End Fitting – Forged Aluminum AN8 Adapter

Compact 90-Degree Design for Tight Fuel Line Routing

One of the biggest advantages of the EVIL ENERGY 8AN swivel fitting is its compact forged elbow profile.

Unlike a straight fitting that requires additional space for the hose to bend naturally, a 90-degree hose end redirects the connection closer to the mounting point.

This makes it useful for:

• Aftermarket fuel rail inlet and outlet connections

• Fuel pressure regulator installations

• Custom fuel pump plumbing

• LS engine swap fuel systems

• Turbocharged and supercharged engine builds

• Custom fuel supply and return lines

• Compatible oil cooler and fluid plumbing systems

The 90-degree configuration can help reduce tight hose bends and improve routing around nearby engine components.

Installation tip: Always verify clearance, hose bend radius, and component movement. A 90-degree fitting does not eliminate the need for proper hose support.

Forged 6061-T6 Aluminum Construction

The EVIL ENERGY 8AN 90-degree hose end is manufactured from 6061-T6 aluminum alloy, with the elbow section produced through a forging process.

Forging helps create a strong, compact component suitable for demanding automotive plumbing applications.

The aluminum construction also reduces weight compared with many steel fittings while providing good corrosion resistance.

This fitting is designed for performance fuel and fluid systems operating within its advertised pressure and temperature specifications.

Swivel Connection for Easier Installation

A swivel hose end provides additional flexibility when positioning the hose during installation.

This is especially useful when routing braided fuel lines between components that are mounted at different angles.

The swivel design helps orient the 90-degree elbow without unnecessarily twisting the hose assembly.

However, the fitting should not be treated as a continuously rotating joint or used to accommodate movement beyond its intended design.

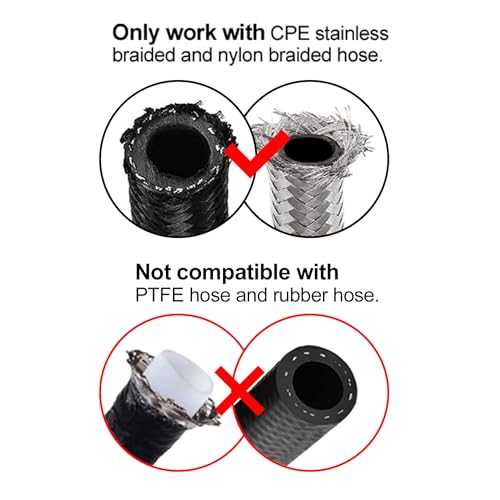

Compatible with Stainless Steel and Nylon Braided Hoses

The EVIL ENERGY 8AN 90-degree fitting is advertised for use with stainless steel braided and nylon braided hoses.

Because AN hose ends are not universally interchangeable, the fitting must be matched to the correct hose construction and dimensions.

A conventional reusable AN hose end designed for rubber-lined braided hose should not automatically be used with PTFE-lined hose.

PTFE hose typically requires a dedicated PTFE-compatible fitting design.

Important compatibility note: Confirm the hose’s inside diameter, outside diameter, liner material, and manufacturer-approved fitting type before installation. This product’s description does not establish PTFE hose compatibility.

Ideal for Performance Fuel Systems and E85 Conversions

Custom E85 fuel systems often use larger-diameter fuel lines to accommodate increased fuel volume requirements.

The EVIL ENERGY 8AN 90-degree swivel fitting can be useful when routing compatible braided fuel hose around aftermarket fuel rails, regulators, and other components.

However, E85 compatibility depends on the entire hose and fitting assembly, including internal seals and the hose liner.

For additional technical information, read our How to Convert to E85 – Upgrading Fuel Lines guide at My Pro Street Online.

You can also review our Complete E85 Conversion Guide to understand the fuel system upgrades commonly required when switching from gasoline to ethanol-based fuels.

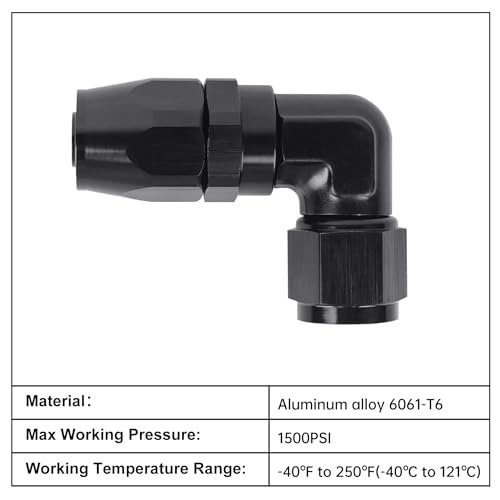

EVIL ENERGY 8AN 90 Degree Swivel Hose End Specifications

Pressure and temperature ratings are manufacturer-advertised fitting specifications. The complete hose assembly must remain within the limits of its lowest-rated component.

What Vehicles Does This EVIL ENERGY 8AN Fitting Fit?

This is a universal AN hose end intended for custom aftermarket plumbing rather than a direct-fit OEM replacement.

It may be used on a wide range of modified vehicles equipped with compatible -8AN plumbing.

Fitment note: Vehicle compatibility depends on the installed hose and fuel system components. Factory fuel lines and OEM quick-connect fittings may require additional adapters.

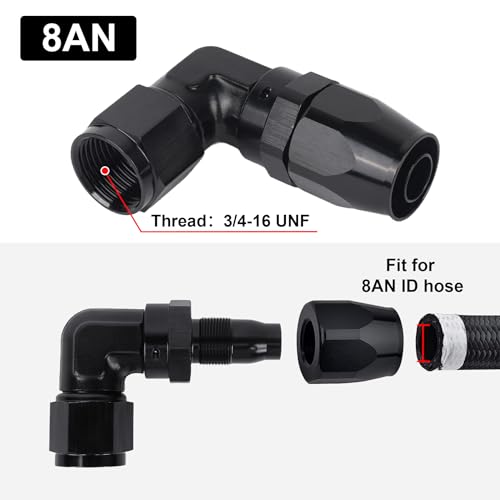

How to Install an 8AN 90 Degree Swivel Hose End

1. Relieve fuel system pressure and follow appropriate fuel system safety procedures.

2. Confirm the fitting is approved for the exact braided hose construction being used.

3. Cut the hose squarely using a suitable hose-cutting tool.

4. Prepare the hose end according to the fitting manufacturer’s assembly instructions.

5. Install the reusable hose end components, ensuring the hose is properly seated.

6. Tighten the fitting to the manufacturer’s recommended specifications.

7. Connect the 37-degree female AN flare to a compatible male -8AN fitting.

8. Orient the elbow to avoid sharp hose bends, abrasion, and interference with nearby components.

9. Pressure-test the completed assembly and inspect for leaks before operating the vehicle.

Do not use PTFE tape or pipe-thread sealant on the 37-degree AN flare connection.

EVIL ENERGY 8AN 90 Degree vs. Straight AN Hose Ends

Choosing the appropriate hose end configuration can simplify installation and help prevent unnecessary stress on braided fuel lines.

Buy the EVIL ENERGY 8AN 90 Degree Swivel Hose End at Pro Street Online

Complete your custom fuel plumbing installation with the EVIL ENERGY 8AN 90 Degree Swivel Hose End Fitting.

Featuring forged 6061-T6 aluminum construction, a compact 90-degree profile, 37-degree AN flare sealing, and a swivel design for easier hose positioning, this fitting is a practical choice for performance fuel system builds and compatible automotive fluid plumbing.
