EVIL ENERGY 6AN PTFE Fuel Line Kit 20FT – Black Nylon Braided E85 Fuel Hose
Upgrade your performance fuel system with the EVIL ENERGY 6AN PTFE Fuel Line Kit, featuring 20 feet of black nylon braided hose engineered for compatible E85, gasoline, and custom EFI fuel plumbing applications.
Built around a chemically resistant PTFE inner liner, this -6AN fuel hose is designed for demanding automotive environments where conventional rubber fuel lines may not provide the desired resistance to ethanol-rich fuels, elevated temperatures, or high operating pressures.

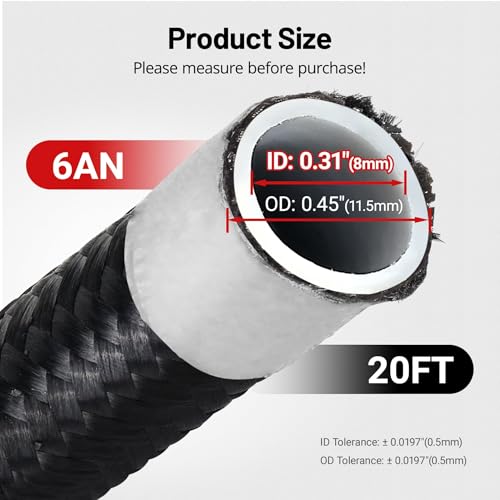

The hose features a 5/16-inch (0.31-inch) inside diameter, 0.45-inch outside diameter, and 20-foot length, making it a versatile option for custom fuel supply lines, return lines, LS engine swaps, turbocharged builds, and aftermarket fuel system installations.
EVIL ENERGY advertises a maximum working pressure of 1,500 PSI, a burst pressure of 4,500 PSI, and an operating temperature range of -76°F to 446°F.
With its black nylon braided exterior, the hose also provides a clean, understated appearance for performance engine bays.
Important: This is a universal custom fuel plumbing product. Use only hose ends specifically designed for the supplied PTFE hose. The exact fitting assortment must be confirmed from the product gallery before advertising the kit as complete.
Why Choose the EVIL ENERGY Black Nylon Braided PTFE Fuel Hose?
A performance fuel system must deliver sufficient fuel while maintaining chemical compatibility and reliable connections.
Fuel line construction becomes especially important when converting a vehicle to E85 or modifying an engine for increased fuel demand.
The EVIL ENERGY 6AN PTFE hose combines a chemically resistant inner liner with a black nylon braided exterior for custom automotive plumbing.
Key Features and Benefits
-
20-foot hose length: Provides material for custom fuel supply and return line routing.
-
6AN nominal size: Commonly used in aftermarket EFI fuel plumbing.
-
PTFE inner liner: Offers broad chemical resistance, including compatibility with ethanol-rich fuels.
-
Black nylon braided exterior: Provides abrasion protection and a clean appearance.
-
1,500 PSI advertised working pressure: Intended for compatible high-pressure fluid applications.
-
4,500 PSI advertised burst pressure: Manufacturer-specified hose burst rating.
-
Wide operating temperature range: Rated from -76°F to 446°F.
-
5/16-inch inside diameter: Suitable for fuel systems where this hose size meets flow requirements.
-
0.45-inch outside diameter: Useful for planning hose routing and clearance.
-
Universal custom applications: Can be used in compatible fuel, lubrication, and coolant plumbing systems with properly rated components.
$86.99
PTFE Inner Liner for E85 and Ethanol Fuel Compatibility
One of the main advantages of PTFE fuel hose is its resistance to a wide range of automotive fluids.
E85 contains a high percentage of ethanol, making fuel system material selection particularly important.
The PTFE liner is suitable for contact with ethanol-rich fuel blends, including E85, when the complete hose assembly uses compatible fittings and seals.
Why PTFE Fuel Hose Is Popular for E85 Conversions
PTFE is valued for its chemical stability and low permeability compared with many conventional hose materials.
These characteristics make it useful for custom fuel systems where ethanol compatibility is a priority.
However, converting a vehicle to E85 requires more than replacing the fuel hoses.
Fuel pumps, injectors, regulators, filters, seals, and engine calibration must also support the intended fuel.
For more information, read our technical guides:
How to Convert to E85 – Upgrading Fuel Lines
This article explains important considerations when upgrading fuel lines for an ethanol fuel conversion.
Our E85 conversion guide covers additional modifications involved in preparing a gasoline-powered vehicle for ethanol-rich fuel.
Black Nylon Braided Exterior
The EVIL ENERGY 6AN hose features a black nylon braided outer covering.
This exterior helps protect the hose from incidental abrasion while providing a discreet appearance for custom engine bay installations.
Black braided fuel hose is especially popular among builders who prefer an OEM-inspired or understated engine bay instead of brightly colored stainless braided lines.
Benefits of Black Nylon Braided Fuel Hose
-
Clean appearance for custom engine compartments.
-
Abrasion protection during normal service.
-
Suitable for routing through compatible engine bay locations.
-
Less visually prominent than bright stainless braided hose.
-
Complements black AN fittings and performance fuel system components.
The nylon exterior does not eliminate the need for proper routing, clamps, heat shielding, or abrasion protection where required.
1,500 PSI Working Pressure and High-Temperature Capability
EVIL ENERGY advertises the PTFE hose with a maximum working pressure of 1,500 PSI and a burst pressure of 4,500 PSI.
These values refer to the manufacturer’s stated hose specifications.
The completed hose assembly may have a lower allowable pressure depending on the hose ends, adapters, seals, and installation method.
Temperature Specifications
| Measurement | Rating |
|---|---|
| Minimum operating temperature | -76°F (-60°C) |
| Maximum operating temperature | 446°F (230°C) |
| Maximum working pressure | 1,500 PSI |
| Burst pressure | 4,500 PSI |
Safety note: These specifications do not automatically establish suitability for gasoline direct-injection high-pressure circuits or common-rail diesel injection systems. Those applications require components explicitly approved for the system.
EVIL ENERGY 6AN PTFE Fuel Hose Specifications
| Specification | Details |
|---|---|
| Brand | EVIL ENERGY |
| Product type | PTFE Nylon Braided Fuel Line Kit |
| AN size | -6AN / AN6 |
| Hose length | 20 feet (approximately 6.1m) |
| Inside diameter | 5/16 inch (0.31 inch) |
| Outside diameter | 0.45 inch |
| Inner liner | PTFE |
| Outer covering | Black nylon braid |
| Color | Black |
| Maximum working pressure | 1,500 PSI |
| Burst pressure | 4,500 PSI |
| Operating temperature | -76°F to 446°F |
| E85 compatibility | PTFE liner compatible; verify complete assembly |
| Gasoline compatibility | PTFE liner compatible |
| Other fluid applications | Compatible lubricants and coolants, subject to assembly verification |
| Installation | Universal custom plumbing |
| Required hose ends | PTFE-specific hose fittings |
| Included fitting assortment | Not specified in supplied description |
| Vehicle-specific fitment | No |
Ideal for LS Swaps and Custom EFI Fuel Systems
The EVIL ENERGY 6AN PTFE fuel line can be incorporated into compatible custom EFI installations.
Common engine platforms include GM LS engines, modified Honda engines, turbocharged Nissan platforms, Toyota 2JZ engines, and other performance applications.
LS Engine Swap Applications
Potential applications include custom fuel supply or return plumbing for:
-
LS1 5.7L
-
LS2 6.0L
-
LS3 6.2L
-
LS6 5.7L
-
LQ4 and LQ9 6.0L
-
LM7 and other 5.3L LS-based engines
The correct fuel line size depends on the engine’s fuel consumption, operating pressure, line length, and acceptable pressure loss.
Is 6AN Fuel Hose Large Enough for E85?
A -6AN fuel hose may be appropriate for certain E85 systems, but suitability cannot be determined by AN size alone.
E85 generally requires greater fuel volume than gasoline for comparable engine operation.
Higher-output engines may require larger supply lines or different fuel system layouts.
For additional guidance, read our 255LPH vs. 340LPH vs. 450LPH vs. 525LPH Fuel Pump Comparison.
Universal Vehicle and Engine Applications
The EVIL ENERGY 6AN PTFE hose is a universal aftermarket product, not a direct-fit replacement for factory fuel lines.
| Vehicle / Engine Platform | Potential Custom Application |
|---|---|
| Chevrolet Camaro / Corvette LS | EFI fuel supply and return plumbing |
| Chevrolet Silverado / GMC Sierra LS | Engine swap fuel system |
| Ford Mustang 5.0L | Aftermarket fuel system upgrades |
| Honda Civic / Acura Integra | E85 conversion fuel plumbing |
| Nissan 240SX SR20DET / KA24 | Turbocharged EFI fuel lines |
| Toyota Supra 2JZ | Custom fuel supply and return lines |
| Lexus IS300 2JZ-GE | Modified EFI fuel plumbing |
| Mitsubishi Lancer Evolution | E85-compatible custom fuel lines |
| Subaru WRX / STI | Aftermarket fuel system installations |
Fitment warning: These are potential custom applications, not confirmed direct-fit installations. Appropriate adapters, fuel rail connections, hose ends, and mounting components may be required.
PTFE Fuel Hose vs. Conventional Rubber Fuel Hose
| Feature | PTFE Fuel Hose | Conventional Rubber-Lined Fuel Hose |
|---|---|---|
| Inner material | PTFE fluoropolymer | Rubber or synthetic elastomer |
| E85 compatibility | PTFE liner generally compatible | Depends on hose formulation |
| Flexibility | Generally stiffer | Generally more flexible |
| Chemical resistance | Broad | Depends on material |
| Hose end design | PTFE-specific fittings | Rubber-hose-specific fittings |
| Fuel vapor permeability | Generally low | Depends on hose construction |
| Typical application | E85 and custom performance plumbing | Compatible standard fuel systems |
Do not use conventional rubber-hose AN ends on PTFE hose unless the fitting manufacturer explicitly approves that combination.
Installation Tips for EVIL ENERGY 6AN PTFE Fuel Hose
PTFE hose is less flexible than many rubber-lined fuel hoses and requires careful routing.
-
Measure the required hose length before cutting.
-
Verify that the hose and all fittings are compatible with the intended fuel.
-
Use hose ends specifically designed for the supplied PTFE hose.
-
Cut the hose cleanly using a suitable hose-cutting method.
-
Assemble the hose ends according to the fitting manufacturer’s instructions.
-
Avoid sharp bends, kinks, and twisting.
-
Secure the hose away from exhaust heat, sharp edges, belts, and moving parts.
-
Use appropriate clamps and protective sleeves where necessary.
-
Pressure-test the completed hose assemblies.
-
Inspect all connections for leaks before driving.
Professional installation is recommended.
Important Installation Precautions
-
Do not fold PTFE hose in half.
-
Do not exceed the manufacturer’s minimum bend radius.
-
Do not use incompatible CPE or rubber-hose fittings.
-
Do not assume the advertised hose pressure rating applies to every assembled connection.
-
Do not use this hose in unapproved high-pressure direct-injection circuits.
-
Do not operate a vehicle with a leaking fuel connection.
Frequently Asked Questions
Is this EVIL ENERGY fuel hose compatible with E85?
The PTFE inner liner is compatible with E85. All hose ends, seals, adapters, and other fuel-contacting components must also be approved for E85.
How long is the fuel hose?
The kit is advertised with 20 feet of hose.
What is the inside diameter?
The manufacturer specifies a 5/16-inch (0.31-inch) inside diameter.
Is the hose black?
Yes. This version features a black nylon braided outer covering.
Can I use it on an LS swap?
Yes, as part of a properly engineered custom fuel system with compatible fittings and appropriate fuel line sizing.
Can I use regular AN hose ends?
Only if they are specifically designed and approved for the PTFE hose’s construction and dimensions.
Does the kit include fittings?
The supplied description refers to kit contents shown in a product image but does not specify the fitting types or quantities. Verify the exact package contents before publishing.
Buy the EVIL ENERGY 6AN PTFE Black Nylon Braided Fuel Line Kit at Pro Street Online
Upgrade your custom fuel system with the EVIL ENERGY 6AN PTFE Fuel Line Kit 20FT in Black Nylon Braid.
Featuring a chemically resistant PTFE liner, black nylon braided exterior, and manufacturer-advertised 1,500 PSI working pressure, this hose is a versatile choice for compatible E85 conversions, LS swaps, and aftermarket EFI fuel systems.
Shop fuel hoses, AN fittings, and performance fuel system components at Pro Street Online
