EVIL ENERGY 6AN Fuel Line Kit 20FT – CPE Nylon Braided Fuel Hose with 12 Fittings
Upgrade your automotive fuel system with the EVIL ENERGY 6AN Fuel Line Kit 20FT, a complete braided fuel hose and fitting package designed for custom fuel delivery, transmission cooler, oil line, and compatible automotive fluid plumbing applications.
Featuring 20 feet of black CPE nylon braided fuel hose, 10 aluminum swivel hose ends, and two hose separator clamps, this AN6 fuel line kit provides the components needed to fabricate custom-length hose assemblies for performance vehicles, engine swaps, and automotive restoration projects.
The hose uses a three-layer construction consisting of a CPE synthetic rubber inner liner, 304 stainless steel reinforcement, and a protective nylon outer braid. With a manufacturer-rated 750 PSI working pressure, 2,250 PSI burst pressure, and -22°F to 248°F operating temperature range, it is engineered for compatible automotive fuel and fluid systems.
Whether you’re installing aftermarket fuel rails, building an LS engine swap, routing a transmission cooler, or replacing aging rubber fuel lines, this EVIL ENERGY kit offers a convenient alternative to purchasing individual hose ends and braided hose separately.
Important: This CPE fuel line kit is not compatible with E85, E10, or methanol according to the manufacturer.
Why Choose the EVIL ENERGY 6AN 20FT Fuel Line Kit?
Building custom fuel lines requires more than choosing the correct hose diameter. Fitting angles, hose length, operating pressure, fluid compatibility, and routing clearance all affect installation quality.
The EVIL ENERGY 6AN fuel line kit includes several hose end configurations to help simplify routing around engine components, fuel rails, brackets, and other obstacles.
Key Features and Benefits
-
20 feet of 6AN braided hose: Provides enough material for multiple custom hose assemblies, depending on routing requirements.
-
10 aluminum swivel hose ends: Includes straight, 45-degree, 90-degree, and 180-degree configurations.
-
Two hose separator clamps: Helps organize parallel hose runs.
-
CPE synthetic rubber liner: Designed for compatible petroleum-based automotive fluids.
-
304 stainless steel reinforcement: Provides structural support for high-pressure applications.
-
Black nylon outer braid: Adds abrasion protection and a clean engine bay appearance.
-
750 PSI working pressure: Manufacturer-advertised hose pressure rating.
-
2,250 PSI burst pressure: Manufacturer-advertised burst rating.
-
9/16-18 UNF AN threads: Standard thread specification for -6AN flare connections.
-
Universal custom applications: Suitable for compatible fuel, oil, transmission, and other fluid systems.
$69.99
Complete 12-Piece Fitting and Clamp Package
The EVIL ENERGY 6AN fuel line kit includes a selection of reusable swivel hose ends designed to accommodate different installation angles.
| Included Component | Quantity |
|---|---|
| 6AN CPE nylon braided fuel hose | 20 feet |
| Straight swivel hose ends | 4 |
| 45-degree swivel hose ends | 2 |
| 90-degree swivel hose ends | 2 |
| 180-degree swivel hose ends | 2 |
| Hose separator clamps | 2 |
| Total fittings and clamps | 12 |
The package includes 10 hose end fittings and two separator clamps, not 12 fluid connection fittings.

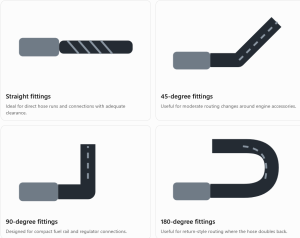

Straight, 45°, 90°, and 180° Hose Ends
Different fitting angles make it easier to route fuel and fluid lines through crowded engine compartments.
Three-Layer CPE Fuel Hose Construction
The EVIL ENERGY 6AN hose uses a multilayer design intended to provide strength, flexibility, and protection in compatible automotive applications.
CPE Rubber Inner Liner
The inner layer is manufactured from chlorinated polyethylene (CPE) synthetic rubber.
This material is used in certain automotive hose applications involving gasoline, diesel, engine oil, and other compatible petroleum-based fluids.
304 Stainless Steel Reinforcement
The reinforcement layer uses 304 stainless steel wire to help resist internal pressure and support the hose structure.
This contributes to the manufacturer’s advertised working and burst pressure ratings.
Black Nylon Outer Braid
The external nylon braid provides additional abrasion protection and a clean appearance suitable for custom performance engine compartments.
Although the outer braid helps resist ordinary wear, the hose must still be routed away from sharp edges, moving components, and excessive exhaust heat.
EVIL ENERGY 6AN 20FT Fuel Line Kit Specifications
| Specification | Details |
|---|---|
| Brand | EVIL ENERGY |
| Product type | Braided Fuel Hose and Fitting Kit |
| AN hose size | -6AN |
| Hose length | 20 feet (6.10 meters) |
| Inside diameter | 0.31 inch (8mm) |
| Outside diameter | 0.56 inch (14.3mm) |
| Inner liner | CPE synthetic rubber |
| Reinforcement | 304 stainless steel wire |
| Outer braid | Black nylon |
| Fitting material | Aluminum alloy |
| AN thread specification | 9/16-18 UNF |
| Working pressure | 750 PSI |
| Burst pressure | 2,250 PSI |
| Temperature range | -22°F to 248°F (-30°C to 120°C) |
| Hose end quantity | 10 |
| Hose separator clamps | 2 |
| E85 compatibility | Not compatible |
| E10 compatibility | Not compatible |
| Methanol compatibility | Not compatible |
| Installation | Universal custom plumbing |
Pressure ratings are supplied by the manufacturer. The complete hose assembly must remain within the operating limits of its lowest-rated component.
Compatible with Gasoline, Diesel, Oil, and Transmission Fluid
The EVIL ENERGY 6AN CPE braided hose is advertised for use with several common automotive fluids.
| Fluid | Compatibility |
|---|---|
| Compatible gasoline formulations | Yes, subject to manufacturer specifications |
| Diesel fuel | Yes |
| Racing gasoline | Verify the exact formulation |
| Engine oil | Yes |
| Automatic transmission fluid | Yes |
| Hydraulic fluid | Verify the specific fluid type |
| Coolant | Listed application; verify coolant formulation |
| Vacuum applications | Listed application; verify vacuum resistance |
| E85 | No |
| E10 | No |
| Methanol | No |
Important: Not for E85, E10, or Methanol
Unlike some PTFE-lined fuel hoses, this EVIL ENERGY CPE hose is explicitly listed as incompatible with E85, E10, and methanol.
Do not use this hose for dedicated ethanol or methanol fuel systems.
Because standard retail gasoline can contain ethanol, confirm that your intended gasoline blend is approved by EVIL ENERGY before installation.
For additional information, read our How to Convert to E85 – Upgrading Fuel Lines technical guide.
Ideal for Custom Fuel Systems and Engine Swaps
The EVIL ENERGY 6AN 20FT fuel line kit can be used in numerous custom automotive plumbing projects.
Typical applications include:
-
LS1, LS2, LS3, and LS-based engine swaps
-
Chevrolet Camaro and Corvette fuel system modifications
-
Ford Mustang aftermarket fuel plumbing
-
Honda Civic and Acura Integra performance builds
-
Nissan 240SX SR20DET and KA24 installations
-
Toyota Supra 2JZ fuel system upgrades
-
Lexus IS300 2JZ-GE custom fuel lines
-
Mitsubishi Evolution and Subaru WRX modifications
-
Compatible transmission cooler installations
-
Engine oil feed and return plumbing where specifications permit
Fitment note: This is a universal aftermarket kit. It does not directly replace factory fuel lines without suitable adapters and installation modifications.
6AN Fuel Hose vs. 8AN Fuel Hose
Choosing the appropriate fuel line size depends on fuel demand, pressure loss, hose length, and fuel system configuration.
| Feature | 6AN Fuel Hose | 8AN Fuel Hose |
|---|---|---|
| Nominal AN size | -6AN | -8AN |
| Packaging | More compact | Requires more space |
| Typical use | Custom fuel supply and return lines | Larger fuel delivery systems |
| Flow potential | Lower at similar conditions | Higher at similar conditions |
| Hose ends | Compatible -6AN fittings | Compatible -8AN fittings |
A larger fuel line can reduce flow restriction, but it does not automatically increase horsepower.
Fuel pump capacity, injector demand, fuel pressure, and the complete system design must be considered.
For additional information, see our 255LPH vs. 340LPH vs. 450LPH vs. 525LPH Fuel Pump Comparison.
How to Install the EVIL ENERGY 6AN Fuel Line Kit
-
Relieve fuel system pressure and disconnect the battery before beginning work.
-
Measure the required hose lengths, accounting for routing and fitting insertion depth.
-
Select the appropriate straight, 45-degree, 90-degree, or 180-degree hose ends.
-
Cut the CPE braided hose squarely using a suitable cutting tool.
-
Inspect the hose liner and reinforcement for damage.
-
Assemble the reusable hose ends according to EVIL ENERGY’s instructions.
-
Connect the AN flare fittings to compatible mating connections.
-
Route the hose away from exhaust components, moving belts, and sharp edges.
-
Install the supplied separator clamps where appropriate.
-
Secure the hose and maintain the manufacturer’s minimum bend radius.
-
Pressure-test the completed hose assemblies and inspect for leaks before operating the vehicle.
AN vs. NPT Fittings
The included -6AN hose ends use 9/16-18 UNF threads and 37-degree AN flare sealing geometry.
AN and NPT connections are not interchangeable.
Do not force an AN fitting into an NPT port, and do not use PTFE tape on the AN flare sealing connection.
Frequently Asked Questions
Does this EVIL ENERGY 6AN kit include fittings?
Yes. It includes 10 swivel hose ends: four straight, two 45-degree, two 90-degree, and two 180-degree fittings. It also includes two hose separator clamps.
Can I use this hose with E85?
No. The manufacturer specifically lists E85, E10, and methanol as incompatible.
What is the inside diameter of the hose?
The hose has an inside diameter of 0.31 inch (8mm) and an outside diameter of 0.56 inch (14.3mm).
Can I use this kit for transmission cooler lines?
The manufacturer lists transmission fluid compatibility. Verify the specific fluid, pressure, temperature, fitting connections, and routing requirements before installation.
Does this kit fit an LS swap?
It can be used for compatible custom LS swap plumbing, but additional adapters may be necessary depending on the fuel rail, regulator, and vehicle-side connections.
Buy EVIL ENERGY 6AN 20FT Fuel Line Kit at Pro Street Online
Complete your next custom fuel or fluid plumbing project with the EVIL ENERGY 6AN Fuel Line Kit 20FT with 12 Fittings and Clamps.
Featuring durable CPE braided hose, stainless steel reinforcement, multiple swivel fitting angles, and two hose separator clamps, this complete package helps simplify custom automotive plumbing installations.
Shop fuel lines, AN fittings, and performance fuel system components at Pro Street Online
