Why Upgrade to PTFE Fuel Hose?

Traditional rubber fuel hose breaks down over time when exposed to ethanol-based fuels and modern additives. PTFE-lined hose offers significantly better chemical resistance, pressure stability, temperature tolerance, and reduced fuel permeation.

Translation: fewer fuel smells, fewer leaks, fewer opportunities for your garage to smell like a gas station forever.

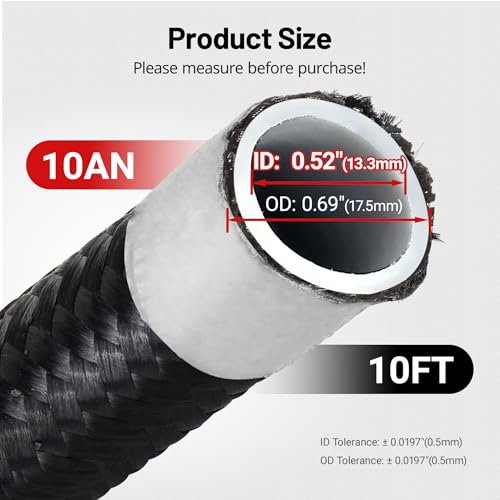

[Size and Installation] 10AN PTFE fuel hose ID: 0.52inch ; OD: 0.69inch.Length: 10 feet. Installation instructions are included. Please measure before purchase!

Features

• 10-foot AN10 PTFE fuel hose
• Durable nylon braided outer covering
• PTFE inner liner for superior chemical resistance
• Compatible with E85, ethanol blends, methanol, gasoline, and race fuels
• High-pressure and high-temperature capable
• Flexible lightweight hose construction
• Corrosion and permeation resistant
• Suitable for fuel, oil, coolant, and transmission systems
• Black performance finish

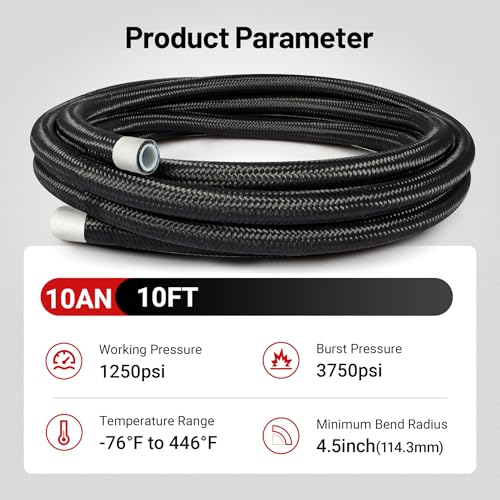

[Temperature and Pressure Range]: 10AN fuel line working temperature Range: -76℉ to 446℉ (-60℃ to 230℃). Max Working Pressure: 1250 psi. Bursting Pressure: 3750 psi.Minimum Bend Radius:114.3mm(4.5inch).

Common Applications

• EFI fuel systems
• Return-style fuel setups
• Turbocharged and supercharged builds
• LS swap fuel systems
• Drift and drag race vehicles
• Fuel cell installations
• E85 fuel systems
• Oil cooler plumbing
• Transmission cooler routing

[Universal Compatible]: The ptfe braided fuel hose will also be compatible with transmission fluid, diesel, biodiesel, engine oil,E85 gasoline, methanol, water, diesel and fuel.

Perfect for E85 and Modern Fuels

Ethanol-based fuels rapidly degrade standard rubber fuel hose, leading to cracking, contamination, fuel odor, and eventual leaks. PTFE-lined fuel hose is specifically designed to resist modern aggressive fuels while maintaining long-term durability and reliability.

Especially important when your E85 setup consumes fuel with the urgency of a V8 towing a house uphill.

[Suitable for Widely Usage]: The 10an PTFE hose can be utilized as fuel injection hose, spice up line,carb fuel line, ls engine swap fuel line, fuel return line, vapor return line,vacuum line, fuel supply line, and so on.

Nylon Braided Outer Layer

The nylon braided exterior provides excellent abrasion resistance while remaining more flexible and easier to work with than traditional stainless braided hose. This improves installation while maintaining a clean motorsports-inspired appearance.

Translation: fewer sliced-up hands during installation and slightly less emotional trauma.

[Note] 10AN braided fuel hose quite hard, it cannot be bend and folding in half. Professional installation is extremely really useful.For optimal performance, we propose the usage of Evil Energy’s PTFE fittings.

Designed for High-Flow Fuel Systems

The large AN10 sizing supports the fuel demands of high-horsepower applications running large injectors, upgraded pumps, boost, nitrous, or aggressive tuning combinations.

Basically designed for builds where fuel flow is measured in gallons per poor financial decisions.

Great for More Than Fuel

In addition to fuel systems, PTFE hose can also be used for:

• Oil cooler plumbing
• Transmission cooler systems
• Coolant routing
• Vacuum applications
• Power steering systems

Because once you start using AN plumbing, suddenly every hose in the car becomes a future upgrade project.

Why Choose EVIL ENERGY?

EVIL ENERGY continues to provide enthusiasts with affordable performance fuel system hardware, PTFE plumbing, and AN components for street and motorsports builds. Their PTFE fuel hose line delivers strong chemical resistance, flexible installation, and reliable high-flow performance without race-team pricing.

Because fuel leaks are a terrible substitute for horsepower.
