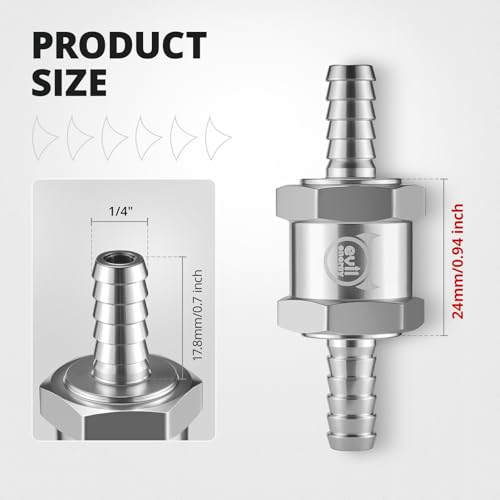

1/4-Inch / 6mm Hose-Barb Connections

The valve uses 1/4-inch (6mm OD) hose-barb inlet and outlet connections, making it suitable for compatible 6mm fuel and fluid hoses.

The barb-style ends provide a straightforward installation method for custom fuel plumbing, small-engine applications, carbureted fuel systems, auxiliary fluid systems, and other applications using appropriately rated hose.

Always verify the actual hose inside diameter, system pressure, fuel compatibility, and required flow capacity before installation.

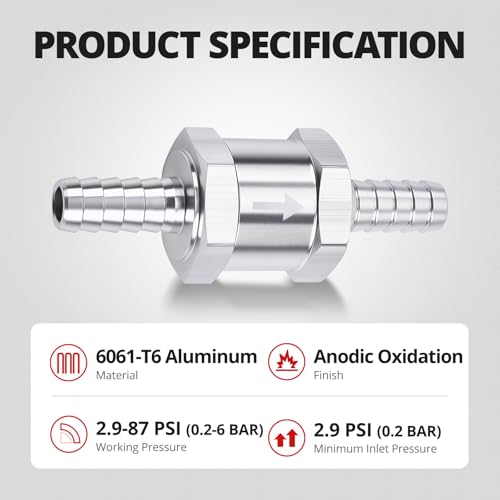

Key Specifications

• Brand: EVIL ENERGY
• Product Type: Inline one-way fuel check valve
• Connection Size: 1/4 inch / 6mm OD
• Connection Type: Hose barb
• Body Material: 6061-T6 aluminum alloy
• Internal Spring: Stainless steel
• Minimum Upstream Pressure: 0.2 bar / 2.9 PSI
• Working Pressure: 0.2–6 bar / 2.9–87 PSI
• Operating Temperature: -22°F to 266°F
• Flow Type: One way / non-return
• Methanol Compatible: No; methanol use is not recommended

6061-T6 Aluminum Construction

EVIL ENERGY manufactures this inline check valve from high-strength 6061-T6 aluminum alloy. The aluminum construction keeps the valve lightweight while providing the durability needed for automotive and general fluid-transfer applications.

An anodized exterior adds additional protection against corrosion and surface wear, making the valve better suited to the demanding environment surrounding automotive fuel systems.

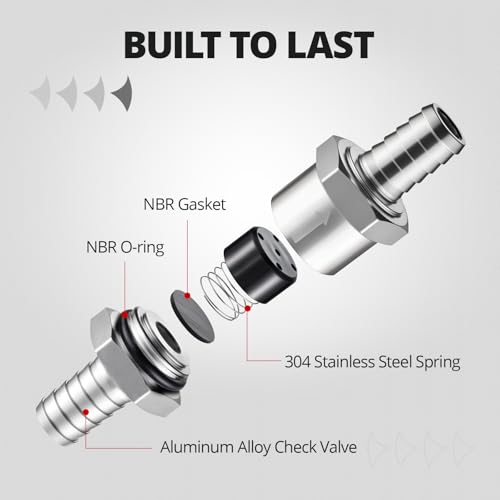

Stainless-Steel Spring for One-Way Flow

The internal stainless-steel spring controls the check-valve mechanism and allows fluid to pass in one direction once the required upstream pressure is reached.

Minimum upstream pressure is rated at 0.2 bar, or approximately 2.9 PSI.

When pressure on the inlet side falls, the valve closes to restrict reverse flow. This makes the EVIL ENERGY valve useful where maintaining fuel direction or reducing drain-back is important.

It is worth remembering that a check valve and fuel pressure regulator perform very different jobs. A check valve restricts reverse flow, while a regulator controls system pressure. If you’re modifying both sides of a fuel system, our fuel pressure regulator installation guide provides additional information about regulator placement, feed and return plumbing, and safe fuel-system installation.

Working Pressure Up to 87 PSI

The EVIL ENERGY 6mm fuel check valve is rated for a working-pressure range of 2.9 to 87 PSI (0.2–6 bar).

That gives the valve considerably more versatility than a component designed strictly around gravity-fed fuel delivery. However, pressure rating alone does not automatically make a component appropriate for every EFI system.

Fuel-system components should always be selected according to the vehicle’s actual pressure, flow requirements, hose specifications, fuel type, pump configuration, and manufacturer recommendations.

For example, a high-output performance engine can require dramatically more fuel volume than a small 1/4-inch line can deliver, regardless of how much static pressure the valve itself can withstand.

Designed for Carbureted and Low-Pressure Fuel Systems

This EVIL ENERGY inline check valve is especially well suited to carbureted and low-pressure fuel systems using compatible 1/4-inch plumbing.

Potential applications include:

• Carbureted automotive fuel systems
• Low-pressure electric fuel-pump systems
• Custom fuel delivery systems
• Small-engine fuel systems
• Diesel fuel plumbing where specifications are compatible
• Auxiliary fuel lines
• Oil and fluid-transfer systems
• Air and pneumatic applications
• Water lines

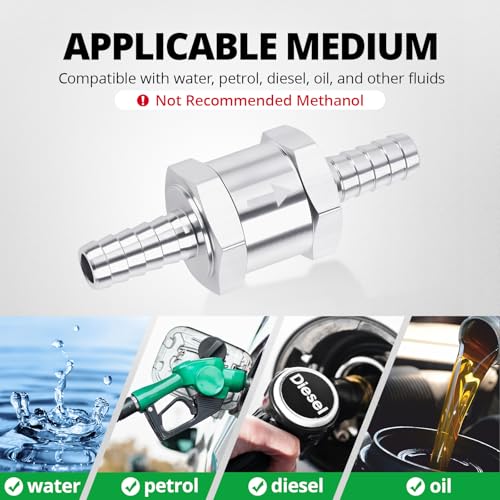

The valve is listed as compatible with media including gasoline/petrol, diesel, oil, water, air, gas, and other compatible fluids.

Methanol is not recommended.

Can a Fuel Check Valve Help With Fuel Drain-Back?

Yes. Preventing reverse flow is one of the primary reasons to install an inline fuel check valve.

When a fuel system sits after shutdown, fuel may attempt to flow backward depending on pump design, line routing, component condition, and system configuration. A properly selected check valve can restrict this reverse movement.

This may help a system retain its prime and can be useful when diagnosing a vehicle that requires excessive cranking after sitting.

However, don’t use a check valve to hide another failing fuel-system component. A weak pump, leaking injector, damaged hose, restricted filter, failed regulator, or leaking connection should be repaired rather than compensated for with another valve.

If you’re troubleshooting inconsistent pressure rather than simply building a new fuel line, Pro Street’s guide to P0089 Fuel Pressure Regulator Performance provides additional information about how pressure-control problems can affect engine operation.

Compact Design for Custom Fuel Plumbing

One of the biggest advantages of this EVIL ENERGY check valve is its simplicity.

The compact aluminum housing can be installed inline without requiring a large mounting bracket or complex plumbing arrangement. The 6mm barb ends also make it practical for installations where space is limited.

Pay close attention to the flow-direction marking on the valve body during installation. Installing any one-way valve backward will restrict or stop the intended flow—which is an impressively efficient way to turn a five-minute installation into an afternoon of troubleshooting.

Installation Recommendations

Before opening a gasoline or diesel fuel system, relieve system pressure and disconnect the battery according to the vehicle manufacturer’s service procedure. Work in a properly ventilated area away from flames, sparks, heaters, and other ignition sources.

Confirm the valve’s flow direction before installation.

Use only fuel-rated hose and clamps that are appropriate for the fuel type and maximum operating pressure. Push the hose completely over each barb and secure it using the correct clamps for the application.

Route the assembly away from:

• Exhaust manifolds and headers
• Sharp edges
• Belts and pulleys
• Suspension components
• Excessive vibration
• Areas exposed to road debris

After installation, prime the fuel system without starting the engine and inspect both connections for leakage. Check the system again after the engine has reached operating temperature.

Why Choose the EVIL ENERGY 6mm Fuel Check Valve?

The EVIL ENERGY 1/4-inch inline fuel check valve provides a straightforward way to add one-way fluid control to compatible fuel and fluid systems without complicated plumbing.

Its combination of 6061-T6 aluminum construction, stainless-steel internal spring, 2.9–87 PSI working-pressure range, broad operating-temperature range, and compact 6mm hose-barb design makes it a practical choice for repairs, custom fuel plumbing, carbureted applications, and other low-pressure systems.

For builders who need a small valve to help prevent fuel backflow without turning the fuel line into a plumbing convention, this is a simple solution.

Frequently Asked Questions

What size fuel line does this EVIL ENERGY check valve fit?

The valve has 1/4-inch (6mm OD) hose-barb connections. Verify the inside diameter and specifications of your hose before ordering.

What is the minimum pressure required to open the valve?

The specified minimum upstream pressure is 0.2 bar, approximately 2.9 PSI.

What is the maximum working pressure?

The valve is rated for operation up to 6 bar, or approximately 87 PSI.

Can I use this check valve with gasoline?

Yes. The valve is intended for compatible fuel applications including gasoline/petrol.

Can it be used with diesel fuel?

Yes, provided the line size, pressure, flow requirements, hose materials, and other system components are compatible with the application.

Is this fuel check valve suitable for methanol?

Methanol is not recommended for this valve.

Does a fuel check valve regulate fuel pressure?

No. A check valve and fuel pressure regulator perform different functions. The check valve controls flow direction, while a fuel pressure regulator controls fuel pressure.

Can this valve stop fuel from draining back toward the tank?

That is one of the main purposes of a non-return check valve. When correctly installed, it allows flow toward the engine or intended destination while restricting reverse flow when pressure drops.
