Complete Left and Right Injector Return Line Kit

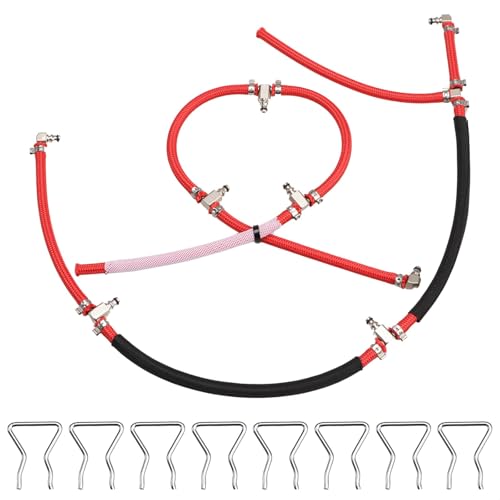

The package includes:
- 1x passenger/right-side fuel injector return line
- 1x driver/left-side fuel injector return line
- 8x injector return-line retaining clips
- 2x O-rings
- 2x stainless-steel clamps
Replacing both sides together allows the complete injector return plumbing on both cylinder banks to be refreshed during the same repair.
That’s particularly useful on an older Duramax where the hoses and fittings on both sides have survived roughly the same number of heat cycles, miles, and previous owners saying, “I’ll fix that next weekend.”

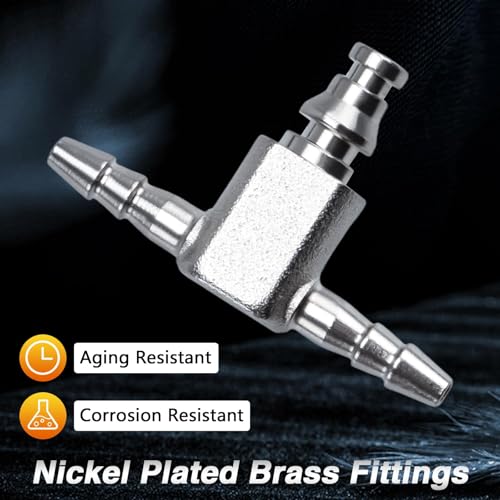

Nickel-Plated Brass Fuel Return Fittings
The standout feature of this Duramax return-line kit is its nickel-plated brass fittings.
Rather than relying on plastic-style return connectors, the fittings use brass construction with a nickel-plated surface.
This combination is intended to provide improved:
- Corrosion resistance
- Resistance to aging
- Structural durability
- Fuel resistance
- Surface protection
- Long-term service life
For trucks with aging original return components, the metal fittings provide an attractive upgrade when replacing the complete injector return-line assemblies.
Why Nickel Plate the Brass Fittings?
Brass already offers useful corrosion resistance and durability, but the nickel-plated exterior adds another protective surface.
In an engine compartment, fittings are regularly exposed to:
- Heat
- Moisture
- Road contaminants
- Diesel fuel
- Engine oil
- Cleaning chemicals
- Vibration
- Repeated thermal cycles
Nickel plating helps isolate the underlying brass from that environment while providing a durable external finish.
It also gives the fittings a clean metallic appearance, although appearance is admittedly pretty low on the priority list when the component spends its life buried around a Duramax cylinder head.

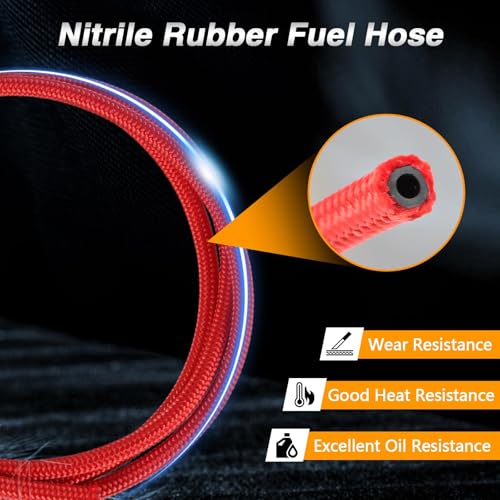

Thickened Nitrile Rubber Fuel Hose
The injector return hoses are constructed from oil-resistant nitrile rubber.
Nitrile rubber is commonly used in petroleum-fluid applications because it provides good resistance to diesel fuel and oil.
The hose uses a multilayer construction intended to improve durability in the engine compartment.
Oil-Resistant Nitrile Inner Hose
The nitrile rubber provides the primary fuel-carrying portion of the assembly.
Reinforced Nylon Braid
A thickened nylon braid helps reinforce and protect the rubber hose while maintaining the flexibility needed to route the return plumbing around the engine.
Protective Outer Layer
The outer protective layer provides additional insulation and abrasion resistance.
Together, these layers help protect the fuel hose from normal underhood heat, vibration, movement, and physical wear.
What Does a Duramax Injector Return Line Do?
The injector return system provides a controlled route for excess fuel leaving the injectors.
A simplified Duramax fuel path looks something like:
Fuel Tank → Fuel Supply System → High-Pressure Pump → Fuel Rails → Injectors → Injector Return Circuit → Fuel Return System
The return lines in this kit service the low-pressure return side of the injectors.
They are not replacements for the high-pressure common-rail tubing supplying the injectors.
That distinction matters because the high-pressure side of a common-rail diesel operates at pressures far beyond the capability of ordinary flexible return hose.
Why Duramax Injector Return Lines Leak
The return lines spend years exposed to a hostile environment.
Common contributors to deterioration include:
- Engine heat
- Diesel exposure
- Rubber aging
- Vibration
- Abrasion
- Repeated heat cycles
- Injector removal
- Previous engine repairs
- Hardened seals
- Brittle fittings
Hoses can eventually crack or harden, while fittings and seals can begin leaking.
A return assembly may also be damaged while being removed during injector or cylinder-head service.
Symptoms of a Leaking Duramax Injector Return Line
Possible symptoms include:
- Diesel odor under the hood
- Visible fuel around an injector
- Wet return hoses
- Fuel seepage around a return fitting
- Cracked or hardened hose
- Damaged fitting
- Broken retaining clip
- Deteriorated outer hose covering
- Fuel accumulating around the cylinder head
Any diesel leak deserves prompt inspection.
Don’t automatically assume the return line is responsible. Fuel rails, injector connections, supply lines, seals, filters, and other components can also leak.
LLY Duramax Return Line Applications
The LLY Duramax appeared during the 2004 model year and continued into 2006.
This kit is designed for compatible later-style LLY injector return systems beginning with the 2004.5 generation.
Because Duramax engine-generation transitions do not always correspond perfectly with vehicle model years, verify the engine’s actual RPO/code and original return-line configuration before purchasing.
LBZ Duramax Injector Return Lines
The 6.6L LBZ Duramax is one of the most sought-after Duramax generations, but age still catches up with rubber hoses and fuel-system seals.
This kit services compatible LBZ injector return plumbing with complete left- and right-side assemblies.
Replacing both assemblies is especially useful when the engine is already apart for:
- Injector replacement
- Fuel-rail service
- Cylinder-head work
- Glow-plug service
- Major engine maintenance
If access is already available, refreshing both aging return assemblies can prevent repeating overlapping labor later.
LMM Duramax Return Line Replacement
The kit is also designed for compatible 2007.5–2010 LMM Duramax applications.
Although the LMM introduced major emissions-system changes, it retained the Duramax common-rail diesel architecture and uses injector return plumbing that should be maintained just like the rest of the fuel system.
Compare the replacement lines with the originals before beginning installation.
Replacement Part Numbers
This injector return-line set is associated with the following replacement numbers:
98062291
97328732
97328733
97359750
Including the OE/interchange number when checking compatibility can be particularly helpful with Duramax applications because similar-looking components may be used across different engine generations.
Whenever possible, verify:
Year + engine code + original part number + physical configuration
before ordering.
Nickel-Plated Brass vs. Aluminum Return Fittings
Both aluminum and brass can be useful upgrades over aging plastic-style fittings.
This particular kit uses nickel-plated brass, giving buyers an alternative to aluminum return-line assemblies.
Potential advantages of nickel-plated brass include:
- Strong fitting construction
- Good corrosion resistance
- Protective plated surface
- Resistance to age-related plastic brittleness
- Durable hose connections
The correct choice ultimately depends on fitment, component quality, installation requirements, and personal preference.
Regardless of fitting material, the seals and hose connections still need to be installed correctly.
Why Replace Both Duramax Return Lines?
If one return assembly has failed from age, the other side has lived through essentially the same operating conditions.
Replacing both sides simultaneously can:
- Refresh both cylinder banks
- Replace aging hoses together
- Replace multiple old fittings
- Establish a known maintenance baseline
- Reduce the likelihood of another old return hose failing soon afterward
- Avoid repeating overlapping disassembly
For a high-mileage truck, a complete left-and-right replacement is often more sensible than chasing leaks one hose at a time.
Fuel Return System Fundamentals
A properly functioning fuel return circuit allows excess fuel to leave the injectors without external leakage or excessive restriction.
Modern common-rail diesel systems are considerably more complex than conventional gasoline EFI, but both depend on properly designed fuel delivery and return circuits.
For additional background on fuel pressure and return-style system operation, the Pro Street Fuel Pressure Regulator Guide explains how feed lines, pressure control, bypass regulation, and return plumbing work together.
The pressure-control strategy is different on a Duramax common-rail diesel, but the guide provides useful fundamentals for understanding why the entire fuel circuit matters rather than just the pump.
Return Lines Are Not High-Pressure Injector Lines
This kit should never be confused with the rigid high-pressure lines connecting the common-rail system to the injectors.
The flexible assemblies in this kit are for fuel return service only.
High-pressure common-rail lines require components specifically engineered for the extreme pressure generated by the diesel injection system.
Never substitute:
- Rubber fuel hose
- AN hose
- Generic hydraulic hose
- Injector return hose
for a factory-specified common-rail high-pressure line.
Installation Recommendations
Common-rail diesel systems are sensitive to contamination, so cleanliness is critical during installation.
A typical installation should include:
- Verify the engine is an applicable LLY, LBZ, or LMM.
- Compare the new assemblies with the originals.
- Clean thoroughly around the injector connections.
- Prevent dirt from entering any open fuel-system connection.
- Carefully remove the original retaining clips.
- Disconnect the old return fittings without excessive side loading.
- Inspect the injector return connection points.
- Replace seals as required.
- Position the new left- and right-side assemblies.
- Fully seat each return fitting.
- Install all eight retaining clips correctly.
- Route the hoses in the factory-style locations.
- Install the O-rings and clamps in their intended positions.
- Verify that hoses aren’t rubbing against sharp or excessively hot components.
- Prime the fuel system according to the correct service procedure.
- Start the engine.
- Inspect every connection carefully for leakage.
Check the system again after reaching normal operating temperature.
Keep the Duramax Fuel System Clean
Before disconnecting anything, clean the work area.
Prevent:
- Dirt
- Sand
- Rust
- Hose debris
- Metal particles
- Shop-rag fibers
- Old O-ring material
from entering open fuel connections.
Cap exposed connections when practical.
Modern diesel injection systems operate with extremely precise tolerances, and contamination can become expensive remarkably quickly.
A little dirt entering the wrong place is an excellent way to discover that diesel injectors are not priced like spark plugs.
When Should the Injector Return Lines Be Replaced?
Inspect or replace the assemblies when you find:
- Cracked return hose
- Hardened rubber
- Visible diesel seepage
- Damaged connectors
- Broken retaining clips
- Worn hose braid
- Heat-damaged outer covering
- Corrosion
- Damage from previous injector removal
They are also worth inspecting whenever the engine undergoes major injector or fuel-system work.
Why Choose This Nickel-Plated Brass Duramax Return Line Kit?
This kit combines complete left- and right-side return assemblies with upgraded metal fittings and reinforced fuel hose.
Key features include:
- Fits compatible 2004.5–2010 6.6L Duramax applications
- Designed for LLY engines
- Designed for LBZ engines
- Designed for LMM engines
- Driver-side return line included
- Passenger-side return line included
- Nickel-plated brass fittings
- Thickened nitrile rubber fuel hose
- Reinforced nylon braid
- Protective outer hose layer
- Eight injector retaining clips
- Two O-rings
- Two stainless-steel clamps
- Replaces 98062291
- Replaces 97328732
- Replaces 97328733
- Replaces 97359750
For Duramax owners looking specifically for a replacement return-line assembly with metal fittings rather than plastic connectors, the nickel-plated brass construction is the feature that sets this kit apart.
Frequently Asked Questions
What does this Duramax fuel return line kit fit?
It is designed for compatible 2004.5–2010 GM 6.6L Duramax LLY, LBZ, and LMM diesel engines.
Does the kit include both cylinder banks?
Yes. It includes one driver-side and one passenger-side injector return line assembly.
What are the fittings made from?
The connectors are made from brass with a nickel-plated surface.
Why use nickel-plated brass fittings?
Nickel-plated brass provides durable metal construction along with additional surface protection against corrosion and aging.
What is the fuel hose made from?
The hose uses oil-resistant nitrile rubber, reinforced nylon braid, and an additional protective outer layer.
Does this fit an LLY Duramax?
It is designed for compatible 2004.5–2006 LLY applications. Verify the engine code and original return-line configuration.
Does it fit an LBZ Duramax?
Yes, compatible LBZ Duramax applications are included in the specified fitment.
Does it fit an LMM Duramax?
Yes. It is designed for compatible 2007.5–2010 LMM applications.
Does this fit an LB7?
The stated fitment covers LLY, LBZ, and LMM engines. Do not assume compatibility with the earlier LB7 system.
What part numbers does it replace?
Listed interchange numbers include 98062291, 97328732, 97328733, and 97359750.
How many injector retaining clips are included?
The kit includes eight return-line retaining clips.
Are O-rings included?
Yes. The package includes two O-rings.
Are clamps included?
Yes. Two stainless-steel clamps are supplied.
Can leaking injector return lines cause a diesel smell?
Yes. A cracked hose, failed seal, or leaking fitting can release diesel fuel and create a noticeable fuel odor under the hood.
Are these the high-pressure Duramax injector lines?
No. These are injector fuel-return lines, not the high-pressure common-rail fuel lines.
