2,000 Watts Maximum Power
DS18 rates the CANDY-X5B for up to 2,000 watts maximum power.
It’s important to distinguish maximum power from continuous RMS output when comparing amplifiers.
Peak or maximum ratings can help identify a product’s general performance category, but speaker and subwoofer matching should primarily be based on compatible continuous RMS ratings at the intended impedance.
In other words, don’t buy speakers solely because two boxes have similarly enormous numbers printed on them. Car audio has been playing that game for decades.
Five Channels for a Complete Audio System
A typical five-channel installation can assign the amplifier like this:
Channels 1–2: Front component or coaxial speakers
Channels 3–4: Rear speakers
Channel 5: Subwoofer
This provides independent amplification for the cabin speakers while reserving the fifth channel for low-frequency reproduction.
The result is a much cleaner installation than many traditional two-amplifier systems.
Why Choose a 5-Channel Amplifier?
A five-channel amplifier is particularly useful when building a complete audio system in a daily-driven vehicle.
Potential advantages include:
- One amplifier instead of two
- Reduced mounting-space requirements
- Simpler power distribution
- Fewer ground connections
- Less signal wiring
- Cleaner installation
- Easier troubleshooting
- Dedicated subwoofer control
Our car audio system guide explains how amplifiers, speakers and subwoofers should be planned together when upgrading a vehicle’s sound system.
Efficient Class D Architecture

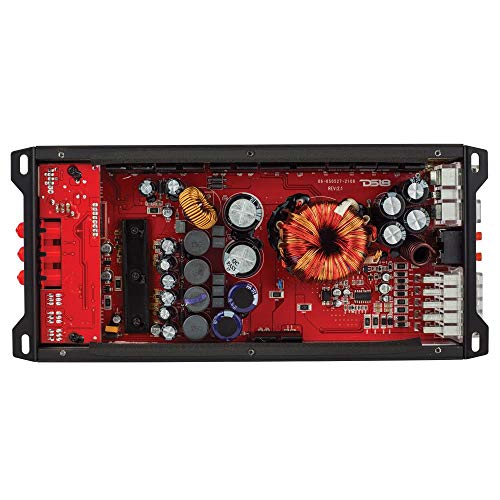

The CANDY-X5B uses Class D amplifier technology.
Class D architecture is particularly useful for compact multi-channel amplifiers because it provides high electrical efficiency while minimizing unnecessary heat generation.
Greater efficiency can help manufacturers package significant output into smaller amplifier chassis.
That’s especially valuable when one amplifier is responsible for powering four speakers and a dedicated subwoofer.

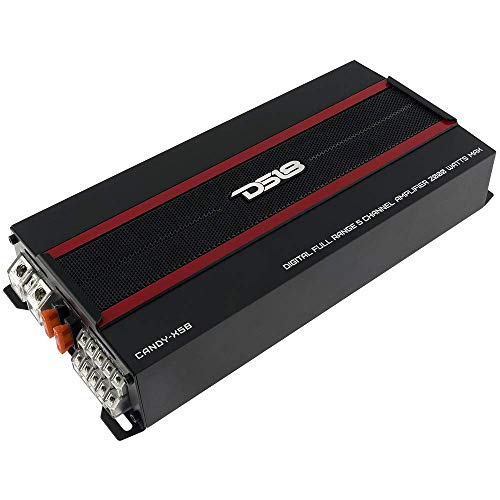

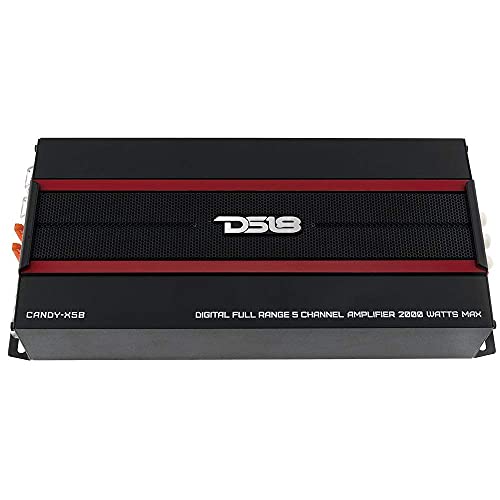

Ultra-Compact 11 x 5 x 2-Inch Chassis
The DS18 CANDY-X5B measures approximately:
11 inches long
5 inches wide
2 inches high
Those dimensions make it significantly easier to package than many conventional high-output multi-channel amplifiers.
Depending on the vehicle and available ventilation, possible installation locations can include:
- Under a seat
- Behind a rear seat
- Inside a trunk side panel
- Beneath a cargo floor
- Inside a custom amplifier rack
- Behind interior trim
Always verify the available space before installation and leave adequate room for wiring and cooling.
Great for Space-Limited Audio Builds
The compact dimensions make the CANDY-X5B particularly attractive for vehicles where preserving usable interior space matters.
Potential applications include:
- Sport compact cars
- Coupes
- Performance sedans
- Pickup trucks
- SUVs
- Custom street cars
- Show vehicles
A large amplifier rack can look impressive, but occasionally it’s nice to retain the radical automotive feature known as usable cargo space.
Broad Speaker-Impedance Compatibility
DS18 describes the CANDY-X5B as supporting a broad range of speaker applications.
The supplied specifications reference compatibility ranging from 1 to 8 ohms, depending on the channel and configuration.
Always verify the permitted impedance for the specific channel before connecting speakers or subwoofers.
The minimum safe impedance may differ between the full-range channels and dedicated subwoofer channel.
Understanding Speaker Impedance
Speaker impedance directly affects the electrical load presented to the amplifier.
Changing the load can affect:
- Amplifier output
- Current demand
- Heat generation
- Electrical-system load
- Amplifier stability
This becomes particularly important when using dual-voice-coil subwoofers or multiple speakers.
Always calculate final impedance before connecting the system rather than assuming the impedance printed on one speaker represents the final amplifier load.
Dedicated Subwoofer Channel
The fifth channel allows the CANDY-X5B to power a subwoofer without requiring a separate mono amplifier.
This simplifies the electrical system and installation while still giving the bass stage its own amplifier channel.
Subwoofer selection should consider:
- RMS power handling
- Voice-coil impedance
- Final wired impedance
- Enclosure design
- Desired output
- Available installation space
Correct matching is more important than simply selecting the subwoofer with the largest advertised wattage.
Remote Bass Knob Included
The DS18 CANDY-X5B includes a remote bass level controller.
The remote can be mounted within reach of the driver, allowing subwoofer output to be adjusted without accessing the amplifier.
This can be useful because bass levels vary considerably between recordings.
A remote controller allows the driver to reduce or increase the subwoofer level according to the music without changing the amplifier’s permanent gain configuration.
Bass Control Without Changing Gain
The remote bass controller should not be confused with amplifier gain.
Gain is used to match the amplifier’s input sensitivity to the source unit’s signal level.
Once properly configured, gain generally shouldn’t be used as an everyday volume control.
The remote subwoofer controller provides a much more convenient method for making routine bass-level adjustments.
Match Speakers Using RMS Ratings
When selecting speakers for the CANDY-X5B, prioritize continuous RMS power ratings rather than maximum power figures.
Consider:
- Speaker RMS handling
- Nominal impedance
- Sensitivity
- Frequency response
- Crossover requirements
- Vehicle mounting location
The amplifier’s 2,000-watt maximum rating should not automatically be divided among five channels when determining speaker compatibility.
Use channel-specific continuous output specifications whenever available.
Proper Gain Adjustment Matters
Incorrect gain settings are one of the easiest ways to make an otherwise capable amplifier sound terrible.
Excessive gain can cause clipping, which may result in:
- Audible distortion
- Excessive speaker heat
- Subwoofer voice-coil damage
- Amplifier overheating
- Reduced system headroom
Set gain according to the source unit and amplifier rather than simply turning the control until the system becomes loud.
Choosing the Right Subwoofer
The dedicated fifth channel makes subwoofer selection an important part of the CANDY-X5B installation.
Before purchasing a subwoofer, determine:
- The amplifier’s RMS output at the intended impedance.
- The subwoofer’s RMS power handling.
- The subwoofer’s voice-coil configuration.
- The final impedance after wiring.
- The enclosure requirements.
This avoids buying components that look compatible on paper but can’t be wired together correctly.
Sealed vs Ported Subwoofer Enclosures
The subwoofer enclosure has a major effect on the final sound.
A sealed enclosure generally offers compact packaging and controlled response, while a properly designed ported enclosure can provide additional output around its tuning frequency.
Our sealed vs ported subwoofer guide explains how enclosure design affects bass response, output and system behavior.
Class D Efficiency Helps Control Heat
Compact amplifiers need efficient thermal management.
Class D architecture reduces the amount of electrical energy converted into unwanted heat compared with many traditional amplifier designs.
That doesn’t mean ventilation can be ignored.
Avoid installing the amplifier where the heatsink is completely surrounded by:
- Carpet
- Insulation
- Clothing
- Luggage
- Upholstery
Heat still needs somewhere to go. Apparently thermodynamics refuses to accept “but it’s a mini amp” as a valid argument.
Prevent Amplifier Overheating
If the CANDY-X5B becomes excessively hot or repeatedly enters protection mode, check the entire installation.
Potential causes can include:
- Incorrect speaker impedance
- Poor ventilation
- Excessive gain
- Clipping
- Low supply voltage
- Poor ground connections
- Undersized power wiring
- Sustained high-output operation
Our guide explaining why car amplifiers overheat covers common electrical and installation issues that can cause excessive amplifier temperature.

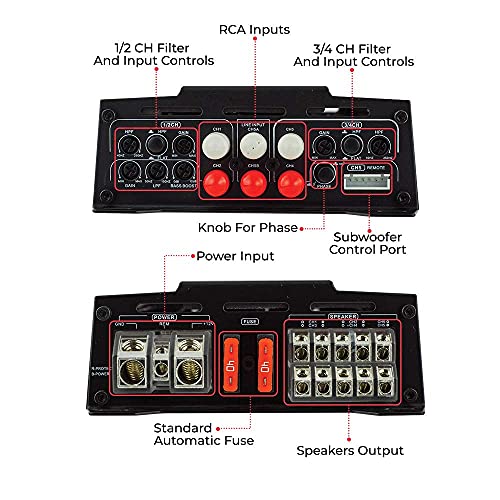

Power Wiring Is Critical
A complete five-channel audio system can draw substantial current.
The amplifier should be supplied through correctly sized automotive power cable and protected by an appropriate fuse installed near the battery.
A proper installation should include:
- Correct power-wire gauge
- Quality fuse holder
- Proper main fuse
- Short ground connection
- Properly sized ground cable
- Secure cable terminals
- Quality speaker wiring
The electrical installation is every bit as important as the amplifier itself.
Check Vehicle Charging Voltage
If the amplifier performs normally at moderate volume but begins clipping or shutting down at higher output, inspect the vehicle charging system.
Check:
- Battery condition
- Alternator voltage
- Battery terminals
- Power cable
- Ground connection
- Fuse holder
- Voltage at the amplifier
High-current audio systems can expose weak electrical connections that weren’t obvious with the factory sound system.
Voltage-Drop Testing
Measure voltage directly at the amplifier while the audio system is operating under load.
A poor connection may show normal battery voltage when no current is flowing but experience significant voltage loss once the amplifier begins drawing power.
Our automotive voltage-drop testing guide explains how loaded voltage testing can reveal excessive resistance in automotive electrical circuits.
The same diagnostic principle applies directly to amplifier power and ground circuits.
Ideal for a Clean Daily-Driver Installation
A practical CANDY-X5B installation could combine:
- Front component speakers
- Rear coaxial speakers
- One compatible subwoofer
- One DS18 CANDY-X5B amplifier
This creates a complete amplified audio system while using only one amplifier chassis.
For daily-driven cars, trucks and SUVs, that’s often a more practical approach than installing separate amplifiers simply because the trunk apparently wasn’t complicated enough already.

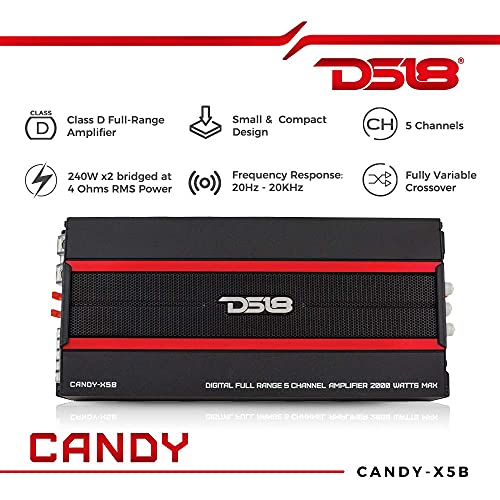

Key Features
- DS18 CANDY-X5B
- Renewed / professionally inspected product
- Five-channel car audio amplifier
- Digital Class D architecture
- 2,000 watts maximum power
- Four full-range speaker channels
- Dedicated subwoofer channel
- Broad impedance compatibility depending on configuration
- Remote subwoofer level controller included
- Compact mini-amplifier design
- Approximately 11 x 5 x 2 inches
- Designed for complete speaker and subwoofer systems
- Space-saving installation
- Suitable for aftermarket automotive audio upgrades
Compact Five-Channel Power for a Complete Audio System
The Renewed DS18 CANDY-X5B 5-Channel Class D Amplifier offers an attractive combination of compact dimensions, five-channel flexibility and up to 2,000 watts of advertised maximum power.
Its four full-range channels can power the primary speaker system while the dedicated fifth channel handles the subwoofer, potentially eliminating the need for a separate mono amplifier.
The included remote subwoofer controller provides convenient bass adjustment from the driver’s seat, while the amplifier’s approximately 11 x 5 x 2-inch footprint makes it easier to install in vehicles where mounting space is limited.
For enthusiasts looking for a compact single-amplifier solution for a complete speaker and subwoofer upgrade, the CANDY-X5B provides plenty of installation flexibility without converting the trunk into an amplifier showroom.
