Why Choose the Trinity 2 EX Instead of a Basic Handheld Programmer?
Traditional handheld performance programmers focus primarily on uploading engine calibrations.
The Trinity 2 EX adds a visual monitoring interface that allows drivers to observe supported vehicle data without switching between multiple devices.
Its touchscreen design combines performance tuning, diagnostics, and gauge monitoring in one platform.
For enthusiasts who want to see how their engine responds under different driving conditions, this makes the Trinity 2 EX particularly useful.
DiabloSport Trinity 2 EX Performance Tuning
The DiabloSport 9200 is designed to install compatible performance calibrations through the vehicle’s electronic control system.
Depending on the engine and supported tune, these calibrations may modify selected operating parameters to influence power delivery and throttle response.
Potential benefits include:
-
More responsive accelerator feel.
-
Improved power delivery under supported operating conditions.
-
Application-specific engine performance optimization.
-
Access to supported vehicle calibration settings.
Actual horsepower and torque gains vary by application. No specific increase is guaranteed without manufacturer test data for the exact vehicle.

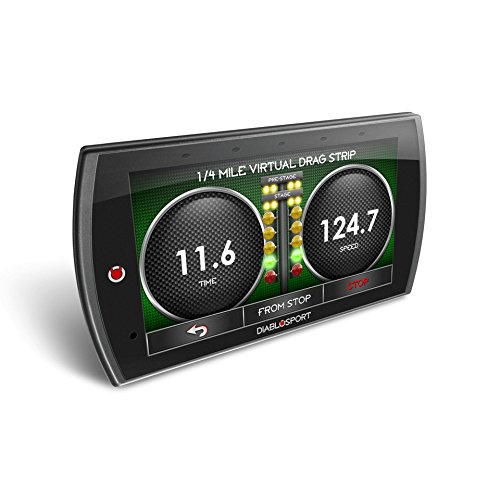

Real-Time Monitoring and Customizable Digital Gauges
One of the biggest advantages of the Trinity 2 EX is its ability to display vehicle information through customizable digital gauges.
Depending on the vehicle’s available diagnostic parameters, monitoring may include engine RPM, coolant temperature, intake air temperature, throttle position, and other supported values.
This information can help drivers better understand engine operating conditions and identify unusual behavior.
For additional information about how engine monitoring and diagnostics work, explore the automotive technical guides at My Pro Street Online.
Built-In Diagnostic Capabilities
The Trinity 2 EX includes diagnostic functions that can assist with basic troubleshooting.
On supported vehicles, drivers may be able to read and clear diagnostic trouble codes.
These functions are useful when investigating a check engine light or monitoring a vehicle after modifications.
However, clearing a diagnostic code does not repair the underlying problem. Mechanical and electrical faults should be properly diagnosed before continuing to operate the vehicle.
Vehicle Compatibility – DiabloSport 9200 Trinity 2 EX
DiabloSport confirms that part number 9200 supports select 1999–2016 GM gasoline applications, including Silverado, Sierra, Tahoe, Yukon, Escalade, Camaro, Corvette, GTO, and SSR models. The exact supported years and engines vary by model.
| Make | Model | Advertised engine applications |
|---|---|---|
| Chevrolet | Silverado | Select 4.8L, 5.3L, 6.0L, 6.2L V8 |
| GMC | Sierra | Select 4.8L, 5.3L, 6.0L, 6.2L V8 |
| Chevrolet | Tahoe | Select 4.8L, 5.3L, 6.0L, 6.2L V8 |
| GMC | Yukon | Select 4.8L, 5.3L, 6.0L, 6.2L V8 |
| Cadillac | Escalade | Select 6.0L, 6.2L V8 |
| Chevrolet | Camaro | Select 5.7L, 6.2L V8 |
| Chevrolet | Corvette | Select 5.7L, 6.0L, 6.2L V8 |
| Pontiac | GTO | 2004–2006, select 5.7L/6.0L V8 |
| Chevrolet | SSR | 2004–2006, select engines |
Note: The 1999–2016 range applies to the overall product family, not every model in the table. Hybrid and eAssist applications should not be assumed compatible.
Verified Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | DiabloSport |
| Manufacturer part number | 9200 |
| Product series | Trinity 2 EX |
| Fuel type | Gasoline |
| Display | 5-inch high-definition color touchscreen |
| In-cab monitoring | Yes |
| Data logging | Yes |
| Wi-Fi updates | Yes |
| Read/clear diagnostic codes | Yes |
| Performance tunes | Yes |
| Tire size/speedometer adjustment | Supported applications |
| Transmission tuning | Where applicable |
| CARB Executive Order | D-770 |
| Emissions classification | 50-state legal for approved applications |
| UPC | 810115014706 |
The official DiabloSport specifications confirm these features. One important distinction: although the product overview discusses CMR custom tuning, its specification table lists Custom Tuning: No and Accepts Custom Tunes From CMR: No. For a retail listing, do not advertise user-loaded custom tuning without further confirmation.
50-State Legal Performance Tuning
DiabloSport 9200 carries CARB Executive Order D-770, permitting use on the emissions-controlled vehicles and calibrations covered by its approved application guide.
This makes it a compelling option for owners seeking a performance tuner with documented emissions approval, including eligible California vehicles.
Review the official DiabloSport 9200 product page and the CARB Executive Order D-770 application document to confirm eligibility.
Frequently Asked Questions
Will the DiabloSport 9200 increase horsepower?
DiabloSport advertises gains of approximately 25–30 rear-wheel horsepower over stock with 93-octane fuel for applicable vehicles. These are manufacturer-advertised results, not guaranteed gains for every engine.
Can I use regular 87-octane gasoline?
Supported truck and SUV applications may offer 87-, 91-, and 93-octane calibrations. Performance-oriented applications generally offer 91- and 93-octane options. Use the fuel grade required by the selected tune.
Does the Trinity 2 EX support diesel engines?
No. DiabloSport lists part number 9200 as a gasoline performance tuner.

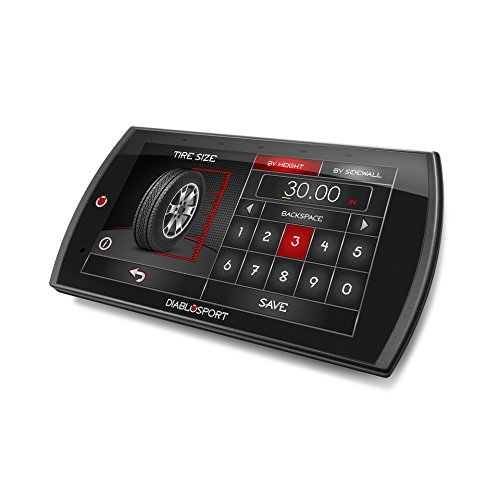

Can it correct my speedometer after larger tires?
Yes, for supported applications. Tire size, speedometer, and other adjustable parameters vary by vehicle.
Can I monitor my engine while driving?
Yes. The Trinity 2 EX includes customizable digital gauges, in-cab monitoring, and data logging.
Upgrade Your GM Performance Experience
The DiabloSport 9200 Trinity 2 EX combines performance tuning, vehicle monitoring, diagnostics, and a modern touchscreen interface in a single device.
For compatible GM owners who want an integrated tuning and monitoring solution, it offers a practical way to explore supported engine calibrations while retaining manufacturer-documented emissions compliance.
Shop performance electronics and engine upgrades at Pro Street Online.
