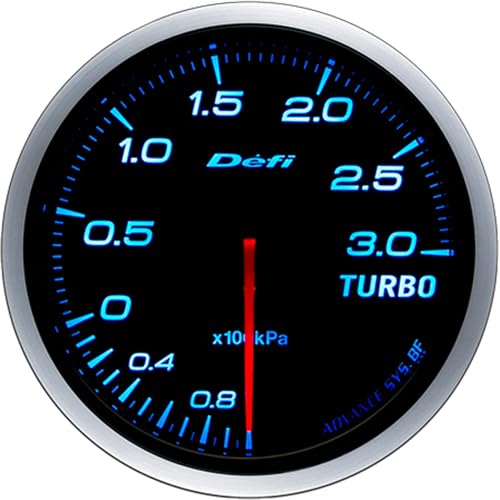

Defi DF14703 ADVANCE BF 60mm High Boost Gauge – Blue, 300 kPa

Why a 300 kPa High Boost Gauge Matters

Turbocharged performance engines can operate at substantially different boost pressures depending on turbocharger selection, engine configuration, fuel system capability, and engine management calibration.

For many mildly modified street cars, a standard boost gauge provides sufficient measurement range. However, high-output turbocharged engines may exceed the limits of gauges designed for lower boost pressures.

The Defi DF14703 offers a positive pressure range extending to 300 kPa, allowing enthusiasts to monitor elevated manifold boost without exceeding the gauge’s intended display range.

This is particularly useful for engines equipped with larger turbochargers, upgraded wastegates, aftermarket boost controllers, and standalone engine management systems.

Unexpectedly high boost readings can indicate problems involving wastegate operation, boost control solenoids, pressure reference lines, or incorrect controller settings.

Lower-than-expected boost may indicate charge pipe leaks, intercooler restrictions, loose couplers, or turbocharger control problems.

By monitoring actual manifold pressure, drivers can compare observed boost levels with their intended tuning targets.

Important: A gauge capable of displaying 300 kPa of positive boost does not mean that every engine can safely operate at that pressure. Maximum safe boost depends on engine construction, fuel quality, ignition timing, air-fuel ratio, charge temperature, and calibration.

Built for High-Horsepower Turbocharged Applications

The Defi ADVANCE BF high boost gauge is a strong choice for enthusiasts assembling comprehensive performance monitoring systems.

Common custom applications include Toyota Supra 2JZ-GTE, Nissan Skyline RB26 and RB25, Mitsubishi Evolution 4G63 and 4B11T, Subaru WRX STI, turbocharged Honda K-series engines, and other modified forced-induction platforms.

Its 60mm diameter allows installation in compatible dashboard pods, A-pillar mounts, and custom gauge panels, while the blue illumination coordinates with matching Defi ADVANCE BF instruments.

Because the DF14703 is a universal electronic gauge, installation requires the correct pressure sensor, manifold pressure connection, electrical system, and compatible Defi ADVANCE controller.

For related turbocharger components, performance engine parts, and aftermarket instrumentation, explore Pro Street Online.

Defi DF14703 Technical Specifications

These specifications are supported by the official Defi ADVANCE BF catalog and ADVANCE BF installation manual.

What’s Included with the DF14703?

The manufacturer documents the following standard components:

• One 60mm blue high-boost gauge

• One dedicated 300 kPa boost pressure sensor

• One 2.5-meter sensor wire

• One 0.25-meter gauge connection wire

• One gauge mounting cup

• Mounting bracket and installation hardware

Buyer note: The 300 kPa model does not include the rubber pressure hose or 4mm three-way connector. These must be purchased separately. The optional regular-position bezel is also sold separately.

The 300 kPa model uses a different pressure sensor from the 120 kPa and 200 kPa ADVANCE BF gauges. Do not substitute those sensors.

Important Differences in the 300 kPa High-Boost Model

Defi identifies several limitations specific to the DF147 series that buyers should understand before installation.

The 300 kPa high-boost models do not support the turbo zero-reset adjustment or the differential pressure display function used with a compatible fuel pressure gauge. When paired with an ADVANCE ZD display, the indicated warning-setting value may differ between the ZD and the analog gauge; Defi instructs users to follow the value displayed on the gauge itself.

These differences do not change the DF14703’s primary function as a high-range boost pressure instrument.

How to Install the Defi DF14703 High Boost Gauge

Installation requires a suitable intake manifold pressure source, properly routed pressure hose, secure sensor mounting, and a compatible Defi-Link ADVANCE controller.

For detailed, vehicle-tested guidance, see our How to Install a DEFI Boost Gauge tutorial, which walks through installing an ADVANCE BF system on a Toyota Supra. It covers controller wiring, gauge connections, and sensor installation.

For broader installation advice, read How to Install a Boost Gauge the Right Way, including how to select a manifold pressure source, prevent pressure leaks, and route wiring safely.

Always consult the official Defi installation instructions before installing the high-boost sensor.

DF14703 vs. Other ADVANCE BF High-Boost Gauges

All three models share the same high-boost measurement range and ADVANCE system requirements. The primary difference is illumination color.

Why Choose the Defi DF14703?

The Defi DF14703 ADVANCE BF 60mm Blue High Boost Gauge is designed for enthusiasts who need a greater boost measurement range than conventional 200 kPa instruments provide.

Its precision electronic operation, high-boost-specific sensor, programmable warnings, peak recall, and signature blue illumination make it a strong choice for high-output turbocharged builds.

For drivers who demand accurate pressure information and a coordinated Japanese performance dashboard, the DF14703 delivers both functionality and distinctive styling.
