Why a High-Boost Gauge Matters
Turbocharger boost pressure directly influences how much air enters an engine. As boost increases, the engine management system must deliver the correct amount of fuel and control ignition timing to maintain safe operating conditions.
For modified engines, monitoring boost pressure is especially important after installing a larger turbocharger, aftermarket wastegate, electronic boost controller, or upgraded engine management system.
Unexpected boost spikes may indicate wastegate control problems, incorrect boost controller settings, or pressure reference issues. Lower-than-expected boost can suggest charge-pipe leaks, damaged couplers, bypass valve problems, or turbocharger control faults.
A dedicated electronic boost gauge provides immediate feedback, helping drivers recognize changes in system behavior.
The Defi DF14701 is particularly useful for builds where a conventional lower-range boost gauge would reach the end of its scale.
Important: A 300 kPa display range does not mean that 300 kPa of boost is safe for your engine. Safe boost limits depend on engine construction, fuel quality, tuning, turbocharger efficiency, and supporting modifications.
Designed for High-Performance Turbocharged Builds
The Defi ADVANCE BF High Boost Gauge is a natural fit for custom performance instrumentation in vehicles such as the Toyota Supra, Nissan Skyline, Subaru WRX STI, Mitsubishi Lancer Evolution, Nissan Silvia, turbocharged Honda Civic, and other modified platforms.
Because the DF14701 is a universal aftermarket gauge, installation requires compatible pressure-sensing hardware, wiring, and a Defi-Link ADVANCE control unit rather than a vehicle-specific factory connector.
It can also complement other compatible Defi instruments, including oil pressure, fuel pressure, oil temperature, and water temperature gauges.
For additional performance components and turbocharger-related upgrades, explore Pro Street Online.
Defi ADVANCE BF Blackout Styling

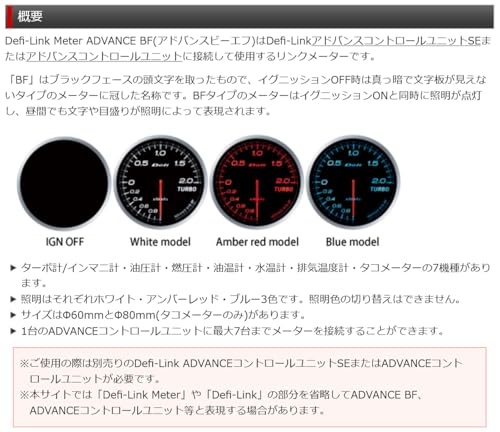

The ADVANCE BF series is recognized for its understated appearance when switched off and distinctive illumination when powered on.

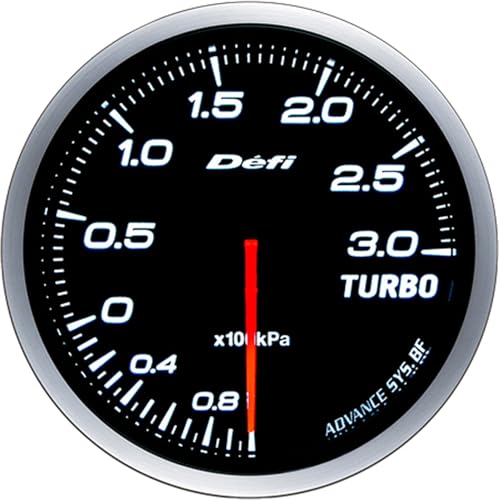

The DF14701 uses white illumination to highlight its analog pressure scale, providing an easily recognizable display without relying on a digital-only readout.
Its 60mm design offers a balance between readability and flexible installation, making it suitable for a dedicated gauge pod or a coordinated multi-gauge dashboard.
For enthusiasts building a cohesive instrument cluster, the ADVANCE BF family offers matching designs across several important engine measurements.

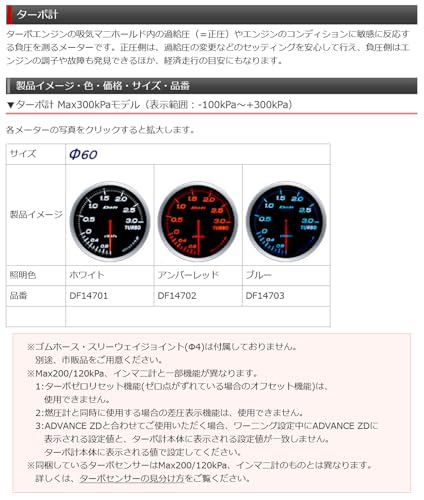

Defi DF14701 Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Defi / Nippon Seiki |
| Part number | DF14701 |
| Series | ADVANCE BF |
| Gauge type | Electronic turbo boost pressure |
| Diameter | 60mm / 2.36 inches |
| Display range | -100 to +300 kPa |
| Maximum positive boost display | Approximately 43.5 psi |
| Illumination | White |
| Gauge movement | Electronic stepper motor |
| Pressure sensor | Dedicated 300 kPa turbo sensor |
| Control unit | Compatible Defi-Link ADVANCE controller required |
| Warning functions | Programmable warning, peak recall |
| Quantity | 1 gauge |
These specifications are confirmed by Defi’s official ADVANCE BF product catalog.
How Much Boost Can the DF14701 Measure?
Maximum positive boost
43.5 PSI
300 kPa gauge pressure
Vacuum measurement
−100 kPa
Approximately −14.5 psi
The extended measurement range makes the DF14701 particularly useful for turbocharged applications where boost pressures may exceed the capabilities of lower-range gauges.
Important Compatibility Differences
Defi documents several limitations specific to its 300 kPa ADVANCE BF model:
-
The turbo zero-reset function is unavailable.
-
Fuel-pressure differential display functionality is unavailable when paired with a Defi fuel pressure gauge.
-
The dedicated 300 kPa turbo sensor differs from the sensors used with the 120 kPa and 200 kPa models.
-

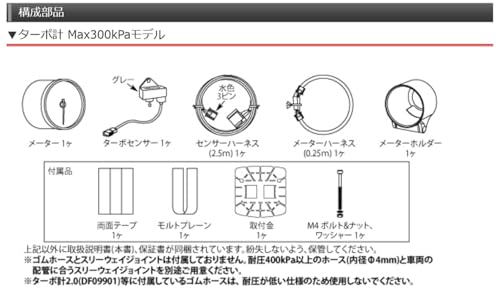

The rubber pressure hose and 4mm three-way connector must be purchased separately.
These distinctions matter when upgrading an existing Defi system or replacing an older boost gauge.
Installing the Defi DF14701 High Boost Gauge
Installing the DF14701 requires a compatible ADVANCE control unit, the correct high-boost pressure sensor, appropriate pressure hose connections, and secure gauge mounting.
For a real-world installation example, our How to Install a DEFI Boost Gauge tutorial walks through fitting a 60mm ADVANCE BF gauge to our Toyota Supra project, including control-unit wiring and manifold pressure connections.
The tutorial uses the 200 kPa DF09901 rather than the DF14701, but it provides useful guidance on the shared ADVANCE BF installation architecture.
For exact sensor requirements and pressure-line routing, consult the official Defi ADVANCE gauge installation manual.
Upgrade Your Turbocharged Engine Monitoring
The Defi DF14701 ADVANCE BF 60mm White High Boost Gauge combines an extended pressure range, premium Japanese instrumentation, and the unmistakable Defi blackout appearance.
For enthusiasts building powerful turbocharged street cars or track machines, it provides a dedicated view of manifold pressure while complementing a coordinated aftermarket instrument cluster.
