Three Gauges That Help You Understand Engine Performance
The Defi DIN Gauge is designed to consolidate essential engine monitoring into one convenient location.
Oil Temperature
Monitor engine oil temperature as the engine warms up and operates under sustained load. Oil temperature provides valuable information about lubrication conditions, particularly in turbocharged engines and track-driven vehicles.
Water Temperature
Monitor engine coolant temperature to better understand cooling system performance during normal driving, extended idling, and demanding operating conditions.
Oil Pressure
Monitor engine oil pressure changes during cold starts, warm idle, acceleration, and high-RPM driving. Unexpected pressure changes can provide an early indication that further lubrication system diagnosis is needed.
Together, these measurements provide a useful overview of engine lubrication and cooling system behavior.
Important: Gauge readings should be interpreted using the engine manufacturer’s specifications. The gauges provide monitoring information but do not replace proper maintenance or mechanical diagnosis.
Designed for Clean JDM Cockpits and Right-Hand-Drive Vehicles
The Defi DIN Gauge is especially appealing to enthusiasts who prefer an integrated dashboard rather than multiple exposed aftermarket gauges.
Its compact configuration works particularly well in custom interiors, classic Japanese sports cars, and performance vehicles with suitable DIN mounting space.
The RH configuration angles the three instruments toward the right side, making it particularly appropriate for right-hand-drive vehicles.
Potential custom applications include Nissan Skyline, Nissan Silvia, Toyota Supra, Mitsubishi Evolution, Subaru Impreza WRX, Honda Civic, Acura Integra, and other performance platforms.
However, the DIN Gauge is a universal aftermarket instrument rather than a vehicle-specific plug-and-play replacement. Dashboard fitment, sensor adapters, wiring, and mounting arrangements must be confirmed before purchase.
For engine performance accessories and aftermarket instrumentation, explore Pro Street Online.
Defi DIN Gauge Technical Specifications

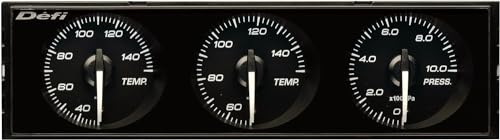

The black-dial, white-pointer, white-illumination RH model is identified by Defi as DF14401.
| Specification | Details |
|---|---|
| Manufacturer | Defi / Nippon Seiki |
| Part number | DF14401 |
| Product series | DIN Gauge Style21 |
| Configuration | Right-hand-drive (RH) |
| Dial color | Black |
| Pointer color | White |
| Illumination | White |
| Gauge arrangement | TEMP1, TEMP2, PRESS |
| Temperature gauge 1 | 30–150°C |
| Temperature gauge 2 | 50–150°C |
| Pressure gauge | 0–1000 kPa (approximately 145 psi) |
| Needle sweep | Up to 270° |
| Motor | STS26 stepping motor |
| Housing dimensions | 178 × 50 × 112 mm |
| Electrical compatibility | 12V vehicles, DC 10–16V |
| Temperature sensor threads | 1/8 PT |
| Pressure sensor thread | 1/8 PT |
| Control unit | Not required |
| Sensors | Two temperature sensors and one pressure sensor included |
Specifications sourced from the official Defi DIN Gauge product catalog.
What’s Included with the Defi DIN Gauge?
The system includes the DIN-sized triple-gauge assembly, two temperature sensors, one pressure sensor, and associated installation components.
Depending on the vehicle, additional sensor adapters, mounting hardware, or custom dashboard modifications may be necessary.
Important: The DIN Gauge is a standalone instrument. It does not connect to Defi-Link or Defi-Link ADVANCE systems.
Installation and Compatibility
Before purchasing, confirm that your vehicle has a suitable DIN-sized opening and sufficient installation depth. The RH gauge orientation is designed for right-hand-drive vehicles; the angled dials may be less convenient to read from a left-hand-drive seating position.
Both temperature sensors and the pressure sensor use 1/8 PT threads. Vehicle-specific adapters may be needed, and 1/8 PT should not be assumed interchangeable with 1/8 NPT.
For additional information on automotive gauge wiring and installation practices, read our How to Install a DEFI Boost Gauge article. Although the tutorial features a different Defi gauge system, it provides useful general guidance on mounting, wiring, and sensor routing.
For model-specific installation instructions, consult the official Defi DIN Gauge documentation.
Important: Original DIN Gauge vs. Style21
Defi has produced different generations of the DIN Gauge, including earlier models and the newer Style21 series.
The DF14401 Style21 model includes a peak-hold function, although it requires additional switching hardware. Older pre-2021 versions do not have this function. The newer version also uses continuously illuminated backlighting rather than illumination activated by the vehicle’s lighting switch.
For customers comparing older and newer units, verify the product’s actual part number and production generation.
Why Choose the Defi DIN Gauge DF14401?
The Defi DF14401 DIN Gauge RH Black Dial with White Illumination is a compelling solution for enthusiasts who want three useful engine measurements in a compact, integrated display.
Its premium glass face, precise electronic stepping motors, white illumination, and coordinated needle movement create an attractive dashboard upgrade without the need for a separate Defi control unit.
For right-hand-drive Japanese performance cars and custom cockpit builds, it delivers a particularly clean combination of engine monitoring and classic JDM styling.
Explore Defi gauges, engine monitoring accessories, and performance components at Pro Street Online.
