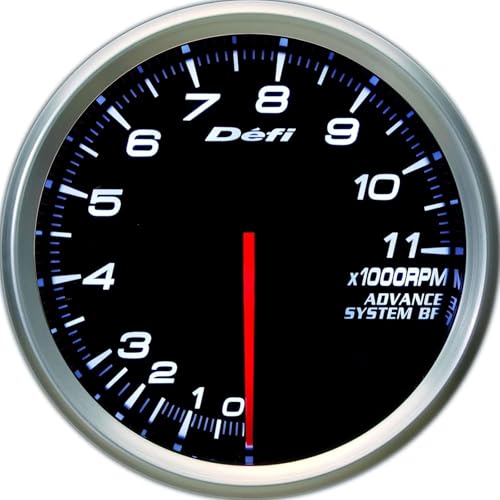

Defi DF11001 ADVANCE BF 80mm Tachometer – 11,000 RPM White Illumination

Why an Accurate Tachometer Matters

Engine RPM is one of the most important measurements for maximizing performance and protecting an engine from mechanical damage.

A tachometer measures crankshaft revolutions per minute, allowing drivers to understand how quickly their engine is operating and when to select the next gear.

For modified engines, especially those equipped with aftermarket camshafts, upgraded valvetrains, or standalone engine management, knowing the engine’s operating range becomes even more important.

Shifting too early can prevent the engine from making the most of its available power. Shifting too late can push the engine beyond its intended operating range, increasing stress on connecting rods, pistons, valve springs, and other rotating components.

The Defi DF11001 helps drivers monitor engine speed through a dedicated, highly visible analog display.

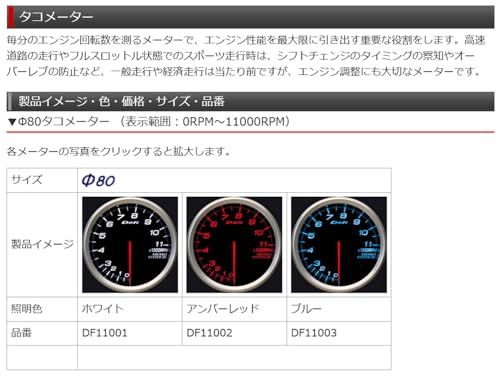

Its 11,000 RPM scale is particularly attractive for high-revving applications where a conventional 8,000 or 9,000 RPM tachometer may not provide the desired display range.

Important: The 11,000 RPM marking represents the tachometer’s measurement range, not a safe operating limit for the engine. Always follow the engine builder’s or manufacturer’s recommended RPM limits.

Built for JDM Performance and Motorsport Applications

The Defi ADVANCE BF series has become a recognizable choice for Japanese performance enthusiasts who appreciate accurate instrumentation and classic motorsport styling.

The DF11001 is well suited to custom installations involving vehicles such as:

• Honda Civic and Acura Integra performance builds

• Toyota Supra and modified 2JZ-powered vehicles

• Nissan Skyline GT-R and RB-series engine builds

• Mitsubishi Lancer Evolution

• Subaru WRX and STI

• Nissan Silvia and 240SX

• Custom engine-swapped track cars

Compatibility depends on the vehicle’s engine speed signal, cylinder configuration, electrical system, and Defi control hardware. The DF11001 is not a direct plug-and-play replacement for a factory tachometer.

For enthusiasts planning a complete aftermarket instrumentation upgrade, browse performance parts and automotive accessories at Pro Street Online.

Defi ADVANCE BF Blackout Design

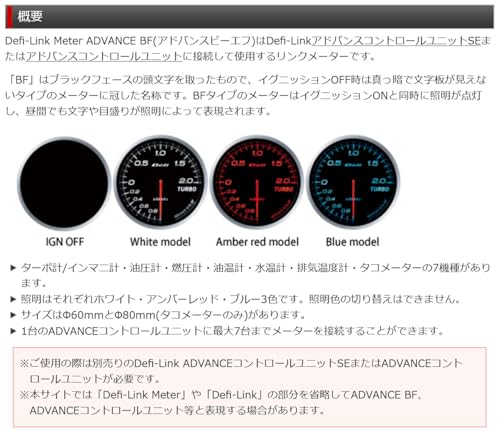

One of the defining characteristics of the ADVANCE BF tachometer is its blackout display.

When the ignition is switched off, the gauge face appears dark. Once powered on, the illuminated markings and needle create a clean, high-contrast presentation.

The DF11001 uses fixed white illumination, complemented by a red needle, red warning LED, and blue peak indicator.

Defi also incorporates selectable opening and closing needle animations, adding a distinctive finishing touch to a custom instrument cluster.

The 80mm format makes this gauge especially useful as a primary tachometer mounted in a custom dashboard, steering-column bracket, or dedicated gauge pod.

Installation and Defi-Link ADVANCE Compatibility

The Defi DF11001 requires a compatible Defi-Link ADVANCE Control Unit, sold separately unless explicitly included in a package.

The tachometer receives engine speed information through the appropriate vehicle signal connection and operates as part of the ADVANCE electronic gauge network.

According to Defi, supported four-stroke engine cylinder configurations include 1, 2, 3, 4, 5, 6, and 8 cylinders. The system is intended for compatible 12V gasoline-powered vehicles and is not designed for diesel applications.

Defi’s ADVANCE system can support up to seven compatible gauges through one control unit, although two tachometers cannot be connected simultaneously to the same controller.

For complete wiring requirements, signal compatibility, and installation instructions, consult the official Defi 80mm tachometer installation manual.

defi.nippon-seiki.co.jp

+1

Technical Specifications

Specifications verified against the Defi ADVANCE BF manufacturer product listing and official tachometer manual.

How to Wire and Install the Defi DF11001 Tachometer

A quality tachometer installation starts with identifying a compatible RPM signal and providing reliable power and grounding to the Defi ADVANCE controller.

For a detailed introduction to proper power connections, grounding, signal wiring, and dashboard installation, read our How to Wire Aftermarket Gauges Right guide.

We also documented a Defi ADVANCE BF installation on a Toyota Supra in our How to Install a DEFI Boost Gauge tutorial. Although that project uses a boost gauge rather than the DF11001 tachometer, it demonstrates the Defi control-unit wiring and gauge-linking approach.

Installers should confirm ECU signal compatibility before connecting the tachometer, particularly when working with aftermarket engine management or modified ignition systems.

Why Choose the Defi DF11001 ADVANCE BF Tachometer?

For drivers who prefer a traditional analog tachometer without sacrificing modern electronic features, the Defi DF11001 offers a compelling combination of precision, visibility, and premium styling.

Its large 80mm display makes RPM information easy to recognize, while the 11,000 RPM scale accommodates the display requirements of demanding high-performance applications.

The ADVANCE BF system adds configurable warnings, peak-value monitoring, and coordinated operation with other compatible Defi gauges.

Whether you’re finishing a JDM-inspired dashboard, building a high-revving naturally aspirated engine, or assembling a dedicated track car, the Defi DF11001 80mm White Tachometer delivers professional performance instrumentation.
