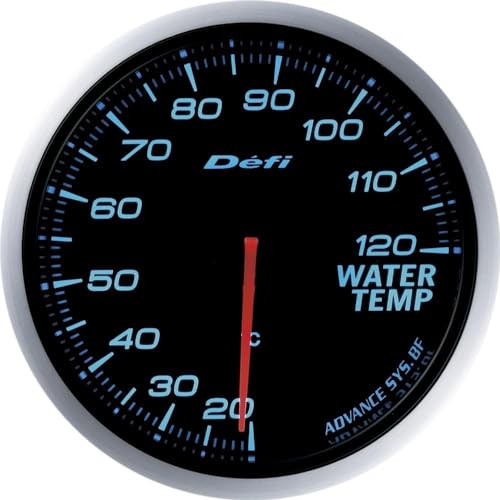

Defi DF10503 ADVANCE BF 60mm Water Temperature Gauge – Blue, 20–120°C

Why Engine Water Temperature Monitoring Matters

Engine coolant temperature is one of the most important measurements affecting engine reliability and cooling system performance.

As an engine runs, combustion produces substantial heat that must be transferred through the cylinder head, engine block, coolant passages, radiator, and surrounding air.

The cooling system helps maintain temperatures within the engine’s intended operating range, protecting components from excessive thermal stress.

When coolant temperature rises beyond normal operating conditions, the consequences may include reduced engine performance, overheating, cylinder head distortion, and damage to head gaskets or other engine components.

The Defi DF10503 provides continuous temperature feedback, helping drivers recognize unusual temperature changes before continuing demanding engine operation.

Monitoring Temperature During Daily Driving

During normal operation, coolant temperature typically rises after startup and stabilizes as the thermostat opens and the cooling system reaches its regulated operating range.

A dedicated gauge makes it easier to observe these changes and establish what normal operating temperature looks like for a particular vehicle.

Tracking Cooling Performance Under Load

Modified engines often produce more heat than their original cooling systems were designed to manage.

Turbocharger upgrades, increased horsepower, sustained high RPM, and repeated track sessions can increase cooling system demands.

The DF10503 helps drivers monitor temperature trends during these conditions, making it easier to recognize when the cooling system may be struggling to maintain stable temperatures.

Recognizing Potential Cooling System Problems

Unexpected temperature increases may indicate low coolant level, trapped air, thermostat problems, restricted radiator airflow, cooling fan malfunction, or other cooling system issues.

However, coolant temperature alone cannot identify the exact cause of overheating. Proper diagnosis requires additional inspection and testing.

Important: Normal operating temperatures vary by engine, thermostat calibration, ambient conditions, and sensor location. Always compare readings against manufacturer specifications.

Ideal for JDM Performance and Custom Gauge Clusters

The Defi ADVANCE BF series is a natural choice for enthusiasts building coordinated aftermarket instrumentation systems.

The DF10503 is well suited for custom installations in Toyota Supra, Nissan Skyline, Mitsubishi Lancer Evolution, Subaru WRX STI, Honda Civic, Acura Integra, Nissan Silvia, and other modified performance platforms.

Its 60mm diameter provides flexible mounting options, while the blue illumination complements matching Defi ADVANCE BF instruments.

Because the DF10503 is a universal electronic gauge, vehicle compatibility depends on the correct temperature sensor installation, suitable electrical system, and Defi ADVANCE control hardware.

For engine cooling components, performance accessories, and aftermarket instrumentation, explore Pro Street Online.

Defi DF10503 Technical Specifications

Defi’s official catalog confirms DF10503 as the blue 60mm water temperature model with a 20–120°C display range.

What’s Included with the DF10503?

According to Defi’s installation documentation, the standard package contains:

• One Defi ADVANCE BF 60mm blue water temperature gauge

• One 1/8 PT electronic temperature sensor

• One 3-meter sensor harness

• One 0.25-meter gauge connection wire

• One meter mounting cup

• Mounting bracket, protective buffer, double-sided tape, and fastening hardware

• Installation instructions and warranty documentation

Not included: The required ADVANCE control unit, vehicle-specific coolant hose adapter, and optional regular-position bezel. Defi specifically identifies the regular-position bezel as a separate accessory for ADVANCE BF gauges.

Installing the Defi DF10503 Water Temperature Gauge

The DF10503 requires a suitable coolant temperature measurement location and a compatible 1/8 PT sensor attachment.

For many aftermarket installations, the sensor can be mounted in a properly sized adapter fitted to a coolant hose. The adapter must match the vehicle’s hose diameter and the sensor’s thread specification.

When installing the sensor, follow Defi’s instructions regarding sealing, connector orientation, and wiring. After completing the installation, refill any lost coolant, bleed air from the cooling system using the vehicle manufacturer’s procedure, and inspect all connections for leaks.

For additional guidance on wiring and mounting Defi instrumentation, read our How to Install a DEFI Boost Gauge tutorial on My Pro Street Online. Although the article covers boost pressure, it explains the ADVANCE controller architecture used by the DF10503.

For coolant sensor installation procedures, consult the official Defi ADVANCE BF installation manual.

Defi DF10503 vs. DF10501 and DF10502

All three gauges share the same measurement range and ADVANCE system compatibility. The primary difference is illumination color, allowing enthusiasts to coordinate their gauges with their dashboard lighting.

Why Choose the Defi DF10503 ADVANCE BF?

The Defi DF10503 ADVANCE BF 60mm Blue Water Temperature Gauge offers accurate coolant temperature monitoring, premium Japanese instrumentation, and distinctive blackout styling.

Its included temperature sensor, programmable warnings, peak-temperature recall, and compatibility with the expandable ADVANCE system make it a strong choice for enthusiasts who want more detailed engine cooling information than a conventional factory temperature indicator provides.

Whether you’re upgrading a turbocharged street car, assembling a coordinated JDM gauge cluster, or preparing a track-focused performance vehicle, the DF10503 delivers useful coolant temperature information in a compact, attractive display.
