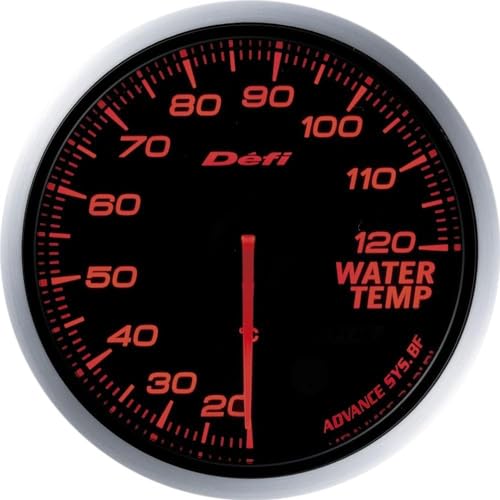

Defi DF10502 ADVANCE BF 60mm Water Temperature Gauge – Amber Red, 20–120°C

Why Accurate Coolant Temperature Monitoring Matters

An engine’s cooling system must continuously transfer combustion heat away from the cylinder head, engine block, and other critical components.

During normal driving, coolant circulates through the engine and radiator to maintain temperatures within the manufacturer’s intended operating range.

Modified engines can place greater demands on this system, particularly when additional horsepower, forced induction, or sustained high-RPM operation increases heat production.

The Defi DF10502 provides continuous temperature feedback, helping drivers recognize abnormal changes before continuing demanding operation.

Monitor Engine Warm-Up

After a cold start, coolant temperature gradually increases until the engine approaches its normal operating range.

A dedicated temperature gauge makes it easier to observe this process and recognize how the thermostat and cooling system respond as the engine warms.

Track Cooling System Performance Under Load

Turbocharged engines, high-compression builds, and track-driven vehicles can experience increased cooling system demands.

During repeated acceleration, extended high-RPM operation, or hot-weather driving, coolant temperatures may rise beyond their usual operating range.

The DF10502 helps drivers monitor these changes and recognize when additional cooling system inspection may be necessary.

Identify Potential Overheating Problems

Unexpected coolant temperature increases can be associated with low coolant level, trapped air, thermostat problems, restricted radiator airflow, cooling fan malfunctions, or other cooling system faults.

However, a coolant temperature gauge alone cannot determine the exact cause of overheating.

Important: Normal operating temperatures vary by engine, thermostat calibration, coolant mixture, ambient conditions, and sensor location. Always compare readings with manufacturer specifications.

Ideal for JDM Performance and Custom Gauge Clusters

The Defi ADVANCE BF series is a natural choice for enthusiasts assembling coordinated aftermarket instrumentation.

The DF10502 is suitable for custom installations involving Toyota Supra, Nissan Skyline, Mitsubishi Evolution, Subaru WRX STI, Honda Civic, Acura Integra, Nissan Silvia, and other modified performance platforms.

Its amber-red illumination complements matching Defi ADVANCE BF boost, oil pressure, oil temperature, and fuel pressure gauges.

Because the DF10502 is a universal electronic instrument, installation requires a suitable coolant sensor location, appropriate adapters, compatible electrical wiring, and a Defi ADVANCE controller.

For cooling system upgrades, engine performance components, and aftermarket instrumentation, explore Pro Street Online.

Defi DF10502 Technical Specifications

For manufacturer specifications and compatibility details, consult the official Defi ADVANCE BF product catalog.

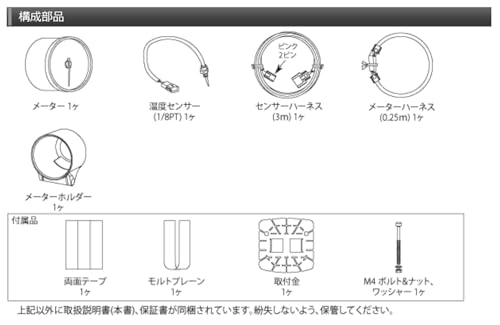

What’s Included with the Defi DF10502?

The standard gauge package includes:

• One Defi ADVANCE BF 60mm amber-red water temperature gauge

• One electronic coolant temperature sensor

• One temperature sensor harness

• One gauge connection wire

• Gauge mounting cup and bracket

• Standard mounting accessories and installation documentation

Not included: The Defi-Link ADVANCE Control Unit and vehicle-specific coolant hose adapter. The optional regular-position bezel should not be assumed to be included.

The seller-provided 14.6-ounce weight and 9 × 5 × 4-inch dimensions appear to describe the packaged retail item rather than the gauge itself. These should not be presented as installed gauge dimensions without independent verification.

Installing the Defi DF10502 Water Temperature Gauge

Proper installation begins with selecting a suitable coolant temperature measurement location.

Many aftermarket applications use an inline coolant hose adapter with a threaded port for the electronic temperature sensor. The adapter must match the vehicle’s coolant hose diameter and the sensor’s thread specification.

The DF10502 temperature sensor uses a 1/8 PT thread, which should not be confused with 1/8 NPT.

When installing the gauge, follow Defi’s instructions for sensor placement, wiring, and connection to the ADVANCE Control Unit.

After installation, refill any lost coolant, bleed air from the cooling system according to the vehicle manufacturer’s procedure, and inspect all connections for leaks.

For additional information about Defi gauge wiring and controller architecture, read our How to Install a DEFI Boost Gauge tutorial. Although it covers a different gauge type, it provides useful background on the ADVANCE electronic instrumentation system.

For manufacturer installation requirements, consult the Defi ADVANCE BF installation manual.

Defi DF10502 vs. DF10501 and DF10503

All three models provide the same coolant temperature measurement range and ADVANCE system compatibility. Their primary difference is illumination color.

Why Choose the Defi DF10502 ADVANCE BF?

The Defi DF10502 ADVANCE BF 60mm Amber Red Water Temperature Gauge delivers a premium combination of coolant temperature monitoring, Japanese instrumentation quality, and distinctive blackout styling.

Its included temperature sensor, programmable warning capability, peak-value recall, and expandable ADVANCE system compatibility make it a strong addition to performance engines where cooling system monitoring matters.

Whether you’re upgrading a turbocharged street car, assembling a classic JDM dashboard, or preparing a track-focused build, the DF10502 provides useful engine temperature information in a compact, attractive display.
