Why Engine Oil Temperature Monitoring Matters
Engine oil is responsible for lubricating moving components, helping transfer heat, and protecting internal engine surfaces against excessive friction and wear.
As the engine operates, oil circulates through critical components such as crankshaft bearings, connecting rod bearings, camshafts, and turbocharger bearing assemblies where applicable.
Oil temperature directly affects lubricant viscosity. When oil is cold, it is generally thicker. As temperature rises, viscosity decreases.
The Defi DF10402 provides continuous temperature feedback, helping drivers understand how their engine’s lubrication system responds to changing operating conditions.
Know When Your Engine Oil Is Warm
Coolant temperature and oil temperature do not always increase at the same rate.
An engine’s coolant may reach its normal operating range before the oil has fully warmed.
The DF10402 allows drivers to monitor actual oil temperature rather than relying solely on coolant temperature or elapsed warm-up time.
This is particularly useful before sustained high-RPM operation.
Monitor Oil Temperature During Track Driving
Repeated acceleration, prolonged high-speed driving, and sustained high-RPM operation can place substantial thermal demands on engine oil.
As oil temperature increases, viscosity decreases, potentially reducing lubrication margin if temperatures exceed the oil and engine’s intended operating range.
A dedicated oil temperature gauge provides continuous feedback, helping drivers recognize when engine temperatures are increasing beyond their usual operating conditions.
Evaluate Oil Cooler Performance
For vehicles equipped with aftermarket oil coolers, the DF10402 can help drivers observe oil temperature trends during similar driving conditions.
Monitoring temperature before and after a cooling system upgrade can provide useful information about changes in engine oil heat management.
However, a single temperature measurement cannot establish oil cooler efficiency by itself.
Recognize Abnormal Temperature Trends
Unexpectedly high oil temperature may be associated with sustained engine load, inadequate oil cooling, low oil level, excessive friction, or other engine problems.
A temperature gauge provides useful monitoring information but cannot identify the exact cause of a lubrication or cooling problem.
Important: There is no universal ideal oil temperature for every engine. Always consider the engine manufacturer’s specifications, oil grade, operating conditions, and sensor location.
Ideal for JDM Performance and Motorsport Applications
The Defi ADVANCE BF series is an excellent choice for enthusiasts assembling coordinated performance gauge clusters.
The DF10402 is suitable for custom installations on Toyota Supra, Nissan Skyline, Mitsubishi Evolution, Subaru WRX STI, Honda Civic, Acura Integra, Nissan Silvia, and other modified performance vehicles.
Its amber-red illumination complements matching Defi ADVANCE BF oil pressure, turbo boost, fuel pressure, and coolant temperature gauges.
Because the DF10402 is a universal electronic instrument, installation requires a suitable oil temperature sensor location, compatible adapter hardware, electrical wiring, and a Defi ADVANCE controller.
For engine lubrication accessories, oil cooling components, and performance instrumentation, explore Pro Street Online.

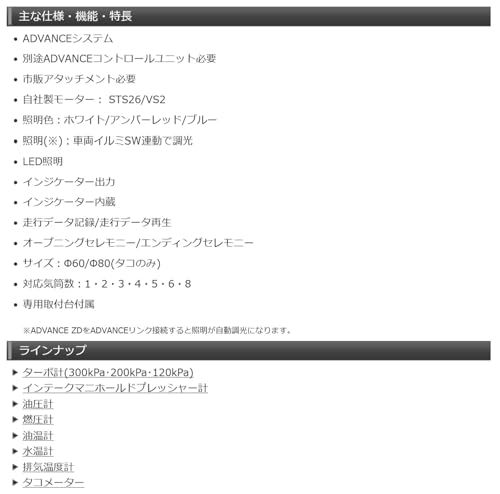

Defi DF10402 Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Defi / Nippon Seiki |
| Manufacturer part number | DF10402 |
| Product series | ADVANCE BF |
| Gauge type | Electronic analog oil temperature |
| Gauge diameter | 60mm / approximately 2.36 inches |
| Measurement range | 50–150°C |
| Fahrenheit equivalent | 122–302°F |
| Illumination | Amber red |
| Display style | Blackout analog face |
| Gauge movement | Electronic stepper motor |
| Temperature sensor | Included |
| Sensor thread | 1/8 PT |
| Sensor harness length | 3 meters |
| Vehicle electrical system | 12V |
| Required controller | Defi-Link ADVANCE Control Unit or compatible ADVANCE Control Unit SE |
| Quantity | 1 gauge |
For manufacturer specifications, see the official Defi ADVANCE BF product catalog.
Product terminology note: Although some distributors describe the DF10402 as a digital oil temperature gauge, it uses an electronic sensor and analog needle display, not a numeric digital screen.

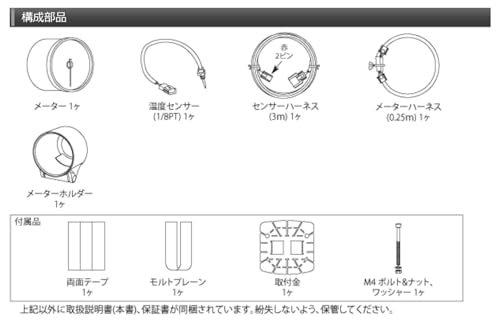

What’s Included with the Defi DF10402?
The standard gauge package includes:
-
One Defi ADVANCE BF 60mm amber-red oil temperature gauge
-
One electronic oil temperature sensor with 1/8 PT threads
-
One temperature sensor harness
-
Gauge connection wiring
-
Gauge mounting cup and bracket
-
Standard mounting accessories
-
Installation documentation
Sold separately: Defi-Link ADVANCE Control Unit, vehicle-specific oil temperature sensor adapter, and optional regular-position bezel.
How to Install the Defi DF10402 Oil Temperature Gauge
Proper installation requires selecting an appropriate engine oil temperature measurement location.
Depending on the engine, the temperature sensor may be installed using a compatible oil filter sandwich plate, threaded oil gallery adapter, or suitable oil pan sensor port.
The included sensor uses a 1/8 PT thread, which should not be confused with 1/8 NPT.
When choosing a mounting location, consider oil flow, sensor immersion, engine vibration, exhaust heat, and clearance around surrounding components.
A sensor installed in stagnant oil or exposed primarily to external heat may not accurately represent the temperature of circulating engine oil.
After installation, inspect all connections for leaks and confirm gauge operation before driving.
For additional information about aftermarket gauge wiring and the Defi ADVANCE system, read our How to Install a DEFI Boost Gauge tutorial.
For manufacturer-specific sensor installation requirements, consult the official Defi sensor installation guide.

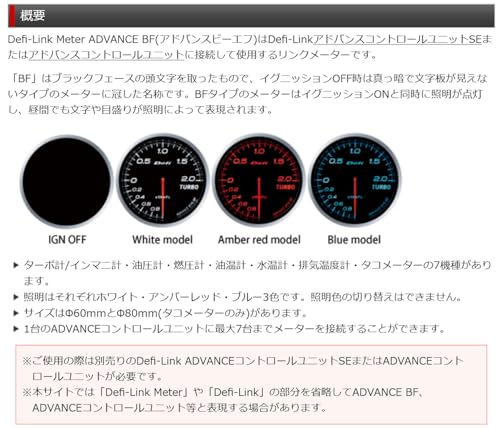

Defi DF10402 vs. Other ADVANCE BF Oil Temperature Gauges
| Part number | Illumination | Measurement range |
|---|---|---|
| DF10401 | White | 50–150°C |
| DF10402 | Amber red | 50–150°C |
| DF10403 | Blue | 50–150°C |
All three models share the same oil temperature measurement range and ADVANCE system requirements. Their primary difference is illumination color.
Why Choose the Defi DF10402 ADVANCE BF?
The Defi DF10402 ADVANCE BF 60mm Amber Red Oil Temperature Gauge offers a premium combination of electronic engine oil temperature monitoring, Japanese instrumentation quality, and classic blackout styling.
Its included temperature sensor, programmable warnings, peak-temperature recall, and compatibility with the expandable ADVANCE system make it a valuable addition to performance engines where lubrication and heat management matter.
Whether you’re upgrading a turbocharged street car, assembling a coordinated JDM dashboard, or preparing a vehicle for demanding track use, the DF10402 provides useful engine oil temperature information in a clean, easy-to-read display.
Explore Defi instrumentation, oil cooling accessories, and performance components at Pro Street Online.
