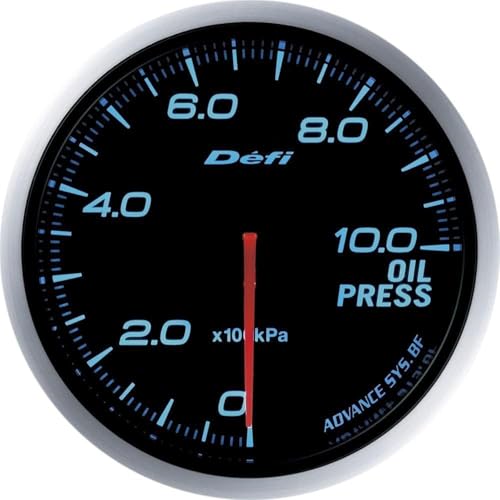

Defi DF10203 ADVANCE BF 60mm Oil Pressure Gauge – Blue, 1000 kPa

Why Accurate Oil Pressure Monitoring Matters

Engine oil pressure is one of the most important measurements affecting engine reliability.

As an engine runs, its oil pump circulates lubricant through passages feeding the crankshaft bearings, connecting rod bearings, camshafts, and other moving components. Turbocharged engines may also rely on pressurized oil to lubricate and cool turbocharger bearings.

When oil pressure drops unexpectedly, these components can lose the protective lubrication film needed to prevent excessive wear and mechanical damage.

The Defi DF10203 provides continuous oil pressure feedback, allowing drivers to recognize unusual changes in pressure before continuing demanding engine operation.

Cold Starts and Warm Idle

Oil pressure is generally higher during cold starts because cold engine oil is more viscous. As the engine warms and oil viscosity decreases, pressure typically falls.

A dedicated oil pressure gauge helps drivers establish what normal cold and fully warmed readings look like for their particular engine.

High-RPM Performance Driving

During spirited driving or track sessions, engine speed and oil demand increase significantly.

Monitoring oil pressure under these conditions can help identify unexpected pressure drops caused by oil starvation, pickup restrictions, excessive oil temperature, or lubrication system problems.

This can be especially important during sustained cornering, hard braking, and rapid acceleration, when oil movement inside the sump may affect pickup coverage.

Detecting Potential Engine Problems

Unusual oil pressure readings can sometimes indicate low oil level, excessive bearing clearance, oil pump wear, a restricted pickup, or problems with oil viscosity.

However, oil pressure readings alone cannot identify the exact cause of a lubrication problem. They should be evaluated alongside oil temperature, engine speed, oil level, and manufacturer specifications.

Important: There is no single safe oil pressure reading for every engine. Always follow the vehicle or engine manufacturer’s pressure specifications.

Ideal for JDM Performance and Track Applications

The Defi ADVANCE BF series is an excellent choice for enthusiasts assembling coordinated performance instrumentation.

The DF10203 can be incorporated into custom installations on Toyota Supra 2JZ engines, Nissan Skyline RB-series engines, Mitsubishi Evolution 4G63 and 4B11T platforms, Subaru WRX STI, Honda B-series and K-series builds, and other modified engines.

Its blue illumination complements matching Defi boost, fuel pressure, oil temperature, and coolant temperature gauges.

Because this is a universal aftermarket instrument, installation requires a compatible sensor mounting location, suitable adapter hardware, and Defi ADVANCE control equipment.

For engine lubrication components, performance accessories, and aftermarket instrumentation, explore Pro Street Online.

Defi DF10203 Technical Specifications

The model number, measurement range, illumination color, and sensor specifications are confirmed by Defi’s official ADVANCE BF product catalog and the ADVANCE BF installation manual.

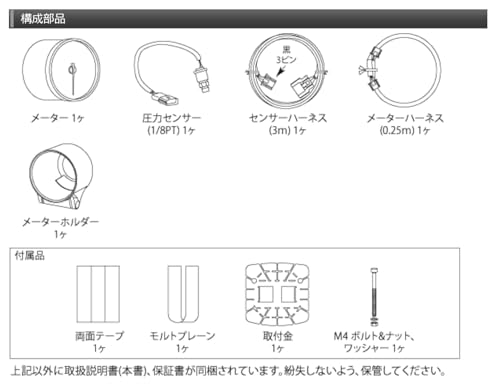

What’s Included with the Defi DF10203?

The standard DF10203 package includes:

• One Defi ADVANCE BF 60mm blue oil pressure gauge

• One electronic oil pressure sensor with 1/8 PT threads

• One 3-meter sensor harness

• One 0.25-meter gauge connection wire

• Gauge holder and mounting hardware

• Installation documentation

A compatible Defi-Link ADVANCE Control Unit and any necessary vehicle-specific sensor adapter must be purchased separately. The optional regular-position bezel is not part of the standard ADVANCE BF package.

Installing the Defi DF10203 Oil Pressure Gauge

Proper installation begins with identifying an appropriate oil pressure measurement location.

Depending on the engine, the sensor may be installed using a suitable adapter at an oil pressure port or a properly configured remote sensor mounting arrangement.

The DF10203 uses a 1/8 PT pressure sensor thread, which should not be confused with 1/8 NPT. The correct adapter is essential to prevent damaged threads and oil leaks.

Installers should also consider engine vibration, exhaust heat, and pressure pulsations when choosing the sensor mounting location. Follow Defi’s instructions for securing the sensor and routing the harness.

For additional information about installing aftermarket Defi instrumentation, read our How to Install a DEFI Boost Gauge tutorial. Although it covers a boost gauge, it provides a useful introduction to the shared ADVANCE controller architecture and gauge wiring.

For oil pressure sensor installation details, refer to the official Defi ADVANCE BF installation manual.

Defi DF10203 vs. DF10201 and DF10202

All three models provide the same oil pressure measurement range and require the Defi-Link ADVANCE system. Their primary difference is illumination color, allowing enthusiasts to match their existing dashboard or other Defi gauges.

Why Choose the Defi DF10203 ADVANCE BF Oil Pressure Gauge?

The Defi DF10203 ADVANCE BF 60mm Blue Oil Pressure Gauge combines premium Japanese instrumentation, a high-contrast blackout display, and valuable engine lubrication monitoring.

With its included electronic pressure sensor, 1000 kPa measurement range, programmable warnings, and expandable ADVANCE system compatibility, it is a strong choice for performance enthusiasts who want more information than a conventional dashboard oil warning light provides.

Whether you’re completing a coordinated JDM instrument cluster, upgrading a turbocharged street car, or building a track-focused performance vehicle, the DF10203 provides a practical way to monitor engine oil pressure.

Upgrade your engine instrumentation with the Defi DF10203 and explore additional performance components at Pro Street Online.
