Why Intake Manifold Pressure Monitoring Matters
Intake manifold pressure provides useful information about engine load, throttle operation, and overall intake system behavior.
On a naturally aspirated gasoline engine, intake manifold pressure typically falls below atmospheric pressure when the throttle is partially closed. This creates manifold vacuum, which changes as the driver accelerates, decelerates, or maintains a steady cruising speed.
At idle, many healthy gasoline engines generate substantial manifold vacuum. When the throttle opens, manifold pressure generally moves closer to atmospheric pressure as the engine draws in more air.
A dedicated intake manifold pressure gauge allows drivers to observe these changes directly.
Unexpected vacuum readings can sometimes help identify intake leaks, incorrect valve timing, throttle-related problems, or other mechanical issues. However, pressure readings should always be interpreted alongside engine RPM, operating temperature, and diagnostic data.
The Defi DF10102 is particularly useful for enthusiasts who want to monitor manifold vacuum without sacrificing gauge resolution to an unnecessarily large turbo boost scale.
Important: With a maximum positive measurement of +20 kPa, approximately 2.9 psi, the DF10102 is not suitable as the primary boost gauge for most turbocharged applications. Drivers running significant positive boost should select a Defi turbo gauge with an appropriate pressure range.
Designed for Naturally Aspirated Performance Builds
The Defi ADVANCE BF intake manifold pressure gauge is an excellent addition to performance-focused interiors and custom instrument clusters.
Its vacuum-oriented measurement range makes it especially relevant to naturally aspirated gasoline engines, including modified Honda B-series and K-series engines, Toyota performance engines, Nissan SR and RB naturally aspirated configurations, and other enthusiast platforms.
Because the DF10102 is a universal electronic gauge, installation depends on the correct pressure sensor, manifold pressure connection, electrical system, and compatible Defi control hardware.
The 60mm diameter allows flexible mounting in compatible dashboard pods, A-pillar housings, and custom gauge panels.
For related engine performance parts and aftermarket instrumentation, explore Pro Street Online.

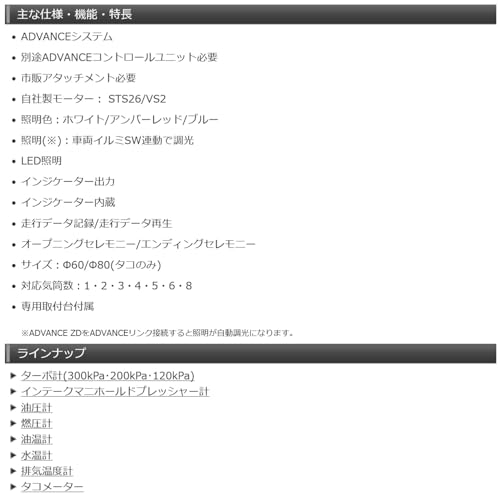

Defi DF10102 Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Defi / Nippon Seiki |
| Part number | DF10102 |
| Product series | ADVANCE BF |
| Gauge type | Intake manifold pressure |
| Gauge diameter | 60mm / 2.36 inches |
| Measurement range | −100 to +20 kPa |
| Approximate PSI range | −14.5 to +2.9 psi |
| Illumination | Amber red |
| Gauge movement | Electronic stepper motor |
| Display style | Blackout analog face |
| Sensor type | External manifold pressure sensor |
| Control unit | Defi-Link ADVANCE required |
| Vehicle application | Primarily naturally aspirated gasoline engines |
| Quantity | 1 gauge |
Specifications confirmed by the official Defi ADVANCE BF catalog and manufacturer installation manual.
What Makes the DF10102 Different from a Boost Gauge?
The DF10102 measures intake manifold pressure relative to atmospheric pressure, emphasizing vacuum rather than high positive boost.
Maximum vacuum scale
−100 kPa
Approximately −14.5 psi
Maximum positive scale
+20 kPa
Approximately +2.9 psi
Defi specifically developed this gauge for naturally aspirated engines and includes a positive pressure scale to capture conditions such as ram-air intake pressure. It can also provide a visual indication of throttle response and engine load.
Installing the Defi DF10102 Intake Manifold Gauge

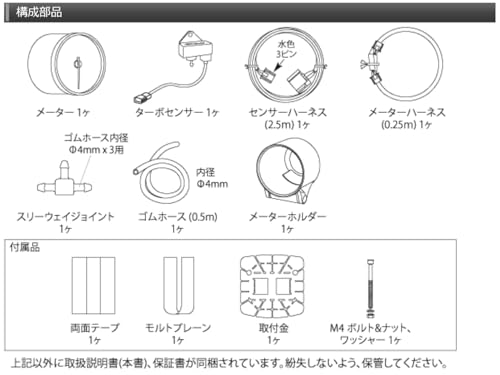

The DF10102 requires a compatible Defi-Link ADVANCE Control Unit, manifold pressure sensor, appropriate pressure hose connections, and proper electrical wiring.
For a detailed installation example, read our How to Install a DEFI Boost Gauge tutorial. This guide documents installing a Defi ADVANCE BF gauge on a Toyota Supra, including controller wiring and manifold pressure connections. Although the featured gauge measures turbo boost, the article provides useful information about the shared ADVANCE system architecture.
Our How to Install a Boost Gauge tutorial also explains fundamental pressure hose routing, mounting, and wiring considerations for aftermarket instrumentation.
Before installation, confirm the correct sensor location and avoid connecting the gauge to a pressure source that exceeds its measurement range.
Why Choose the Defi DF10102 ADVANCE BF Gauge?
The Defi DF10102 ADVANCE BF 60mm Intake Manifold Pressure Gauge offers a combination of precise electronic manifold pressure monitoring, classic Japanese performance styling, and compatibility with Defi’s expandable ADVANCE instrumentation system.
For naturally aspirated enthusiasts, it provides a dedicated way to monitor intake vacuum and pressure changes without relying on a turbo-oriented gauge with an unnecessarily large measurement range.
Its amber-red illumination, blackout appearance, and responsive needle movement make it a functional and attractive addition to a custom performance dashboard.
Upgrade your engine instrumentation with the Defi DF10102 and explore additional performance parts at Pro Street Online.
