Defi DF09902 ADVANCE BF 60mm Turbo Boost Gauge – Amber Red, 200 kPa

Why Accurate Boost Pressure Monitoring Matters

Turbocharger boost pressure plays an important role in engine performance, air delivery, and tuning.

As a turbocharger compresses intake air, positive manifold pressure increases the amount of air available for combustion. When combined with appropriate fuel delivery and ignition calibration, this can produce substantial gains in engine output.

However, excessive or inconsistent boost pressure can indicate problems with turbocharger control or the engine’s forced-induction system.

The Defi DF09902 provides continuous manifold pressure feedback, helping drivers compare actual boost levels against their intended operating targets.

Monitor Turbocharger Performance

A dedicated boost gauge allows drivers to observe how manifold pressure changes during acceleration, throttle transitions, and varying engine loads.

This is especially useful for modified engines equipped with upgraded turbochargers, electronic boost controllers, or aftermarket engine management systems.

Identify Unexpected Boost Spikes

Boost pressure that rises beyond the intended target may indicate wastegate control problems, incorrect boost controller settings, or pressure reference line faults.

Recognizing these conditions is important because excessive boost can increase cylinder pressure and thermal stress.

Troubleshoot Low Boost Conditions

Lower-than-expected boost pressure may be associated with intercooler leaks, loose charge pipe connections, damaged couplers, wastegate problems, or other forced-induction system issues.

Although a boost gauge cannot identify the exact cause, it provides useful information during diagnosis.

Important: A gauge capable of reading 200 kPa does not mean an engine can safely operate at that pressure. Safe boost levels depend on engine construction, fuel quality, tuning, intake temperature, and supporting modifications.

Ideal for Turbocharged JDM and Performance Builds

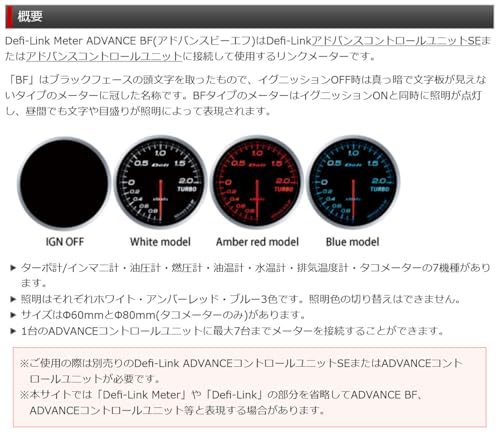

The Defi ADVANCE BF series is a natural choice for enthusiasts assembling coordinated performance gauge clusters.

The DF09902 is suitable for custom installations on Toyota Supra, Nissan Skyline, Mitsubishi Evolution, Subaru WRX STI, Nissan Silvia, turbocharged Honda engines, and other forced-induction platforms.

Its amber-red illumination complements matching Defi ADVANCE BF oil pressure, fuel pressure, oil temperature, and water temperature instruments.

Because the DF09902 is a universal electronic gauge, installation requires an appropriate intake manifold pressure source, compatible sensor and hose connections, electrical wiring, and a Defi ADVANCE controller.

For turbocharger components, boost control accessories, and aftermarket instrumentation, explore Pro Street Online.

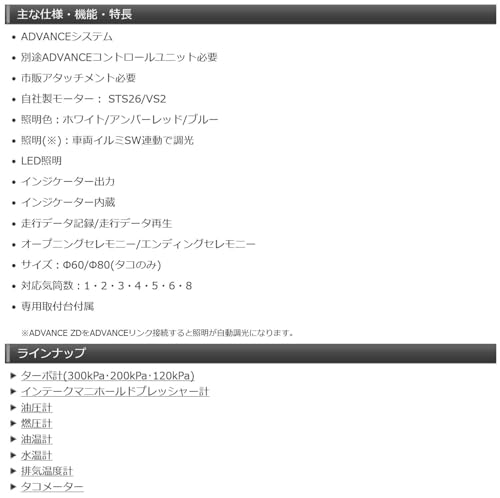

Defi DF09902 Technical Specifications

For manufacturer specifications, consult the official Defi ADVANCE BF product catalog.

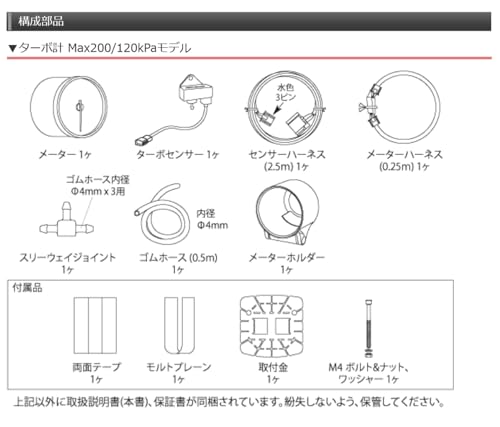

What’s Included with the Defi DF09902?

The standard gauge package includes:

• One Defi ADVANCE BF 60mm amber-red turbo boost gauge

• One electronic turbo pressure sensor

• One pressure sensor harness

• One gauge connection wire

• One three-way pressure connector

• One rubber pressure hose

• Gauge mounting cup and bracket

• Standard mounting accessories

• Installation documentation

Sold separately: Defi-Link ADVANCE Control Unit and any vehicle-specific mounting or pressure connection accessories.

The optional regular-position bezel should not be advertised as included without confirming the specific retail package.

How to Install the Defi DF09902 Boost Gauge

Proper installation requires selecting a suitable intake manifold pressure reference, securely mounting the electronic pressure sensor, and connecting the gauge to the Defi-Link ADVANCE Control Unit.

The sensor should measure manifold pressure downstream of the throttle body so the gauge can display both vacuum and positive boost pressure.

When installing the pressure hose, avoid sharp bends, exhaust heat, loose connections, and locations where the hose could be damaged by moving engine components.

The gauge can be mounted in a compatible 60mm dashboard pod, A-pillar housing, or custom instrument panel.

For a practical installation walkthrough, read our How to Install a DEFI Boost Gauge guide on My Pro Street Online.

For manufacturer-specific requirements, consult the official Defi ADVANCE BF installation manual.

Defi DF09902 vs. Other ADVANCE BF Boost Gauges

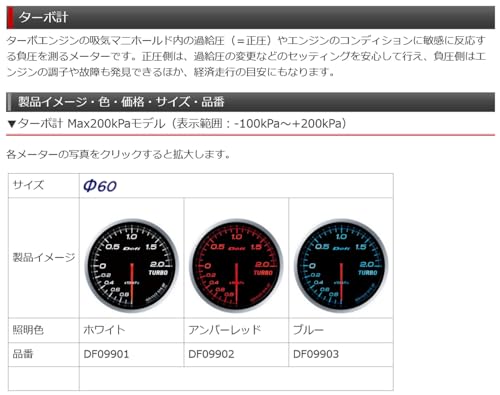

The DF09901, DF09902, and DF09903 share the same measurement range, with illumination color being the primary difference.

The DF14702 provides an extended 300 kPa positive boost range for applications requiring higher pressure monitoring. Its dedicated high-boost sensor and certain functions differ from the 200 kPa models.

Why Choose the Defi DF09902 ADVANCE BF?

The Defi DF09902 ADVANCE BF 60mm Amber Red Boost Gauge combines premium Japanese instrumentation, responsive electronic pressure monitoring, and classic blackout styling.

Its included turbo pressure sensor, programmable warnings, peak boost recall, and compatibility with the expandable ADVANCE system make it a strong choice for enthusiasts who want to monitor turbocharger performance with greater precision.

Whether you’re building a coordinated JDM dashboard, upgrading a turbocharged street car, or preparing a performance vehicle for track use, the DF09902 provides useful manifold pressure information in an attractive, compact display.

Explore Defi instrumentation, turbocharger components, and performance accessories at Pro Street Online.
