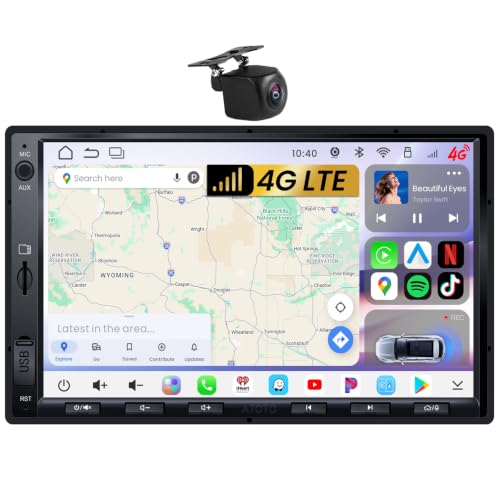

ATOTO S8L 7″ Double Din Car Stereo, 4G LTE, Wireless CarPlay & Android Auto

ASR8662 Octa-Core Processor

The S8L uses an ASR8662 octa-core processor.

ATOTO lists the CPU configuration as:

• 2 × Cortex-A76 cores up to 1.8GHz
• 6 × Cortex-A55 cores up to 1.6GHz

That architecture combines faster performance cores with lower-power efficiency cores.

In practical use, the processor is responsible for handling:

• Android apps
• Navigation
• Streaming
• CarPlay
• Android Auto
• GPS tracking
• Bluetooth devices
• Camera functions
• DriveChat

A car stereo does not need to render video games at 200 frames per second.

It does need to open Google Maps without taking long enough for you to miss the freeway exit.

4GB RAM

The S8L includes 4GB of RAM.

For typical in-car Android use, that gives the operating system enough memory for everyday multitasking.

You might simultaneously have:

• Navigation running
• Music streaming
• TrackHU active
• Bluetooth connected
• LTE online
• Another application cached in the background

Four gigabytes places the S8L below the flagship 8GB X10 but comfortably above entry-level head units with 2GB of RAM.

64GB Internal Storage

The stereo also provides 64GB of internal storage.

That leaves room for:

• Android apps
• Offline maps
• Music
• Navigation data
• Application caches
• Downloaded media

For most daily-driving applications, 64GB is a practical middle ground.

It is also twice the internal storage of many older S8 Gen3 MS models.

Expandable Storage

ATOTO lists support for:

• microSD cards up to 256GB
• USB media up to 128GB
• Compatible SSD storage up to 2TB in supported configurations

That provides plenty of room for large music collections and offline media.

A 2TB SSD in the dashboard is probably enough music for the drive to work.

And the drive back.

For several years.

7-Inch Double DIN Design

The S8L uses a traditional 7-inch Double DIN design.

That is one of its biggest practical advantages.

Unlike a 10.1-inch floating head unit, the display stays much closer to the physical footprint of the original radio.

That reduces the chance of blocking:

• Air vents
• HVAC controls
• Hazard switches
• Factory buttons
• Storage compartments

ATOTO lists a slim front-panel size of approximately 172 × 96 mm, designed to work more easily with common aftermarket Double DIN dash kits.

A supplied trim adapter expands coverage for larger openings.

Installation Still Requires Vehicle-Specific Parts

The S8L is universal.

It is not vehicle-specific plug-and-play.

Depending on the car, installation may still require:

• Dash kit
• Wiring harness
• Antenna adapter
• Factory amplifier interface
• CAN-bus interface
• Steering-wheel-control adapter

For more information on radio sizing, see our guide to Single DIN vs Double DIN.

Double DIN standardizes the approximate size of the radio.

It does not stop automakers from inventing increasingly imaginative ways to make the wiring difficult.

Dual-Layer QLED Display

The S8L uses a 7-inch dual-layer QLED touchscreen.

ATOTO specifies:

• 550-nit brightness
• 178-degree viewing angle
• Optical bonding
• Light-suppression design

These characteristics help improve visibility in bright daylight.

That’s particularly important for functions such as:

• Navigation
• Reverse-camera display
• Track information
• Android Auto
• CarPlay

A screen can have beautiful colors indoors.

The harder test is whether you can still read Google Maps when the afternoon sun enters through the passenger window.

Optically Bonded Display

Optical bonding reduces the air gap between the display layers.

That can improve:

• Contrast
• Reflections
• Touch appearance
• Daylight readability

It also helps the screen look more integrated rather than appearing as though the LCD is sitting deep behind a sheet of glass.

Split-Screen Operation

The S8L supports adjustable split-screen operation.

ATOTO specifically describes a 2/3 split-screen layout that can display navigation beside another compatible application.

That could allow combinations such as:

Maps + music

or

Navigation + another Android app

without continuously switching between screens.

On a 7-inch display, thoughtful split-screen sizing matters considerably more than simply shrinking two apps until both become equally unreadable.

Wireless Apple CarPlay

The S8L supports wireless Apple CarPlay.

Compatible iPhones can access:

• Apple Maps
• Google Maps
• Waze
• Apple Music
• Spotify
• Podcasts
• Calls
• Messages
• Siri
• Compatible CarPlay apps

Once configured, the connection can reconnect automatically during normal use.

No Wired Apple CarPlay

ATOTO’s current specification table lists:

Wired CarPlay: No

Wireless CarPlay: Yes

So iPhone buyers should treat the S8L as a wireless-CarPlay head unit.

USB ports remain available for supported data, media and tethering functions, but wired Apple CarPlay should not be advertised.

Wireless Android Auto

Wireless Android Auto is also supported.

Compatible Android phones can access:

• Google Maps
• Waze
• Music
• Podcasts
• Calls
• Messages
• Google Assistant
• Compatible Android Auto applications

The phone can remain in your pocket while the stereo handles the interface.

Wired Android Auto: Verify Before Purchase

ATOTO’s current S8L documentation is inconsistent regarding wired Android Auto.

Its marketing copy and detailed S8L feature table state that wired Android Auto is available.

However, the formal specification table on the same product page lists:

Wired Android Auto: No

Because of that conflict, we recommend treating wireless Android Auto as the confirmed feature and verifying wired Android Auto support against the latest ATOTO firmware and documentation before purchasing specifically for that function.

Product specifications should not require detective work.

Yet here we are.

Phone Mirroring

The S8L also supports compatible wired and wireless phone mirroring.

Mirroring can provide access to applications that are not natively supported by CarPlay or Android Auto.

As always, video-oriented applications should be used while parked or for passenger-facing entertainment where legal and appropriate.

Built-In 4G LTE

The S8L includes a built-in 4G LTE modem.

With a compatible SIM and carrier, the stereo can maintain an independent internet connection.

That can support:

• Google Maps
• Live traffic
• Streaming music
• DriveChat
• TrackHU
• Online applications
• Internet radio

This is a major advantage over Wi-Fi-only Android head units.

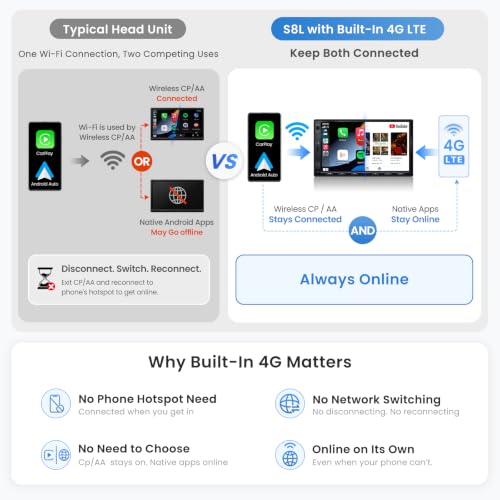

Why 4G LTE Matters With Wireless CarPlay

Wireless CarPlay and Android Auto use Wi-Fi for the connection between the phone and stereo.

That means the radio cannot always simultaneously use the phone’s Wi-Fi hotspot for normal Android internet access.

The S8L solves much of that problem with built-in LTE.

Wireless CarPlay can occupy Wi-Fi while the Android system stays online through cellular data.

USB tethering is also available as an alternate connection method.

Wi-Fi 6

ATOTO lists Wi-Fi 6 support on the S8L platform, operating across 2.4GHz and 5GHz bands.

That provides faster and more flexible local connectivity when a compatible network is available.

Bluetooth Connectivity

The current detailed S8L specification lists upgraded Bluetooth functionality with support for common profiles including:

• HFP
• HSP
• A2DP
• AVRCP
• PBAP

Supported audio codecs include SBC and AAC.

The platform can also connect several compatible Bluetooth or BLE devices as part of ATOTO’s broader in-car accessory ecosystem.

Bluetooth Screen Lock

The S8L provides Bluetooth Auto Screen Lock.

When an authorized paired phone leaves Bluetooth range, the stereo can automatically lock access to the interface.

When the phone returns, access can be restored.

That can help protect:

• Google accounts
• App logins
• Navigation history
• Streaming accounts
• Personal data

This is particularly useful when handing the keys to a:

• Valet
• Repair shop
• Friend
• Other driver

Your old radio had anti-theft security too.

Usually the security feature was that nobody wanted to steal an AM/FM cassette deck.

Included AC-RCR04W 1080P Rear Camera

This S8LG2A7SD bundle includes ATOTO’s AC-RCR04W rear camera.

The camera provides:

• 1080P video
• 145-degree field of view
• Live Rear View
• Parking guidelines
• Backlight Compensation
• Automatic Gain Control
• IP67 weather protection

That makes the package useful for older vehicles that did not originally include a reverse camera.

145-Degree Wide View

The camera’s 145-degree field of view covers a broad area behind the vehicle.

That can help when:

• Backing from parking spaces
• Maneuvering around obstacles
• Parking in tight spaces
• Checking areas hidden by the rear bodywork

Extremely wide fisheye camera lenses can distort distance significantly.

A 145-degree design aims to provide broad coverage without turning every parked car behind you into something viewed through a door peephole.

Live Rear View

ATOTO’s Live Rear View allows the rear camera to be displayed even while the vehicle is traveling forward.

That can be useful in:

• Trucks
• SUVs
• Vans
• Vehicles carrying cargo
• Cars with limited rear visibility

It essentially provides an additional digital rearward view beyond the physical mirror.

BLC and AGC

The AC-RCR04W incorporates:

Backlight Compensation (BLC)

and

Automatic Gain Control (AGC).

These help the camera compensate for changing lighting conditions.

For example, BLC can improve visibility when strong light appears behind the subject, while AGC can automatically adjust the image signal when available light changes.

IP67 Weather Resistance

The camera is rated IP67.

That helps protect it from:

• Rain
• Road spray
• Dust
• Normal exterior exposure

Which is useful because rear cameras spend their lives mounted in the exact location where the vehicle throws every possible type of road grime.

Important Camera Recording Distinction

The AC-RCR04W has recording capabilities with several ATOTO S8 platforms.

However, ATOTO’s current camera compatibility documentation specifically indicates that with S8L, the AC-RCR04W should be treated primarily as a Live Rear View and reverse camera rather than a DVR recording camera.

That distinction matters.

Do not advertise rear-camera recording on this S8L bundle unless ATOTO updates the S8L firmware or documentation to explicitly support it.

Separate DVR Camera Support

The S8L itself supports a dedicated DVR camera input.

That means a compatible separate front DVR camera can be integrated for recording purposes.

The stereo therefore supports:

• One DVR camera input
• One rear-camera input

rather than the more elaborate multi-camera architecture offered by ATOTO’s higher-tier models.

32-Band DSP Equalizer

Audio tuning is one of the S8L’s stronger features.

The built-in DSP includes a 32-band equalizer.

That provides significantly more control than simple:

• Bass
• Mid
• Treble

adjustments.

You can shape the system response around:

• Speaker placement
• Door resonances
• Dashboard reflections
• Cabin acoustics
• Listener preference

Cars remain acoustically terrible rooms.

DSP continues trying valiantly to negotiate with physics.

Six EQ Presets

The S8L includes six preset EQ modes.

Those provide quick starting points for users who do not want to manually tune all 32 bands.

Manual adjustment remains available for more experienced installers.

Time Alignment

Time alignment allows the stereo to delay selected speaker channels.

Why?

Because the driver sits much closer to the left-front speaker than the right-front speaker.

Without correction, sound from the closest speaker reaches your ears sooner.

Time alignment can improve the perceived center image and soundstage.

Adjustable Crossovers

The S8L also includes adjustable crossover functions.

These can divide frequencies between:

• Door speakers
• Tweeters
• Subwoofer

High-pass and low-pass filtering can help improve:

• Clarity
• Speaker protection
• Bass integration
• Distortion control

For more information on building a complete system, see our Car Audio System Guide for Better Sound Builds.

24-Bit DAC

The S8L includes a 24-bit digital-to-analog converter.

That gives the radio a stronger audio foundation when converting digital music into the analog signal used by its amplifier and RCA outputs.

A DAC specification alone does not guarantee excellent audio.

Speaker quality, installation, amplifier gain and tuning still matter.

But it is a useful component in a head unit designed for more serious audio upgrades.

4×25W RMS Amplifier

ATOTO rates the internal amplifier at:

4 × 45 watts maximum

and

4 × 25 watts RMS.

The RMS figure is the more useful number.

Twenty-five watts per channel can drive many:

• Factory speakers
• Efficient aftermarket coaxials
• Basic component speakers

For higher-output audio systems, external amplification remains the better solution.

3V RCA Preamp Output

The S8L provides a 3V RCA preamp output.

That provides a cleaner and stronger signal to compatible external amplification than many entry-level Android radios.

It is not the 4V output of the S8 Gen4 Pro platform, but it remains useful for conventional aftermarket amplifier builds.

Optical S/PDIF Output

The S8L also includes optical S/PDIF digital output.

That allows a digital audio signal to be sent to compatible equipment such as:

• External DSP
• Digital amplifier
• High-end audio processor

This is a relatively advanced feature for a model positioned as “S8 Lite.”

Again, somebody at ATOTO appears to have a very ambitious definition of the word Lite.

Dedicated Subwoofer Output

A single-channel subwoofer output is also provided.

Combined with adjustable low-pass filtering, this makes it straightforward to add:

• Powered subwoofer
• Mono amplifier
• Dedicated bass system

without replacing the head unit later.

SCVC Speed-Compensated Volume

The S8L includes Speed Compensated Volume Control.

As vehicle speed rises, road and wind noise generally increase.

SCVC can automatically adjust audio level to compensate.

When the vehicle slows down, volume can decrease again.

That reduces the constant:

turn it up on freeway

turn it down at stoplight

cycle.

Built-In GPS

The S8L has its own GPS system and supports multiple satellite-positioning technologies, including:

• GPS
• GLONASS
• Galileo
• BeiDou

That provides location information directly to the head unit.

Compatible Android navigation applications can therefore run independently of phone projection.

Online and Offline Navigation

Navigation choices can include:

• Google Maps
• Waze
• HERE WeGo
• Other compatible Android apps

Maps can also be downloaded for compatible offline-navigation applications.

That can be useful when driving through areas with poor cellular coverage.

TrackHU GPS Tracking

The S8L includes ATOTO’s TrackHU platform.

Supported functions include:

• Vehicle location
• Trip playback
• Route records
• Geofence alerts
• Online/offline status

Because the stereo includes both GPS and 4G LTE, it can provide connected tracking without requiring a separate standalone GPS tracker.

Geofencing

A geofence creates a virtual boundary around a selected geographic area.

Depending on current TrackHU functionality, alerts can be generated when the vehicle moves into or out of configured zones.

That can be useful for:

• Shared vehicles
• Project cars
• Family vehicles
• Fleet-like use

As with any connected tracking feature, service availability and terms can evolve over time.

SSRadio

ATOTO also includes SSRadio, its internet-radio platform.

Current documentation advertises thousands of online stations from around the world.

You can also manually save compatible favorite stations.

That creates another listening option beyond:

• FM
• AM
• Spotify
• Local files
• Bluetooth audio

Traditional radio has now been joined by internet radio so that you can listen to a station 6,000 miles away while ignoring six stations broadcasting three blocks from your house.

Technology.

FindApps

The S8L includes ATOTO’s FindApps platform.

FindApps helps users discover Android applications suited to the in-car environment.

It provides another path for finding compatible software alongside conventional Android application sources.

DriveChat AI Assistant

ATOTO includes DriveChat on the S8L.

DriveChat provides conversational AI functions for supported requests such as:

• Navigation assistance
• General questions
• Online information
• Reminders
• Entertainment-related commands
• Vehicle-related assistance

ATOTO currently markets the platform using specific ChatGPT and Gemini model versions.

For an evergreen Pro Street product page, however, I recommend focusing on DriveChat and ATOTO’s evolving AI platform rather than hard-coding cloud-model versions into the core sales copy.

Cloud AI changes rapidly.

The Double DIN hole in your dashboard is much more stable.

Agentic AI Development

ATOTO is also moving toward more proactive or “agentic” AI functions.

The idea is to allow the system to combine information from:

• Location
• Vehicle data
• Apps
• Connected accessories
• User requests

to provide more contextual assistance.

Specific functions may evolve through OTA updates.

Buy the stereo for its current features.

Treat future AI improvements as additional value rather than a reason to purchase hardware based on promises.

OBD-II Ready

The S8L supports compatible OBD-II scanner integration.

With a supported adapter and vehicle, applications can access information such as:

• Engine RPM
• Coolant temperature
• Vehicle speed
• Fuel trims
• Diagnostic trouble codes
• Other supported data

An OBD-II scanner is not included with this camera bundle unless your specific Pro Street SKU says otherwise.

Diagnostic Codes Still Require Testing

An OBD-II code can tell you what the ECU detected.

It cannot automatically tell you which part failed.

A circuit code might be caused by:

• Wiring damage
• Connector problems
• Poor ground
• Reference-voltage faults
• Sensor failure
• Mechanical issues

DriveChat can make codes easier to understand.

A multimeter may still be required afterward.

There are limits to civilization.

Steering-Wheel-Control Support

The S8L supports compatible steering-wheel controls.

Some vehicles can connect directly through analog SWC inputs.

Others may require:

• CAN-bus interface
• Vehicle-specific data adapter
• Factory integration module

Always check the exact year, make, model and audio system.

Fast Boot

ATOTO also lists a fast-resume function that can bring the system back into operation in approximately two seconds under supported conditions.

That reduces the delay between turning the key and accessing:

• Navigation
• Music
• Camera functions
• Android interface

Waiting 45 seconds for a stereo to boot every time you buy coffee becomes old surprisingly quickly.

Rear Cooling Fan

The S8L also incorporates an active rear cooling fan.

That helps control internal temperature during longer periods of operation.

This can be particularly useful when the stereo is simultaneously handling:

• Navigation
• LTE
• Streaming
• DSP
• Android applications

Inside a dashboard is not a particularly luxurious thermal environment.

HDMI Expansion

The S8L platform also supports HDMI input/output through compatible accessories.

That is useful for specialized media or passenger-display installations.

It should not be described as having a conventional full-size HDMI connector directly on the stereo unless the actual package includes the required adapter.

OTA Updates

The S8L supports over-the-air software updates.

Updates can potentially improve:

• System stability
• DriveChat
• CarPlay
• Android Auto
• Bluetooth
• TrackHU
• Connected accessories
• User interface
• Compatibility

For a modern Android head unit, long-term software support matters almost as much as the original hardware.

12+6 Month Product Care

ATOTO provides 12 months of standard product coverage plus an additional six months of product care under its current program.

That effectively provides up to 18 months of coverage when the applicable extension requirements are met.

Check the current registration or support requirements when purchasing.

S8L vs S8 Gen3 MS

The older S8 Gen3 MS remains widely available, but these are significantly different platforms.

S8L advantages:

• Android 15
• Newer ASR8662 processor
• 64GB storage
• Dual-layer QLED
• 24-bit DAC
• 3V RCA
• Optical S/PDIF
• Newer AI platform
• More compact installation panel

S8 Gen3 MS advantages:

• Mature UIS7862 platform
• 36-band EQ on applicable models
• Broad camera recording support
• Wired and wireless CarPlay/Android Auto documented more consistently
• Established accessory ecosystem

For someone buying new today, the S8L’s newer operating system is a major advantage.

S8L vs S8 Gen4 7-Inch

The S8 Gen4 Pro remains the higher-tier S8 product.

S8L provides:

• Android 15
• 4GB/64GB
• 32-band DSP
• 24-bit DAC
• 3V RCA
• Optical output
• LTE
• GPS
• Included 1080P rear camera

S8 Gen4 provides:

• Android 13
• MT8768
• 4GB/64GB
• 32-band DSP
• 4V RCA outputs
• Optical/coaxial digital audio
• Broader camera expansion
• Higher-tier S8 positioning

The interesting part is that the cheaper S8L actually runs the newer Android version.

Android version numbers alone, however, do not define the entire hardware tier.

S8L vs ATOTO A5L

The A5L remains ATOTO’s budget Android option.

A5L:

• Lower purchase price
• 2GB RAM
• 32GB storage
• No built-in LTE
• Simpler DSP
• Basic Android-head-unit functionality

S8L:

• 4GB RAM
• 64GB storage
• Built-in LTE
• Android 15
• Better QLED display
• 32-band DSP
• 24-bit DAC
• Optical output
• TrackHU

If you mainly need wireless CarPlay and a backup camera, the A5L may be enough.

If you want to use Android independently and build a better audio system later, the S8L is a substantial step upward.

S8L vs X10

The X10 remains ATOTO’s flagship.

S8L:

• 4GB RAM
• 64GB storage
• Android 15
• ASR8662
• 32-band DSP
• 24-bit DAC
• 3V RCA
• Optical output

X10:

• 8GB RAM
• 128GB storage
• Snapdragon platform
• 36-band EQ
• Advanced crossover
• More audio channels
• 7.1.2-channel architecture
• Advanced camera system
• Flagship processing

The S8L makes more sense for a normal stereo system.

The X10 makes more sense when your wiring diagram begins to resemble the electrical plan for a recording studio.

Who Should Buy the S8L?

The S8L is a particularly good match for someone who wants:

• Conventional 7-inch Double DIN appearance
• Android 15
• Built-in LTE
• Wireless CarPlay
• Wireless Android Auto
• 1080P rear camera
• Strong audio tuning
• GPS tracking
• Expandable audio outputs
• Modern software without a giant floating screen

It should work especially well in:

• Older performance cars
• Daily drivers
• Trucks
• SUVs
• Restomods
• Project cars
• Vehicles where a 10-inch display would block controls

Who Should Consider Something Else?

Choose another model if you need:

• 10-inch screen
• Multi-camera recording
• 4V RCA outputs
• Coaxial digital audio
• Maximum RAM and storage
• Advanced multi-channel audio
• Fully adjustable floating display

ATOTO has models specifically for those requirements.

The advantage of the S8L is balance.

Is the ATOTO S8L Worth It?

The S8L may end up being one of the more interesting value points in ATOTO’s lineup because it combines a conventional physical size with a surprisingly modern software platform.

You get:

• Android 15
• ASR8662 octa-core processor
• 4GB RAM
• 64GB storage
• Built-in 4G LTE
• Wi-Fi 6
• Wireless CarPlay
• Wireless Android Auto
• Phone mirroring
• 7-inch dual-layer QLED display
• 550-nit brightness
• Optical bonding
• Split-screen
• 32-band DSP
• Six EQ presets
• Time alignment
• Crossovers
• SCVC
• 24-bit DAC
• 4×25W RMS amplification
• 3V RCA preout
• Optical S/PDIF
• Subwoofer output
• GPS
• TrackHU
• SSRadio
• FindApps
• DriveChat
• Bluetooth privacy lock
• OBD-II expansion
• Included AC-RCR04W 1080P rear camera
• Live Rear View
• OTA updates

All while retaining a normal 7-inch Double DIN footprint.

That’s arguably the S8L’s biggest advantage.

It provides many of the features people buy a giant Android screen for without requiring the dashboard to surrender every air vent within six inches.

Sometimes the most modern-looking upgrade is the one that still looks like it belongs in the car.
