ATOTO S84G215PB 11.5-Inch 2K QLED S8 Gen4 Android Double DIN Car Stereo

QLED Display Technology

ATOTO uses a QLED panel on the S84G215PB.

The technology is intended to deliver:

• Strong color
• Sharp graphics
• Better contrast
• Clear navigation
• Improved camera visibility

That matters on an 11.5-inch display because low-resolution or low-quality panels become much easier to notice as screen size increases.

A giant blurry screen is still giant.

It is just blurry from farther away.

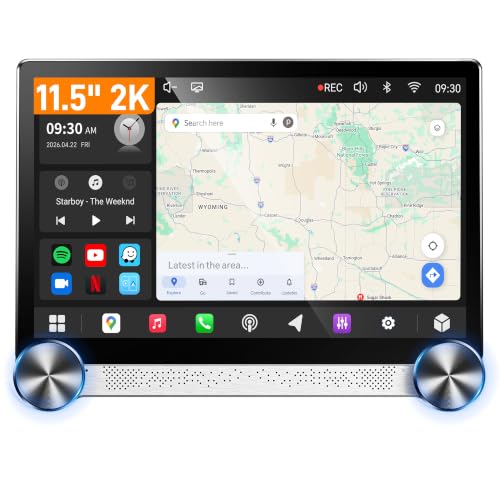

Dual Physical Control Knobs

One of the smartest features on the S84G215PB is also one of the least futuristic:

two large physical knobs.

One can be used for functions such as volume control while the other provides quick track or media interaction.

That makes common adjustments easier without relying entirely on touchscreen controls.

There is something refreshing about installing an 11.5-inch Android touchscreen and then admitting that a knob remains one of humanity’s finest user-interface inventions.

Why Knobs Matter While Driving

Physical controls let you make certain adjustments by feel.

That can reduce the need to:

1. Look away from the road.
2. Find an on-screen control.
3. Tap the correct area.
4. Discover that you opened something else.

For frequently used functions like volume adjustment, physical controls still make a lot of sense.

Built-In Ambient Lighting

ATOTO also incorporates ambient lighting along the lower section of the display.

The lighting gives the head unit a more integrated appearance in vehicles already using interior accent lighting.

Depending on current system options, lighting behavior can be used to complement the cabin environment.

It is not the reason to buy the stereo.

But on something this large, visual integration matters.

Large Floating-Style Screen

Although the S84G215PB uses a Double DIN mounting chassis, the actual 11.5-inch display extends well beyond the dimensions of a standard Double DIN opening.

That means you need to check clearance around:

• Air vents
• HVAC controls
• Hazard switch
• Factory buttons
• Dashboard trim
• Shifter
• Storage compartments

before ordering.

This is especially important in smaller dashboards.

Double DIN Does Not Mean the Screen Is Double DIN Size

The metal mounting chassis fits a Double DIN installation.

The display does not.

That distinction causes a surprising amount of confusion with large-screen receivers.

Your installation may also require:

• Vehicle-specific dash kit
• Wiring harness
• Antenna adapter
• CAN-bus module
• Factory amplifier interface
• Steering-wheel-control interface

For more information, see our Single DIN vs Double DIN guide.

Android 13

The S84G215PB runs ATOTO’s AICE UI 13 based on Android 13.

This makes it a true Android head unit.

Compatible apps can run directly on the stereo without using CarPlay or Android Auto.

Potential uses include:

• Google Maps
• Waze
• Spotify
• Internet radio
• Offline maps
• OBD-II software
• Vehicle apps
• Media players

That is a major distinction from something like ATOTO’s F7WE, where the connected phone performs most of the computing.

MT8768 Octa-Core Processor

ATOTO uses an MT8768 octa-core processor in the S8 Gen4 platform.

The processor is designed to handle tasks such as:

• Navigation
• Android apps
• Streaming
• Camera recording
• CarPlay
• Android Auto
• DriveChat
• TrackHU
• Bluetooth accessories

without requiring flagship-level hardware.

ATOTO rates the platform at speeds up to approximately 2.2GHz.

4GB RAM

The S84G215PB includes 4GB of RAM.

That gives the system enough working memory for typical vehicle multitasking including:

• Navigation
• Streaming
• Background connectivity
• Camera functions
• Android applications
• Wireless phone projection

It also places the S8 clearly above ATOTO’s 2GB entry-level Android stereos.

64GB Internal Storage

The stereo includes 64GB of internal storage.

That gives users room for:

• Applications
• Offline maps
• Downloaded playlists
• Navigation files
• Media
• App data

For most head-unit use, 64GB is a practical middle ground.

Expandable Storage

S8 Gen4 specifications also support external storage.

ATOTO currently lists:

• microSD up to 512GB
• USB storage up to 128GB

That provides additional room for offline media.

Fast Resume in About Two Seconds

ATOTO’s background sleep system allows the S84G215PB to wake quickly after supported shutdown periods.

The system can return to the home interface in roughly:

two seconds

under the appropriate conditions.

That means quicker access to:

• Navigation
• Music
• Cameras
• Apps

after starting the vehicle.

Fast boot sounds like a small feature until you’ve owned an Android stereo that finishes loading somewhere between the driveway and the freeway.

Built-In 4G LTE

The S84G215PB includes a built-in 4G LTE modem.

With a compatible nano-SIM and cellular plan, the stereo can have its own internet connection.

That supports:

• Live navigation
• Music streaming
• TrackHU
• DriveChat
• Cloud applications
• Internet radio
• Android apps

without requiring your phone to operate as a hotspot.

Why Built-In LTE Matters

Using a phone hotspot works.

But it can involve:

• Manually enabling the hotspot
• Reconnection delays
• Battery drain
• Phone heat
• Wireless conflicts

Built-in LTE lets the stereo function as an independent connected device.

For drivers who use native Android apps every day, this can be one of the S8’s most useful upgrades.

Dual-Band Wi-Fi

The stereo also supports:

• 2.4GHz Wi-Fi
• 5GHz Wi-Fi

when wireless phone projection is not occupying the connection.

USB Tethering

USB tethering provides another internet option.

This becomes particularly important when wireless CarPlay or Android Auto is active.

Because wireless projection uses Wi-Fi, the Android side of the stereo can stay online through:

• Built-in 4G LTE
• USB tethering

instead.

Wireless Apple CarPlay

The S84G215PB supports wireless Apple CarPlay.

Compatible iPhone users can access:

• Apple Maps
• Google Maps
• Waze
• Music
• Spotify
• Podcasts
• Calls
• Messages
• Siri
• Compatible CarPlay apps

without connecting a cable every time they enter the vehicle.

Wireless Android Auto

Wireless Android Auto is also supported.

Compatible Android phones can access:

• Google Maps
• Waze
• Spotify
• Podcasts
• Calls
• Messages
• Google Assistant
• Supported applications

through the 11.5-inch display.

CarPlay and Android Auto Are Wireless Only

This is an important specification.

The S8 Gen4 does not support wired CarPlay or wired Android Auto.

Both systems operate wirelessly.

USB connections remain useful for:

• Storage
• Tethering
• Accessories

but not wired phone projection.

If wired CarPlay or Android Auto is important to you, consider an F7WE or another compatible model instead.

DriveChat AI Assistant

The S84G215PB includes ATOTO’s DriveChat AI platform.

DriveChat provides conversational voice interaction for supported functions.

Possible uses include:

• Navigation help
• General information
• Music requests
• Online information
• Vehicle-related questions
• System interaction

ATOTO continues updating the service through software development.

ChatGPT-Powered AI Without Locking the Product to One Version

ATOTO currently markets DriveChat using ChatGPT-based AI technology.

For a long-term product page, the safer wording is:

DriveChat AI assistant

rather than permanently attaching the head unit to a specific ChatGPT model number.

The cloud software can change.

The stereo in the dashboard probably will not.

Optional AC-4450 OBD-II Integration

DriveChat can also use vehicle information when paired with the optional ATOTO AC-4450 OBD-II scanner.

Depending on vehicle support, available information may include:

• Engine RPM
• Speed
• Coolant temperature
• Fuel information
• Sensor values
• Diagnostic trouble codes

The OBD scanner is sold separately unless the exact bundle states otherwise.

Trouble-Code Explanations

DriveChat can help translate diagnostic trouble codes into easier-to-understand language.

That is useful for determining what system needs attention.

It should not be confused with confirming which part has failed.

For example, an oxygen-sensor-related code might still be caused by:

• Wiring
• Exhaust leaks
• Vacuum leaks
• Fuel mixture issues
• Sensor failure

The code provides a clue.

The multimeter still gets a vote.

32-Band DSP Equalizer

The S84G215PB includes a 32-band DSP equalizer.

That gives significantly more tuning control than basic:

• Bass
• Midrange
• Treble

adjustments.

A detailed EQ can compensate for:

• Speaker response
• Door resonances
• Windshield reflections
• Cabin materials
• Listener position

Time Alignment

The S8 also includes time alignment.

Because the driver sits much closer to some speakers than others, the system can delay specific channels so sound reaches the listening position more evenly.

Proper time alignment can improve:

• Center image
• Vocal position
• Soundstage

The goal is to make the music sound like it is coming from in front of you rather than from the speaker six inches from your left leg.

Adjustable Crossovers

The DSP also provides adjustable crossover controls.

That lets installers better divide frequencies between:

• Front speakers
• Rear speakers
• Tweeters
• Subwoofer
• External amplifiers

Proper crossover configuration can improve:

• Clarity
• Bass response
• Speaker protection
• Overall output

For more information, see our Car Audio System Guide for Better Sound Builds.

4×24W RMS Internal Amplifier

ATOTO rates the built-in amplifier at:

4 × 45W peak

and approximately:

4 × 24W RMS

The RMS figure is the more useful number when comparing real continuous output.

That is suitable for many:

• Factory speakers
• Efficient aftermarket coaxials
• Basic component systems

More demanding systems can take advantage of the external outputs.

4V RCA Preamp Outputs

The S84G215PB provides 4V RCA preamp outputs.

That makes it well suited to systems using:

• External amplifiers
• Powered subwoofers
• DSP processors

Higher preamp voltage allows a stronger signal to reach the amplifier.

That can make amplifier gain setup easier and improve signal-to-noise performance compared with very low-voltage outputs.

Optical S/PDIF Output

The S84G215PB provides optical S/PDIF digital audio output.

This gives compatible:

• DSP processors
• Digital amplifiers
• Audio interfaces

a direct digital signal path.

Coaxial S/PDIF Output

Coaxial S/PDIF is also included.

That means high-end audio builders can choose between:

• 4V analog RCA
• Optical digital output
• Coaxial digital output

That is a serious set of connection options for an Android head unit.

Up to Three Camera Inputs

ATOTO specifies support for up to three compatible cameras.

Possible installations can include:

• Front camera
• Rear camera
• Additional DVR camera

This gives the S8 considerably more flexibility than a head unit with only one basic reverse-camera input.

Important Camera Limitation

The S8 Gen4 cannot display or record the front and rear cameras simultaneously.

It can switch between camera views.

Only one feed is displayed or recorded at a time.

If simultaneous multi-camera recording is essential, the ATOTO X10 is the more appropriate platform.

AC-HD30FHU Front Camera

ATOTO lists the optional AC-HD30FHU as compatible with S8 Gen4.

That camera provides:

• 1080P recording
• 30 fps video
• 147.2-degree field of view
• WDR
• Low-light capability
• Loop recording
• G-sensor functions

The camera is sold separately.

Emergency Video Locking

With compatible camera hardware installed, the system can protect incident footage from normal loop-recording overwrite.

That helps preserve video following events such as:

• Collisions
• Hard impacts
• Road incidents

Parking Guard

The S8 Gen4 also supports Parking Guard with appropriate compatible camera hardware and wiring.

Parking recording can continue while the vehicle is parked, subject to system voltage protection and configuration.

That can help document:

• Parking-lot impacts
• Vehicle contact
• Other incidents

that happen while the driver is away.

Golden Hour Alert

ATOTO’s safety ecosystem also includes Golden Hour Alert functions with designated compatible camera hardware.

Following qualifying severe impacts, supported connected functions can provide alerts or incident-related information.

Availability depends on:

• Camera accessory
• Cellular connection
• Current firmware
• Service configuration

TrackHU GPS Tracking

The S84G215PB includes ATOTO’s TrackHU.

TrackHU can provide supported features such as:

• Live vehicle location
• Travel history
• Trip playback
• Speed records
• Distance data
• Geofence alerts

Because the stereo has GPS and built-in cellular connectivity, it can perform these tasks without requiring a separate standalone GPS tracker.

Geofencing

TrackHU can establish geographic boundaries around selected areas.

Possible uses include:

• Shared cars
• Family vehicles
• Project cars
• Fleet vehicles
• Theft awareness

SSRadio

ATOTO includes SSRadio on the S8 Gen4 platform.

It provides access to thousands of internet radio stations around the world.

Users can also manually add compatible station favorites.

That gives you another source beyond:

• FM
• Spotify
• Bluetooth
• Local media
• Android streaming apps

FindApps

The S8 platform also includes FindApps.

FindApps helps users locate Android applications optimized or suitable for the in-car environment.

It provides another installation path alongside conventional Android app sources.

Bluetooth IoT Hub

The S84G215PB can also operate as a control point for compatible Bluetooth Low Energy accessories.

ATOTO markets support for up to six compatible BLE devices.

Potential accessories can include:

• OBD-II scanners
• Ambient lighting
• AI displays
• Other compatible accessories

CarIoTHub

Compatible accessories can be managed through ATOTO’s CarIoTHub ecosystem.

That turns the head unit into a central interface for connected accessories.

DriveChat may also provide voice-based interaction with supported devices.

Bluetooth Privacy Lock

The stereo supports automatic Bluetooth-based screen locking.

When an authorized phone leaves the vehicle, the stereo can lock access.

When the phone reconnects, access can be restored.

That helps protect:

• Accounts
• Navigation history
• Messages
• Application data
• Personal settings

The bigger and smarter our radios become, the more they begin requiring the security practices previously reserved for laptops.

Built-In GPS

The S84G215PB includes independent GPS positioning.

That allows navigation apps to run directly on the Android system.

Supported applications may include:

• Google Maps
• Waze
• Offline navigation software

GPS data also supports TrackHU functions.

Split-Screen Android Operation

An 11.5-inch display is particularly useful for Android split-screen operation.

Compatible apps can share the display so you can view combinations such as:

Navigation + Music

or

Navigation + Vehicle Data

without either app becoming too small to use comfortably.

This is one area where the enormous screen earns its dashboard real estate.

Steering-Wheel-Control Support

The S84G215PB supports compatible factory steering-wheel controls.

Depending on the vehicle, integration may require:

• Analog SWC wiring
• CAN-bus interface
• Data module

Supported buttons can control functions such as:

• Volume
• Track selection
• Phone
• Voice commands

OTA Updates

The S8 Gen4 supports over-the-air software updates.

Eligible updates can improve:

• DriveChat
• Bluetooth
• TrackHU
• CarPlay
• Android Auto
• Camera functions
• Stability
• User interface

That gives ATOTO the ability to refine the head unit after installation.

12+6 Month Product Coverage

ATOTO provides a 12-month standard warranty.

Customers purchasing through qualifying channels can register for an additional:

180 days

of coverage.

That brings available coverage to approximately 18 months when eligible.

S84G215PB vs S84G209P 9-Inch

The 9-inch S84G209P shares much of the same S8 Gen4 hardware.

Choose the 9-inch S84G209P if you want:

• Smaller dashboard footprint
• Better vent clearance
• Easier installation
• More OEM-like appearance

Choose the 11.5-inch S84G215PB if you want:

• Far larger display
• 2000×1200 resolution
• Better split-screen use
• Larger camera views
• Dual physical knobs

The core S8 experience is similar.

The physical experience is not.

S84G215PB vs S84G211P 10.1-Inch

The 10.1-inch S84G211P sits between the 9- and 11.5-inch models.

S84G211P advantages:

• Easier fitment
• Smaller footprint
• Still a large display

S84G215PB advantages:

• 11.5-inch screen
• 2000×1200 resolution
• Dual knobs
• More dramatic visual upgrade

For trucks and large SUVs, the 11.5-inch version can make a lot of sense.

For compact dashboards, the 10.1-inch model may be easier to live with.

S84G215PB vs S8L 10.1

The S8L 10.1 takes a slightly different approach.

S8L advantages:

• Android 15
• 24-bit DAC
• Six-channel / 5.1 audio configuration on applicable model

S84G215PB advantages:

• Larger 11.5-inch display
• 2000×1200 resolution
• 4V RCA
• Optical and coaxial S/PDIF
• Broader S8 Gen4 camera ecosystem
• Dual physical knobs

The S8L wins on operating-system freshness.

The S84G215PB wins on screen hardware and traditional S8 Pro connectivity.

S84G215PB vs X10

The X10 remains ATOTO’s flagship platform.

S84G215PB:

• MT8768
• 4GB RAM
• 64GB storage
• Android 13
• 32-band DSP
• 4V RCA
• Optical/coaxial digital output
• Up to three camera inputs

X10:

• Snapdragon hardware
• 8GB RAM
• 128GB storage
• 36-band DSP
• More sophisticated crossover control
• More audio channels
• Advanced camera processing
• Higher-end audio architecture

The S84G215PB focuses heavily on screen size and S8 functionality.

The X10 focuses more on outright computing, camera and audio-system capability.

Who Should Buy the S84G215PB?

The 11.5-inch S8 Gen4 is particularly well suited to:

• Trucks
• SUVs
• Restomods
• Larger center stacks
• Off-road vehicles
• Daily drivers with room for a large display

It makes sense for drivers who want:

• Giant navigation display
• Native Android apps
• Independent LTE
• Wireless CarPlay
• Wireless Android Auto
• Strong DSP
• External amplifier support
• Digital audio outputs
• Camera expansion
• GPS tracking
• Physical knobs

Who Should Skip It?

Choose a smaller S8 if:

• Your vents are close to the radio
• Important buttons sit immediately above or below the Double DIN opening
• You prefer an OEM-style installation
• You do not need such a large display

Choose an X10 if:

• You need more memory
• You need flagship DSP
• You need advanced simultaneous camera capability
• You are building a more complicated active audio system

Is the ATOTO S84G215PB Worth It?

If your dashboard can accommodate it, the S84G215PB offers one of the most visually impressive configurations in the S8 family.

You get:

• Android 13
• MT8768 octa-core processor
• 4GB RAM
• 64GB storage
• 11.5-inch QLED display
• 2000×1200 resolution
• Dual physical knobs
• Ambient lighting
• Built-in 4G LTE
• Dual-band Wi-Fi
• USB tethering
• Wireless CarPlay
• Wireless Android Auto
• Fast resume
• DriveChat
• GPS
• TrackHU
• SSRadio
• FindApps
• 32-band DSP
• Time alignment
• Adjustable crossovers
• 4×24W RMS amplification
• 4V RCA outputs
• Optical S/PDIF
• Coaxial S/PDIF
• Up to three camera inputs
• Emergency recording support
• Parking Guard
• BLE accessory integration
• Bluetooth privacy locking
• OTA updates

The obvious question is whether 11.5 inches is too much screen.

In a compact car, maybe.

In a truck or SUV with a large center stack, maybe not.

Just measure the dash first.

Because once the stereo is large enough to have opinions about your air vents, fitment becomes part of the buying decision.
