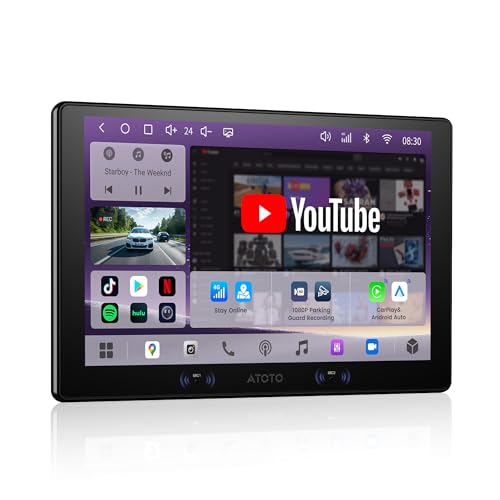

ATOTO S8 Gen4 S84G209P 9-Inch QLED Android Double DIN Car Stereo With 4G LTE and Wireless CarPlay

More OEM-Like Than a Huge Floating Screen

ATOTO specifically positions the 9-inch S84G209P as a relatively close-to-dash design.

That can help reduce interference with:

• Air vents
• HVAC controls
• Hazard switch
• Factory buttons

compared with larger floating displays.

You still need to measure the dashboard.

Nine inches is still nine inches.

But for many installations, the screen can look much more integrated than a larger panel mounted farther forward.

Double DIN Chassis

The S84G209P uses a Double DIN mounting chassis.

Depending on the vehicle, installation may still require:

• Dash kit
• Wiring harness
• Antenna adapter
• Factory amplifier interface
• CAN-bus adapter
• Steering-wheel-control interface

For more information on stereo sizing, see our guide to Single DIN vs Double DIN.

The metal chassis may fit Double DIN standards.

The rest of the dashboard remains free to behave however the manufacturer felt like behaving that year.

Android 13 With AICE UI 13M

The S8 Gen4 runs ATOTO’s AICE UI 13M based on Android 13.

That means this is a genuine Android head unit rather than simply a CarPlay receiver.

Compatible Android applications can run directly on the stereo.

Possible uses include:

• Google Maps
• Waze
• Spotify
• Internet radio
• Offline navigation
• OBD-II applications
• Media players
• Vehicle utilities
• Streaming applications

CarPlay and Android Auto are available when you want phone projection.

Android itself is available when you don’t.

MT8768 Octa-Core Processor

The S84G209P uses the MT8768 octa-core processor built on a 12nm platform.

ATOTO rates the processor at up to approximately 2.2GHz.

The processor handles tasks such as:

• Navigation
• Streaming
• Android apps
• CarPlay
• Android Auto
• DVR functions
• TrackHU
• DriveChat
• Bluetooth accessories

The point is not to turn the dashboard into a gaming PC.

The point is to make ordinary in-car functions respond without hesitation.

Tap map.

Map opens.

This remains an underrated feature.

4GB RAM

The S84G209P includes 4GB of RAM.

That provides enough working memory for typical automotive multitasking such as:

• Navigation
• Streaming audio
• Camera applications
• TrackHU
• Background connectivity
• Wireless phone projection

Four gigabytes also keeps the S8 Gen4 clearly separated from ATOTO’s 2GB budget models while remaining below the 8GB flagship X10 platform.

64GB Internal Storage

The stereo includes 64GB of internal storage.

That provides room for:

• Android apps
• Offline maps
• Downloaded music
• Navigation files
• Application data
• Local media

ATOTO also supports external storage for larger media collections.

External Storage Expansion

Current S8 Gen4 specifications list support for:

• microSD storage up to 512GB
• USB storage up to 128GB

That makes it easy to maintain a large offline media collection without filling the internal 64GB drive.

Downloaded music also has one significant technical advantage over streaming:

It does not care how many cellular towers are nearby.

BGSleep Fast Boot

ATOTO’s background-sleep system allows the S8 Gen4 to resume extremely quickly under supported conditions.

The stereo can return to its home screen in roughly two seconds after ignition.

That means you can get to:

• Navigation
• Music
• Camera views
• Android apps

without waiting through a full Android boot every time you start the car.

This sounds minor until you’ve owned a cheap Android radio that boots like a Windows XP computer from 2004.

Then it sounds magnificent.

Built-In 4G LTE

The S84G209P includes a built-in 4G LTE modem.

Insert a compatible nano-SIM and the head unit can maintain its own internet connection.

That can support:

• Google Maps
• Live traffic
• Spotify
• Internet radio
• DriveChat
• TrackHU
• Cloud applications
• Android software

The stereo therefore does not need to depend entirely on your phone hotspot.

Why Independent LTE Matters

Using a phone hotspot works, but it can introduce:

• Battery drain
• Extra phone heat
• Connection delays
• Reconnection problems
• Network switching

Built-in LTE removes much of that friction.

The stereo can go online as its own connected device.

For someone who uses native Android applications every day, this is one of the biggest reasons to choose an S8 over a simpler CarPlay receiver.

Dual-Band Wi-Fi

The S84G209P supports both:

• 2.4GHz Wi-Fi
• 5GHz Wi-Fi

That gives the stereo another connection method when a compatible hotspot or Wi-Fi network is available.

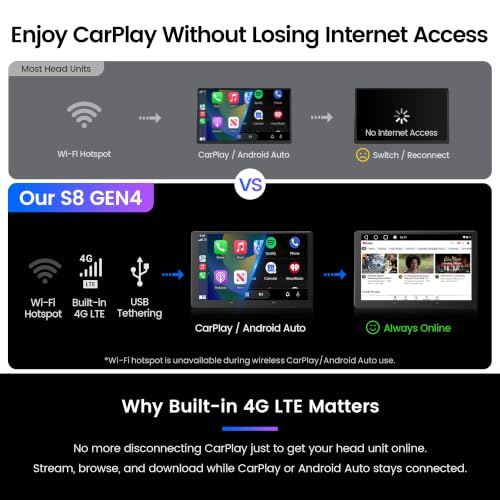

USB Tethering

USB tethering provides another way to keep the Android system online.

That becomes particularly useful because wireless CarPlay and Android Auto consume the Wi-Fi connection used for phone projection.

ATOTO therefore allows internet connectivity through:

• Built-in LTE
• USB tethering

while wireless phone projection is active.

Wireless Apple CarPlay

The S84G209P supports wireless Apple CarPlay.

Compatible iPhone users can access:

• Apple Maps
• Google Maps
• Waze
• Music
• Podcasts
• Calls
• Messages
• Siri
• Compatible CarPlay apps

Once paired, wireless CarPlay can reconnect automatically during normal operation.

Wireless CarPlay Only

One specification should be stated clearly:

The S8 Gen4 provides wireless CarPlay only.

Wired CarPlay is not supported.

That differs from some older S8 Gen3 models that supported both wired and wireless projection.

If your buying decision specifically depends on wired CarPlay, this is not the appropriate S8 generation.

Wireless Android Auto

The S84G209P also supports wireless Android Auto.

Compatible Android devices can access:

• Google Maps
• Waze
• Music
• Calls
• Messages
• Podcasts
• Google Assistant
• Supported apps

Again, ATOTO lists Android Auto as wireless only on this platform.

No Wired Android Auto

Wired Android Auto is not supported on the S8 Gen4.

USB connections remain useful for:

• Storage
• Tethering
• Accessories
• Firmware-related functions

but they do not provide wired Android Auto phone projection.

This is one of those specifications worth checking before purchase rather than discovering after running a USB cable through the dashboard.

Google Play Apps

Because the S84G209P runs Android 13, compatible applications can be installed directly.

That lets the head unit operate more independently than a basic CarPlay radio.

Potential uses include:

• Navigation
• Streaming
• OBD-II apps
• Offline maps
• Internet radio
• Travel applications

Individual application compatibility can vary.

Some apps impose device or DRM restrictions that have nothing to do with the head unit’s processing power.

FindApps

ATOTO also provides FindApps, its application-discovery and APK platform.

FindApps is designed to make compatible in-car applications easier to find and install.

This gives S8 users another software source alongside conventional Android application distribution.

DriveChat AI Assistant

The S84G209P includes ATOTO’s DriveChat AI platform.

DriveChat supports natural voice interaction for tasks such as:

• Navigation requests
• General questions
• Music control
• System functions
• Online information

It is intended to reduce the amount of touchscreen interaction required during normal driving.

AI Without Hard-Coding Model Versions

ATOTO frequently updates the cloud services behind DriveChat.

For an evergreen Pro Street product page, it makes more sense to describe the feature as:

ATOTO DriveChat AI assistant

rather than permanently attaching the stereo to one specific ChatGPT or Gemini version.

Cloud model numbers change.

The S84G209P mounted in your dashboard probably will not.

Optional AC-4450 OBD-II Integration

DriveChat can also work with compatible OBD-II information when paired with ATOTO’s optional AC-4450 scanner.

Depending on the vehicle, that can provide supported data such as:

• RPM
• Vehicle speed
• Coolant temperature
• Fuel information
• Diagnostic trouble codes
• Sensor data

The scanner is sold separately unless the exact bundle says otherwise.

Trouble-Code Explanations

DriveChat can help explain diagnostic trouble codes in simpler language.

For example, a fault code can be translated into:

• What system reported the problem
• What the code generally means
• Potential causes
• Possible next steps

That is useful.

But it is not the same as confirming a failed part.

Diagnostic Codes Are Starting Points

A code involving a sensor can still be caused by:

• Wiring
• Connectors
• Ground faults
• Vacuum leaks
• Mechanical problems
• Reference-voltage issues
• Sensor failure

OBD-II tells you what the ECU observed.

Diagnosis determines why it happened.

Those are not the same job.

The parts cannon remains optional.

32-Band DSP Equalizer

The S84G209P includes a sophisticated 32-band DSP equalizer.

That allows much finer adjustment than traditional:

• Bass
• Midrange
• Treble

controls.

A detailed EQ can help compensate for:

• Speaker placement
• Door-panel resonances
• Windshield reflections
• Cabin materials
• Frequency-response irregularities

Vehicle interiors are acoustically terrible rooms.

At least modern DSP gives us better tools for arguing with them.

Nine EQ Presets

The stereo also includes nine preset EQ profiles.

These give less experienced users a quick starting point without requiring manual adjustment of all 32 bands.

More experienced installers can tune each band individually.

Time Alignment

Time alignment compensates for the unequal distance between each speaker and the listening position.

The driver usually sits much closer to the left-front speaker than the right-front speaker.

By delaying selected channels, the system can improve:

• Center image
• Soundstage
• Vocal positioning

When properly tuned, vocals can sound like they are coming from the center of the dashboard rather than from your left ankle.

Progress.

Adjustable Crossovers

The S8 Gen4 DSP includes adjustable crossover controls.

That allows installers to better divide frequencies between:

• Front speakers
• Rear speakers
• Subwoofer
• External amplification

High-pass and low-pass filters can improve:

• Clarity
• Speaker protection
• Bass integration
• Output

For more audio-system planning information, see our Car Audio System Guide for Better Sound Builds.

4×24W RMS Internal Amplifier

ATOTO rates the S84G209P amplifier at:

4 × 45W maximum

and approximately:

4 × 24W RMS

The RMS figure is the more useful number when comparing real continuous output.

Twenty-four watts RMS per channel is adequate for:

• Factory speakers
• Efficient aftermarket coaxials
• Many basic component systems

More demanding systems can use the S8’s preamp outputs with external amplifiers.

4V RCA Preamp Outputs

The S84G209P provides 4V RCA preamp outputs.

Higher preamp voltage can help provide a stronger signal to:

• External amplifiers
• DSP processors
• Powered subwoofers

This gives installers more gain-setting flexibility than low-voltage outputs found on many budget Android head units.

Optical S/PDIF Output

The S8 Gen4 provides optical S/PDIF digital audio output.

This lets a compatible external processor or amplifier receive the audio signal digitally.

That can be useful for higher-end audio builds where the installer wants to minimize unnecessary analog conversions.

Coaxial S/PDIF Output

Coaxial digital audio is also supported.

So advanced installations have both:

• Optical S/PDIF
• Coaxial S/PDIF

available.

Between 4V RCA and digital output, the S84G209P provides considerably more audio-upgrade flexibility than a basic touchscreen radio.

HDMI Integration Requires AC-HAV50

Some product titles abbreviate the S84G209P as having HDMI input/output capability.

That needs clarification.

The radio does not have a normal full-size HDMI connector built directly into the chassis.

Compatible HDMI sources can be integrated using ATOTO’s optional AC-HAV50 adapter.

The adapter is sold separately.

What the AC-HAV50 Does

The AC-HAV50 allows supported external HDMI equipment to interface with compatible ATOTO video connections.

Possible use cases include:

• Passenger media
• External video devices
• Specialized multimedia installations

It should not be confused with a native HDMI jack.

If direct HDMI input is your primary reason for choosing a head unit, include the adapter in the installation budget.

Up to Three Camera Inputs

The S84G209P supports up to three compatible camera inputs.

Depending on the installed accessories, those can be used for functions such as:

• Rear camera
• Front DVR
• Additional rear recording camera

That gives the S8 Gen4 a much broader camera ecosystem than a standard receiver with a single backup-camera input.

Front and Rear Cameras Cannot Record Simultaneously

This limitation is important.

The S8 Gen4 can switch between supported front and rear camera feeds.

It does not simultaneously display or record both front and rear feeds.

If true simultaneous multi-camera recording is important, look toward ATOTO’s higher-end X10 platform.

The S8 is flexible.

It is not a four-channel surveillance system.

Optional AC-HN9FR Camera System

ATOTO’s more advanced DVR and parking-protection features require compatible accessories such as the AC-HN9FR.

With the appropriate hardware, S8 Gen4 can support:

• Road recording
• Emergency event locking
• Parking monitoring
• Impact-related recording

The cameras are sold separately unless specifically included with a bundle.

Built-In G-Sensor

One major S8 Gen4 improvement over S8 Gen3 is a built-in G-sensor.

When used with compatible DVR hardware, the head unit can recognize significant impact events.

That enables features such as:

• Emergency video locking
• Event protection
• Impact-triggered recording behavior

Emergency Video Lock

When a significant impact is detected with a compatible camera system installed, the S8 Gen4 can protect the current video clip from normal loop recording.

That helps preserve evidence after:

• Collision
• Hard impact
• Parking incident

This can be valuable for insurance or dispute documentation.

Three Emergency Snapshots

ATOTO also describes the Gen4 system capturing three consecutive snapshots around certain emergency events with compatible hardware.

The purpose is simple:

Video is useful.

Still images provide another set of preserved evidence.

Parking Guard

With the correct DVR accessory and wiring, S8 Gen4 supports parking monitoring after the vehicle is shut down.

ATOTO lists support for up to approximately 24 hours of voltage-based parking recording under supported conditions.

Actual operation depends on:

• Camera accessory
• Wiring
• Battery condition
• Voltage settings
• Installation

The head unit alone cannot monitor a parking lot without a camera attached.

Despite what marketing departments occasionally imply, software has not yet defeated the need for lenses.

Golden Hour Alert

ATOTO also promotes its Golden Hour Alert concept for serious impact situations with supported camera hardware and connected services.

The idea is to preserve useful incident information and generate alerts when qualifying events occur.

Availability depends on the compatible accessory and active software/service configuration.

Live Rear View

A compatible rear camera can also provide Live Rear View.

Unlike a conventional reverse camera that only activates when backing up, Live Rear View allows you to view the area behind the vehicle while driving forward.

This can be useful in:

• Trucks
• SUVs
• Vans
• Vehicles with poor rear visibility
• Cargo applications

TrackHU GPS Tracking

The S84G209P includes ATOTO’s TrackHU vehicle-tracking platform.

TrackHU can provide supported functions such as:

• Real-time vehicle location
• Trip history
• Route playback
• Speed information
• Distance records
• Geofencing
• Custom alerts

Because the S8 has both GPS and network connectivity, it can perform these functions without installing a separate standalone tracking unit.

Geofencing

TrackHU can create virtual geographic boundaries.

Supported alerts can help you know when the vehicle enters or leaves selected zones.

Possible uses include:

• Shared cars
• Family vehicles
• Project cars
• Business vehicles
• Theft awareness

SSRadio

The S84G209P also includes SSRadio.

ATOTO advertises access to thousands of online radio stations, including more than 6,000 stations worldwide, along with the ability to save compatible favorites manually.

That gives drivers another listening option beyond:

• FM
• Local files
• Spotify
• Bluetooth audio
• Other streaming apps

Bluetooth Accessory Integration

The S8 Gen4 can also manage multiple compatible Bluetooth Low Energy accessories.

ATOTO describes support for six or more BLE devices within its broader accessory ecosystem.

Possible accessories can include:

• OBD-II scanners
• Ambient lighting
• Other supported ATOTO hardware

The exact ecosystem can expand as firmware and accessory support evolve.

Bluetooth Screen Lock

The stereo also supports Bluetooth-based automatic screen locking.

When your authorized phone moves out of range, the S8 can lock access.

When the phone returns, the system can unlock again.

That helps protect:

• Google accounts
• Navigation history
• Streaming logins
• Application data
• Personal settings

A modern head unit contains considerably more private information than a traditional radio.

The old Pioneer cassette deck did not care where you drove last Tuesday.

Built-In GPS

The S84G209P includes independent GPS hardware.

That allows Android navigation applications to operate directly from the stereo.

Compatible apps may include:

• Google Maps
• Waze
• Offline navigation
• Other Android map applications

This also provides the location data used by services such as TrackHU.

Split-Screen Android Apps

The larger 9-inch display is well suited to Android split-screen operation.

For example, you may be able to run:

Navigation + music

or

Map + compatible vehicle app

depending on app support.

Nine inches gives these layouts noticeably more breathing room than a conventional 7-inch display.

Steering-Wheel-Control Support

The S8 supports compatible steering-wheel controls.

Some vehicles can connect through analog steering-wheel-control wiring.

Others require:

• CAN-bus adapter
• Data interface
• Vehicle-specific module

Always check the exact vehicle before ordering integration hardware.

OTA Updates

The S8 Gen4 supports over-the-air software updates.

OTA updates may improve:

• System stability
• DriveChat
• Camera functions
• TrackHU
• Bluetooth accessories
• CarPlay
• Android Auto
• User interface
• Compatibility

That gives the platform room to improve after installation.

12+6 Month Warranty Program

ATOTO provides a 12-month standard warranty with an additional 180-day extension available through its current registration program.

That can provide up to approximately 18 months of coverage when applicable.

Always check the current registration requirements and warranty terms at time of purchase.

S84G209P vs S84G2D7PB 7-Inch

The S8 Gen4 7-inch model is the better choice for a traditional compact installation.

Choose the 7-inch S84G2D7PB if you want:

• More factory-like appearance
• Maximum vent/button clearance
• Smaller screen
• Easier fitment in tight dashboards

Choose the 9-inch S84G209P if you want:

• Larger navigation display
• More useful split-screen layout
• Bigger camera views
• Easier-to-read Android interface

The core S8 Gen4 platform is similar.

The difference is largely how much dashboard you are willing to donate to the screen.

S84G209P vs S84G211P 10.1-Inch

The 9- and 10.1-inch models are very close mechanically and electronically.

S84G209P advantages:

• Smaller footprint
• Better chance of clearing vents and controls
• More OEM-like appearance
• Still considerably larger than a 7-inch radio

S84G211P advantages:

• Larger display
• More map area
• Larger camera views
• Better for spacious truck/SUV dashboards

For most normal passenger cars, the 9-inch version may actually be the easier compromise.

S84G209P vs S8 Gen3

The S8 Gen4 adds several meaningful upgrades compared with older Gen3 hardware.

S8 Gen4 advantages include:

• Newer Android platform
• MT8768 processor
• 64GB storage
• Built-in G-sensor
• Emergency recording integration
• Parking Guard support
• 4V RCA outputs
• Optical S/PDIF
• Coaxial S/PDIF
• Updated DriveChat ecosystem

Some S8 Gen3 advantages include:

• Wired CarPlay
• Wired Android Auto
• 36-band EQ on applicable versions
• Mature accessory ecosystem

Gen4 is not simply Gen3 with every number increased.

Some features changed direction.

S84G209P vs S8L 7-Inch

The newer S8 Lite creates an interesting comparison.

S8L advantages:

• Android 15
• 24-bit DAC
• Conventional 7-inch format
• 1080P camera bundle on applicable versions
• 3V RCA output

S84G209P advantages:

• Larger 9-inch screen
• 4V RCA outputs
• Optical and coaxial S/PDIF
• Broader camera expansion
• Gen4 parking/emergency-recording architecture

The S8L is newer in software version.

The S84G209P remains the stronger higher-tier audio/camera platform.

S84G209P vs X10

The X10 remains the flagship option.

S84G209P provides:

• 4GB RAM
• 64GB storage
• MT8768
• Android 13
• 32-band DSP
• 4V RCA
• Optical/coaxial S/PDIF
• Up to three camera inputs
• 4G LTE

X10 adds:

• Snapdragon hardware
• 8GB RAM
• 128GB storage
• 36-band DSP
• 24-bit DAC
• Three-way crossover
• More audio channels
• 7.1.2-channel audio architecture
• Simultaneous dual-camera functionality on applicable models

The S8 makes sense for most conventional stereo systems.

The X10 begins to make sense when your audio-system block diagram needs its own conference room.

Who Should Buy the S84G209P?

The S84G209P is particularly well suited to someone who wants:

• Larger-than-standard screen
• Double DIN installation
• Android apps
• Built-in LTE
• Wireless CarPlay
• Wireless Android Auto
• Strong DSP tuning
• External amplifier support
• Digital audio output
• GPS tracking
• Camera expansion
• AI features

Good applications include:

• Performance cars
• Trucks
• SUVs
• Daily drivers
• Restomods
• Off-road vehicles
• Project cars

The 9-inch screen is especially attractive when a 7-inch radio feels small but a 10.1-inch screen would overwhelm the center stack.

Who Should Choose Something Else?

Choose another model if you need:

• Wired CarPlay
• Wired Android Auto
• True simultaneous front/rear recording
• 8GB RAM
• 128GB storage
• Advanced active-audio processing
• Small factory-style display
• Large 10.1- or 11.5-inch screen

ATOTO has other models for those priorities.

The S84G209P’s strength is balance.

Is the ATOTO S84G209P Worth It?

For many installations, the S84G209P may be the sweet spot of the S8 Gen4 family.

It combines:

• Android 13
• MT8768 octa-core processor
• 4GB RAM
• 64GB storage
• 9-inch 1280×800 QLED display
• Built-in 4G LTE
• Dual-band Wi-Fi
• Wireless CarPlay
• Wireless Android Auto
• Fast resume
• 32-band DSP
• Nine EQ presets
• Time alignment
• Adjustable crossover
• 4×24W RMS amplifier
• 4V RCA outputs
• Optical S/PDIF
• Coaxial S/PDIF
• DriveChat
• TrackHU
• SSRadio
• FindApps
• GPS
• BLE accessory integration
• Automatic privacy lock
• Up to three camera inputs
• Emergency recording support
• Parking Guard support
• OTA updates

The 7-inch model fits more dashboards.

The 10.1-inch model gives you more screen.

The 9-inch S84G209P sits right between them with most of the same electronics and fewer chances of turning the climate-control panel into collateral damage.

Sometimes the middle option is not the compromise.

Sometimes it is the one somebody should have bought in the first place.
