What Can the OBD2 Scanner Do?
ATOTO promotes the AC-4450 for functions including reading and clearing fault codes and displaying vehicle diagnostic information through compatible software.
Depending on the vehicle, protocol and app support, useful information may include:
- Diagnostic trouble codes
- Check-engine information
- Engine RPM
- Vehicle speed
- Coolant temperature
- Intake-air temperature
- Fuel information
- Sensor data
- ABS-related information
- Airbag-related information
- Tire-pressure information
The important phrase here is depending on the vehicle and software.
OBD-II guarantees access to standardized emissions-related powertrain information on compliant vehicles.
Access to ABS, airbag, TPMS and other manufacturer-specific modules can vary significantly by vehicle and software support.
So while ATOTO markets the AC-4450 as supporting broader system diagnostics, don’t assume every car will expose every module simply because the scanner plugs into the port.

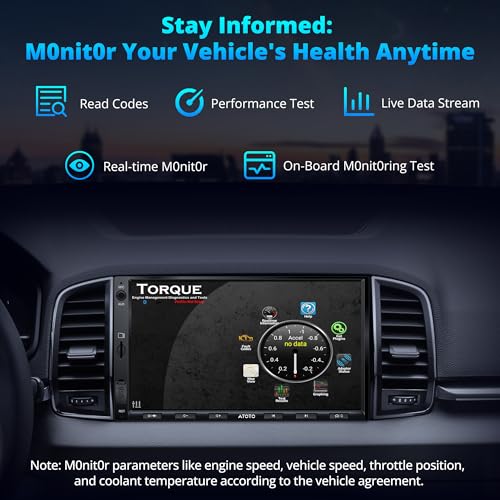

Using Torque With the A5L
The AC-4450 is designed to work with compatible diagnostic applications such as Torque.
Once connected, Torque can provide customizable gauges and display available OBD-II parameters directly on the head unit.
That can turn the A5L into a basic digital gauge display for information such as:
- Coolant temperature
- Engine load
- RPM
- Throttle position
- Fuel trims
- Intake temperature
For older vehicles that don’t provide much information on the factory instrument cluster, that can be especially useful.
Reading a Trouble Code Is Not the Same as Diagnosing It
This is worth saying clearly.
A scanner can tell you what code the ECU stored.
It cannot automatically tell you which part failed.
For example, a sensor-related trouble code can be caused by:
- Failed sensor
- Wiring damage
- Poor ground
- Connector problems
- Reference-voltage faults
- Mechanical issues
- ECU problems
Replacing the part named in the code description without testing anything first is how expensive parts cannons get loaded.
For actual troubleshooting, My Pro Street’s diagnostic library includes vehicle electrical guides and OBD-II code procedures that go beyond simply displaying a code.
7-Inch 1280×720 IPS Touchscreen
The A5L uses a 7-inch 1280×720 IPS display with a wide viewing angle.
That traditional size makes it easier to integrate into older dashboards than oversized floating displays.
For many enthusiast vehicles, a 7-inch Double DIN screen hits a good balance:
Large enough for navigation and gauges.
Small enough that it doesn’t cover the heater controls.
Sometimes restraint is a feature.
Double DIN Installation
The A5L uses a conventional Double DIN chassis.
That makes it suitable for vehicles with a compatible Double DIN opening, although you’ll usually still need vehicle-specific installation components.
Possible requirements include:
- Dash kit
- Wiring harness
- Antenna adapter
- Steering-wheel-control interface
- CAN-bus adapter
- Factory amplifier interface
- USB retention adapter
Our Single DIN vs Double DIN guide explains the physical formats and common installation considerations.
Always verify the actual vehicle before ordering.
“Double DIN” describes a standardized opening.
It does not mean every manufacturer thoughtfully used the same wiring connector.
Three Internet Connection Options
The A5L does not include its own cellular modem.
Instead, it can get online through three tethering methods:
- Wi-Fi hotspot
- Bluetooth tethering
- USB tethering.
Wi-Fi Hotspot
A smartphone hotspot provides the most familiar wireless data connection for navigation, streaming and app updates.
Bluetooth Tethering
Bluetooth tethering can be useful for lower-bandwidth applications while potentially consuming less phone power.
USB Tethering
USB tethering provides both a data connection and phone charging.
That can make it a good choice for longer drives.
Wireless Apple CarPlay
The A5L supports both wireless and wired Apple CarPlay.
Compatible iPhones can provide access to:
- Maps
- Calls
- Messages
- Music
- Podcasts
- Siri
For everyday driving, you may spend most of your time using CarPlay even though the radio itself runs Android.
That is one of the advantages of the A5L platform.
You aren’t forced to choose between standalone Android and smartphone projection.
Wireless Android Auto
Both wireless and wired Android Auto are supported as well.
Compatible Android phones can provide navigation, messaging, calls and music directly through the touchscreen.
Wireless operation also means you don’t have to plug the phone in every time you get into the car.
For short drives, that’s one of those small conveniences that quickly becomes difficult to give up.
24-Band DSP Equalizer
The A5L includes a built-in DSP with a 24-band EQ and time correction.
That provides substantially more adjustment than the bass and treble controls found on basic factory stereos.
The EQ can help correct frequency-response problems caused by:
- Speaker placement
- Door panels
- Glass
- Seat position
- Cabin reflections
Time correction can help compensate for the driver sitting much closer to the left speakers than the right ones.
For a deeper look at system tuning, amplifiers and speaker matching, see our Car Audio System Guide.
Speed-Compensated Volume Control
The A5L also supports Speed Compensated Volume Control.
As road noise increases with vehicle speed, the stereo can adjust playback volume to compensate.
That helps maintain a more consistent listening level without constantly reaching for the volume control.
And when you slow down again, it can reduce the level accordingly.
Your speakers no longer need to punish you for leaving the freeway.
Built-In Amplifier
ATOTO rates the A5L’s internal amplifier at:
Maximum output: 4 × 45 watts
RMS output: 4 × 24 watts.
The RMS figure is the important one.
Twenty-four watts RMS per channel is adequate for many factory speakers and efficient aftermarket replacements.
For more demanding speakers or subwoofers, an external amplifier remains the better option.
Bluetooth Multi-Device Support
The A5L’s Bluetooth system can maintain normal phone functions while also communicating with compatible accessories.
That is especially important in this bundle because the OBD2 scanner relies on Bluetooth.
You can keep music streaming or a phone connected while the diagnostic adapter continues feeding vehicle data to the head unit.
This makes the A5L much more useful as an enthusiast dashboard than a radio that forces you to choose between your phone and the scanner.
TrackHU GPS Tracking
The A5L also supports ATOTO’s TrackHU platform for compatible GPS-tracking features. ATOTO lists TrackHU support on current A5L configurations, although some connected services may require additional setup or upgrades.
Potential uses can include vehicle-location information and trip-related data.
That makes the stereo part of a broader connected-car ecosystem rather than simply a media device.
DriveChat AI Assistant
ATOTO also includes DriveChat support on the A5L.
DriveChat is designed around voice-first interaction so drivers can ask questions or interact with supported features without repeatedly navigating the touchscreen.
ATOTO currently describes DriveChat on the A5L as an AI driving companion, although specific model availability and capabilities can evolve through software updates.
For that reason, I would avoid hard-coding specific third-party AI model version numbers into evergreen product copy.
The head unit hardware is fixed.
Cloud AI services are not.
Phone Mirroring
The A5L also supports compatible wired and wireless phone mirroring.
That can be useful for displaying content that is not available through CarPlay or Android Auto.
As always, video and interactive applications should be used responsibly and primarily when parked.
Just because a screen can display something does not mean you need to watch it while merging onto the freeway.
128GB TF Card Support
ATOTO lists support for external TF-card storage up to 128GB on current A5L configurations.
That gives owners additional space for media and other supported content without consuming the stereo’s 32GB internal storage.
For an Android receiver, expandable storage is particularly useful if you keep music or media locally.
Physical Controls
This configuration includes physical controls in addition to the touchscreen.
That’s a small feature that can make a significant difference while driving.
A touchscreen is great for maps.
A physical button is usually better when you just want to change something immediately without staring at the dashboard.
Touchscreens did not make tactile feedback obsolete.
They merely made us appreciate it more.
HDMI Output
This A5L configuration is also advertised with HDMI-output capability for compatible display setups.
That can be useful in installations where head-unit content needs to be sent to an external monitor.
If HDMI output is an important part of your build, verify the exact adapter and connection requirements for the specific SKU before planning the installation.
OTA Updates
The A5L supports over-the-air software updates.
That matters on a head unit relying on:
- Android
- CarPlay
- Android Auto
- Bluetooth accessories
- DriveChat
- TrackHU
- Android applications
Software support can affect the useful life of a connected stereo almost as much as the hardware itself.
A5L With OBD2 vs Standard A5L
Mechanically, the stereo itself is still part of the A5L family.
The major difference is the inclusion of the AC-4450 OBD2 diagnostic adapter.
Choose the OBD2 package if you want:
- Live engine data
- Diagnostic-code access
- Dashboard gauges
- Check-engine information
- Vehicle monitoring
- Enthusiast diagnostic features
Choose the standard A5L if you mainly want:
- CarPlay
- Android Auto
- Android apps
- Music
- Navigation
- Backup-camera support
If you already own a compatible scanner, the standard model may be enough.
If you don’t, bundling one with the head unit makes a lot of sense.
A5L 7-Inch vs A5L 10-Inch
These two models share much of the same software philosophy.
The biggest difference is screen size.
Choose the 7-inch A5L if you want:
- More factory-like appearance
- Better dashboard clearance
- Conventional Double DIN proportions
- Smaller visual footprint
- Dedicated gauge display without an oversized screen
Choose the 10-inch A5L if you want:
- Larger navigation
- Bigger touch controls
- More screen space for apps
- More dramatic visual upgrade
For an older enthusiast car, I actually like the 7-inch format for OBD use.
It gives you useful digital gauges without turning the center console into mission control.
A5L vs S8 Gen4
The S8 Gen4 remains the more powerful Android platform.
It offers advantages such as:
- More RAM
- More storage
- Built-in LTE
- More advanced DSP
- Higher-end audio outputs
- Greater expansion capability
The A5L is simpler and more affordable.
For someone primarily interested in CarPlay, Android Auto, Android apps and OBD-II data, the A5L may already cover everything that matters.
Who Should Buy the ATOTO A5L OBD2 Bundle?
This package is a particularly good fit for an enthusiast who wants to modernize an older vehicle without losing touch with what the engine is doing.
It makes sense for:
- Older Japanese cars
- Modified vehicles
- Daily-driven project cars
- Trucks
- SUVs
- Restomods
- Cars without factory navigation
- Vehicles with limited factory gauge information
- DIY owners who troubleshoot their own cars
The combination of CarPlay, Android, navigation and OBD-II monitoring makes it useful for both everyday driving and garage diagnostics.
Is the ATOTO A5L 7-Inch OBD2 Bundle Worth It?
For the right owner, this is one of the more practical A5L configurations.
The stereo itself provides the expected modern upgrades:
- Android applications
- Wireless CarPlay
- Wireless Android Auto
- 7-inch IPS display
- DSP
- 24-band EQ
- Navigation
- Bluetooth
- OTA updates.
The included AC-4450 adds another layer by letting the head unit display compatible OBD-II information and perform supported diagnostic functions.
That doesn’t turn the stereo into a dealership scan tool.
Nor should it.
What it does provide is quick access to engine data, fault codes and customizable gauges without adding another permanent display to the dashboard.
For an older project car, that’s a strong combination.
You get modern navigation and wireless smartphone integration when everything is working properly.
And when the check-engine light decides to join the road trip, the same screen can help you figure out why.
That feels appropriately Pro Street.
