2GB RAM
The A5L includes 2GB of RAM.
That is enough for normal head-unit operation, but it is also one of the biggest differences between the A5L and more expensive ATOTO models.
A5L:
2GB RAM
S8:
Typically 4GB or more
X10:
Up to 8GB RAM
If your primary use is:
- Maps
- Music
- CarPlay
- Android Auto
- Radio
- Basic apps
2GB can be sufficient.
If you expect heavy Android multitasking, multiple background applications and more demanding software, move up to an S8 or X10.
32GB Internal Storage
The A5L includes 32GB of internal storage.
That provides room for:
- Android applications
- Offline maps
- Music
- Navigation data
- App caches
- Vehicle utilities
Users who maintain large local media libraries can expand storage separately.
Expandable Storage
ATOTO currently lists support for:
- microSD cards up to 128GB
- USB storage up to 128GB
That provides additional space for:
- Music
- Videos
- Offline files
- Maps
- Other media
without filling the internal storage.

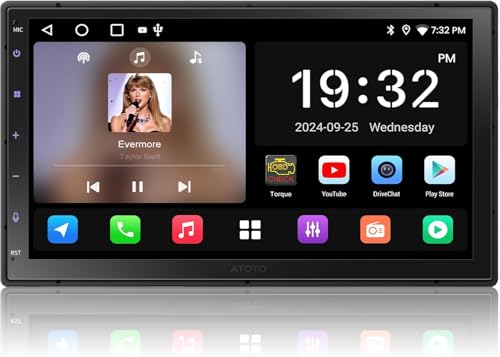

7-Inch 1280×720 Display
The A5L uses a 7-inch 1280×720 touchscreen.
That resolution provides enough detail for:
- Google Maps
- Waze
- CarPlay
- Android Auto
- Backup-camera images
- Android apps
The 7-inch size is also one of the A5L’s biggest practical advantages.
It fits into a conventional Double DIN installation without placing a giant floating panel over the dashboard.
Why 7 Inches Still Makes Sense
Ten-inch stereos look impressive in product photos.
Seven-inch stereos fit cars.
The smaller screen reduces the chance of interfering with:
- Air vents
- HVAC controls
- Hazard switch
- Factory buttons
- Dashboard trim
That can make the A5L particularly useful in older Japanese, European and domestic cars designed around a traditional Double DIN opening.
For more information on stereo dimensions, see our Single DIN vs Double DIN guide.
Double DIN Installation
The A5L uses a standard Double DIN chassis.
Installation may still require vehicle-specific components such as:
- Dash kit
- Wiring harness
- Antenna adapter
- Steering-wheel-control interface
- Factory amplifier interface
- CAN-bus adapter
Always verify your vehicle before ordering installation hardware.
Double DIN describes a standardized radio opening.
It does not mean every manufacturer agreed to make the wiring equally convenient.
Wired Apple CarPlay
The A5L supports wired Apple CarPlay.
Connect a compatible iPhone and access:
- Apple Maps
- Google Maps
- Waze
- Apple Music
- Spotify
- Podcasts
- Calls
- Messages
- Siri
through the stereo.
Wireless Apple CarPlay
Wireless CarPlay is also supported.
After initial Bluetooth/Wi-Fi pairing, compatible phones can reconnect automatically during normal operation.
That means the phone can remain:
- In your pocket
- In a bag
- On a wireless charger
- Somewhere between the seat and center console where phones apparently migrate naturally
without connecting a cable every trip.
Wired Android Auto
The A5L supports wired Android Auto.
This is worth emphasizing because several newer ATOTO products have moved toward wireless-only phone projection.
Wired Android Auto gives users a direct connection while simultaneously charging the phone.
Wireless Android Auto
Wireless Android Auto is also supported.
Compatible phones can access:
- Google Maps
- Waze
- Spotify
- Calls
- Messages
- Podcasts
- Google Assistant
- Other supported apps
without connecting a USB cable.
So the A5L gives both iPhone and Android users a choice between wired and wireless operation.
Phone Mirroring
The A5L also supports compatible smartphone screen-mirroring functions.
This can provide access to phone content that may not appear through the standard CarPlay or Android Auto interface.
Application and DRM restrictions can still apply.
Not every phone app appreciates being displayed somewhere else.
Google Play Support
Because this is an Android head unit, compatible applications can be installed through Google Play.
That gives the A5L significantly more flexibility than a simple CarPlay receiver.
Potential applications include:
- Spotify
- Navigation software
- Internet radio
- OBD-II tools
- Offline maps
- Vehicle utilities
Application availability and certification requirements can vary.
FindApps
ATOTO also provides FindApps.
FindApps gives users another way to locate compatible applications when a particular app is unavailable through the normal Play Store configuration.
That makes the A5L more flexible as an independent Android platform.
Three Ways to Get Online
Unlike ATOTO’s S8 and X10 models, the A5L does not have its own built-in cellular modem.
Instead, it connects to the internet through:
- Wi-Fi hotspot
- Bluetooth tethering
- USB tethering
Each approach has different advantages.
Wi-Fi Hotspot
The A5L supports both:
- 2.4GHz Wi-Fi
- 5GHz Wi-Fi
Connecting the stereo to your phone’s hotspot provides a relatively fast connection for:
- Maps
- Streaming
- Android apps
- Updates
- DriveChat
This is generally the most straightforward way to use native Android applications online.
Bluetooth Tethering
Bluetooth tethering provides another internet option.
It can use less phone power than operating a Wi-Fi hotspot continuously.
Bandwidth is lower, but it may be adequate for lighter connected functions.
USB Tethering
USB tethering gives the A5L internet access through a physically connected smartphone.
The phone can charge while supplying data.
That can be useful on longer drives where maintaining battery charge matters more than keeping the phone wireless.
No Built-In 4G LTE
This is an important distinction.
The A5L does not have an integrated 4G LTE modem.
If you want a head unit with its own SIM card and independent cellular service, look toward:
- ATOTO S8
- ATOTO S8L
- ATOTO X10
The A5L depends on another internet source.
For many drivers, that source is already sitting in their pocket.
DriveChat AI
The A5L includes support for ATOTO’s DriveChat AI assistant.
DriveChat provides conversational voice assistance for supported functions and questions.
Possible uses include:
- Navigation questions
- General information
- Travel assistance
- Vehicle-related questions
- Conversational requests
ATOTO continues developing the DriveChat platform through software updates.
Why We Don’t Lock DriveChat to One AI Model Version
Some marketplace listings advertise DriveChat using specific ChatGPT and Gemini version numbers.
Those numbers can change as ATOTO updates its cloud services.
The useful long-term specification is:
DriveChat AI integration
rather than permanently describing the hardware as belonging to one specific cloud AI model.
The stereo may stay in your dashboard for five years.
AI companies will probably rename everything twice before lunch.
OBD-II Expansion
The A5L can also communicate with compatible Bluetooth OBD-II adapters.
That allows supported applications to display information such as:
- Engine RPM
- Vehicle speed
- Coolant temperature
- Fuel trims
- Sensor data
- Diagnostic trouble codes
ATOTO’s AC-4450 OBD-II scanner is available separately or bundled with specific A5L packages.
Do not state that the scanner is included unless the exact SKU includes it.
Diagnostic Trouble Codes
An OBD-II application can help retrieve and interpret trouble codes.
For example:
P0301 — Cylinder 1 Misfire Detected
provides an important diagnostic direction.
It does not mean:
Buy ignition coil number one immediately.
A misfire could involve:
- Spark plug
- Coil
- Injector
- Wiring
- Compression
- Vacuum leak
- Fuel delivery
A trouble code tells you what the computer detected.
Proper diagnosis tells you why.
Multi-Device Bluetooth
The A5L supports Bluetooth connectivity for more than basic phone audio.
Compatible accessories can include:
- OBD-II scanners
- Other supported Bluetooth peripherals
The stereo can maintain phone functions while working with supported secondary Bluetooth devices.
That is particularly useful for an Android head unit because it expands what vehicle applications can access.
24-Band DSP Equalizer
The A5L includes a 24-band DSP equalizer.
That provides significantly more tuning flexibility than the simple:
- Bass
- Mid
- Treble
controls found on traditional radios.
The EQ can help compensate for:
- Speaker response
- Door-panel acoustics
- Windshield reflections
- Cabin materials
- Listener preference
Nine EQ Presets
ATOTO also provides nine preset EQ modes.
These offer a quick starting point for users who do not want to manually tune all 24 frequency bands.
More experienced users can adjust the EQ manually.
Time Alignment
The DSP also includes time correction/time alignment.
This compensates for the driver’s unequal distance from each speaker.
Because the left-front speaker is normally much closer than the right-front speaker, the stereo can delay selected channels to improve:
- Center image
- Vocal placement
- Soundstage
This is one of the most useful audio features on a modern aftermarket head unit.
4×24W RMS Amplifier
ATOTO rates the A5L’s internal amplifier at:
4 × 45W maximum
and approximately:
4 × 24W RMS
The RMS number is the meaningful continuous-output figure.
That is enough for:
- Factory speakers
- Efficient aftermarket coaxials
- Basic component systems
A more demanding system can still use external amplification.
For broader planning, see our Car Audio System Guide for Better Sound Builds.
4.1-Channel Audio Output
The A5L supports a conventional 4.1-channel audio configuration.
That provides support for:
- Front left
- Front right
- Rear left
- Rear right
- Subwoofer
This is appropriate for the majority of street-car audio systems.
If you are building a more complicated active or multichannel setup, ATOTO’s S8L and X10 platforms provide considerably more audio flexibility.
Backup Camera Support
The A5L supports compatible rear-view cameras.
Depending on the camera installed, this can provide:
- Automatic reverse view
- Parking assistance
- Guidelines
- Live Rear View
ATOTO sells several compatible camera packages.
Some A5L SKUs include a camera.
The base head unit should not be advertised as including one unless the exact bundle confirms it.
Front DVR Camera Support
Compatible A5L variants also support ATOTO front DVR camera accessories.
That can add:
- Road recording
- Loop recording
- Front-camera viewing
The camera is optional unless included in the specific package.
Built-In GPS
The A5L includes GPS capability for native Android navigation.
That means compatible apps can navigate directly from the head unit rather than requiring CarPlay or Android Auto.
Possible applications include:
- Google Maps
- Waze
- Offline navigation software
When offline maps are installed, basic navigation can continue even when the head unit has no internet connection.
FM and AM Radio
Traditional radio remains available.
The A5L supports:
- FM
- AM
- RBDS/RDS functions where supported
You do not need a cellular connection just to listen to a local station.
A feature that somehow became worth mentioning again.
Steering-Wheel-Control Support
The A5L can work with compatible factory steering-wheel controls.
Depending on the vehicle, integration may require:
- Analog SWC connection
- CAN-bus adapter
- Vehicle-specific interface
Supported buttons can typically control functions such as:
- Volume
- Track selection
- Calls
- Voice commands
OTA Updates
The A5L supports over-the-air software updates.
Internet connectivity allows ATOTO to distribute compatible firmware improvements without requiring the stereo to be physically removed.
Updates can address:
- Stability
- User interface
- Phone compatibility
- DriveChat
- Bluetooth
- System functions
12+6 Month Product Care
ATOTO currently provides 12 months of standard product coverage.
Eligible customers can receive an additional 180 days according to ATOTO’s current warranty program.
That can provide approximately 18 months of total coverage when registration requirements are completed.
Always check the current warranty terms when purchasing.
A5L vs F7WE
This is probably the most important comparison for budget buyers.
Choose the A5L if you want:
- Full Android operating system
- Installable apps
- Built-in GPS
- DriveChat
- OBD-II applications
- 24-band DSP
- Native navigation
Choose the F7WE if you want:
- Simpler CarPlay-first interface
- Faster phone-centric experience
- Stronger Gen2 internal amplifier on applicable models
- 4V RCA outputs
- No need to manage Android apps
The A5L is the more flexible computer.
The F7 is the simpler receiver.
A5L vs S8 Gen4
The S8 Gen4 is a significant hardware step up.
A5L:
- 2GB RAM
- 32GB storage
- MT8163
- Wi-Fi/BT/USB internet
- 24-band DSP
- No built-in cellular modem
S8 Gen4:
- 4GB RAM
- 64GB storage
- Octa-core MT8768
- Built-in 4G LTE
- 32-band DSP
- 4V RCA
- Digital audio outputs
- More advanced camera functions
The A5L is about value.
The S8 is about expanding what the head unit can do independently.
A5L vs X10
The X10 sits at the opposite end of ATOTO’s Android lineup.
It offers features such as:
- Snapdragon processing
- 8GB RAM
- 128GB storage
- Built-in LTE
- Advanced DSP
- 4V RCA
- Digital outputs
- Advanced camera support
- Multichannel audio
The A5L does not compete with that hardware.
It is not supposed to.
If your goal is Google Maps, Spotify, wireless CarPlay and a better stereo in a 15-year-old car, you probably do not need a Snapdragon-powered command center.
Who Should Buy the ATOTO A5L?
The A5L makes sense for someone who wants:
- Affordable Android head unit
- Traditional 7-inch Double DIN fitment
- Wireless CarPlay
- Wireless Android Auto
- Wired CarPlay and Android Auto
- Native Android apps
- GPS navigation
- DSP audio tuning
- OBD-II expansion
- Internet tethering
It is especially well suited to older vehicles that lack modern infotainment but still have a conventional Double DIN opening.
Who Should Choose Something Else?
Choose an F7WE if you mainly want CarPlay and Android Auto.
Choose an S8 if you want:
- More RAM
- More storage
- Built-in LTE
- Faster processing
- Better audio outputs
Choose an X10 if you want ATOTO’s flagship processing, audio and camera capabilities.
The A5L is not designed to win the specification sheet.
It is designed to provide the features most drivers actually use at a lower price.
Is the ATOTO A5L 7-Inch Worth It?
For a budget Android head unit, the A5L covers a surprising amount of ground.
You get:
- Android operating system
- MT8163 quad-core processor
- 2GB RAM
- 32GB storage
- 7-inch 1280×720 touchscreen
- Wired CarPlay
- Wireless CarPlay
- Wired Android Auto
- Wireless Android Auto
- Phone mirroring
- Google Play support
- FindApps
- Wi-Fi tethering
- Bluetooth tethering
- USB tethering
- Built-in GPS
- DriveChat
- Bluetooth accessory support
- 24-band DSP
- Nine EQ presets
- Time alignment
- 4×24W RMS amplifier
- 4.1-channel audio
- Backup-camera support
- Front-camera support
- FM/AM
- Steering-wheel-control compatibility
- OTA updates
The compromises are equally straightforward.
There is no built-in 4G LTE.
There is only 2GB of RAM.
Storage is 32GB.
And the processor is considerably less powerful than the S8 or X10.
But not every daily driver needs an eight-core infotainment workstation.
For an older car that needs navigation, apps, wireless CarPlay and better audio controls, the A5L covers the important stuff without turning a stereo upgrade into a second car payment.
There are no reviews yet.
