Black Dial and Clear Lens

A black gauge face provides strong contrast against the illuminated markings, while the clear lens protects the display and keeps the temperature scale visible from the driver’s seat.

The understated design works with factory-style interiors, diesel truck gauge pods and more aggressive performance builds without looking like someone installed an entire casino in the dashboard.

Universal 52mm Gauge Design

The gauge measures 2-1/16 inches, or approximately 52mm, making it compatible with many universal gauge pods, dashboard panels and custom mounting locations.

It can be installed in compatible:

• Diesel trucks
• Pickup trucks
• Passenger cars
• SUVs
• Tow vehicles
• Performance vehicles
• Engine-swapped vehicles
• Custom automotive applications

Always verify gauge dimensions, sender compatibility and the available mounting location before ordering.

Product Specifications

• Gauge type: Electrical water temperature gauge
• Temperature range: 100–300°F
• Display unit: Fahrenheit
• Gauge diameter: 2-1/16 inches / 52mm
• Dial color: Black
• Lens: Clear
• Illumination: Seven selectable LED colors
• Color control: Button located on the gauge lens
• Installation type: Universal
• Application: Compatible automotive cooling systems

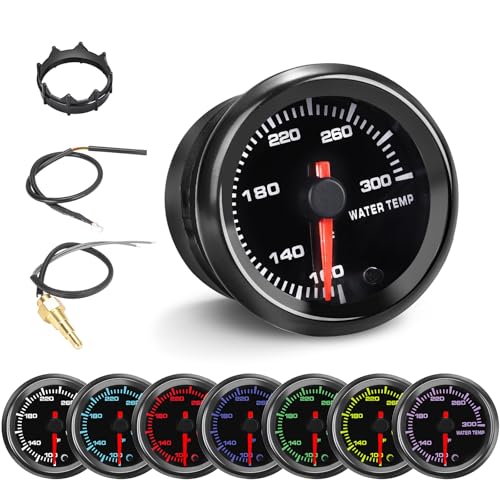

Package Contents

• One 52mm water temperature gauge
• One water temperature sensor harness
• One power cord
• One round mounting bracket
• Mounting hardware
• One instruction manual

Depending on the vehicle, installation may require an additional threaded adapter, radiator-hose adapter, gauge pod or wiring supplies.

Why Install an Aftermarket Water Temperature Gauge?

Many factory temperature gauges provide only a general indication of engine temperature. Some remain near the center of the display across a surprisingly wide temperature range and move toward hot only after the cooling system is already in trouble.

An aftermarket coolant-temperature gauge can help you:

• Monitor temperature changes under heavy loads
• Identify overheating sooner
• Confirm cooling-fan operation
• Evaluate radiator and cooling-system performance
• Monitor an engine swap without a compatible factory gauge
• Diagnose intermittent overheating
• Track temperature during towing or long-distance driving

If rising temperatures are accompanied by coolant loss, corrosion or visible leakage, review our guide to the seven signs of a failing radiator.

Installation Notes

The temperature sender must be installed in a compatible coolant passage where it can contact circulating engine coolant. Depending on the application, this may be located in the:

• Cylinder head
• Intake manifold
• Thermostat housing
• Coolant outlet
• Engine block
• Radiator-hose adapter

Do not install the water-temperature sender on or against the exhaust system. Exhaust temperature is not coolant temperature, and exhaust components can damage the sensor harness.

For safe and accurate operation:

• Allow the engine to cool completely before opening the cooling system.
• Verify the sender thread size before installation.
• Use the correct adapter for the vehicle.
• Route wiring away from exhaust components, belts and cooling fans.
• Use cooling-system-compatible thread sealant when required.
• Avoid excessive sealant that could interfere with sender grounding.
• Bleed trapped air from the cooling system after installation.
• Inspect every opened connection for coolant leaks.
• Test the gauge before driving.

For more information about coolant-temperature sensors, read our guide explaining how an engine coolant temperature sensor works.

Frequently Asked Questions

Will this water temperature gauge fit my truck?

The universal 52mm design works with many trucks and gauge pods, but exact installation requirements vary. Verify the available mounting space, electrical system and sender location before ordering.

Can it be used in a diesel truck?

Yes, it can be used in compatible diesel applications. It is especially useful for monitoring coolant temperature while towing, climbing grades or carrying heavy loads.

Does the gauge prevent engine damage?

No gauge can prevent mechanical damage on its own. It provides temperature information so the driver can respond when the cooling system begins running hotter than normal.

How do I change the backlight color?

Use the button located on the gauge lens to cycle through the seven available illumination colors.

Does it replace the factory temperature sensor?

Normally, no. This gauge should use its own sender unless the manufacturer specifically confirms compatibility with the factory sensor. Removing the original sensor could interfere with the ECU, cooling fans, fuel control or warning systems.

Where should the sender be installed?

Install the sender in a compatible coolant passage or adapter where it remains in contact with circulating coolant. Never attach it to the exhaust system.

What should I do if the gauge reads above normal?

Reduce engine load and watch the temperature. If it continues rising, a warning light appears, coolant escapes or steam becomes visible, pull over safely and shut the engine off. Never remove the radiator cap while the cooling system is hot.

Our guide on how to deal with an overheating engine explains what to check next.

Keep Rising Coolant Temperatures in View

This seven-color water temperature gauge combines a useful 100–300°F measurement range with a compact 52mm housing, black dial and customizable LED illumination.

It is a practical monitoring upgrade for diesel trucks, tow vehicles, performance cars and custom builds that need more temperature information than a factory warning light provides.
