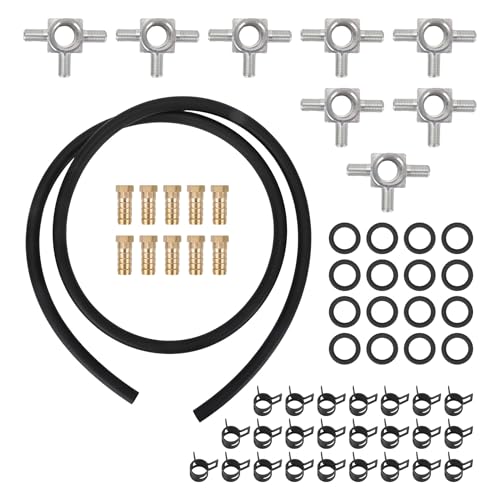

Eight Injector Tee Barbs Included
The package includes eight tee-style return fittings, providing one fitting position for each cylinder of the 7.3L V8.
These fittings form part of the low-pressure injector leak-off or return circuit.
Excess fuel passes through the injector return fittings and connecting hose before being routed through the vehicle’s fuel-return system.
Proper sealing at each connection is important because even a small leak can create the familiar combination of diesel odor, wet injector areas, and a driveway that begins developing its own petroleum-based personality.
16 Viton Injector O-Rings
The kit contains 16 Viton O-rings for sealing the injector return fittings.
Viton is widely used in automotive fuel-system sealing because of its resistance to petroleum products, heat, and many automotive fluids.
Using fresh O-rings is especially important when servicing an IDI return system because old seals can become:
- Brittle
- Hardened
- Flattened
- Cracked
- Cut during removal
- Damaged during previous repairs
The return fittings rely on these seals to maintain a leak-resistant connection around the injectors.
Why Two O-Rings Per Injector Matter
The supplied 16 O-rings provide two seals for each of the eight injector locations.
Correct installation is important.
An O-ring that is twisted, cut, pinched, or damaged during assembly can leak even when every other component is new.
Clean the injector sealing surfaces carefully and lubricate replacement O-rings only with a lubricant appropriate for the fuel system and installation procedure.
Never force an aluminum return fitting over a dry or misaligned O-ring.
24 Constant-Tension Spring Clamps
The kit provides 24 spring-style hose clamps.
Constant-tension spring clamps maintain clamping force around the hose as components experience normal temperature changes.
They help secure the return hose to the aluminum fittings and reduce the chance of:
- Hose movement
- Fuel seepage
- Loose return connections
- Hose separation
- Air intrusion through poorly secured plumbing
Position every clamp completely over its intended barb rather than leaving it partially seated at the end of the hose.
Replacement Injector Return Hose Included
A length of return hose is included for connecting the injector fittings.
Replacing the hose while servicing the fittings and O-rings makes sense on an older engine because rubber return plumbing can deteriorate from decades of:
- Diesel exposure
- Engine heat
- Vibration
- Age
- Previous repairs
- Repeated removal and installation
Inspect the complete return circuit rather than replacing only the visibly leaking section.
10 Spare Plugs Included
The kit also includes 10 spare pagoda-style plugs for servicing or configuring the return plumbing as required.
Keeping spare fuel-system hardware available can be useful for future maintenance, especially on an engine platform whose newest examples are already several decades old.
Store unused plugs and seals in a clean, sealed container so they aren’t contaminated before they’re eventually needed.
What Does the 7.3 IDI Injector Return System Do?
The Ford/Navistar 7.3L IDI uses a mechanically controlled indirect-injection diesel system.
Fuel delivered to the injectors isn’t simply consumed in its entirety. Excess fuel needs a controlled route away from the injectors and back through the low-pressure return system.
A simplified flow path is:
Injection Pump → Injectors → Injector Return Fittings → Return Hose → Fuel Return Circuit
This return circuit operates very differently from the extremely high-pressure injection side of the system.
The hose and fittings in this kit are intended for the low-pressure injector return circuit, not as replacements for high-pressure injector lines.
Common 7.3 IDI Injector Return Line Leak Symptoms
The injector return system is a common area to inspect when an older IDI develops fuel leakage.
Possible symptoms include:
- Diesel fuel around the injectors
- Wet injector return fittings
- Fuel odor under the hood
- Cracked return fittings
- Hardened return hose
- Visible fuel seepage
- Fuel collecting around injector bores
- Air entering the fuel system
- Extended cranking after sitting
- Fuel drain-back symptoms
A visual inspection around all eight injectors can often reveal deteriorated hose, damaged fittings, or leaking seals.
Can a 7.3 IDI Return Line Leak Cause Hard Starting?
A leaking fuel system can allow air intrusion or contribute to fuel drain-back, potentially causing extended cranking after the engine has been sitting.
That makes the injector return circuit an important inspection point when troubleshooting hard-start complaints.
However, replacing return lines should not be treated as a guaranteed cure.
Other possible 7.3 IDI hard-start causes include:
- Failed glow plugs
- Glow-plug controller problems
- Weak batteries
- Slow starter speed
- Injection timing
- Injection pump wear
- Injector condition
- Fuel filter restrictions
- Supply-side air leaks
- Low compression
Diagnose the problem rather than firing the parts cannon. The truck is old enough to have several problems simultaneously just to keep things interesting.
Aluminum vs. Plastic 7.3 IDI Return Fittings
Traditional replacement kits frequently use plastic injector return fittings similar in concept to the original components.
This kit instead uses 6061 aluminum fittings.
Potential advantages of aluminum include:
- Greater resistance to physical cracking
- Improved rigidity
- Resistance to age-related plastic embrittlement
- Durable hose-barb surfaces
- Long-term serviceability
However, metal fittings still depend on proper O-ring installation and correctly fitted hose.
An aluminum fitting cannot compensate for a damaged seal, improperly routed hose, or incorrect installation.
Viton vs. Standard Rubber O-Rings
The supplied Viton seals are another important feature.
Fuel-system O-rings operate in an environment involving petroleum exposure and significant temperature changes. Material selection therefore matters.
Viton is commonly chosen for automotive fuel-system seals because it offers strong resistance to fuel, oil, and elevated temperatures.
That makes the combination of aluminum fittings and Viton seals particularly appealing for owners looking to refresh the IDI return system with upgraded materials.
7.3 IDI vs. 7.3 Power Stroke
Despite sharing the same displacement designation, the 7.3 IDI and 7.3 Power Stroke are not interchangeable engine families.
The 7.3 IDI uses:
- Mechanical injection
- Indirect combustion chambers
- Mechanical injection pump
- Conventional high-pressure injector lines
- Low-pressure injector return plumbing
The later 7.3 Power Stroke uses electronically controlled HEUI injection and completely different fuel and oil systems.
This return-line kit is intended for compatible 7.3L IDI applications, not the later Power Stroke.
Fuel Return System Fundamentals
A healthy return circuit allows excess fuel to move away from the injectors without leaking externally or allowing unwanted air into the fuel system.
Although the IDI’s mechanical diesel system differs considerably from modern EFI, many of the same fundamental concepts involving fuel flow and return restrictions still apply.
For additional technical background, the Pro Street Fuel Pressure Regulator Guide explains how fuel supply, pressure regulation, and return circuits interact in performance fuel systems.
That guide covers gasoline EFI rather than the IDI’s mechanical injection system, but it provides useful fundamentals for understanding why unrestricted and properly sealed return plumbing matters.
Installation Recommendations
Cleanliness is extremely important when servicing any diesel injection system.
Before removing the original return components:
- Verify that the kit matches your 7.3L IDI configuration.
- Clean the engine around all eight injectors.
- Photograph the original return-hose routing.
- Remove the old clamps and hose.
- Carefully remove the existing injector return fittings.
- Remove the old O-rings.
- Clean and inspect the injector sealing surfaces.
- Install the new Viton O-rings.
- Lubricate the seals according to the proper service procedure.
- Carefully install the aluminum return fittings.
- Cut and route the replacement hose.
- Fully seat the hose over each barb.
- Position the spring clamps correctly.
- Complete the return circuit.
- Prime the fuel system as required.
- Start the engine and inspect every fitting for leakage.
Reinspect the system after the engine reaches operating temperature.
Avoid Damaging the Viton O-Rings
A new return fitting can still leak if an O-ring is damaged during installation.
Do not force the fitting into place.
Check that both seals are seated correctly and that the fitting moves into position without cutting or rolling an O-ring.
If unusual resistance is encountered, stop and inspect the seals before continuing.
Sacrificing a fifty-cent seal because the fitting “almost fits” is a proud automotive tradition best left unobserved.
Replace the System Instead of Chasing Individual Leaks
If the return components are decades old, replacing only one leaking O-ring may simply move the repair to another injector a few weeks later.
A complete kit makes it possible to refresh:
- All eight return fittings
- All 16 injector O-rings
- Return hose
- Hose clamps
- Associated plugs
This establishes a known baseline for future fuel-system troubleshooting.
Why Choose This 7.3 IDI Aluminum Return Line Kit?
This kit combines a comprehensive return-system overhaul with upgraded fitting and seal materials.
Key features include:
- Designed for compatible Ford 7.3L IDI engines
- Eight machined 6061 aluminum tee fittings
- 16 Viton O-rings
- 24 constant-tension spring clamps
- Replacement return hose
- 10 spare plugs
- Metal fittings replace aging plastic-style components
- Complete eight-cylinder service package
- Suitable for repairing injector return leaks
- Useful for restoration and preventative maintenance
For a 7.3 IDI owner who wants more than a basic plastic-cap replacement kit, the aluminum fittings and Viton seals make this an attractive option for rebuilding the injector return circuit.
Frequently Asked Questions
What engine does this return line kit fit?
The kit is designed for compatible Ford/Navistar 7.3L IDI diesel engines. Verify the specific return-line configuration before ordering because differences can exist between IDI applications.
Does this fit a 7.3 Power Stroke?
No. The 7.3L Power Stroke uses a different injection and fuel-return system.
What are the injector return fittings made from?
The eight tee fittings are machined from heat-treated 6061 aluminum.
How many aluminum fittings are included?
The kit includes eight injector return tee fittings.
How many O-rings are included?
There are 16 Viton O-rings, providing two seals for each of the eight injector positions.
Are the O-rings Viton?
Yes. The kit specifies Viton fuel-resistant O-rings.
How many clamps are included?
The package includes 24 spring-style constant-tension clamps.
Does the kit include return hose?
Yes. Replacement hose for the injector return circuit is included.
What are the 10 extra plugs for?
The kit includes 10 spare plugs that can be retained for appropriate return-system configuration or future service needs.
Are aluminum IDI return fittings better than plastic?
Aluminum eliminates the age-related brittleness associated with plastic fittings and provides a durable metal hose-barb connection. Proper sealing still depends on correct O-ring and hose installation.
Can leaking injector return lines cause hard starting?
Leaks can allow air intrusion or contribute to fuel drain-back, which can result in longer cranking after the engine sits. Other glow-plug, injection-pump, starter, battery, timing, and compression problems can produce similar symptoms.
Is this for the high-pressure injector lines?
No. This kit services the low-pressure injector fuel-return circuit. It does not replace the steel high-pressure lines running from the injection pump to the injectors.
