Yellow Nighttime Illumination

Yellow backlighting illuminates the temperature markings and pointer during nighttime driving or other low-light conditions. Its warm appearance complements vintage dashboards while remaining easy to read.

The gauge operates on 12V DC and draws a maximum of approximately 0.3A according to the supplied specifications.

Standard 52mm Housing

The gauge measures 2 inches, or approximately 52mm, making it compatible with many standard:

• A-pillar gauge pods
• Dashboard openings
• Steering-column mounts
• Center-console panels
• Custom instrument clusters
• Marine gauge panels

Measure both the opening and available mounting depth before installation. “Universal” is an aspiration, not a legally enforceable promise from your dashboard.

Included 1/2-14 NPT Sensor

The included temperature sender uses a 1/2-14 NPT thread. It may fit some engine coolant passages directly, while other applications will need an adapter or radiator-hose mounting fitting.

Confirm the following before installation:

• Coolant-port thread size
• Thread type and pitch
• Required adapter
• Available clearance
• Sensor grounding requirements
• Wire-routing distance

NPT size is nominal and does not represent the fitting’s measured outside diameter. Metric and NPT threads are also not interchangeable, even when they look close enough to encourage a terrible decision.

1.8-Meter Sensor Wire

The supplied wire measures approximately 1.8 meters, or 5.9 feet. This provides routing flexibility between the engine compartment and dashboard.

Keep the wiring away from:

• Exhaust manifolds
• Turbochargers
• Accessory belts
• Pulleys
• Steering components
• Sharp metal edges

Use protective loom and secure the wire so it cannot contact hot or moving components.

Universal 12V Compatibility

This water-temperature gauge is intended for many vehicles using a 12V DC electrical system, including:

• Cars
• Pickup trucks
• SUVs
• RVs
• Off-road vehicles
• Classic vehicles
• Custom builds
• Compatible marine applications

Fitment depends on the available sensor port, electrical system and mounting location. The product is not specified for 24V systems.

Product Specifications

What’s Included

Based on the supplied description, the kit includes:

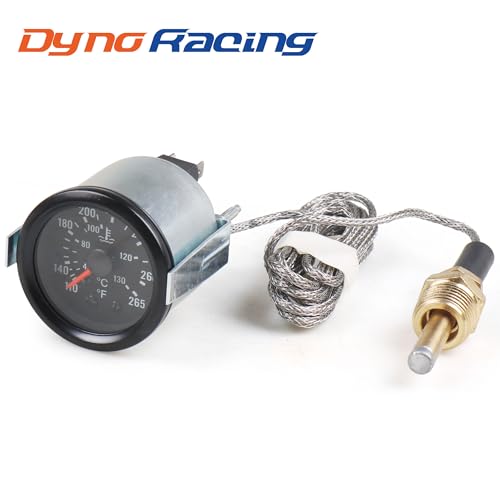

• One 52mm water-temperature gauge
• One 1/2-14 NPT temperature sensor
• One 1.8-meter sensor wire
• Mounting components

Verify the complete package contents before beginning installation, particularly if a vehicle-specific adapter is required.

Installation Recommendations

Professional installation is recommended because the sender must contact engine coolant without creating a leak.

General installation precautions include:

1. Disconnect the vehicle battery.
2. Let the engine cool completely.
3. Identify a suitable coolant-sensor location.
4. Confirm the port accepts 1/2-14 NPT threads or obtain the correct adapter.
5. Install the sender using an appropriate sealing method.
6. Mount the gauge securely in a 52mm opening.
7. Route the sensor wire away from heat and moving parts.
8. Connect the gauge through a properly fused 12V circuit.
9. Refill and bleed the cooling system.
10. Check the sender connection for leaks.

Never remove a radiator cap or coolant fitting while the system is hot or pressurized.

Frequently Asked Questions

What temperature range does the gauge display?

It displays temperatures from 110°F to 265°F and 40°C to 130°C.

Is this a 52mm gauge?

Yes. Its nominal diameter is 2 inches, or approximately 52mm.

What size is the included sensor?

The supplied temperature sensor uses a 1/2-14 NPT thread.

Is the gauge truly mechanical?

The listing calls it mechanical, but the separate sensor and 1.8-meter wire suggest an electrical pointer gauge. A true mechanical temperature gauge generally uses a sealed capillary tube and sensing bulb. Confirm the actual construction before publishing the final specification.

Does the gauge require 12V power?

Yes. It is specified for 12V DC operation with a maximum current draw of approximately 0.3A.

Can it operate on a 24V vehicle?

Not directly. This product is specified for 12V systems.

Will the sensor fit every engine?

No. Some vehicles will require a thread adapter or radiator-hose sensor fitting.

Can it be installed in a boat?

It may suit compatible 12V marine applications, but no waterproof or IP rating is provided. Protect the gauge and electrical connections from direct water exposure.

Will it prevent an engine from overheating?

No. It helps the driver monitor coolant temperature and recognize an abnormal increase. It cannot repair a failed fan, thermostat, radiator or water pump. Apparently the gauge manufacturers are still working on that feature.

For additional diagnosis, see the signs of a failing radiator and learn how to deal with an overheating engine.

Classic Styling with Useful Temperature Information

This universal 52mm water-temperature gauge combines a traditional pointer display with dual temperature scales, yellow illumination and an included 1/2-14 NPT sender. It’s a straightforward monitoring upgrade for compatible 12V cars, trucks, RVs and custom builds.

Just verify whether the unit is genuinely mechanical or electrically operated before publishing the final product type. Accuracy is slightly more useful than stuffing another keyword into the title.
