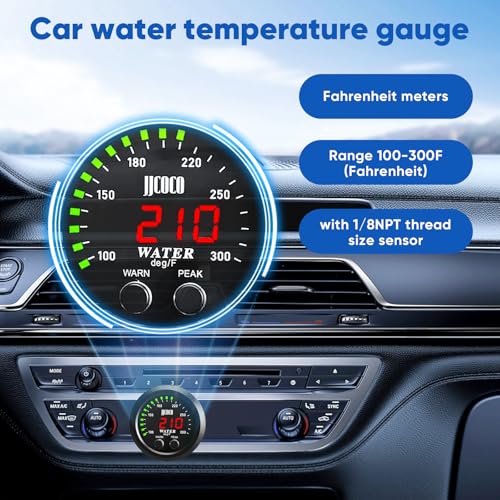

Red Digital Display with Green LED Indicator
The center LED display uses red numerals for precise temperature readings. A sweeping green LED indicator surrounds the gauge face, providing a quick visual reference without requiring the driver to focus on the exact number.
This two-part interface provides:
- Red center temperature readout
- Sweeping green perimeter indicator
- Strong nighttime visibility
- Quick at-a-glance monitoring
- A distinctive two-color appearance
The green perimeter lighting is an illuminated indicator, not a physical needle.
Programmable Temperature Warning
Two faceplate buttons allow the user to configure a temperature-warning threshold. When the selected threshold is reached, the gauge alerts the driver to a potentially excessive reading.
The correct warning temperature depends on the engine, cooling-system pressure and manufacturer specifications. Some modern engines normally operate above 212°F, so the warning should not be set using automotive folklore or a number selected because it looked appropriately frightening.
Peak-Temperature Recall
Peak recall stores the highest recorded temperature for later review. This is useful when the driver cannot safely monitor the gauge continuously.
The feature can assist with:
- Diagnosing intermittent overheating
- Evaluating cooling-system upgrades
- Monitoring towing temperatures
- Reviewing off-road operating conditions
- Comparing temperatures before and after repairs
- Checking maximum temperatures after a long drive
Fahrenheit and Celsius Selection
The gauge can display temperature in Fahrenheit or Celsius.
The consistent specified measurement range is:
- 100–300°F
- Approximately 38–149°C
The title’s “−17–187°C” range does not correspond with 100–300°F and conflicts with the detailed specifications. Use 38–150°C on the published product page unless the manufacturer confirms a different operating range.
Shallow 52mm Housing
The gauge fits a standard 2-1/16-inch, or 52mm, mounting opening. Its body measures less than approximately 18.8mm deep, allowing installation in locations where a conventional gauge may require too much rear clearance.
Potential mounting locations include:
- A-pillar gauge pods
- Dashboard openings
- Steering-column pods
- Center-console panels
- Custom instrument clusters
- Marine instrument panels
Allow additional space behind the gauge for its connector and wiring.
Included 1/8 NPT Sensor
The included electronic temperature sensor uses a 1/8 NPT thread, a common aftermarket sender size.
Depending on the vehicle, installation may require:
- An engine coolant-port adapter
- Thermostat-housing adapter
- Radiator-hose adapter
- NPT reducer or bushing
- Dedicated coolant manifold
Confirm the port size and thread type before installation. Metric and NPT fittings are not interchangeable, regardless of how confidently someone at the parts counter claims they are “basically the same.”
12V and 24V Compatibility
The gauge supports both 12V and 24V DC electrical systems and draws a maximum of approximately 0.3A.
Potential applications include:
- Cars
- Pickup trucks
- SUVs
- RVs
- Boats
- Off-road vehicles
- Commercial trucks
- Agricultural equipment
- Custom automotive projects
Compatibility depends on the electrical system, mounting location and available coolant-sensor port.
Product Specifications
| Specification | Detail |
|---|---|
| Product type | Digital water-temperature gauge |
| Gauge diameter | 2-1/16 inches / 52mm |
| Center display | Red digital LED |
| Perimeter indicator | Sweeping green LED |
| Fahrenheit range | 100–300°F |
| Celsius range | Approximately 38–150°C |
| Measurement selection | Fahrenheit or Celsius |
| Warning function | User-programmable threshold |
| Memory function | Peak-temperature recall |
| Sensor thread | 1/8 NPT |
| Power supply | 12V or 24V DC |
| Maximum current | 0.3A |
| Housing depth | Less than approximately 18.8mm |
| Application | Compatible automotive and marine systems |
Installation Recommendations
Professional installation is recommended because the sensor must contact engine coolant without introducing a leak.
General precautions include:
- Disconnect vehicle power.
- Let the cooling system become completely cold.
- Confirm the 52mm mounting opening and rear clearance.
- Identify a suitable coolant-sensor location.
- Verify the 1/8 NPT connection or obtain the correct adapter.
- Install the sensor where it remains exposed to circulating coolant.
- Route wiring away from exhaust components and moving parts.
- Connect the gauge through an appropriately fused circuit.
- Refill and bleed the cooling system correctly.
- Inspect the sensor connection for leaks.
- Program the warning threshold for the specific engine.
- Compare the initial reading with scan-tool data when possible.
Never open a hot or pressurized cooling system. Coolant burns are painful, preventable and generally a poor conclusion to a gauge installation.
Frequently Asked Questions
What temperature range does the gauge measure?
The consistent specifications list a range of 100–300°F, equivalent to approximately 38–149°C.
Why does the title say −17–187°C?
That Celsius range conflicts with the stated Fahrenheit range. It appears to be a listing error and should not be used unless confirmed by the manufacturer.
What colors are displayed?
The gauge has a red center digital display and a sweeping green LED indicator around the face.
Does it include an alarm?
Yes. The gauge includes a user-selectable temperature-warning threshold.
Does it remember the highest temperature?
Yes. Peak recall allows the user to review the highest recorded temperature.
Can it display Celsius?
Yes. The faceplate controls allow selection between Fahrenheit and Celsius.
What size is the temperature sensor?
The included electronic sensor uses a 1/8 NPT thread.
Will it fit a standard gauge pod?
It uses a standard 52mm housing and fits many 2-1/16-inch pods. Confirm the opening, mounting method and wiring clearance first.
Can it operate on 24V power?
Yes. The supplied specifications list compatibility with 12V and 24V DC systems.
Is it waterproof?
No waterproof or IP rating is provided. Protect the display and electrical connections from direct water exposure in marine installations.
Will the alarm prevent overheating?
No. The gauge warns the driver about excessive temperature, but it cannot correct the underlying cooling-system failure. The driver must respond to the warning and diagnose the problem.
For additional cooling-system diagnosis, review the signs of a failing radiator and how to deal with an overheating engine.
Compact Monitoring with Programmable Protection
This universal digital water-temperature gauge combines a bright red numeric display, sweeping green LED indicator, programmable warning and peak recall in a shallow 52mm housing. Its included 1/8 NPT sensor and 12V/24V compatibility make it adaptable to many automotive, marine and heavy-duty applications.
It cannot prevent every cooling-system failure, but it provides considerably more warning than a factory temperature light whose entire vocabulary consists of “fine” and “too late.”
