What’s Included?
The advertised kit contains:
- 1 electric exhaust valve
- 1 angled exhaust elbow
- 1 electronic control module
- 2 wireless remotes
- Wiring and installation accessories
This is the single-valve configuration, making it particularly useful for vehicles with one primary 3-inch exhaust pipe at the intended installation location.
Three Exhaust Sound Modes
The major advantage of this system is its:
3-mode valve control.
Instead of simply choosing between open and closed, the driver gets an intermediate setting.
Fully Closed
Close the cutout and exhaust remains in the conventional system.
Depending on the vehicle, exhaust may continue through:
Resonator → Muffler → Tailpipe
This is the quietest operating mode.
Partially Open
The middle setting opens the valve partway.
Some exhaust can use the bypass while the remaining flow continues through the conventional system.
The result can be a sportier exhaust note without the maximum volume of a completely open cutout.
Fully Open
Open the valve completely and exhaust gains access to the shortest available bypass route.
Depending on installation location, this can bypass:
- Resonators
- Mufflers
- Long sections of tailpipe
This provides the loudest and most aggressive exhaust setting.
Why Choose a 3-Mode Exhaust Cutout?
Traditional electric exhaust cutouts typically give you:
OPEN
or:
CLOSED
This system adds:
PARTIALLY OPEN
That can be useful for a vehicle that sees regular street use.
Fully closed can be used when a quieter exhaust is preferred.
Partial opening provides an intermediate performance sound.
Fully open provides maximum bypass.
It’s effectively an exhaust volume control, although the highest setting remains considerably less subtle than the knob on your stereo.
Dual Wireless Remotes
The kit includes:
two wireless remotes.
One can serve as the primary controller while the other can be kept as a spare.
The remote communicates with the electronic control module, which operates the electric valve actuator.
Benefits include:
- No permanent dashboard switch required
- Convenient valve operation
- Backup remote included
- Three selectable valve positions
Single 3-Inch Exhaust Valve
This kit contains:
one 3-inch valve.
That makes it best suited to applications where the exhaust has one main pipe at the desired cutout location.
Potential configurations include:
- Single 3-inch turbo exhaust
- Merged V8 exhaust
- Single-pipe truck exhaust
- Custom Y-pipe system
- One-valve custom performance exhaust
For a true dual exhaust where both pipes remain separate, a dual-valve kit may be more appropriate.
3-Inch Exhaust Compatibility
The valve is designed for compatible:
3-inch exhaust tubing
which equals approximately:
76.2mm
Three-inch exhaust systems are commonly used on higher-flow performance applications, including:
- Turbocharged cars
- Supercharged cars
- Modified V8s
- Performance trucks
- Street/strip vehicles
- Custom high-output builds
That doesn’t mean every modified vehicle needs a 3-inch exhaust.
Pipe diameter should match the engine’s actual airflow requirements.
Measure Before Ordering
Never choose an electric cutout based solely on the vehicle.
Measure the exhaust.
Verify:
- Pipe diameter
- Connection diameter
- Available straight tubing
- Motor clearance
- Elbow clearance
- Ground clearance
The seller specifically recommends verifying installation space before purchasing.
Our How to Install Exhaust Cutout the Right Way guide covers exhaust sizing and cutout placement in more detail.
Universal Fitment Does Not Mean Bolt-On
This is a:
universal exhaust component.
It is not a vehicle-specific direct-fit exhaust system.
Even if your vehicle uses 3-inch tubing, installation may require:
- Cutting
- Clamping
- Welding
- Adapters
- Custom tubing
- Electrical work
Measure the actual vehicle before assuming fitment.

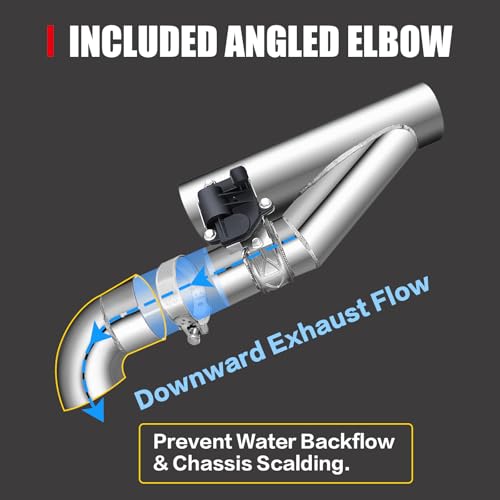

Angled Exhaust Elbow Included
The kit includes an angled elbow for the bypass outlet.
This helps direct hot exhaust gases away from the vehicle’s underbody.
Proper outlet direction can reduce heat exposure to:
- Floorpan
- Fuel tank
- Fuel lines
- Brake lines
- Wiring
- Rubber components
- Plastic panels
The elbow is useful, but it still needs to be positioned correctly.
Protect the Vehicle From Exhaust Heat
An open exhaust cutout can release extremely hot exhaust gases underneath the vehicle.
Never point the outlet directly toward heat-sensitive components.
Check clearance around:
- Fuel system
- Brake system
- Wiring harnesses
- Transmission
- Driveshaft
- Suspension
- Underbody panels
Also consider what happens while the vehicle is moving and the exhaust system expands from heat.

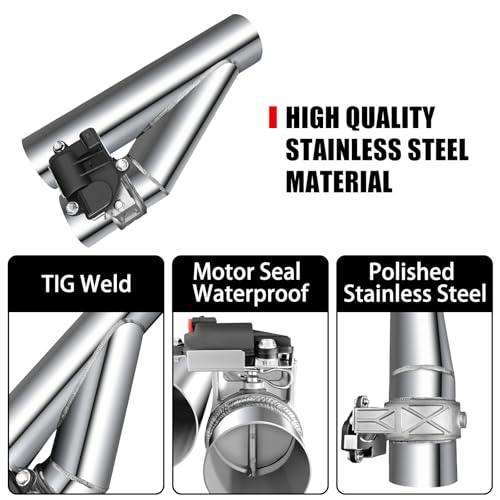

Weather-Resistant Electric Motor
The seller describes the actuator motor as waterproof.
Unless a documented IP waterproof rating is provided, a more conservative description is:
weather-resistant electric motor.
Underbody components can be exposed to:
- Water
- Road spray
- Dirt
- Dust
- Condensation
- Vibration
Proper placement can help extend actuator life.
Avoid unnecessary exposure to standing water and direct high-pressure washing.
Keep the Motor Away From Extreme Heat
The valve is designed to operate in the exhaust stream.
The electric actuator is more heat-sensitive.
Whenever possible, avoid placing the motor immediately beside:
- Turbochargers
- Header collectors
- Catalytic converters
A location farther downstream can reduce thermal stress on the motor and wiring.
Clamp-Friendly Installation
The seller advertises the kit as supporting clamp-style installation.
A compatible clamp connection can provide:
- Faster installation
- Easier servicing
- Easier future removal
Actual installation requirements depend on the exhaust.
Some vehicles may still require professional cutting, welding or fabrication.
Clamp vs. Weld Installation
Both approaches can work when correctly executed.
Clamp Installation
Advantages can include:
- Easier removal
- Less permanent modification
- Faster service
Welded Installation
Advantages can include:
- Strong permanent attachment
- Reduced movement
- Better sealing
- Cleaner custom fabrication
Professional exhaust installation is recommended when significant fabrication is required.
Check Ground Clearance
The valve, electric actuator and elbow occupy considerably more space than a straight exhaust pipe.
This becomes particularly important on:
- Lowered cars
- Sports cars
- Vehicles with low-mounted exhaust systems
Make sure the cutout assembly does not become the lowest point underneath the vehicle.
A valve that survives years of exhaust heat can still lose a very short argument with a speed bump.
Mock Up Before Final Installation
Before permanently installing the system:
- Measure the exhaust.
- Choose the cutout location.
- Position the valve.
- Position the elbow.
- Check actuator clearance.
- Check ground clearance.
- Check suspension movement.
- Check wiring routes.
- Test the valve.
- Finalize the installation.
If welding:
Measure → Cut → Fit → Tack → Check → Final Weld
is the safer approach.
Test All Three Valve Positions
Connect the electrical system before permanently installing the cutout.
Verify:
Fully Closed
Partially Open
Fully Open
Also confirm:
- Both remotes operate the controller
- Valve movement is smooth
- The actuator does not bind
- The valve reaches its intended positions
It’s much easier to identify a problem on a workbench than after welding the system underneath the vehicle.
Can a 3-Inch Exhaust Cutout Add Horsepower?
Possibly, but there is no universal horsepower gain.
Opening the cutout creates a shorter exhaust route.
If the conventional exhaust is restrictive at high airflow, opening the valve may reduce downstream restriction.
Actual results depend on:
- Engine airflow
- Turbocharger
- Headers
- Catalytic converter
- Exhaust diameter
- Muffler restriction
- Cutout location
- Engine calibration
For some vehicles, the difference may be measurable.
For others, the biggest change will be sound.
Reduced Restriction Is the Better Claim
Avoid assuming that an open cutout automatically “creates horsepower.”
The more accurate explanation is:
opening the cutout can reduce downstream exhaust restriction.
If the existing exhaust is restricting the engine, reducing that restriction may improve performance.
If the existing exhaust already flows adequately, there may be little measurable power difference.
Turbocharged Applications
A single 3-inch electric cutout can be particularly useful on turbocharged vehicles.
Many turbo systems use a single large exhaust pipe downstream of the turbine.
Potential applications include:
- Turbo four-cylinder cars
- Turbo six-cylinder cars
- Single-turbo V8 builds
- Performance imports
- Custom turbo projects
Reducing restriction downstream of the turbine can be beneficial depending on the complete system.
Turbo Exhaust Layout
A typical turbo exhaust may look like:
Turbo → Downpipe → Catalytic Converter → 3″ Exhaust → Muffler
A cutout installed at an appropriate point can provide an alternate route around downstream sound-control components.
Actual placement depends on:
- Heat
- Emissions equipment
- Ground clearance
- Available space
Never install the cutout in a way that unlawfully bypasses required emissions components.
V8 and Muscle-Car Applications
Three-inch tubing is also common on high-output V8 exhaust systems.
Potential applications include:
- Mustangs
- Camaros
- Corvettes
- Challengers
- Chargers
- LS swaps
- Restomods
- Performance trucks
However, many V8s use true dual exhaust.
If two pipes remain separate at the intended cutout location, a dual-valve system may be the better choice.
Single vs. Dual Exhaust Cutout
Choose based on the actual exhaust layout.
Single 3-Inch Valve
Best for:
- Single 3-inch exhaust
- Merged exhaust
- Single-pipe turbo system
- One-valve custom installation
Dual 3-Inch Valves
Better for:
- True dual exhaust
- Dual-pipe V8 systems
- Applications requiring one valve per bank
Buying the correct number of valves is considerably easier than redesigning the exhaust after the box arrives.
X-Pipe and H-Pipe Systems
If you’re installing valves on a dual V8 exhaust, crossover design matters.
Common layouts include:
- X-pipe
- H-pipe
Read our X Pipe vs H Pipe: Which Sounds Better? guide for more information on crossover design and exhaust character.
Works With Performance Cat-Back Systems
A 3-inch cutout can also be incorporated into a custom performance cat-back.
With the valve closed:
conventional muffled exhaust
With the valve partially open:
more aggressive intermediate sound
With the valve fully open:
maximum bypass
If you’re planning a larger exhaust upgrade, see our Catback Exhaust vs Axleback: Which Wins? guide.
Exhaust Cutout Wiring
Route electrical wiring away from:
- Headers
- Turbochargers
- Catalytic converters
- Exhaust tubing
- Driveshaft
- Axles
- Suspension
Use proper:
- Circuit protection
- Automotive connectors
- Wire loom
- Heat shielding
- Harness retainers
Do not leave wiring hanging underneath the vehicle.
Check for Exhaust Leaks
After installation, operate the system with the valve fully closed.
Check for:
- Ticking
- Soot
- Exhaust odor
- Leaking clamps
- Leaking welds
Then cycle the valve through partial and fully open modes.
Recheck all connections after several heat cycles.
Advertised Two-Year Warranty
The seller advertises this kit with a:
2-year warranty
and states that qualifying failed parts can be replaced during the warranty period.
Verify current warranty terms before purchase.
Check whether coverage includes:
- Electric valve
- Motor
- Controller
- Remotes
- Wiring
Also verify exclusions involving installation, heat damage, water exposure, labor and shipping.
Street-Legal Considerations
Electric exhaust cutouts can be restricted on public roads.
Possible issues include:
- Exhaust-noise limits
- Muffler requirements
- Exhaust-bypass restrictions
- Emissions regulations
For California readers, our Is My Exhaust Legal? guide provides additional background.
Verify current state and local requirements before operating an open cutout on public roads.
Don’t Bypass Required Emissions Equipment
Do not install or operate the cutout in a way that unlawfully bypasses required:
- Catalytic converters
- Oxygen sensors
- Emissions-control equipment
For street-oriented installations, preserve legally required emissions components.
Who Should Buy This 3-Inch Electric Exhaust Cutout?
This kit makes the most sense for someone with a compatible:
single 3-inch exhaust pipe
who wants adjustable remote-controlled exhaust sound.
Potential applications include:
- Turbocharged cars
- Performance imports
- Muscle cars
- Performance trucks
- Restomods
- Street/strip vehicles
- Custom exhaust builds
The combination of a single valve and three-position control makes it especially useful where one cutout can control the entire desired bypass.
Why Buy This 3-Inch 3-Mode Exhaust Cutout?
Key features include:
- 3-inch exhaust compatibility
- Single electric exhaust valve
- Three valve positions
- Fully closed mode
- Partially open mode
- Fully open mode
- Two wireless remotes
- Electronic control module
- Angled exhaust elbow
- Weather-resistant motor design
- Clamp-friendly installation
- Universal custom fitment
- Advertised two-year warranty
For a single 3-inch performance exhaust, the three-mode system gives the driver significantly more sound control than a conventional fixed exhaust or simple two-position cutout.
Specifications at a Glance
Product: 3-Mode Electric Exhaust Cutout Kit
Exhaust Diameter: 3 inches
Approximate Metric Diameter: 76.2mm
Valves: 1
Elbows: 1
Control Modules: 1
Remotes: 2
Control: Wireless
Modes: Fully Closed / Partially Open / Fully Open
Motor: Weather-resistant design
Installation: Clamp/custom fabrication
Fitment: Universal
Advertised Warranty: 2 years
Primary Application: Adjustable single-pipe exhaust bypass
Always verify exhaust dimensions, installation space, electrical requirements and current package contents before ordering.
There are no reviews yet.
