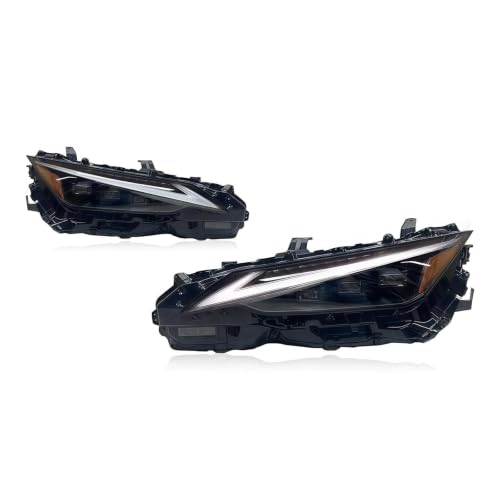

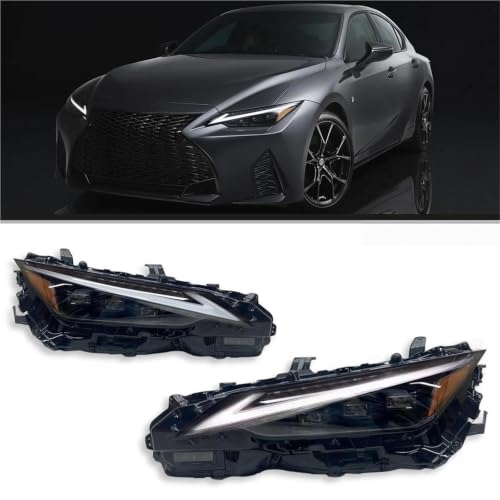

LED Headlight Assembly Set for 2021–2025 Lexus IS300, IS350 and IS500

Specifications

Matrix-Style Projector Design

The projector arrangement is designed to create a focused high- and low-beam pattern with a modern appearance. Controlled optics matter more than raw brightness because usable road illumination must be directed ahead instead of scattered into traffic.

The finished beam pattern depends on more than the projector itself. Installation position, vehicle ride height, housing alignment and headlight aim all affect nighttime performance.

Our guide to upgrading headlights correctly explains why beam control and housing compatibility matter more than impressive product-page brightness claims.

Sequential Turn Signals

The integrated amber turn signals illuminate progressively in the direction of the intended turn. This creates a modern appearance while making the signal’s purpose easy for surrounding drivers to recognize.

Sequential operation may depend on the vehicle’s factory configuration, supplied modules and wiring. Confirm whether the feature works through the original connector or requires an included adapter harness.

Dynamic Startup Animation

When the vehicle is unlocked or started, the assemblies perform a brief lighting sequence across the DRL and projector elements. Once the animation finishes, the lamps return to their normal operating mode.

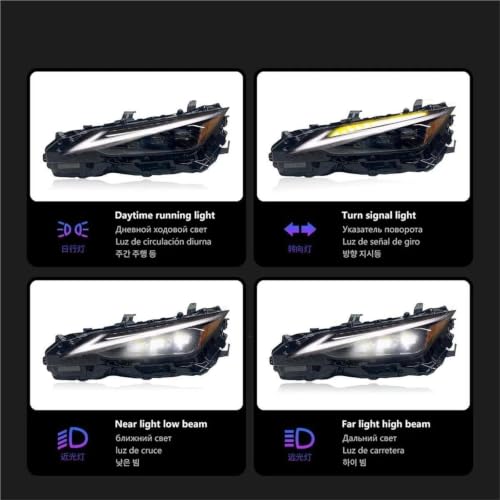

This is a styling feature, not a substitute for confirming that every required lighting function operates correctly. Test the following after installation:

• Low beams
• High beams
• Daytime running lights
• Left and right turn signals
• Hazard lights
• Parking lights
• Automatic-headlight operation
• Intelligent High Beam operation, if equipped

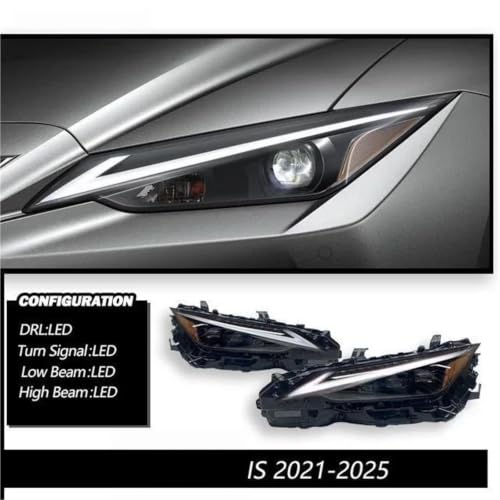

Integrated Daytime Running Lights

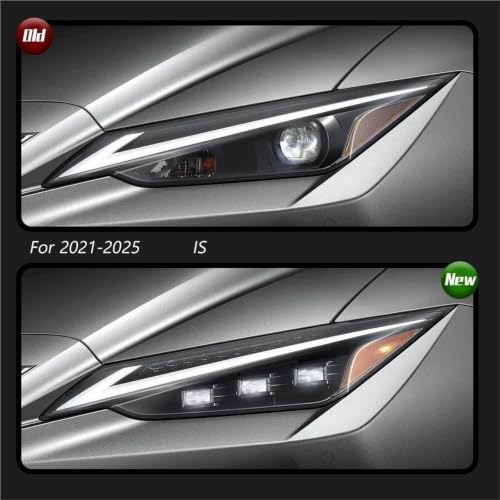

The bright LED DRL follows the modern L-shaped signature used on the refreshed IS. Lexus introduced this slender headlight design for 2021, with the DRL extending laterally above the compact lamp units.

The integrated amber reflector adds side visibility, but its presence alone does not establish DOT or FMVSS compliance. The delivered assemblies should carry the required markings and supporting compliance documentation before they are advertised as approved for public-road use.

Critical Fitment Check: Standard LED vs Triple-Beam

The 2021–2025 IS was available with different factory headlight configurations. Lexus confirms that triple-beam LED headlights were optional on multiple IS300 and IS350 models, while certain IS500 packages also included them.

Before purchasing, compare:

• Number and arrangement of factory projectors
• Main electrical connector
• Connector pin count
• Headlight control modules
• Auto-leveling equipment
• Intelligent High Beam equipment
• Original mounting tabs
• Factory part numbers
• Left- and right-hand-drive configuration

A housing can bolt into the fender and still be electrically incompatible. That is technically “fitment,” if your definition of fitment includes warning lights and several hours of regret.

Read Do Aftermarket Headlights Fit Your Car? before ordering.

Installation Overview

Installation is intended to use factory mounting locations and connectors, but front-bumper removal may be required.

1. Disconnect the negative battery terminal.
2. Remove the necessary upper covers and bumper fasteners.
3. Carefully release the front bumper cover.
4. Disconnect the original headlight connectors.
5. Remove the factory mounting bolts and assemblies.
6. Transfer any required modules, brackets or hardware.
7. Connect the replacement assemblies temporarily.
8. Test every lighting function before reinstalling the bumper.
9. Align the housings with the hood, fenders and bumper.
10. Tighten the mounting hardware evenly.
11. Reinstall the bumper and trim.
12. Aim both headlights.

“Plug and play” describes the electrical connection when everything matches. It does not mean the bumper politely removes itself while you make coffee.

Headlight Aiming Is Required

Even a vehicle-specific assembly should be checked after installation. A beam aimed too high creates glare, while one aimed too low wastes the projector’s usable range.

Use our headlight aiming guide to establish an even cutoff and verify the finished beam pattern before regular nighttime driving.

Weather-Resistant Construction

The housings are described as sealed against rain and road grime, with internal heat-dissipation provisions for the LED components. After installation, check that:

• Every rear cover is secured
• Connector seals are seated
• Housing vents remain unobstructed
• Mounting tabs are not under stress
• No moisture develops after washing or rain

Minor temporary fogging can occur with temperature changes, but standing water or persistent condensation indicates a sealing or ventilation problem.

Road-Use and Compliance Notice

No manufacturer name, model number, DOT marking or certification documentation was supplied with the submitted description. Do not advertise these assemblies as DOT, SAE or FMVSS compliant until the exact delivered product and its compliance markings have been verified.

The amber reflector, focused beam claim and factory-style appearance do not independently prove regulatory compliance. Styling is not certification, although online listings occasionally treat the two like close cousins.

Why Upgrade the Lexus IS Headlights?

This assembly set updates several lighting functions at once:

• Modern startup animation
• Sequential signaling
• Integrated DRLs
• Projector-style high and low beams
• Matching left- and right-side appearance
• Replacement of damaged, hazy or moisture-contaminated housings
