Required Factory Features
The original passenger-side mirror should match this configuration:
| Feature | Included |
|---|---|
| Power glass adjustment | Yes |
| Heated glass | No |
| Puddle lamp | No |
| Electronic BLIS indicator | No |
| Memory | No |
| Auto-dimming | No |
| Ready-to-paint cover | Yes |
| Mirror glass | Yes |
| Complete housing | Yes |

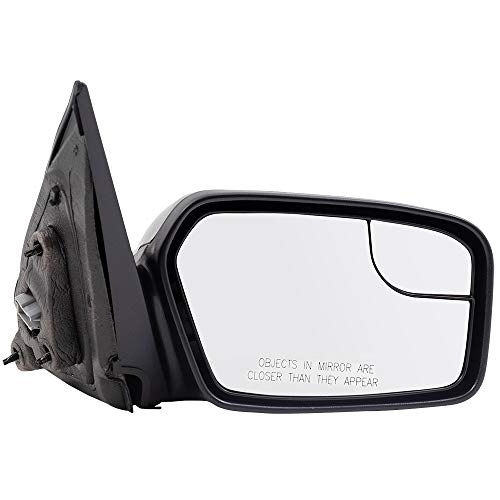

This mirror may include a physical convex spotter or blind-spot section in the glass, depending on the exact supplied version. That is different from Ford’s electronic BLIS system, which uses radar sensors and an illuminated warning indicator.
PartsLink FO1321419 is cataloged as a power, non-heated passenger mirror without electronic BLIS or a puddle lamp, but with blind-spot glass in several aftermarket catalogs.
Power-Adjustable Glass
The mirror connects to the factory wiring and uses the original interior adjustment switch. It restores horizontal and vertical movement without requiring manual positioning from outside the vehicle.
The car must already have compatible power-mirror wiring. This assembly will not convert a manually adjusted mirror without additional electrical components.

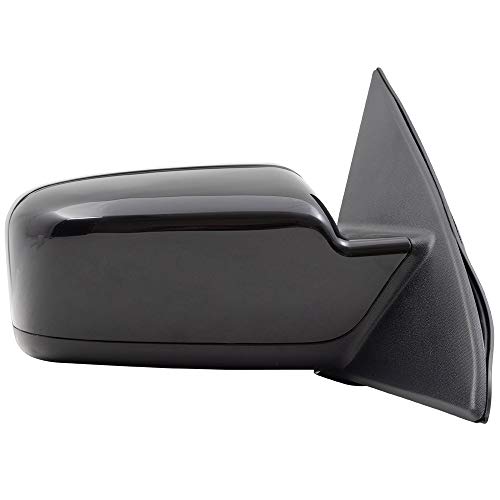

Ready-to-Paint Finish
The supplied black housing surface is unfinished and must be prepared and painted to match the vehicle.
Recommended Paint Preparation
- Inspect the housing for shipping damage.
- Test-fit the mirror before painting.
- Clean the surface with a plastic-safe wax and grease remover.
- Lightly scuff according to the paint manufacturer’s instructions.
- Apply an adhesion promoter or suitable primer.
- Apply matched basecoat.
- Finish with automotive clearcoat.
- Allow the coating to cure before installation.
Paint the cover only after confirming fitment. A beautifully painted incorrect mirror remains incorrect, just with better gloss.

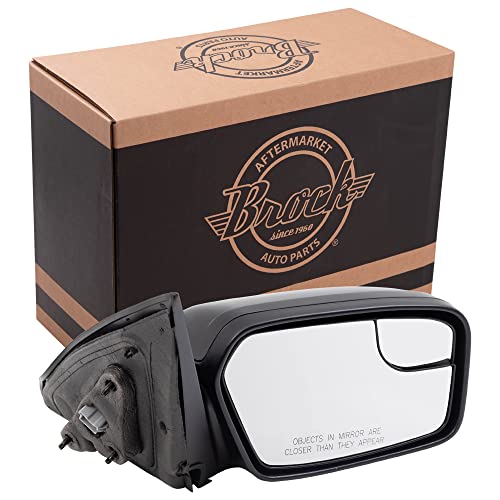

Complete Passenger-Side Assembly
The replacement includes:
- Passenger-side mirror glass
- Internal power-adjustment motor
- Mirror housing
- Ready-to-paint cover

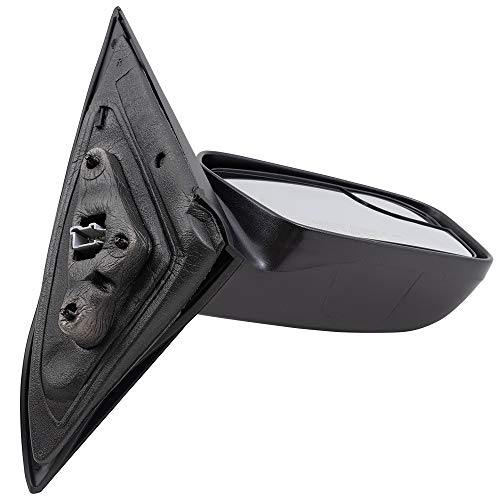

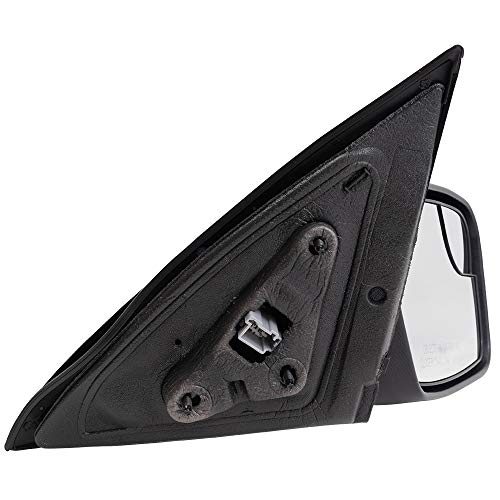

- Factory-style mounting base
- Electrical pigtail or connector
Existing mounting hardware or interior trim may need to be reused unless replacement pieces are specifically included in the package.
Installation Overview
Replacing the mirror normally requires removing the interior sail panel and accessing the electrical connector and mounting fasteners inside the door.
Basic Installation
- Lower the passenger window.
- Switch off the ignition.
- Remove the interior mirror trim panel.
- Remove door-panel components as required.
- Disconnect the factory mirror connector.
- Support the mirror from outside.
- Remove the mounting nuts.
- Lift the old assembly away from the door.
- Compare the connectors and mounting bases.
- Install the Brock replacement.
- Tighten the fasteners evenly.
- Reconnect the wiring.
- Reinstall the interior trim.
- Test full mirror movement.
Do not overtighten the mounting nuts. The mirror needs to remain stable without turning its plastic mounting base into a three-piece kit.
Reference and Interchange Numbers
| Reference Type | Number |
|---|---|
| PartsLink | FO1321419 |
| Complete mirror reference | BE5Z-17682-AA |
| Cover reference | 6E5Z-17D742-BPTM |
| Brock item number | 3331-2010R |
Brock lists FO1321419 and BE5Z-17682-AA for this complete passenger mirror. The 6E5Z-17D742-BPTM number is associated with the paint-to-match passenger-side mirror cover rather than the complete powered assembly by itself.
That distinction matters when comparing listings. A cover and a complete mirror assembly are very different purchases, despite online catalogs occasionally treating part numbers like communal property.
Specifications
| Attribute | Details |
|---|---|
| Brand | Brock |
| Product Type | Exterior mirror assembly |
| Position | Right passenger side |
| Vehicle | Ford Fusion |
| Model Years | 2011–2012 |
| Adjustment | Power |
| Heating | No |
| Puddle Lamp | No |
| Electronic BLIS | No |
| Surface Finish | Ready-to-paint black |
| Mirror Glass Included | Yes |
| Housing Included | Yes |
| Mounting Style | Bolt-on |
| Lens Shape | Convex passenger glass |
| Warranty | One-year limited |
Fitment Checklist
Before ordering, verify:
- The vehicle is a 2011 or 2012 Ford Fusion
- The damaged mirror is on the passenger side
- The original mirror is power adjustable
- The original glass is not heated
- No puddle lamp is present underneath
- No electronic BLIS indicator is built into the glass
- The connector matches
- The mounting pattern matches
- A paint-to-match housing is acceptable
Use the VIN when factory equipment is uncertain. Our guide to choosing aftermarket side mirrors explains why feature matching is essential before installation.
Why Replace the Complete Mirror?
A complete assembly is appropriate when the original mirror has:
- Broken or missing glass
- Failed power adjustment
- A cracked mounting base
- Damaged wiring
- A broken housing
- Excessive vibration
- Collision or parking damage
If only the painted cover is damaged, Ford reference 6E5Z-17D742-BPTM may identify the cover separately. If the motor, glass, or structural mounting base is damaged, replacing the complete FO1321419 assembly is the better repair.
