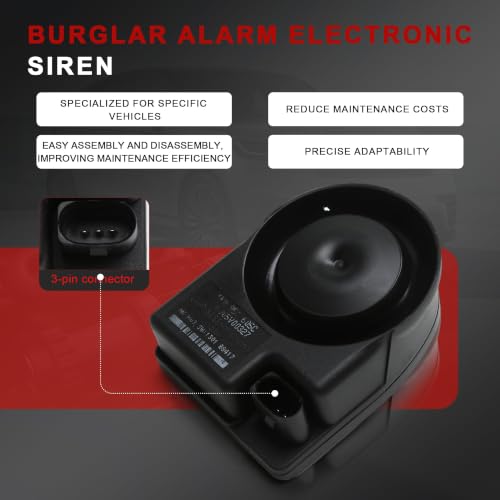

12V 3-Pin Alarm Siren
The replacement unit uses a:
12-volt electrical system
and
3-pin electrical connector
These are two of the most important physical specifications to compare with the original component.
Before ordering, inspect your existing alarm horn and verify:
- OE number
- Connector shape
- Three-pin configuration
- Mounting design
- Vehicle application
Do not order based on vehicle model alone when an original part number is available.
What Does the Factory Alarm Siren Do?
The alarm siren is the audible warning component of the vehicle’s factory anti-theft system.
When the security system detects a valid alarm event, the vehicle commands the siren to sound.
Depending on the vehicle and security configuration, alarm events may involve:
- Unauthorized door opening
- Hood opening
- Trunk or hatch opening
- Interior monitoring
- Vehicle movement or towing detection
- Other factory anti-theft triggers
The alarm horn itself does not independently provide all of these functions.
It is one component within the vehicle’s larger factory security system.
Symptoms of a Failed Alarm Siren
A failing alarm horn can produce several symptoms.
Common complaints may include:
- Alarm activates but no siren sounds
- Alarm siren sounds intermittently
- Alarm behaves unpredictably
- Security-system warning or stored fault
- Alarm horn does not respond during output testing
- 01134 fault code
- No communication with alarm horn
- Internal siren battery failure
Some alarm siren assemblies use an internal backup battery so the alarm can continue operating even if vehicle power is interrupted.
As these assemblies age, that internal battery can deteriorate.
01134 – Alarm Horn H12: No Signal/Communication
One diagnostic fault associated with these systems is:
01134 – Alarm Horn (H12): No Signal/Communication
This generally means the vehicle cannot communicate properly with the alarm horn or is not receiving the expected response from it.
That does not automatically mean the siren itself is bad.
Possible causes can include:
- Failed alarm horn
- Failed internal siren battery/electronics
- Damaged wiring
- Corroded connector
- Poor electrical connection
- Power or ground problem
- Communication-circuit fault
- Related control-module issue
Diagnosis should come before parts replacement whenever possible.
Don’t Immediately Blame the ECU
Some generic listings for this product suggest that fault 01134 means the vehicle’s ECU or diagnostic interface may have failed.
That is not where we would begin diagnosis.
If a scan tool can communicate normally with the vehicle and specifically reports an alarm-horn communication fault, start by inspecting the alarm siren circuit itself.
Check:
- Alarm-horn connector
- Wiring
- Power supply
- Ground
- Communication circuit
- Siren condition
Only move deeper into control-module diagnosis when testing supports it.
Replacing expensive modules before checking the alarm horn is an excellent way to turn a relatively small repair into a very expensive guessing contest.
Internal Backup Battery Failure
A notable failure point on some factory alarm sirens is the internal rechargeable backup battery.
The backup power source allows the siren to continue operating if someone attempts to defeat the alarm by disconnecting vehicle power.
Over time, the internal battery can deteriorate.
Depending on the siren design, battery deterioration can contribute to:
- Alarm-horn faults
- Intermittent operation
- No alarm sound
- Communication problems
- Internal circuit-board damage
On older vehicles, replacing the complete siren assembly is often more practical than attempting to rebuild the sealed electronics.
Wiring Should Still Be Tested
Do not assume that every 01134 code means:
Buy siren. Install siren. Problem solved.
Inspect the connector and harness first.
Look for:
- Corrosion
- Moisture intrusion
- Broken wires
- Damaged insulation
- Loose terminals
- Previous repair damage
- Poor grounds
If the siren has no power or communication because the harness is damaged, a brand-new siren will behave suspiciously like the old one.
Scan the Vehicle Before Replacement
A Volkswagen/Audi-capable diagnostic scanner can make this repair much easier.
Depending on vehicle and scan-tool capability, you may be able to:
- Read alarm-system faults
- Clear stored DTCs
- Check alarm-horn status
- View related measuring values
- Perform output tests
- Confirm communication after replacement
Generic engine-only OBD-II readers may not access the body/security module containing the alarm-horn fault.
For this job, vehicle-specific body-system diagnostic capability is far more useful.
Volkswagen Applications
This alarm siren part-number family is listed for select Volkswagen applications including:
- Volkswagen Beetle — 2012–2019
- Volkswagen CC — 2012–2017
- Volkswagen Eos — 2011–2016
- Volkswagen Golf — select 2010–2013 applications
- Volkswagen GTI — select 2010–2013 applications
- Volkswagen R32 — select applications
- Volkswagen Rabbit — select applications
- Volkswagen Jetta — select 2005–2018 applications
- Volkswagen Tiguan — select 2008–2018 applications
- Volkswagen Touareg — select 2011–2018 applications
Fitment varies by production date, trim, market and installed alarm system. Verify the original OE number before ordering.
Audi Applications
Listed Audi applications include select:
- Audi A3 / S3 — 2005–2013
- Audi A4 / S4 / Avant — 2009–2015
- Audi A4 Allroad Quattro — 2012–2016
- Audi A5 / S5 Coupe and Sportback — 2008–2016
- Audi A5 / S5 Cabriolet — 2010–2017
- Audi A6 / S6 / Avant Quattro — select 2005–2018 applications
- Audi A7 Sportback — select 2016–2018 applications
- Audi A8 / S8 Quattro — select 2010–2017 applications
- Audi Q3 — select 2015–2018 applications
- Audi Q5 — select 2009–2017 applications
- Audi Q7 — select 2007–2015 applications
- Audi TT Coupe / Roadster — select 2007–2014 applications
- Audi TTRS Coupe / Roadster — select 2012–2014 applications
- Audi RS5 Coupe / Sportback — select 2013–2016 applications
- Audi RS5 Cabriolet Quattro — select 2013–2016 applications
- Audi RS7 Sportback — select 2014–2018 applications
- Audi R8 — select applications
Again, these model/year ranges should be treated as a fitment guide rather than a guarantee.
The OE number on the original siren is the better reference.
Porsche Application
The alarm horn is also listed for certain Porsche applications using reference:
PAB951605 / PAB 951 605
including select Porsche Cayenne applications.
Porsche fitment should be verified carefully using the original component number or VIN before ordering.
Why Part-Number Matching Matters
Volkswagen Group frequently revises components during a vehicle’s production life.
Two cars that look identical from outside may use different:
- Control modules
- Connectors
- Software revisions
- Alarm systems
- Siren assemblies
That is why this listing includes several interchangeable/reference numbers.
Whenever possible:
Match the number printed on your original siren.
If the original part number does not match one of the listed numbers, verify compatibility before purchase.
This Is a Replacement Siren, Not an Alarm Kit
This product does not add a complete alarm system to a vehicle that does not already have one.
It does not include:
- Alarm control module
- Keyless-entry remotes
- Shock sensor
- GPS tracker
- Remote start
- Starter kill
- Smartphone control
It replaces the factory alarm siren/horn on compatible vehicles.
The vehicle must already have the appropriate factory security system and wiring.
Not the Same as the Regular Horn
The anti-theft alarm siren should also not be confused with the vehicle’s normal horn.
Your steering-wheel horn is intended primarily for traffic warning.
The alarm siren is part of the vehicle-security system.
A vehicle can therefore have:
A perfectly functioning steering-wheel horn
and
A completely dead alarm siren.
Testing one does not necessarily prove that the other works.
Installation
Installation procedure varies considerably by vehicle.
The siren may be mounted behind:
- Fender liner
- Cowl area
- Engine-compartment trim
- Body panels
- Other protected locations
Access can require removal of surrounding trim or liners.
Before installation:
- Switch the ignition off.
- Locate the original alarm siren.
- Verify the original part number.
- Compare the connector.
- Inspect the wiring.
- Disconnect the old unit according to proper service procedures.
- Install the replacement.
- Reconnect the electrical connector.
- Reassemble removed components.
- Scan and test the security system.
Consult vehicle-specific service information for the correct procedure.
Clear Stored Fault Codes After Replacement
Replacing the siren does not necessarily erase a previously stored 01134 fault.
After installation, use an appropriate diagnostic scanner to:
- Clear stored faults
- Cycle the alarm system
- Re-scan the vehicle
- Confirm the code does not return
If 01134 immediately returns, additional wiring or module diagnosis may be necessary.
Test the Alarm After Installation
Once installation is complete, verify that the factory security system operates normally.
Depending on the vehicle, testing can include:
- Arm system
- Wait for full arming period
- Trigger an appropriate monitored input
- Confirm siren operation
- Confirm hazard/light response
- Scan for returning faults
Follow the vehicle manufacturer’s testing procedure where available.
What’s Included?
Package includes:
- 1 × Anti-Theft Alarm Siren Horn
No additional alarm system, remote controls or diagnostic equipment are included unless specifically stated with your package.

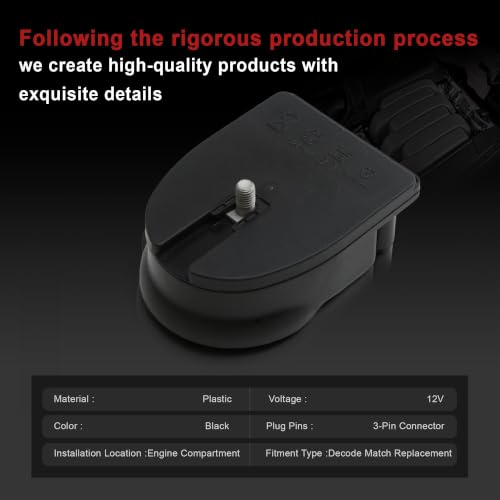

Product Specifications
Product: Anti-Theft Alarm Siren Horn
Voltage: 12V
Connector: 3-Pin
Quantity: 1
Condition/Type: Replacement alarm siren
Primary OE Family: 1K0 951 605
Secondary OE Family: 1K8 951 605
Porsche Reference: PAB 951 605
Remote Start: No
Keyless Entry System: No
GPS: No
Alarm Control Module: No
Application: Replacement component for compatible factory anti-theft systems
Frequently Asked Questions
What is 1K0951605A?
1K0951605A is an OE/reference number associated with a factory anti-theft alarm siren used on select Volkswagen Group vehicles.
What is 1K8951605A?
It is another alarm-siren reference within the supported/interchange family for select applications.
Are 1K0951605A and 1K0951605C interchangeable?
They are listed within the same replacement/interchange family for this product, but exact vehicle compatibility should still be confirmed using the original part number and VIN.
Is this a 3-pin alarm siren?
Yes. This replacement uses a 3-pin connector.
Is it 12 volts?
Yes.
What does fault code 01134 mean?
01134 can indicate a problem communicating with the Alarm Horn H12. Possible causes include the siren itself, its internal electronics/battery, wiring, connector, power/ground or related communication circuitry.
Will replacing the alarm horn fix 01134?
It may if the siren is the failed component, but wiring and power/communication should be checked before replacement.
Can the internal alarm-horn battery fail?
Yes. Internal backup batteries in aging alarm sirens can deteriorate and contribute to alarm-horn problems.
Does this replace my regular car horn?
No. This is the anti-theft alarm siren, not the normal traffic horn activated from the steering wheel.
Does this product add an alarm to my car?
No. It is a replacement component for vehicles already equipped with the compatible factory anti-theft system.
Does it include remote start?
No.
Does it fit Volkswagen vehicles?
It fits select Volkswagen applications using compatible 1K0/1K8 951 605-family alarm sirens.
Does it fit Audi vehicles?
It is listed for numerous Audi applications, but part-number or VIN verification is strongly recommended.
Does it fit Porsche?
Certain Porsche applications are listed using PAB951605/PAB 951 605. Verify exact fitment before purchase.
Do I need to clear the fault code after installation?
Stored alarm-system faults may need to be cleared with an appropriate diagnostic scanner after repair.
Fix the Alarm Instead of Ignoring the Code
A failed factory alarm siren is easy to ignore.
The car still starts.
The doors still lock.
The little red security light may even blink.
Everything looks fine.
Until somebody breaks into the car and your sophisticated factory security system responds with the intimidating sound of:
Absolutely nothing.
If your Volkswagen, Audi or compatible Porsche has a failed alarm horn, a stored 01134 Alarm Horn H12 fault, or a siren that no longer responds, this replacement 1K0951605 / 1K8951605-family 12V 3-pin alarm siren can restore the audible portion of the factory security system when the original siren is confirmed faulty.
Match the part number.
Check the wiring.
Scan the car.
Then replace the part that actually failed.
Parts darts are expensive.
