VIN Prefixes Do Not Confirm Fitment by Themselves
The listing separates some RAV4 applications according to VINs beginning with 2, 4 or J. These prefixes generally identify the vehicle’s country of assembly:
- 2: Canada
- 4: United States
- J: Japan
A VIN prefix alone does not confirm water-pump compatibility. Use the complete VIN, engine code and original part number. Geography is useful; the entire parts catalog it is not.
Replacement Part Number
This pump replaces:
- 16032-25010
- 1603225010
Related aftermarket catalogs may also reference revised housing or pump numbers such as:
- 16032-F0010
- 16032-F0011
- 16032-F0012
Do not automatically treat every related number as interchangeable. Compare the electrical connector, housing, mounting points and coolant ports with the original pump.

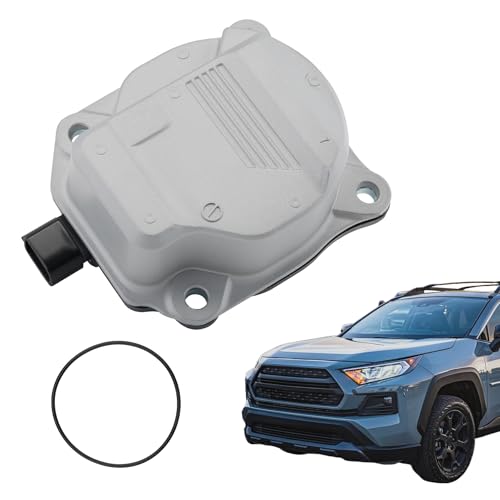

Product Specifications
- Brand: ATRACYPART
- Product type: Electric engine coolant pump
- Primary OE reference: 16032-25010
- Drive type: Electric
- Engine family: Toyota A25A 2.5L Dynamic Force
- Applications: Gasoline, hybrid and plug-in hybrid
- Package quantity: One pump assembly
- Installation style: Vehicle-specific replacement
- Warranty: Seller-stated 36 months

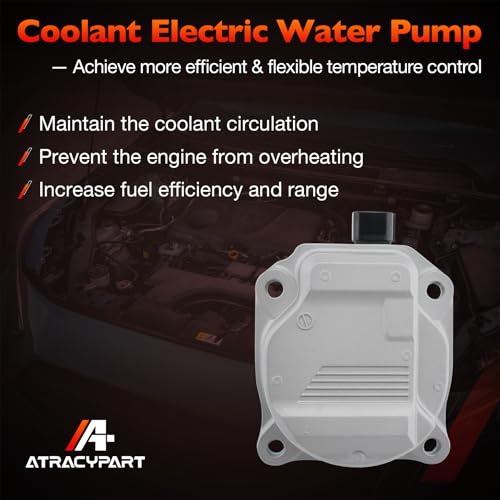

What Does the 16032-25010 Pump Do?
This electrically driven pump circulates coolant through the internal-combustion engine’s cooling circuit. Unlike a belt-driven pump, its speed can be controlled independently of engine RPM.
That allows the vehicle’s control system to adjust circulation according to:
- Engine temperature
- Engine load
- Warm-up requirements
- Cabin-heater demand
- Hybrid stop-start operation
- Post-shutdown cooling strategy
- Fuel-economy and emissions targets
Electric operation does not mean the pump is the inverter pump. Hybrid and plug-in models can have several electrically driven coolant pumps performing different jobs.
Engine Pump Versus Hybrid Inverter Pump
| Component | 16032-25010 engine pump | Inverter coolant pump |
|---|---|---|
| Primary system | Gasoline-engine cooling | Hybrid power electronics |
| Circulates engine coolant | Yes | No |
| Circulates inverter coolant | No | Yes |
| Electric drive | Yes | Usually |
| Part number | 16032-25010 | Application-specific |
| Interchangeable | No | No |
Replacing the engine pump will not correct an inverter-cooling fault. The pumps may both be electric and filled with coolant, but that does not make them interchangeable any more than four round tires make every wheel fit.
Common Symptoms of a Failing Electric Water Pump
Possible symptoms include:
- Engine overheating
- Temperature warning
- Check Engine Light
- Reduced engine power
- Cooling-system performance codes
- Pump-speed or communication codes
- Weak cabin heat
- Coolant leakage near the pump
- Unusual humming or grinding
- Pump that fails to operate when commanded
- Rapid temperature changes
- Cooling fan operating at high speed
An electric pump may fail mechanically, electrically or electronically. Diagnosis should confirm whether the pump is receiving power and commands before replacement.
Diagnose Before Replacing the Pump
Check the following:
- Coolant level with the engine completely cold.
- Stored and pending diagnostic trouble codes.
- Actual engine temperature using scan data.
- Commanded and actual water-pump operation.
- Pump power, ground and communication circuits.
- Electrical connector condition.
- Cooling-fan operation.
- Thermostat performance.
- External coolant leaks.
- Air trapped after prior cooling-system work.
If coolant is disappearing, follow our guide on how to find a coolant leak before ordering a pump.
Installation Notes
Never open the cooling system while the engine is hot. Pressurized coolant can cause severe burns.
General installation involves:
- Confirming the replacement through the complete VIN.
- Allowing the engine to cool completely.
- Preventing unintended hybrid-system or engine activation.
- Disconnecting the 12-volt battery as instructed by factory service information.
- Draining the appropriate engine-coolant circuit.
- Disconnecting the pump electrical connector.
- Removing the coolant hoses.
- Removing the mounting hardware and old pump.
- Comparing both pumps before installation.
- Installing new seals or gaskets where required.
- Reconnecting the hoses and electrical connector.
- Refilling with Toyota-approved coolant.
- Running the proper bleeding procedure.
- Activating the pump with a scan tool when required.
- Checking for leaks, circulation and stored codes.
Hybrid and plug-in vehicles contain high-voltage components. Do not disconnect, probe or handle orange high-voltage cables unless properly trained and equipped.
Cooling-System Bleeding Is Critical
Air trapped in the engine cooling circuit can produce poor heater output, unstable temperatures and repeat overheating warnings even when the new pump operates correctly.
After installation:
- Use the factory-specified coolant.
- Follow the model-specific fill procedure.
- Run any required electric-pump bleed routine.
- Maintain battery voltage during an automated bleed.
- Watch the reservoir level.
- Check for bubbles and circulation.
- Recheck the coolant after the vehicle cools.
For broader coolant-service guidance, see our article on how to flush a car cooling system.
Coolant Selection
Use coolant meeting Toyota or Lexus specifications. Coolant color alone does not establish chemical compatibility.
Mixing incompatible products can cause:
- Deposits
- Reduced corrosion protection
- Seal damage
- Restricted passages
- Pump wear
- Heater-core restriction
Our guide to automotive coolant types explains why matching the correct specification matters.
Frequently Asked Questions
What vehicles use pump 16032-25010?
It is commonly cataloged for select 2.5L Toyota and Lexus vehicles including the Camry, Avalon Hybrid, RAV4, RAV4 Hybrid, RAV4 Prime, Sienna Hybrid and Lexus ES 300h.
Is this an inverter coolant pump?
No. It is an electric engine coolant pump. Hybrid inverter and motor cooling systems use separate pumps.
Does it fit gasoline and hybrid RAV4 models?
Seller fitment includes both 2.5L gasoline and hybrid applications. Confirm the original pump number because the cooling systems and electrical control strategies are not identical.
Does it fit every 2018–2022 Camry?
The supplied listing specifically identifies the 2018–2020 AXVH70 Camry Hybrid. Other Camry applications require OE-number and VIN confirmation.
Does it fit the RAV4 Prime?
The expanded seller listing includes 2021–2022 RAV4 Prime SE and XSE models. Verify the original number before purchase.
Does it fit the 2021–2022 Sienna?
The expanded application data includes the hybrid-only 2021–2022 Sienna. Verify by complete VIN because the shorter product description omits the Sienna.
Does the first VIN character determine fitment?
No. It helps identify the country of assembly, but it does not replace a complete VIN-based parts lookup.
Will this pump fix overheating?
Only when the pump is the cause. Low coolant, trapped air, thermostat failure, radiator restriction, fan trouble and combustion leakage can produce similar symptoms.
Should the pump be replaced regularly?
No fixed replacement interval is established by the supplied information. Replace it when diagnosis confirms failure, leakage or inadequate operation—not because an online bullet point became nervous.
What warranty is included?
ATRACYPART states that the pump carries a 36-month replacement or refund warranty. Review the seller’s current conditions and exclusions before ordering.
A broader 16032-25010 application reference is available from this Toyota water-pump fitment catalog.
