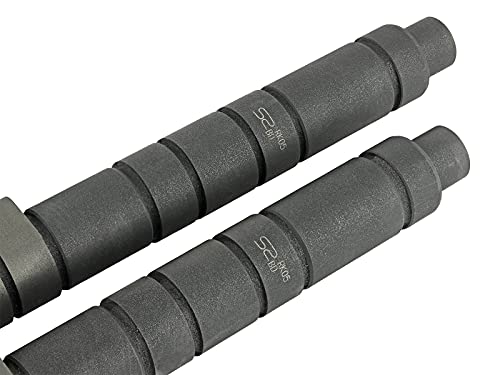

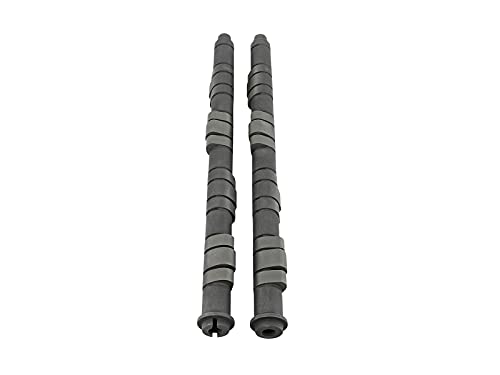

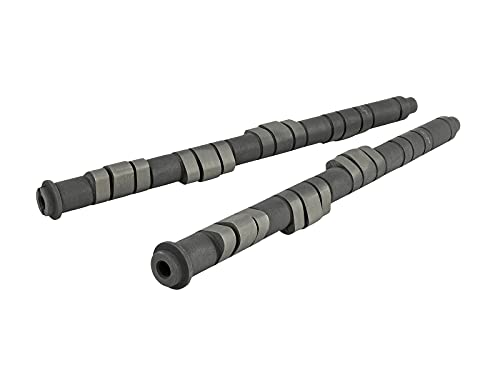

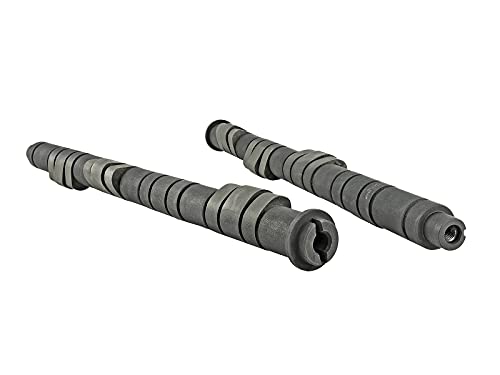

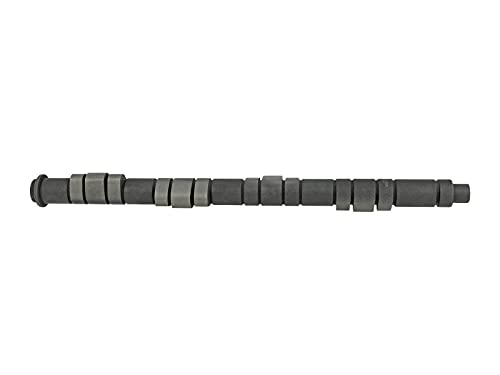

Skunk2 Racing 305-05-5200 Pro 1+ Camshaft for Honda H-Series VTEC Engines

✅ Engine Compatibility

Designed for Honda H-Series DOHC VTEC, including:

• H22A

• H22A1 / H22A4 variants

Commonly found in:

• Honda Prelude

• Honda Accord

⚠ Not for F-series or non-VTEC engines.
⚠ Always confirm engine code before ordering.

Gain an extra 15-20 hp with Skunk2’s Pro 1+ Camshafts, our professional line of high-lift, racing camshafts for Honda’s H22/ F20B VTEC engines. Pro 1+ Camshafts are designed to optimize mid-range and top-end horsepower and torque, with peak power realized at the factory redline. As a result, VTEC crossover is seamless, allowing for the broadest powerband possible. No other line of racing camshafts even comes close to Skunk2’s Pro Series. What’s more, Pro 1+ Camshafts are also the perfect addition to any high-output, turbocharged engine.

Skunk2’s Pro Series Camshafts for Honda’s H-series engines dramatically increase both horsepower and torque yet retain complete valvetrain stability and exceptional engine response. Ideal for heavily modified engines, Pro Series Camshafts are manufactured from proprietary, high-quality cores, are CNC ground, and feature patent-pending profiles with unique lobe shapes and revolutionary lift, velocity, and acceleration characteristics.

🔧 What Skunk2 Pro 1 Plus H22 Camshaft Delivers

Compared to stock cams:

• Increased lift

• Optimized duration

• Improved high-RPM airflow

• Stronger VTEC engagement

It’s designed for builds that see 7,500–8,200 RPM regularly without sacrificing daily drivability.

Skunk2 camshafts deliver unparalleled power as a result of continual, extensive development and testing. By utilizing advanced manufacturing techniques and the latest computerized simulation and modeling equipment, Skunk2 camshafts are able to deliver maximum power across the entire powerband. Skunk2 designs and tests all of its camshafts in-house to ensure the highest quality and performance. Each camshaft is manufactured of newly revised chill-cast, billet camshaft blanks that have increased torsional strength, improved durability characteristics, and reduced frictional effects. All Skunk2 camshafts are ground to exact specifications using state-of-the-art CNC cam grinding machines equipped with cubic-boron grinding wheels and feature hardened, wear-resistant lobes and surfaces.

🏁 Ideal Supporting Mods

To get real gains:

✔ Upgraded valve springs (recommended)
✔ Adjustable cam gears
✔ Performance header
✔ Intake manifold upgrade
✔ Proper ECU tuning (Hondata / standalone)

Drop it in without tuning and expect disappointment.

Skunk2’s Pro Series Camshafts also feature Fast Ramp and AMAX profile technology, which increases overall performance and results in unmatched response from idle to redline. AMAX technology simply maximizes the area under the lift curve but without compromising reliability or valvetrain stability. Skunk2’s profiles feature more duration than competitors’ at lifts above 1mm, resulting in greater efficiency and more power. And thanks to Fast Ramp, the same technology used in Formula One racing, seat timing is reduced, which results in additional cylinder pressure and more torque but without compromising valvetrain longevity.

⚙ Expected Results (Properly Tuned)

• Stronger midrange torque

• Noticeable top-end improvement

• Crisper VTEC crossover

• Improved throttle response

On a healthy H22, this cam supports solid NA power gains and pairs well with mild boost setups.

Skunk2 camshafts designs are the direct result of our years of drag racing and road racing efforts. In addition to each Skunk2 project car and race vehicle, the world’s top road racing and drag racing teams have relied on Skunk2 camshafts for years.

Features:

• For highly modified Honda H22/F20B VTEC engines – High compression or turbocharged
• Fast Ramp & AMAX Technologies
• Optimized mid-range and top-end power with unmatched response
• Horsepower Gain: 15-20
• CNC machined from new chill-cast billet camshaft cores
• Intake Duration / Lift: 258° / 12.65mm lift @ 0.000” lash
• Exhaust Duration / Lift: 260° / 11.90mm lift @ 0.000” lash
• Valve Clearance (Intake / Exhaust): .007” / .008”

Note:

• Requires Pro Series Valve Springs, Retainers, Adjustable Cam Gears
• Recommend Deep Valve Pockets, LMA’s, Clearance inspections

Designed to optimize mid-range and top-end horsepower and torque, with peak power realized at the factory redline
Ideal for heavily modified engines
Fast Ramp & AMAX Technologies
Horsepower Gain: 15-20hp / Torque Gains 18-22 lb-ft / RPM Range: 1,500 – 9,000 rpm
Intake Duration / Lift: 258° / 12.65mm | Exhaust Duration / Lift: 260° / 11.9mm
Intake Centerline: 98° | Exhaust Centerline: 105°
Valve Clearance (Intake / Exhaust): .007” / .008”
Required: Adjustable Cam Gears, Pro Series Valve Springs, Titanium Retainers, Cam Degreeing and Engine Management
Fitment: 1993 – 2001 Honda Prelude (2.2L Base/Type SH)

🔩 Skunk2 Pro 1 Plus H22 Camshaft Installation Notes

• Degree cams properly

• Verify piston-to-valve clearance

• Inspect valvetrain condition

• Adjust valve lash correctly

• Tune immediately after install

H-series timing mistakes are not forgiving.
